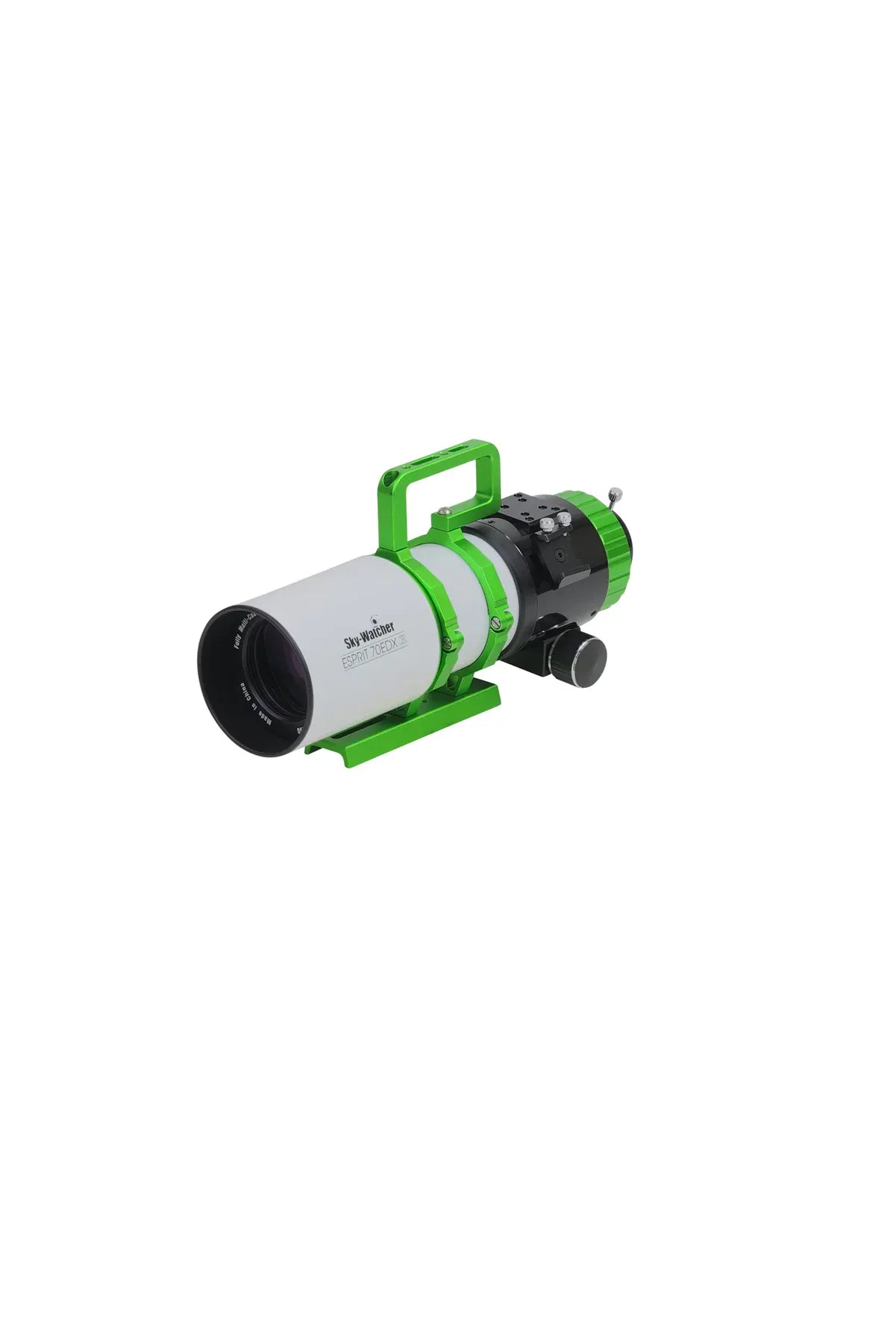

Description
- Triplet super-apochromatic design
- Three-element, air-spaced optical assembly virtually eliminates false color
- 70mm aperture, 490mm focal length, f/5 focal ratio
- FCD-100 glass
- Thread-on dew shield
- 2.7-inch linear rail rack-and-pinion with micro focus
- Aluminum optical tube with white, glossy finish
- Camera Angle Adjuster
- Sturdy carry handle attaches to tube rings
- Included accessories: Tube rings, V-style dovetail, M48 camera adapter, and padded hard case
THE ELITE ASTROGRAPHS FOR THE REST OF US
Designed with the discerning astrophotographer in mind, Sky-Watcher’s ALL NEW top-of-the-line Esprit EDX refractors deliver the kind of imaging performance one would expect from telescopes costing thousands of dollars more. With the Esprit’s three-element, air-spaced objective lens design, false color is virtually eliminated, yielding exceptional contrast and sharpness. Each element is fully multi-coated with Sky-Watcher’s proprietary Metallic High-Transmission Coatings™ (MHTC)™, producing a transmission rate that rivals any refractor on the market.
In addition to superb optics, all Esprits feature exclusive dual-speed, Helinear track focusers, which provide smooth, rock-solid focusing with zero image shift. Using a Camera Angle Adjuster which is found on the end of the focuser drawtube and allows for orientation of your camera or eyepieces without needing to rotate the entire focuser. The Esprit EDX 100, 120, and 150 also come stock with rotatable focusers.
All Sky-Watcher Esprit EDX refractors come with mounting rings, dovetail plate, camera adapter, and foam-lined hard case.
Unsurpassed Performance
Esprit EDXs use three-element air-spaced optics to deliver images equal to scopes costing thousands of dollars more.
Award-winning Optics
All Sky-Watcher Esprit EDXs use laboratory matched lens assemblies, including extra-low dispersion elements, for unrivaled clarity and color correction.
Exclusive Linear-track Focuser
Sky-Watcher’s exclusive focuser design combines a rock-solid platform with zero image shift.
Specifications
| SKU | S11425 |
| UPC | 810098970709 |
| Optical Specifications | |
|---|---|
| Optical Design (achro or apo) | Super-Apochromatic |
| Lens Coating (fully multi-coated)? | Fully multi-coated |
| Lens design (doublet, triplet or Quad) | ED Triplet (Air Spaced) |
| Optical Quality | Diffraction limited (1/4 wave) |
| Collimatable Cell | Yes (Push/Pull Cell) |
| Primary Aperture (mm) | 70mm |
| F/Ratio | 7 |
| Focal Length (mm) | 490mm |
| Optional Corrector Specifications | |
| Field Flattener or Reducer? | Flattener |
| Thread-On or Insertable | Thread-On |
| Corrector Thread size | M65x1 female/M66x1 male |
| Corrector Back Focus | 66mm |
| Corrector illuminated field | 33mm |
| Corrector adapter needed? | Yes (Included with telescope) |
| Corrector allow for 2" filters? | Yes |
| Optional Corrector/Reducer Specifications | |
| Mechanical Specifications | |
| Focuser Type | Linear Rail Rack & Pinion |
| Focuser Size | 2.7" |
| Focuser: Dual or Single Speed | Dual speed (11:1 ratio) |
| Focuser: Rotatable? | Yes |
| Camera Adjuster | Yes |
| Compression Ring | Yes |
| Drawtube thread size | M74x1 |
| Retractable dew shield? | No (thread-on) |
| OTA material | Aluminum |
| Optical Tube length Retracted/Extended (inches) | 14.5" / 16.5" |
| Dew Shield diameter (inches) | 4.17" |
| OTA Diameter (mm) | 101mm |
| Optical Tube weight with included accessories (pounds) | 7 pounds |
| Mounting Rings? | Yes |
| Dovetail type | V-style Mounting foot |
| Dovetail length | 6" |
| Accessories | |
| Eyepieces | No |
| Diagonal | None |
| Handle | Yes |
| Mounting Hardware | Mounting Rings/Dovetail |
| Flatter or Corrector | Optional |
| Additonal Accessories | None |
| Collimation eyepiece | No |
| Included finder | None |
| Manual | No (PDF online) |
| Case | Yes |
| Shipping Weight | 23.5 |
| Shipping Dimensions/Weight | 22.5"x17.5"x14.5" |
| Observational Info | |
| Dawes Limit | 1.65 |
| Rayleigh Limit | 2 |
| Limiting Magnitude | 11.7 |
| Minimum Magnification | 10x |
| Maximum Magnification | 138x |
| Light Gather (compared to next size down) | 37% (compared to 60mm) |
| Intended use | Visual/Imaging |
Ressources supplémentaires
Que puis-je voir avec ce télescope ?
Viewing location and sky conditions can vary and will affect actual results.
