ZWO NEW Filter Drawer for Nikon Lens - ZWO-FD-Nikon

ZWOSKU: ZWO-FD-Nikon

Price:
Sale price$134 CAD
Stock:
In stock: 5 unit(s) - Most orders placed by 2PM EST will be shipped out the same day (weekdays)

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tyler
Filter drawer adapter

Although, I haven't had a chance to do any imaging due to wildfire smoke. I have attached the drawer to a lens and my ASI294MC Pro and it fits really well. The build quality seems to be on par with all my other ZWO products.

Description

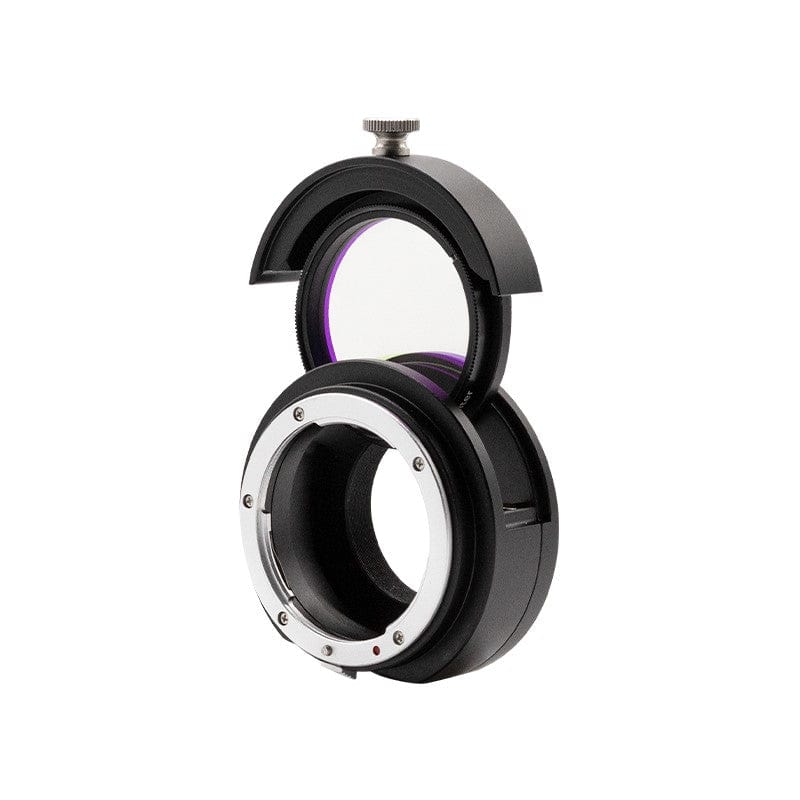

New filter Drawer with a thickness of 29mm that can be used for carrying 2" filter and connecting ASI cooled cameras to Nikon Lens.

1

It is compatible with all ASI cooled cameras with 17.5mm back focus distance (except ASI GT series): 1600/294/183/071/533/2600/6200/2400

2

It can be used with all ZWO 2" filters, including the duo-band filter, narrowband filter, IR-cut filter, etc.

If you are using 2" filters from third party, then please make sure they meet the requirements below.



3

Filters are very easy and convenient to install and pull out with the ability of double strong magnetic adsorption.

4

Thread of the interface: M42*0.75.

You'll need use a M54M-M42F adapter (0mm) to connect the filer drawer to the full-frame camera.

Connection method:

5

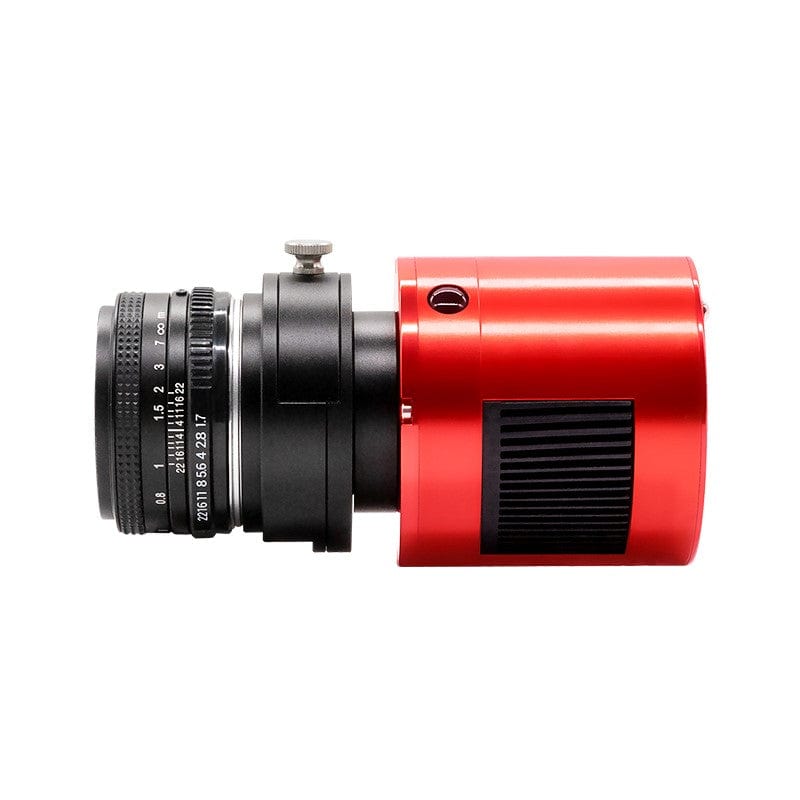

Connecting to ASI1600/294/183/533:

6

Connecting to ASI6200/2400/2600/071:

7

*The M54M-M42F adapter is needed when connected to full frame camera ASI6200/2400.

Mechanical drawing:

8

70mm diameter*29mm(thickness)

M42*0.75 male (external) thread (camera side)

M48*0.75 female (internal) thread (filter end)

Suitable for 2-inch astronomical filters

What's in the box?

9
