ZWO 5 Position 1.25" or 31mm Mini Electronic Filter Wheel - ZWO-EFW-MINI

ZWOSKU: ZWO EFW-MINI

Price:
Sale price$269 CAD
Stock:
Back-Ordered - Place an Order to Reserve Yours, Otherwise Enter Your Email Address Further Below to be Notified When it's Back in Stock.      Click Here to ask us about back-ordered product availability
Description

The smallest and most lightweight 1.25″ Electronic Filter Wheel in the world!

300g  ONLY ! Small than your hand !

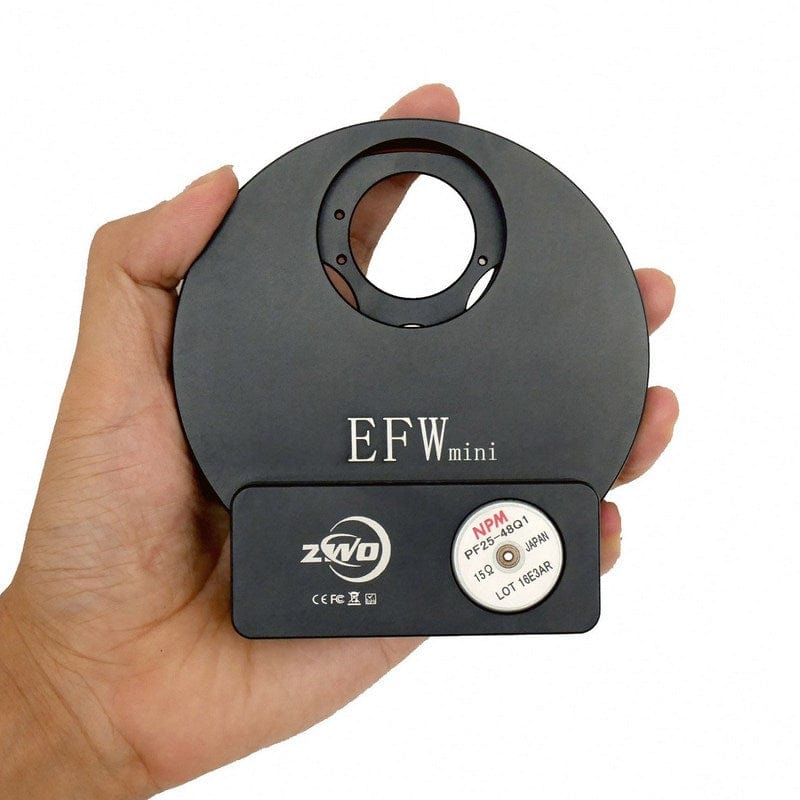

EFW in Hand


The body is CNC machined from a full block of aircraft grade aluminum.

Very thin design, 20mm ONLY

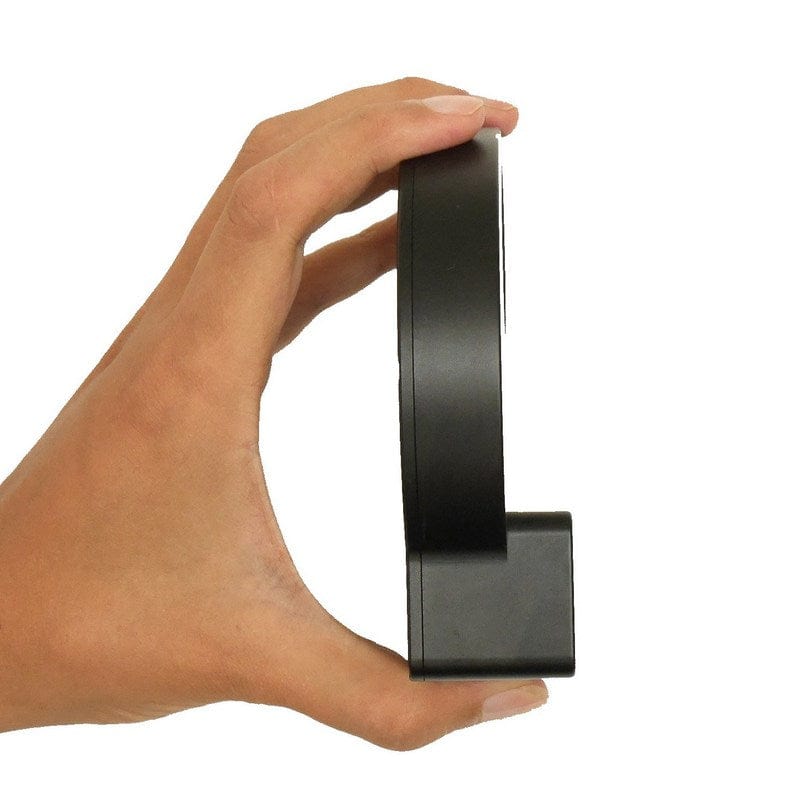

EFW in Hand side view


The step motor is the heart of the EFW-Mini, which is made by NPM from Japan. You can trust its quality and reliability.

P1010741


Supports both 5*1.25″ filters or 5*31mm filters

The Electronic Filter wheel can be rotated in both counter clockwise or clockwise direction for filter selection.


EFW

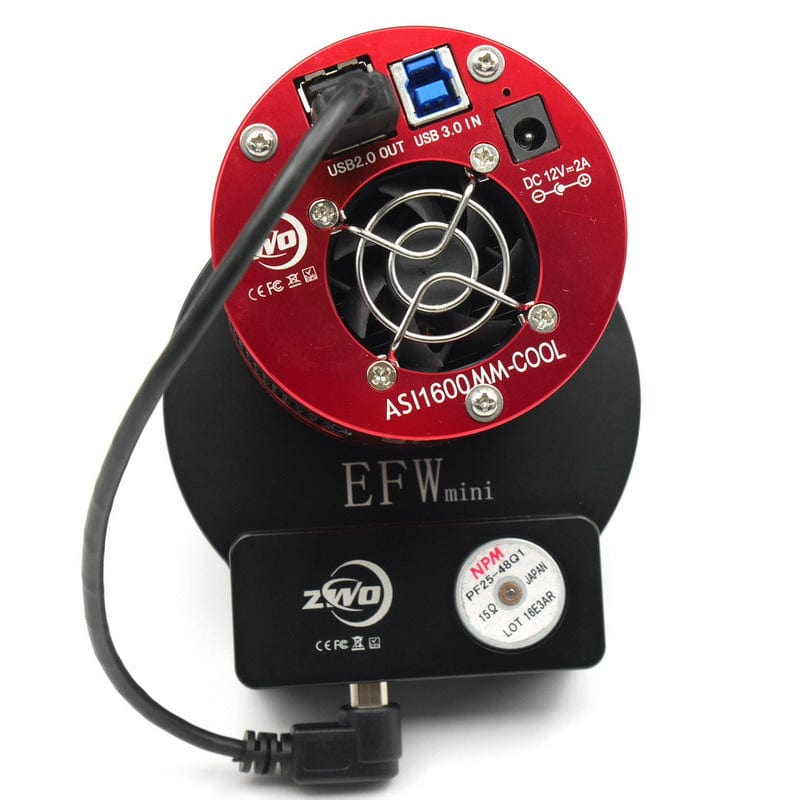

Only one USB Cable is enough to power up the EFW, the max power consumption is around 120ma@5V, so you can connected it form the USB2.0 hub of our cooled cameras.

P1010774

The distance between the filter and sensor is around 10mm when you connect it to ASI1600.

So 1.25″ filters won't have vignetting up to F5 focal ratio scope and 31mm filter won't have vignetting up to F2 lens

Our new RGBL filters are recommended to work with ASI1600, it will offer nearly 1:1:1 RGB color balance.



What`s in the box?

  1. EFW-Mini body
  2. 1.25″ cover
  3. T2 nosepiece
  4. 1.25″ holder(with cover and 2 screws)
  5. T2-T2 adapter(male)
  6. A bag of filter masks
  7. USB2.0 2m cable
  8. Phillips screwdriver
  9. A bag of M2 screws



 EFWmini



Mechanical drawing:

drawing

How to use it?

You just need to plugin the EFW mini with USB2.0 cable and install the   ASCOM driver

There are  ZWO Filter Wheel(1) and ZWO Filter Wheel(2) to select,  you can use either one of them

There are 2 ASCOM is for controlling 2 EFW-Mini with one software.
