Svbony SV165 Mini Guider Scope 30mm/120mm F4 - W9125A

SvbonySKU: W9125A

Price:
Sale price$60 CAD
Stock:
In stock: 7 units - Most orders placed by 2PM EST will be shipped out the same day (weekdays)
Have a question? Chat with us!

Customer Reviews

Based on 4 reviews
50%
(2)
50%
(2)
0%
(0)
0%
(0)
0%
(0)
J
James Thompson
Affordable and very functional finder scope

For how little this scope costs I figured: why not give it a try? After placing my order I had it in my hands just over 24 hours later. It has a simple construction but is well built. The focus mechanism is pretty simple (long threaded tube that you gradually unscrew) but totally functional. I tried the scope with several cameras, my intention being to use it for wide field of view EAA. I have a number of other very small refractors that I use for this same purpose. With my ASI533 there was pronounced coma in the corners, perhaps only the central 50 to 65% of the frame being usable. The scope matched better with the smaller sensor in the ASI585 when I cropped it to be square (2160x2160 pixels). I am not sure if I will end up using this scope for EAA, but it certainly is capable of being a good finder scope or perhaps a guide scope when paired with a refractor.

S
Simon Hanmer
SV165 as a remote finder scope

Save your back …never have to lie on the ground again to align your scope with Vega at zenith. This little $60 scope pairs perfectly with a small chip camera to act as a finder scope that you can read sitting in a chair. Solidly constructed … nice focuser (no slop) and a heavy duty mounting ring (again - no slop). Need a dew shield ? Slide two 2 inch extender tubes over the focus ring. At this price, it’s a steal !!

M
Matthew Hoag
Great Value

Light weight and perfect for my needs with a 135mm lens for wide field imaging.

A
A.P.

Very good quality and very reasonable in price what I dislike is that it has a very short dew shield which is part of the lens cell . Overall great item sharp image

Description

Compact versatile 60mm aperture guide scope.

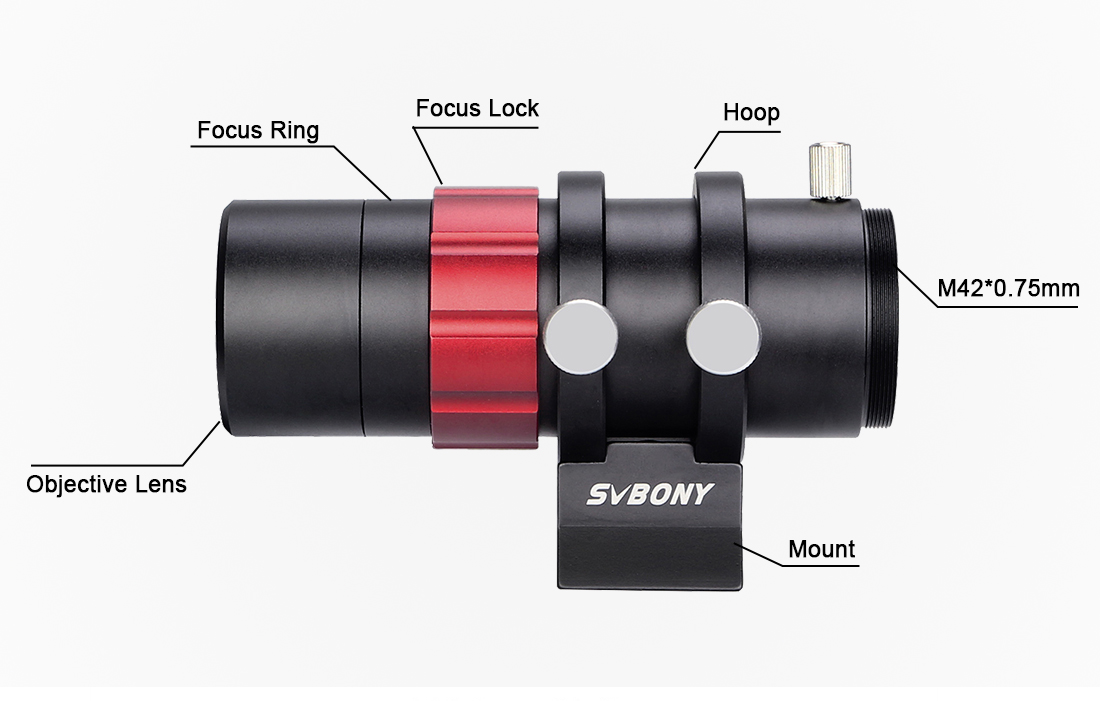

Features a precise helical focus adjustment with convenient thumbscrew focus lock

You will need an extension tube for extra focal length if you want to use eyepiece.

0512-W9125A-2-(2)_01.jpgSV165 Guider Scope0512-W9125A-2-(2)_07.jpgSV165 surface0512-W9125A-2-(2)_03.jpgSV165-specification.gif

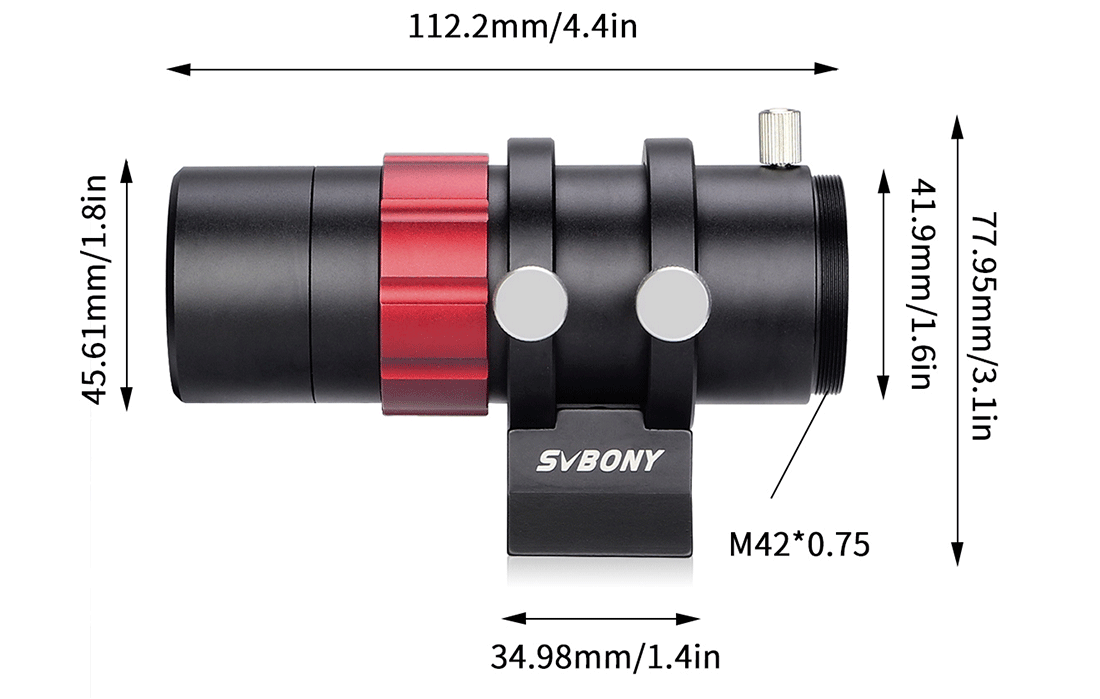

0512-W9125A-2-(2)_05.jpg0512-W9125A-2-(2)_09.jpgSV165 guider scope size

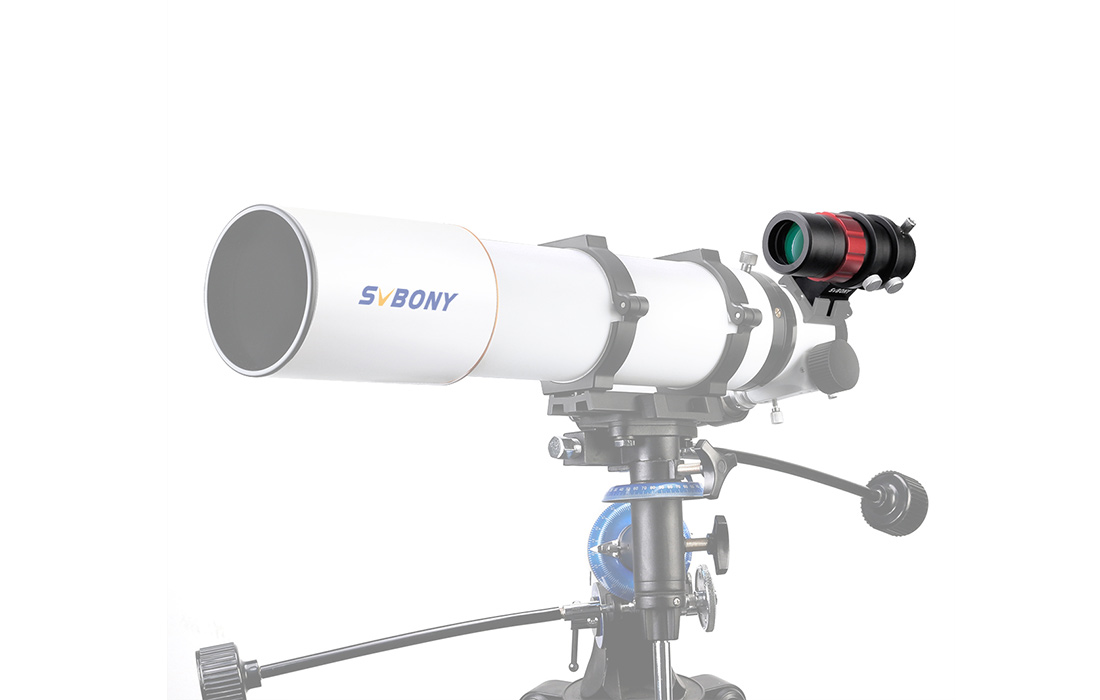

sv503 and sv165.jpg

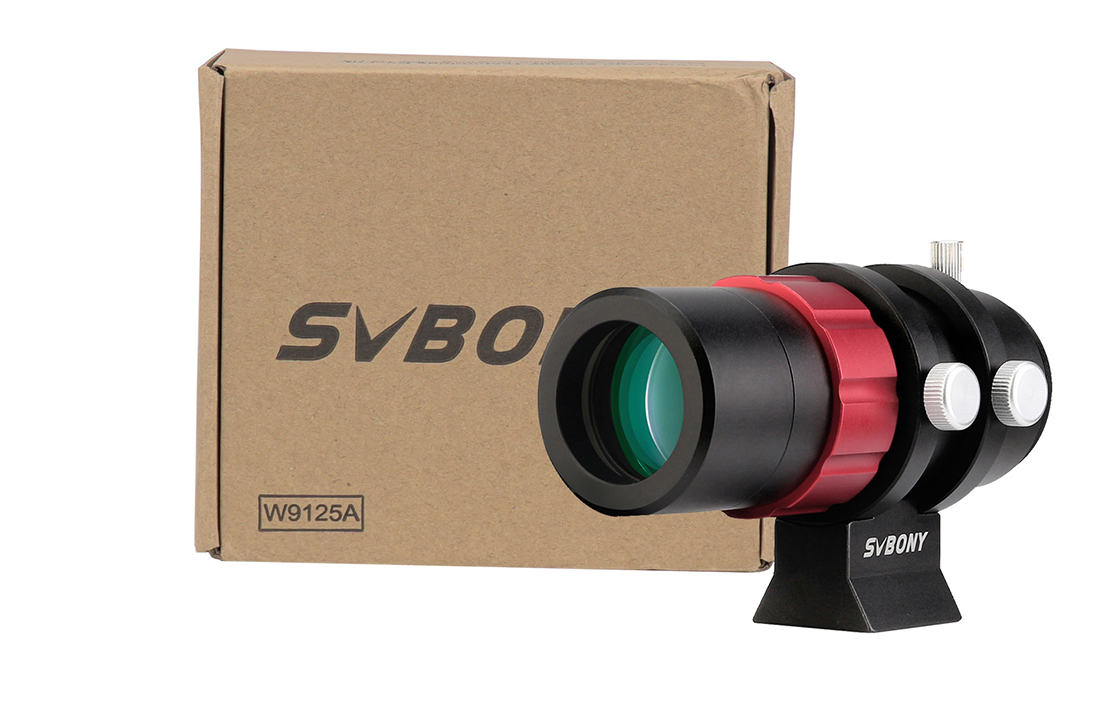

SV165 Box

Specifications

Model  SV165

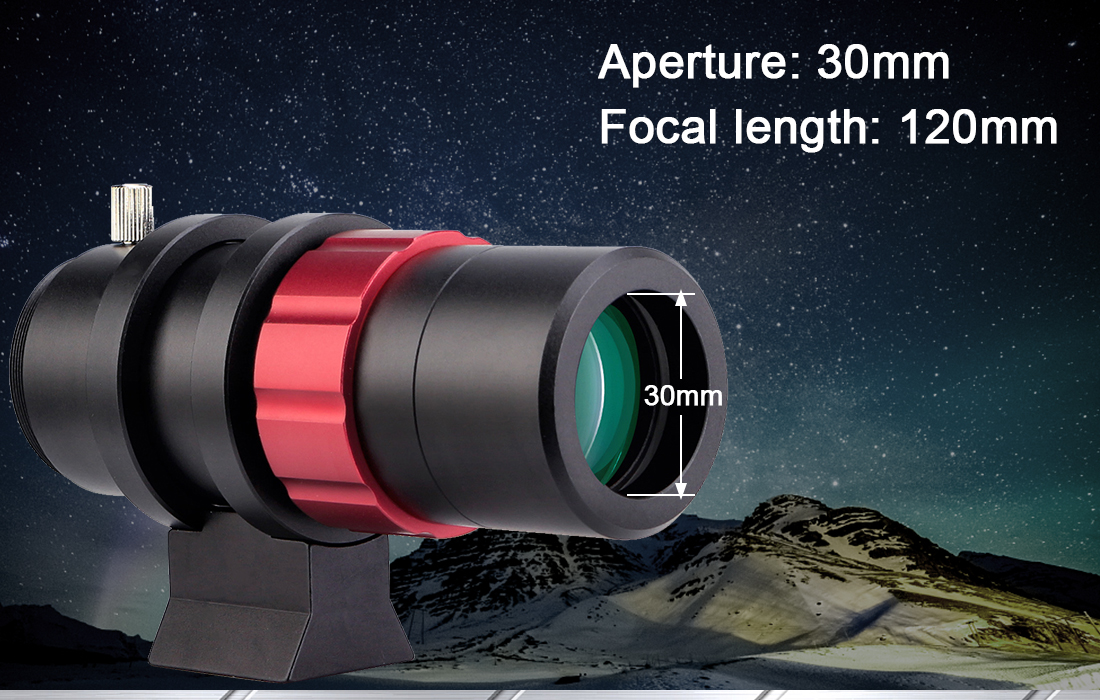

Aperture  30mm
Focal length 120mm
Focal Ratio F4
Hoop and Mount Yes
Tube travel 45mm
Back Focus Length 26mm

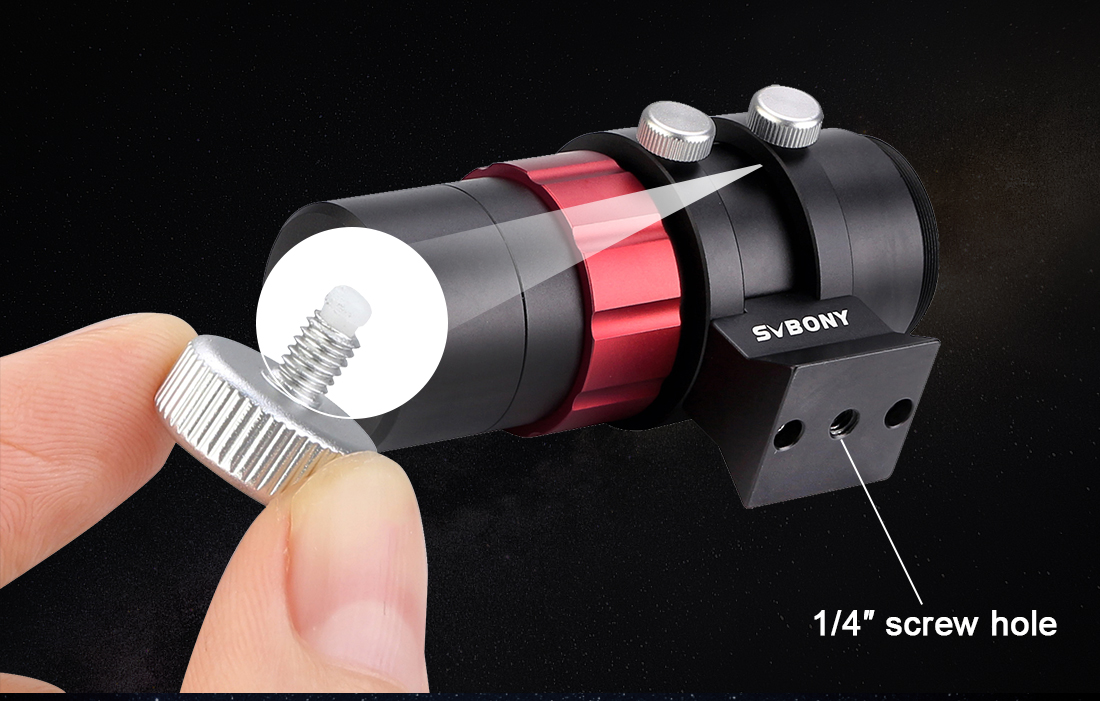

Mount UNC 1/4-20

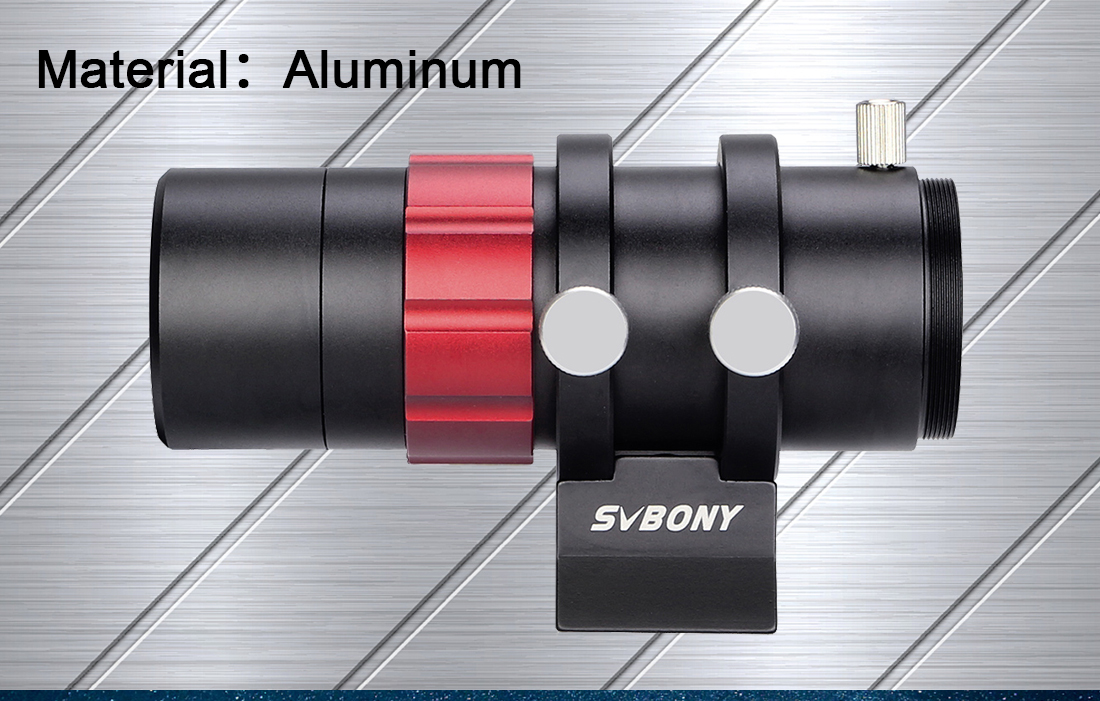

Material Aluminum

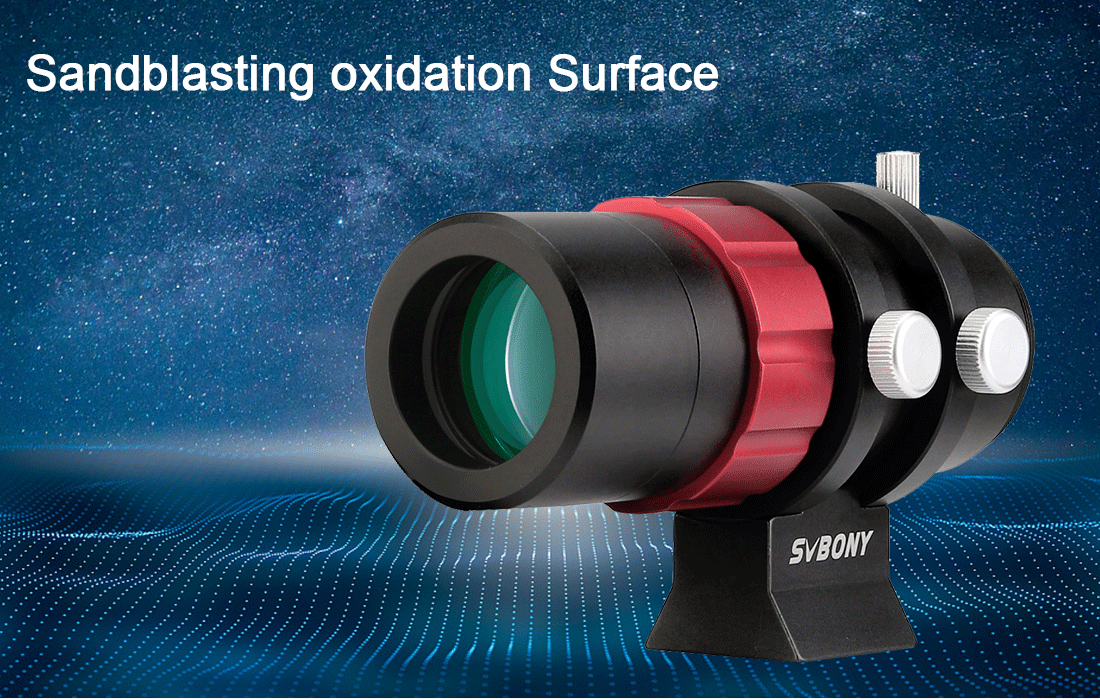

Surface technology Sandblasting oxidation
