Description

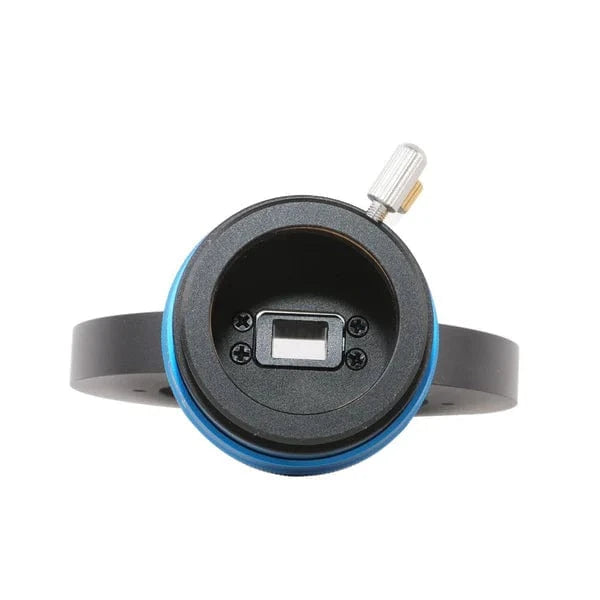

ToupTek OAG-L Off-Axis Guiders
This Off-Axis Guider design is highly effective and efficient, it also an essential astro imaging accessory for long focal length telescopes that require the most accurate guiding possible. The OAGs come in 3 different adapter thread sizes based on your needs M48 female, M54 female and M68 female.
Attention: This OAG is compatible with ToupTek standard guide or planetary cameras and many other brands of cameras.
ToupTek GPM and G3M extended model cameras require the OAG-X model. Please Contact Telescopes Canada for assistance if you have fitting questions.
Features
-
Lightweight and elegant, with a moderate optical distance thickness (17.5mm)

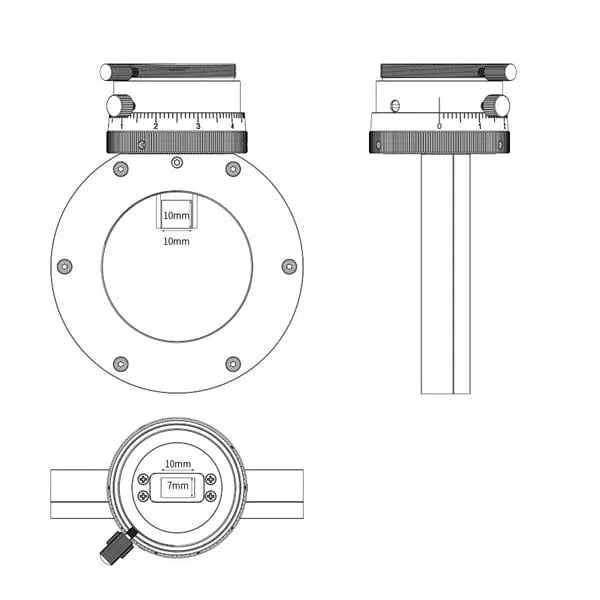

2. Prism area 10*10mm
3. Effective aperture 10*7mm
4. Capable of simultaneously connecting the main camera and guide camera without the need for a guiding scope.
5. Compatible with all ToupTek ATR cameras or other mainstream brands cameras and accessories.
Note: The Extender is only required for the OAG-X and ToupTek GPM/G3M cameras. It's not required for any other cameras and OAGs such as the OAG-L series.
