ToupTek OAG-X Series Large Off-Axis Guiders

ToupTek OAG-X Series Large Off-Axis Guiders

This Off-Axis Guider design is highly effective and efficient, it also an essential astroimaging accessory for long focal length telescopes that require the most accurate guiding possible.  The OAG-Xs come in 3 different adapter thread sizes based on your needs M48 female, M54 female and M68 female.

Attention: The OAG-X series is compatible with ToupTek GPM and G3M extended model cameras, not suited for ToupTek standard guide or planetary cameras.

Please Contact Telescopes Canada for assistance in fitting other brand cameras.

Features

1. Lightweight and elegant, with a moderate optical distance thickness (17.5mm)

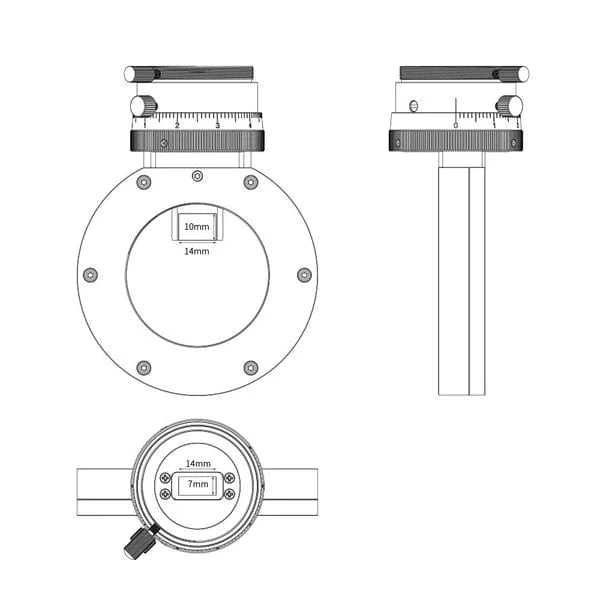

   2. Prism area 14*10mm
   3. Effective aperture 14*7mm
   4. Capable of simultaneously connecting the main camera and guide camera without the need for a guiding scope.

Installation Documentation

Connection of ATR Series Camera, Extender and OAG
