ToupTek ATR3CMOS Series M42 tilter
This tilter is for the ATR3CMOS series cameras (≥V4 version)
It has a four-point rear design, four to pull and eight to push, which ensures the stability of the adjustment effect. Using wider spacing for adjustment, the adjustment process is intuitive and simple.
Installing the M42 Tilter
Remove the 4 screws from the M42 tilter
Remove the 17.5mm adapter from the camera
Place the base of M42 tilter on the camera and attach it with the screws
Hold the M42 tilter in place, then flip the camera
High quality light-blocking cotton is used, it's anti-leakage effect is excellent.

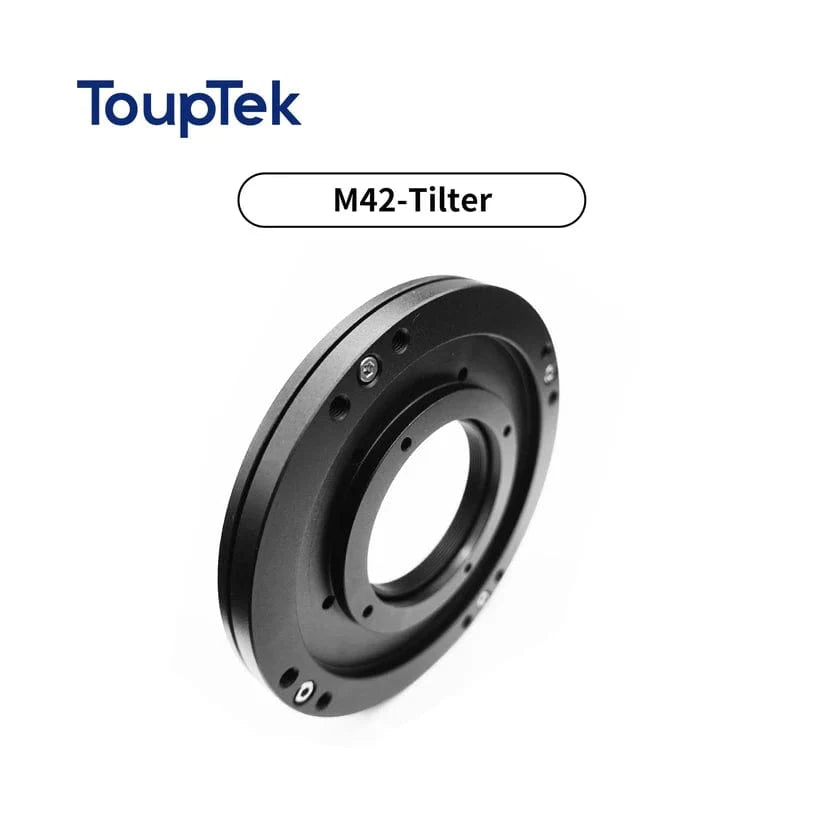

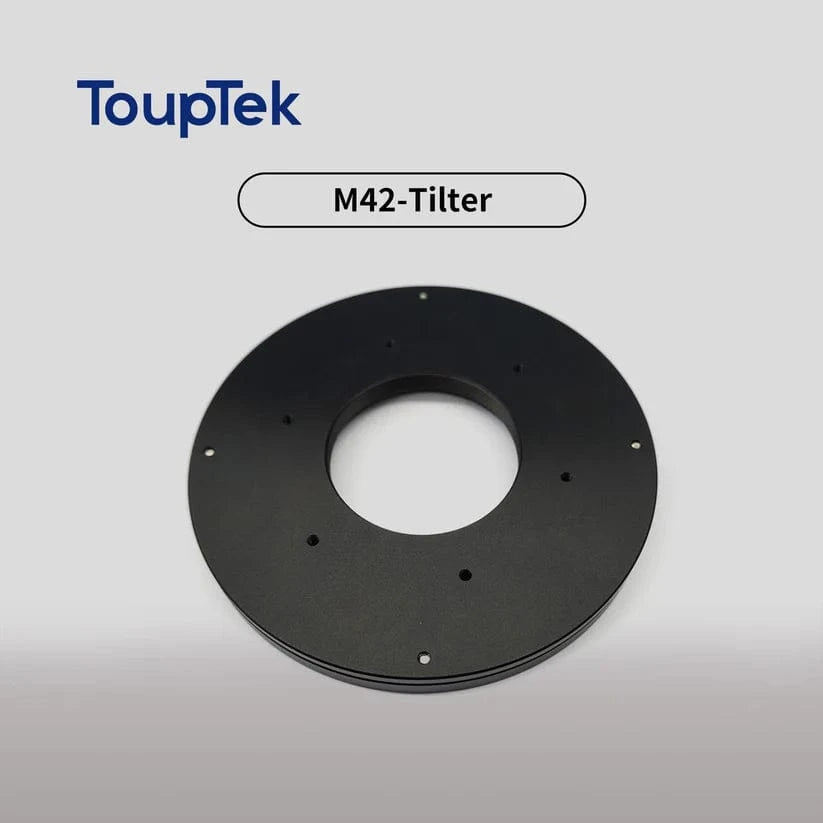

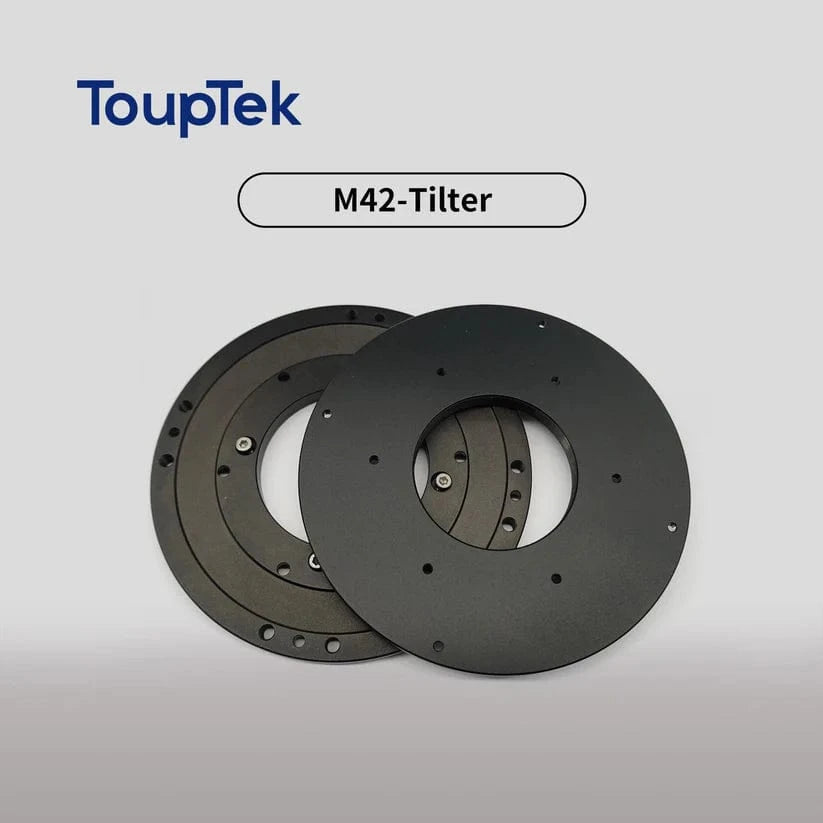

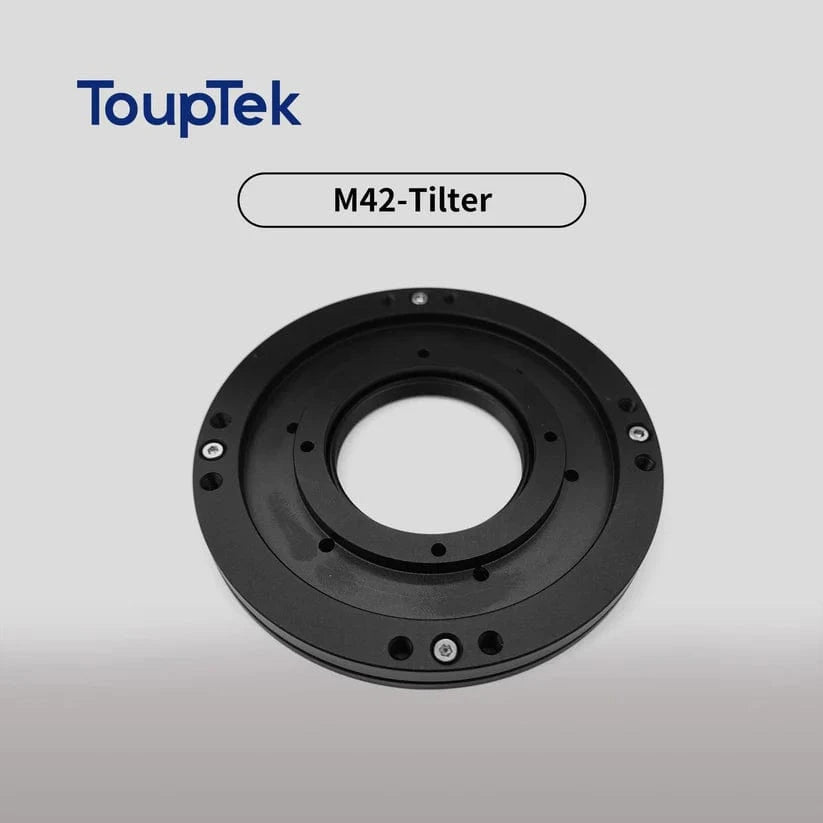

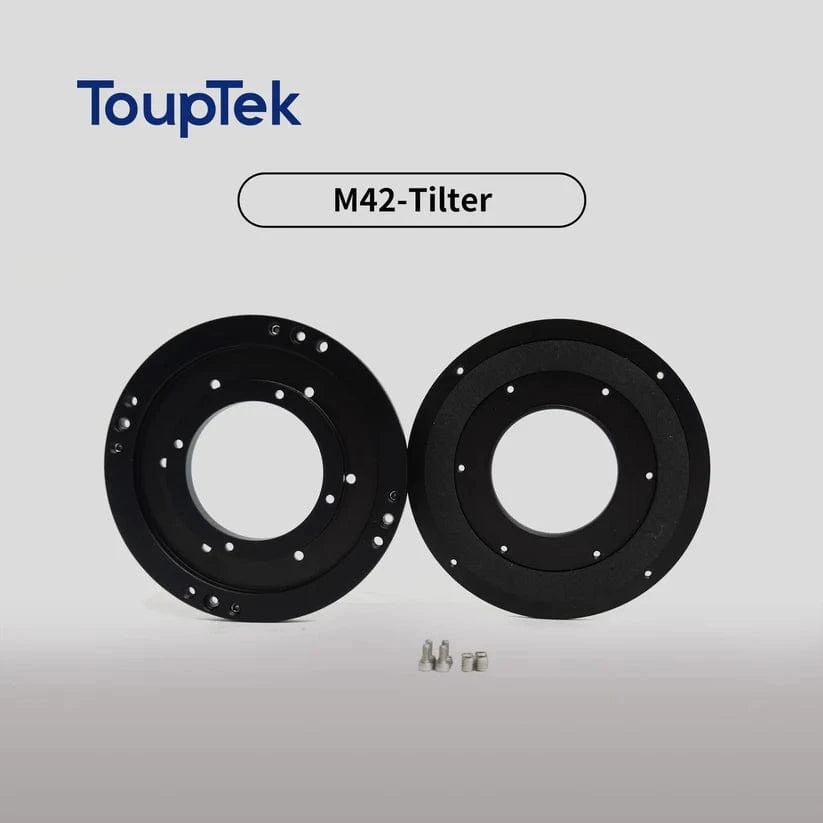

Product Images
Mechanical Diagram
