Description
Regarding ToupTek cameras : by default they use IR-cut filter for color cameras and AR glass for monochrome cameras but can take request for different glass if you want
Note: All DSO Cooled Cameras need to be connected to an external 12VDC power supply to image.
ATR585C camera incorporates the advanced SONY IMX585 sensor, renowned for its exceptional imaging capabilities for both planetary and deep-sky objects. Engineered with an integrated heat dissipation structure and an efficient cooling module, it enables the image sensor to function at a temperature 45℃ lower than the ambient environment. With features including zero amp-glow, a minuscule pixel size, and a high dynamic range (HDR) mode. This camera is ideal for entry-level deep space photography, offering outstanding performance at a remarkably cost-effective price point.

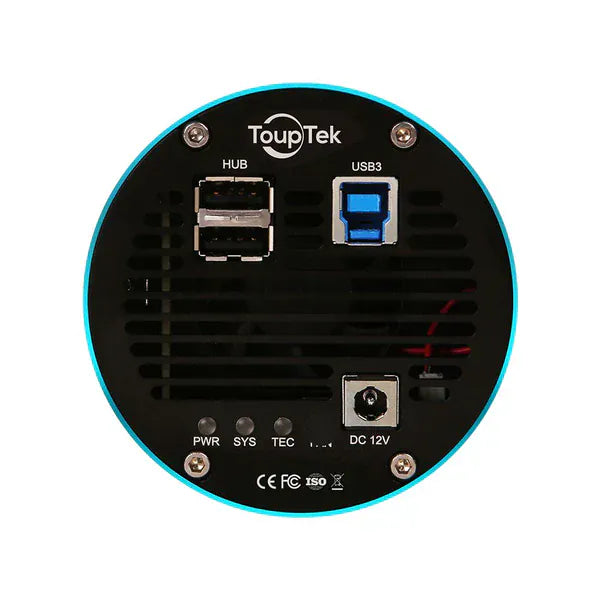

Please remember: all ToupTek Astro DSO cooled cameras can only be powered by 12V3A DC power supply. We recommend using the power adapter that comes with the camera or a lithium-ion battery with stable output of 11-14V. Please do not use power supplies that have falsely stated specifications or unstable outputs to power the camera, as this may affect image capture or even damage the camera.
STARVIS 2
STARVIS refers to the backlight image sensor technology developed by Sony to improve low light characteristics and near-infrared sensitivity. STARVIS 2 improves dynamic range and near-infrared sensitivity compared to STARVIS1. Benefiting from it, ATR585C shows better performance.
Sensor Info

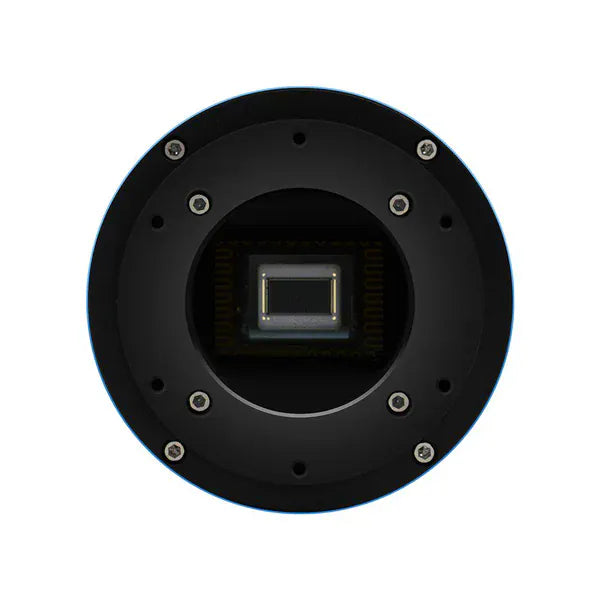

ATR585C is a 1/1.2-inch optical format, 8.3-megapixel CMOS image sensor with a pixel size of 2.9um. lt offers high clarity and low-noise performance.
DDR3
Two stage TEC cooling system
ATR585C is designed with an integrated heat dissipation structure and an efficient cooling module. The cooling system of ATR585C features a two-stage Thermoelectric Cooling (TEC) with controllable electric fan assisting in heat dissipation. This allows the image sensor to operate at temperatures up to 45 degrees Celsius lower than the ambient temperature. The exposure time can be set for up to 1 hour, ensuring that every minute detail is captured. Even in summer, it can still run stably all night with cooling temperatures ranging from of -5°C to -10°C.
Zero Amp-Glow
ATR585C adopts the new anti-dew technology , which can effectively solve the condensation problem through heating.This heating function consumes about 5 watts, which can be turned off via software to save power.Additionally, The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.
Camera parameters（Full resolution、RAW 12-bit mode、Temperature: -10°C、LCG
Camera parameters（Full resolution、RAW 12-bit mode、Temperature: -10°C、HCG）
Camera parameters（Full resolution、RAW 16-bit mode、Temperature: -10°C、HDR）

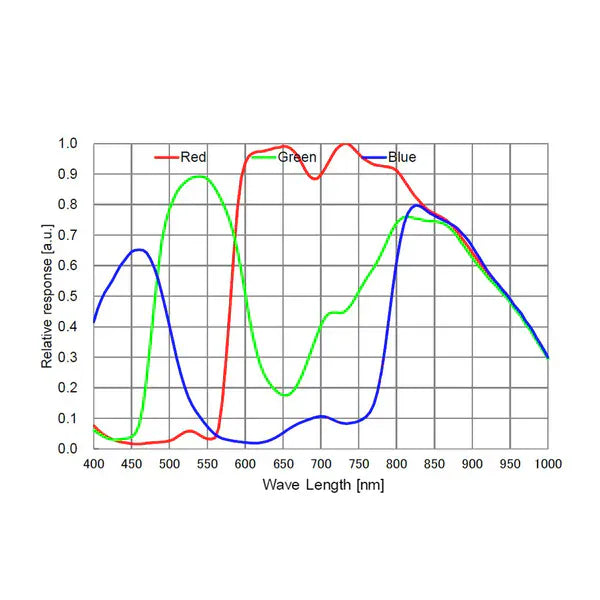

Spectral Response
Mechanical Diagram
ATR Adapter Back Focal Distance
Connection with Accessories
Packaging List
Additional Resources
