SVBONY SV305C USB2.0 Color Planetary Camera IMX662 - F9198L

SvbonySKU: F9198L

Price:
Sale price$208 CAD
Stock:
In stock: 5 units - Most orders placed by 2PM EST will be shipped out the same day (weekdays)

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Description

SV305C telescope camera adopts the latest IMX662 1/2.8” back-illuminated sensor. The camera has ultra-high sensitivity and ultra-low readout noise. It has better performance in planetary photography and lunar surface photography, and is very suitable for EAA.

SV305C Color Planetary Camera IMX662 for Astrophotography and EAA

SV305C telescope camera adopts the latest IMX662 1/2.8” back-illuminated sensor. The camera has ultra-high sensitivity and ultra-low readout noise. It has better performance in planetary photography and lunar surface photography, and is very suitable for EAA.


The Premium Performance



One-key quick setting: We have set planetary high-speed mode and deep space long exposure mode in the sharpcap software, users can choose according to their actual shooting needs, and realize one-key quick setting. After setting, they can adjust the best parameters suitable for them. It can be saved for convenient one-key setting next time. The unique one-button operation mode makes planet shooting easier.

UV/IR CUT protective glass with detachable design: If users want to shoot infrared or ultraviolet bands, they can remove the protective glass at the front of the camera by themselves, connect it with a 1.25-inch extension tube, and connect an external IR685, IR850 or UV Venus filter to achieve different shooting experience.

Using HCG noise reduction technology, when the gain is increased, the HCG mode will be automatically turned on, which can greatly reduce the readout noise, and at the same time retain the high dynamic range of low gain. When the gain value of SV305C telescope camera is 190, HCG will be turned on automatically.

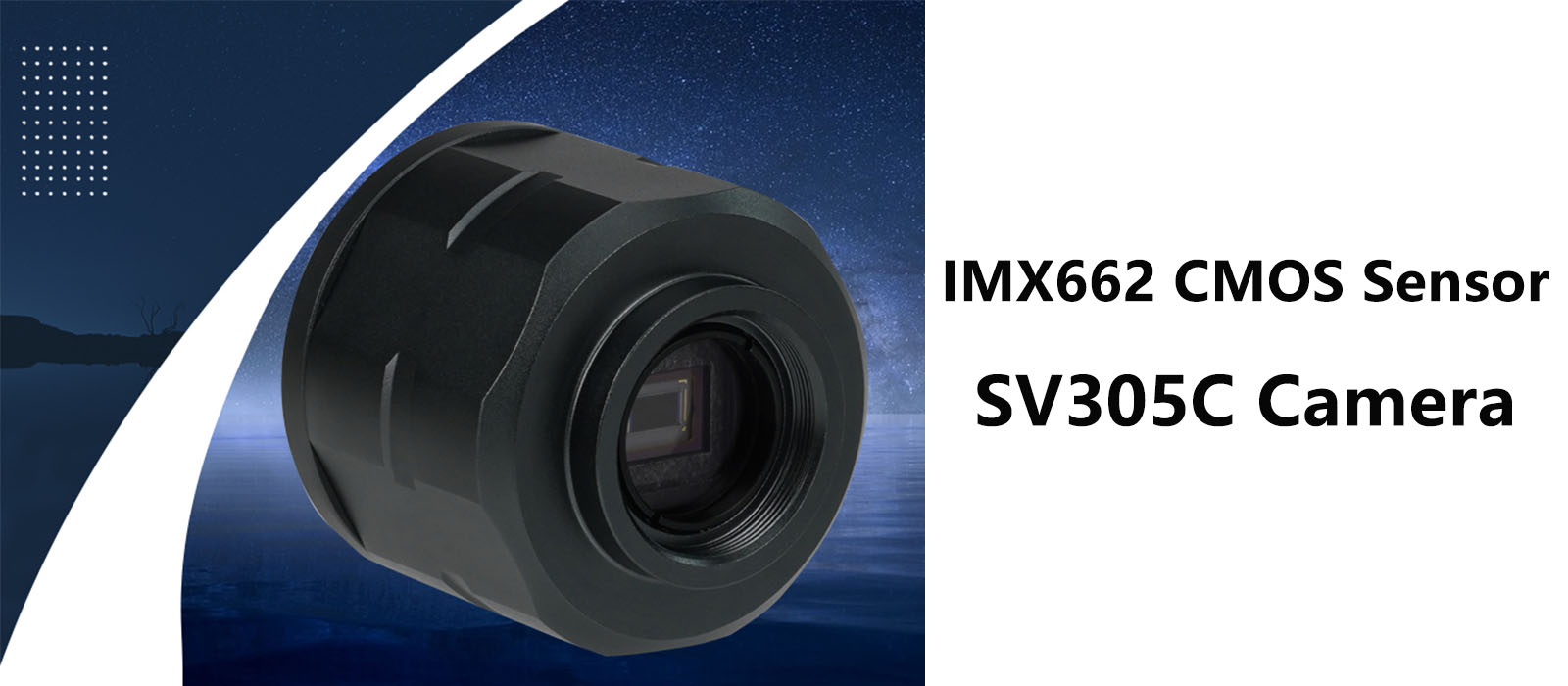

IMX662 CMOS sensor

The SV305C planetary camera uses the IMX662 sensor. Compared with the previous generation sensor IMX462, the sensor has three times the full well charge, which can effectively avoid overexposure and ensure long exposure. The IMX662 sensor has the characteristics of low readout noise, no glow, and greatly improved NIR, especially in the red spectral band, which has a higher sensitivity than IMX462.

sv305c camera sensor.jpg

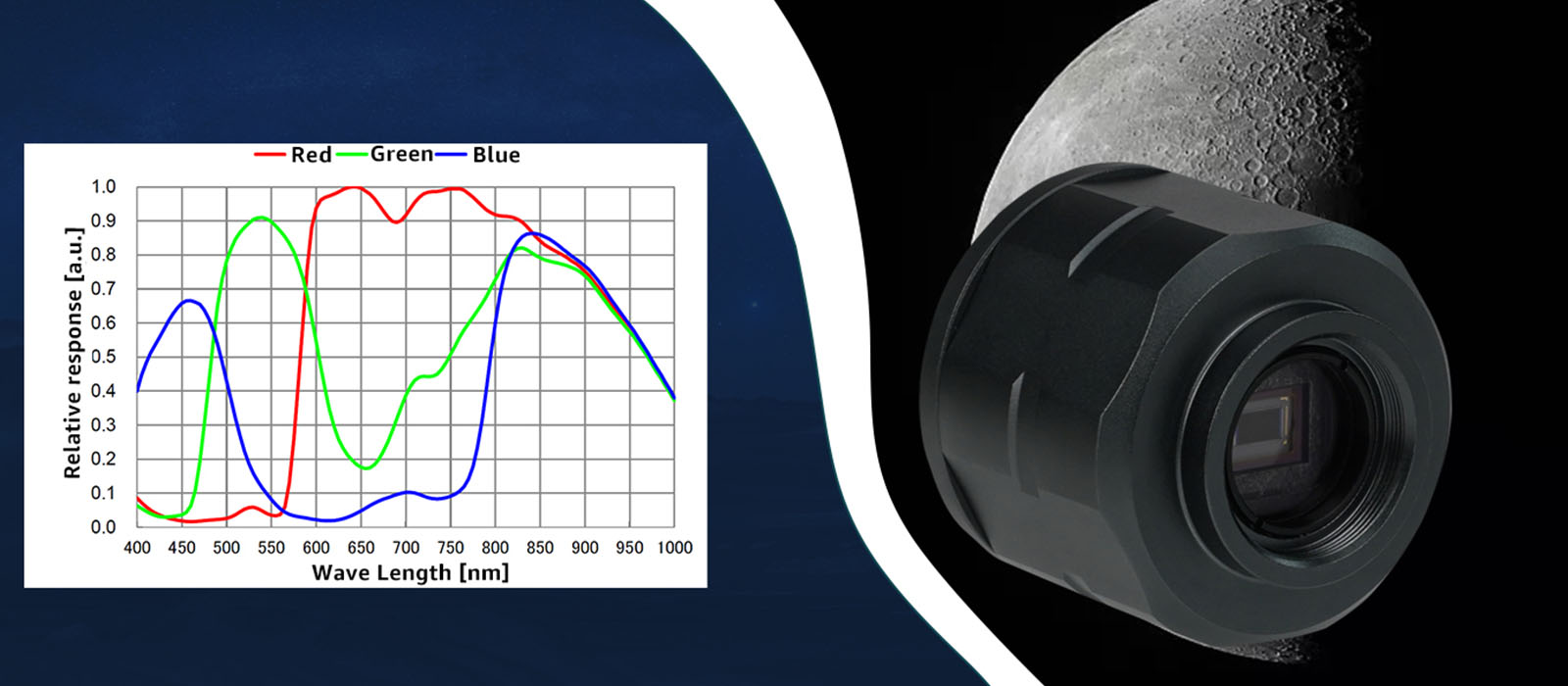

QE

sv305c camera QE.jpg

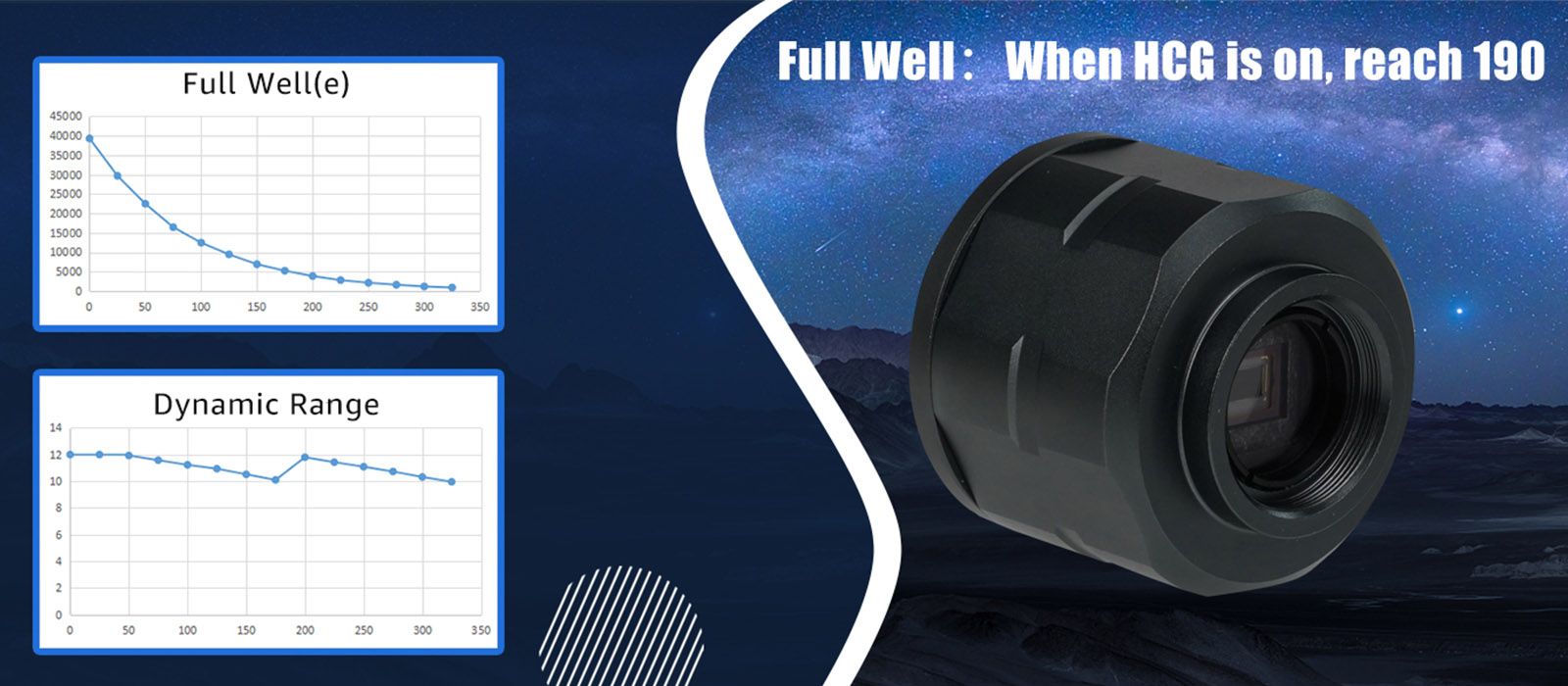

Dynamic Range & Full Well

sv305c camera full well.jpg

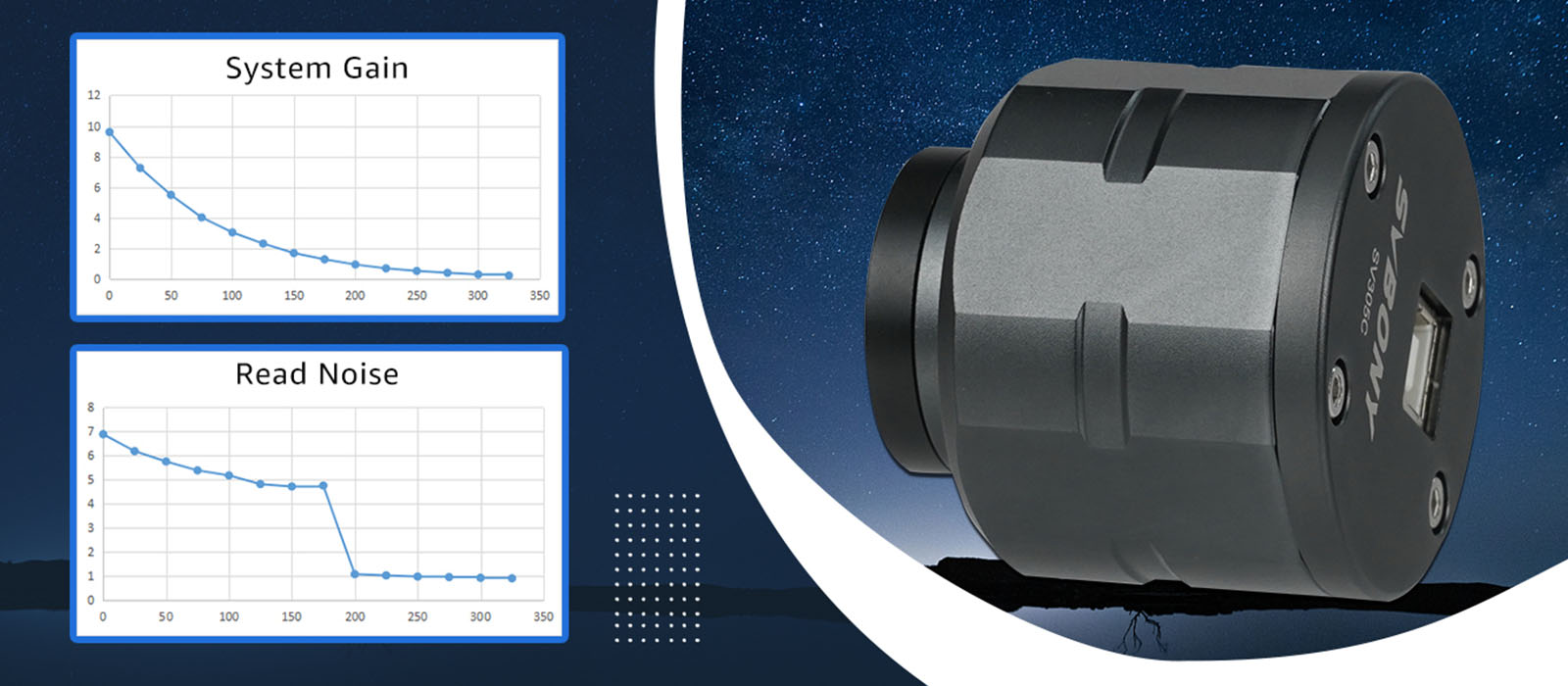

Read Noise & Gain

sv305c of the system gain and read noise.jpg

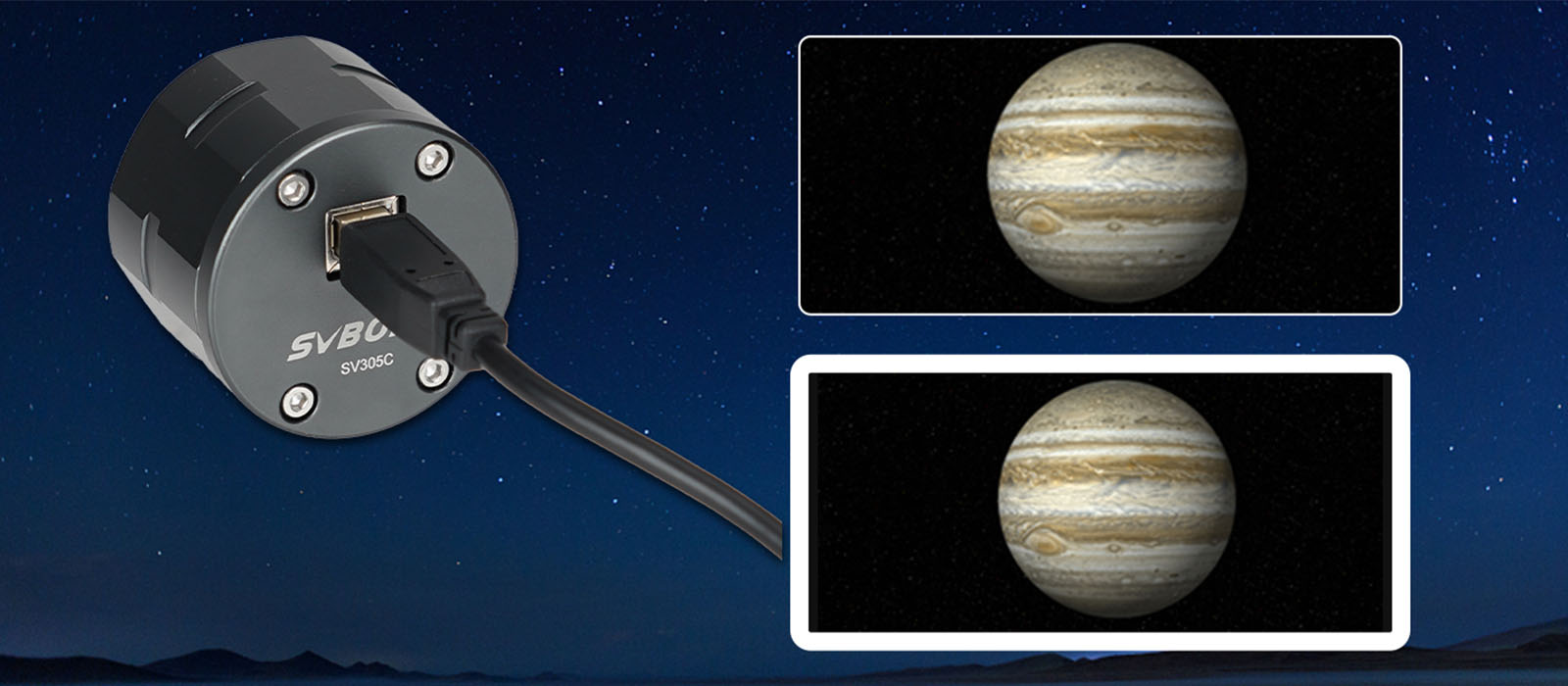

ROI Function & BIN

sv305c roi function.jpg

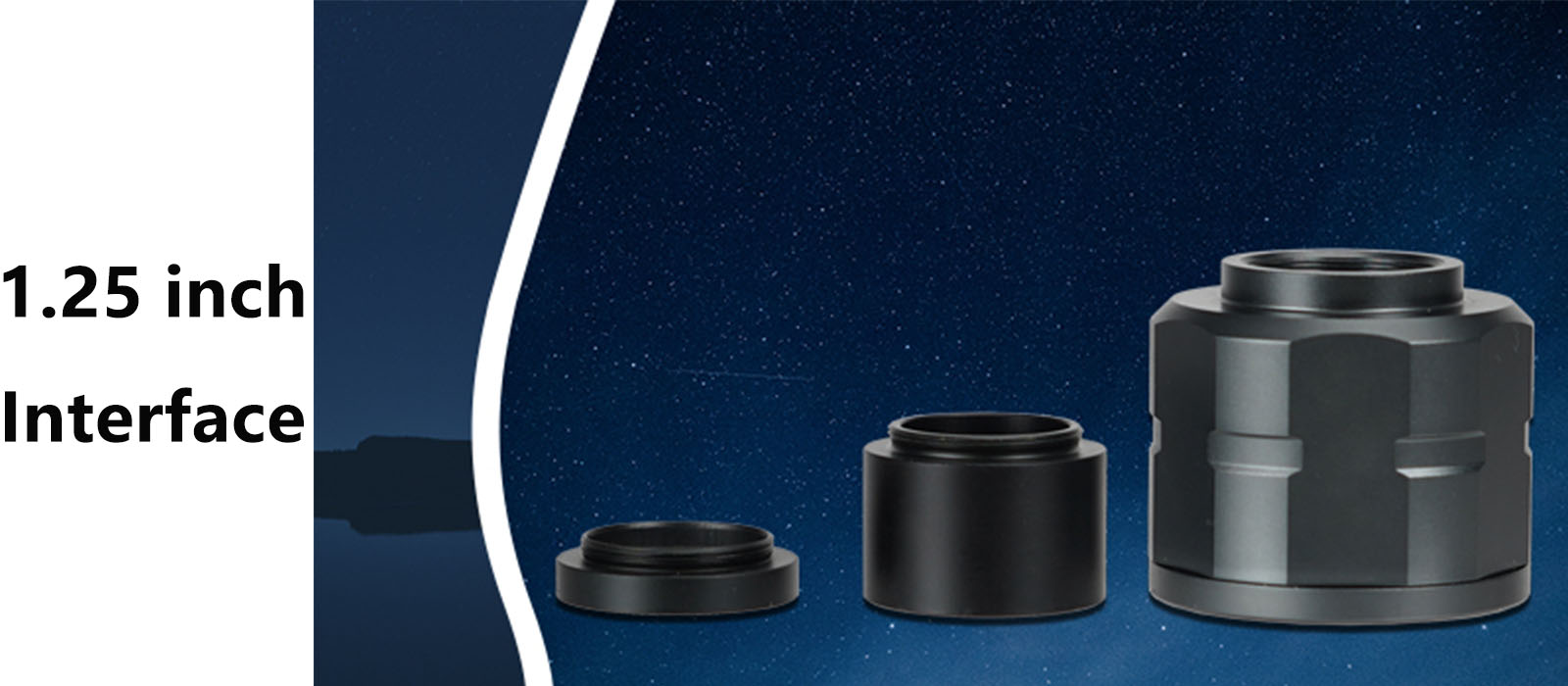

1.25 Inch CS Interface

SV305C planetary camera can use a 1.25-inch universal astronomical interface, the front of the camera is a CS interface, and it is also equipped with a CS-C adapter ring, which can be used with C-mount lenses and CS-mount lenses for shooting.

305c camera 1.25 inch.jpg

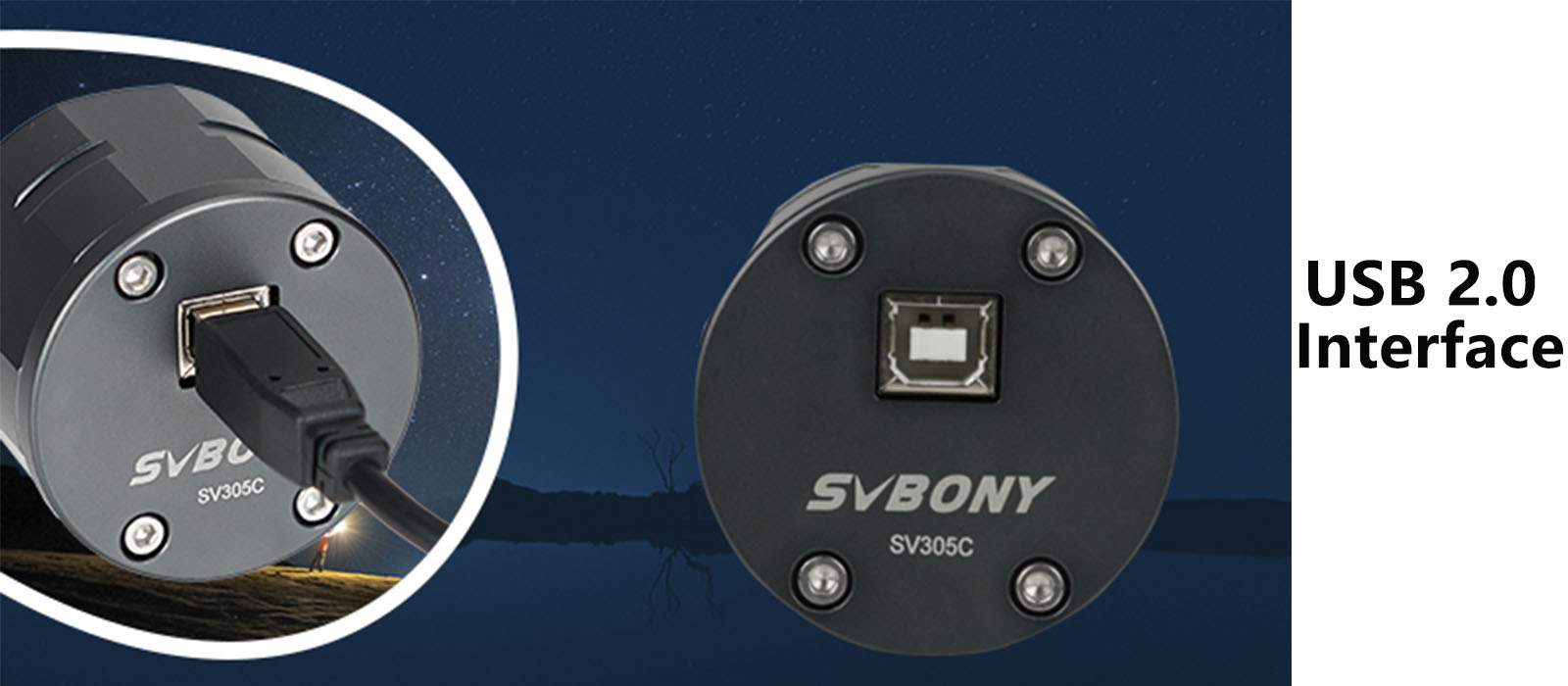

USB 2.0 Interface

SV305C color palnetary camera is designed with USB2.0 interface, which can meet the basic needs of users, suitable for entry-level planetary photography.

sv305c USB2.0 interface.jpg

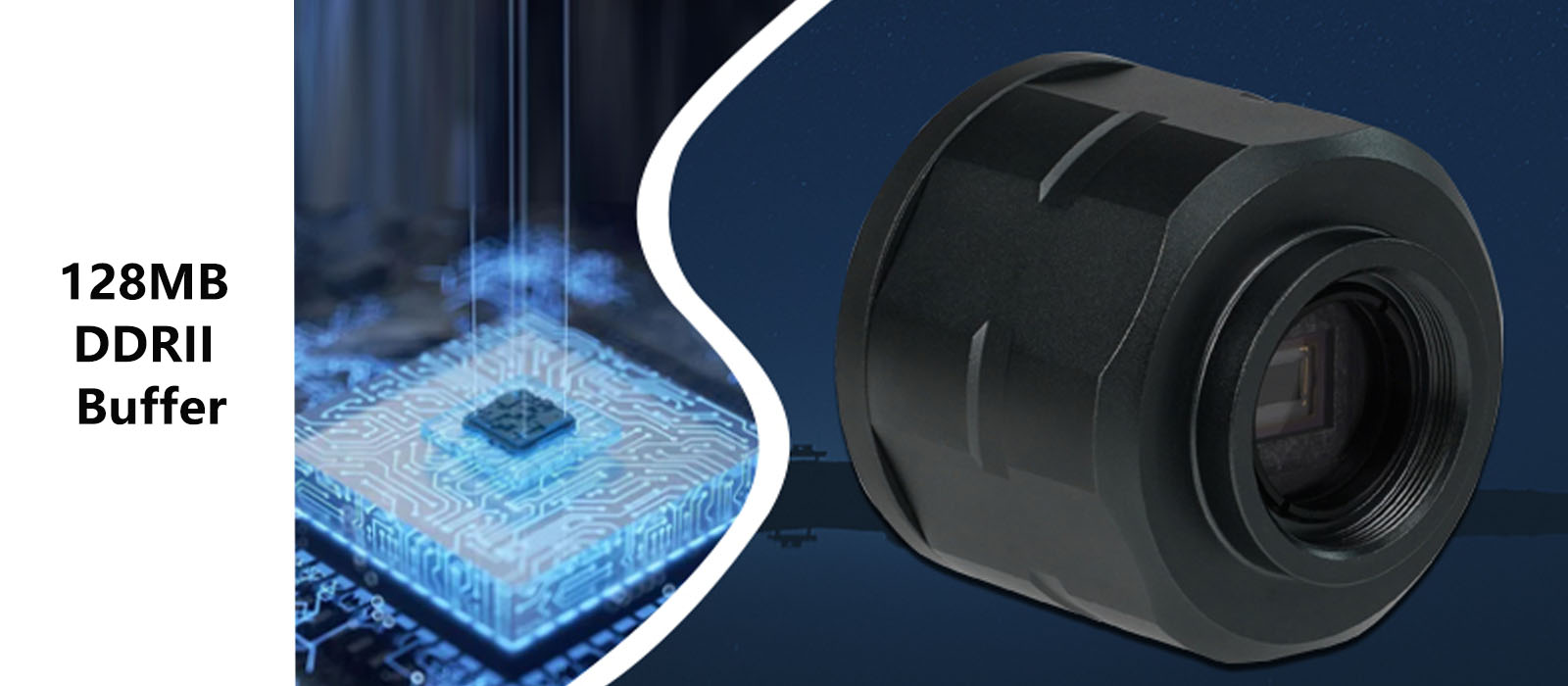

128MB DDRII Buffer

SV305C planetary camera has a built-in 128MB DDRIII image buffer. The benefit of the image buffer is that the memory will cache the image and transfer it to the computer when the USB interface is not busy or being interrupted, so that the frame won’t be lost or corrupted.

sv305c with 128MB DDRII Buffer.jpg

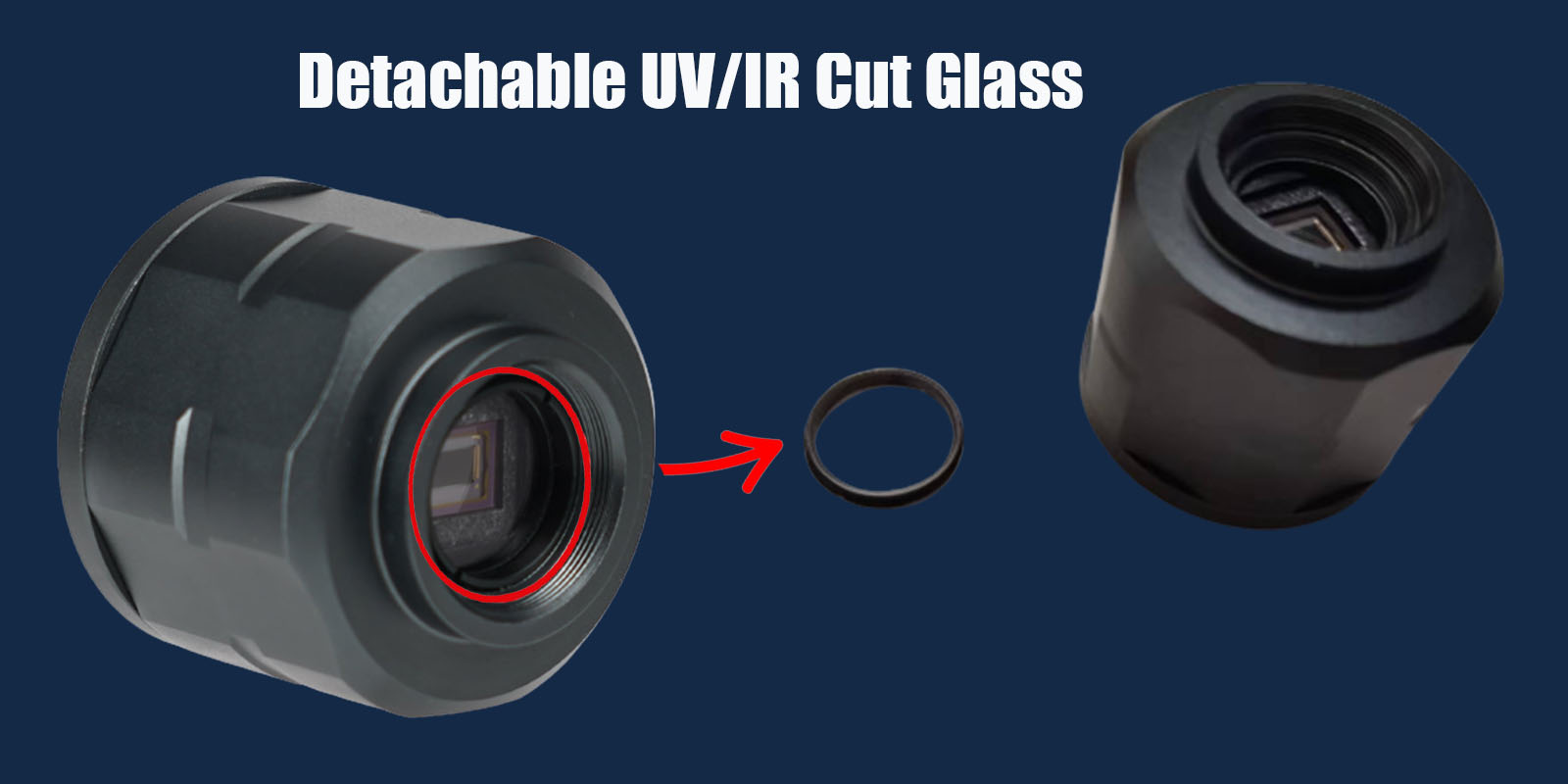

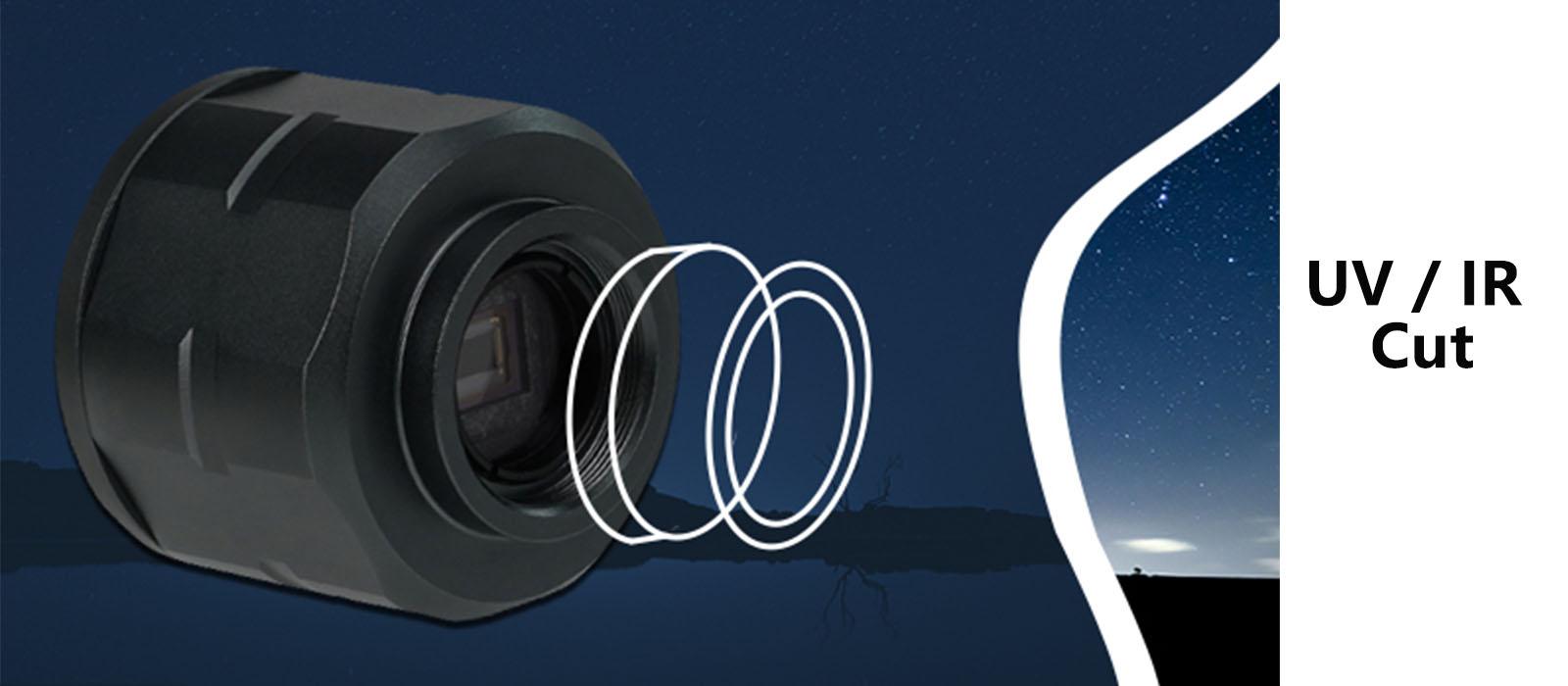

UV/IR CUT Protective Glass With Detachable Design

The built-in protective glass of the fuselage is UV/IR CUT, which can reach a high transmittance of more than 96% in the visible light range of 400-700nm. When shooting celestial images in the visible light range, a well-balanced color can be obtained.

sv305c with uv ir cut protection glass.jpg

When the protective window glass is removed, the original function of preventing infrared and ultraviolet rays from passing through is released. At this time, you can connect SV305C camera with the SV183 IR Pass Filter, which is suitable for nature photography in the Near-IR; revealing stunning differences in plants, sky and clouds.

Detachable glass of sv305c camera.jpg

For Astrophotography & EAA

sv305c camera for planetary.jpg

Specifications



Model SV305C
Sensor Model SONY IMX662
Total Pixels 2.1 Mega Pixels
Diagonal 6.44mm
Max Resolution 1920×1080
Pixel Size 2.9μm X 2.9μm
Chip Size 5.6mm×3.2mm
Frame Rate 24FPS
Shutter Rolling shutter
Exposure Range 32μs-2000s
Readout Noise 6.5e~0.7e
QE Peak ≈91%
Full Well 38ke
ADC 12 bit
ROI YES
BIN 1X1 2X2
Digital Noise Reduction HCG
Compatible System Windows , Linux OS , Raspberry Pi,Mac os, Chrome os
Built-in buffer 128M
Data Port USB2.0
Adapter 1.25″/CS/C
Protective Window UV/IR CUT
Back Focal Length 7.5mm/12.5mm
