Description
- Multi-port design; the astro powerbox has 6 DC outputs, supporting up to 10A. 2 USB3.1 ports for high-speed camera readout, 1 USB2.0 and 1 Type-C port for devices like equatorial mounts & guide cameras. 2 USB ports share 5V 8A power, perfect for dew heaters;

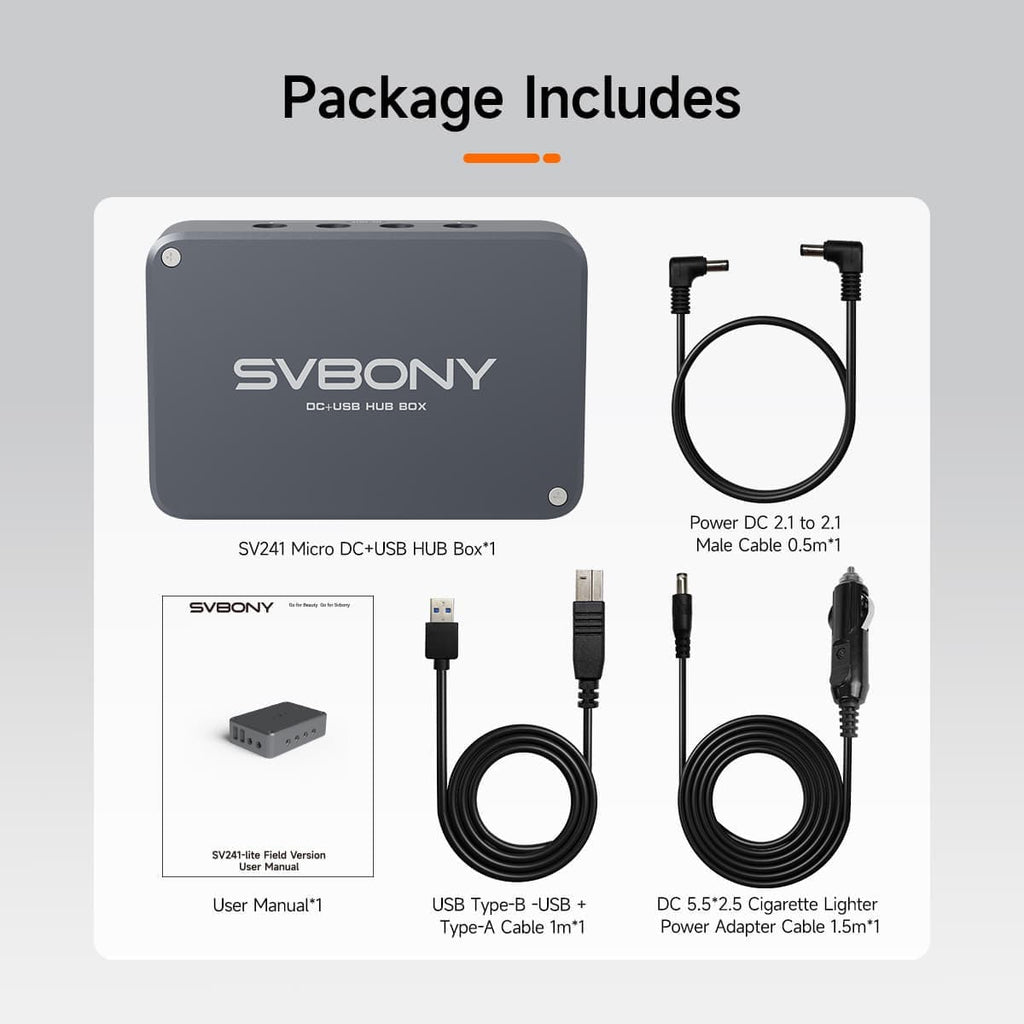

- All-in-One Accessories; USB Type-B and Type-A cable; Power DC 2.1 to 2.1 male cable; DC 5.5*2.5 cigarette lighter power adapter cable are included in the powerbox's package. It’s your ultimate solution for convenience and efficiency;

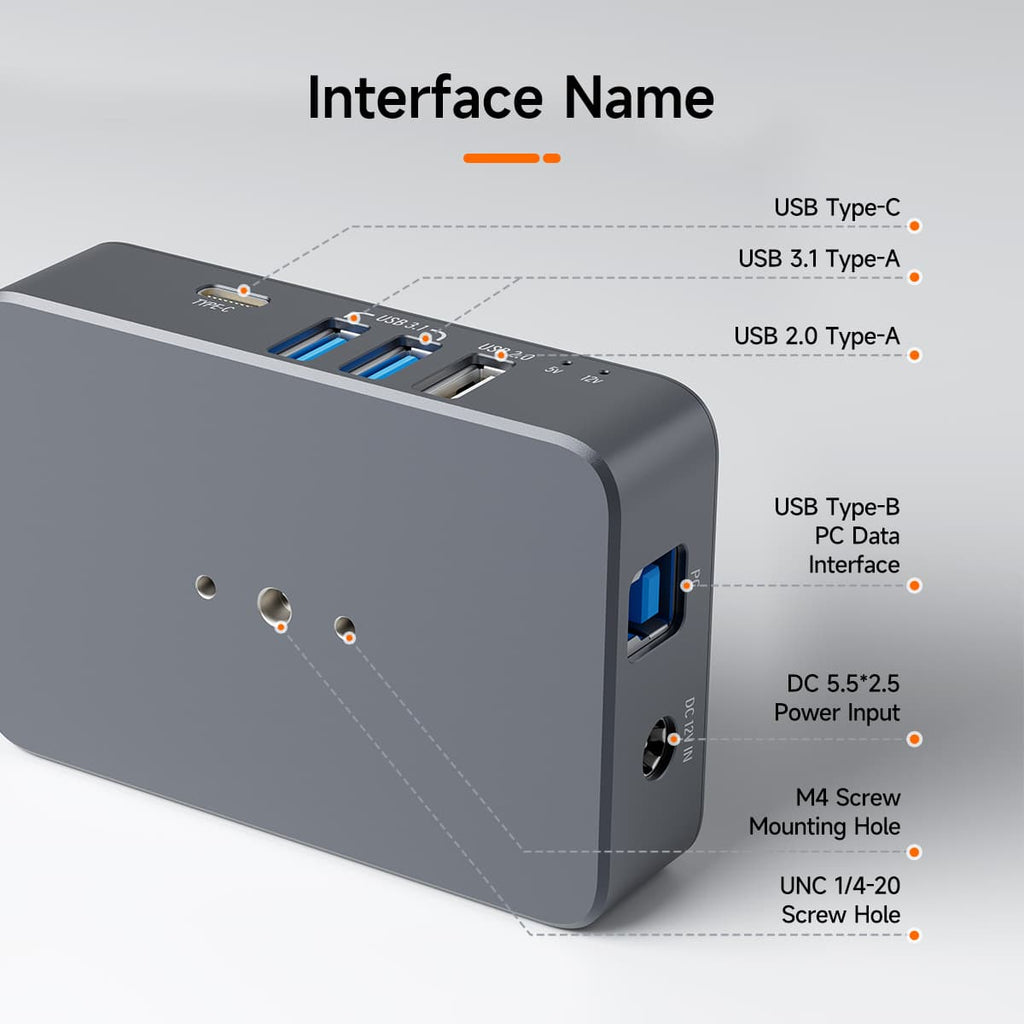

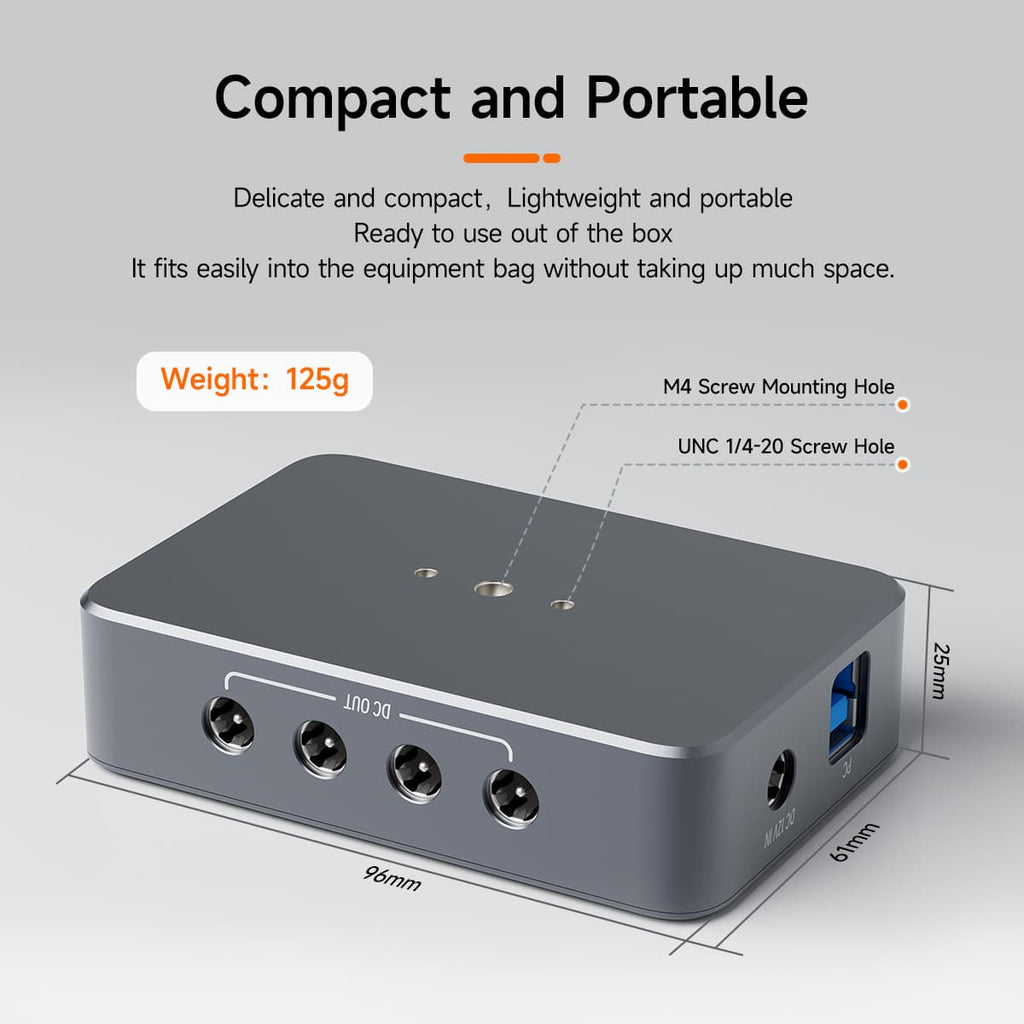

- Design for portability; weighing just 0.28lb and measuring 3.8x2.4x1", this compact powerbox is designed for portability. With M4 and UNC 1/4 screw hole on the bottom, installation is a breeze;

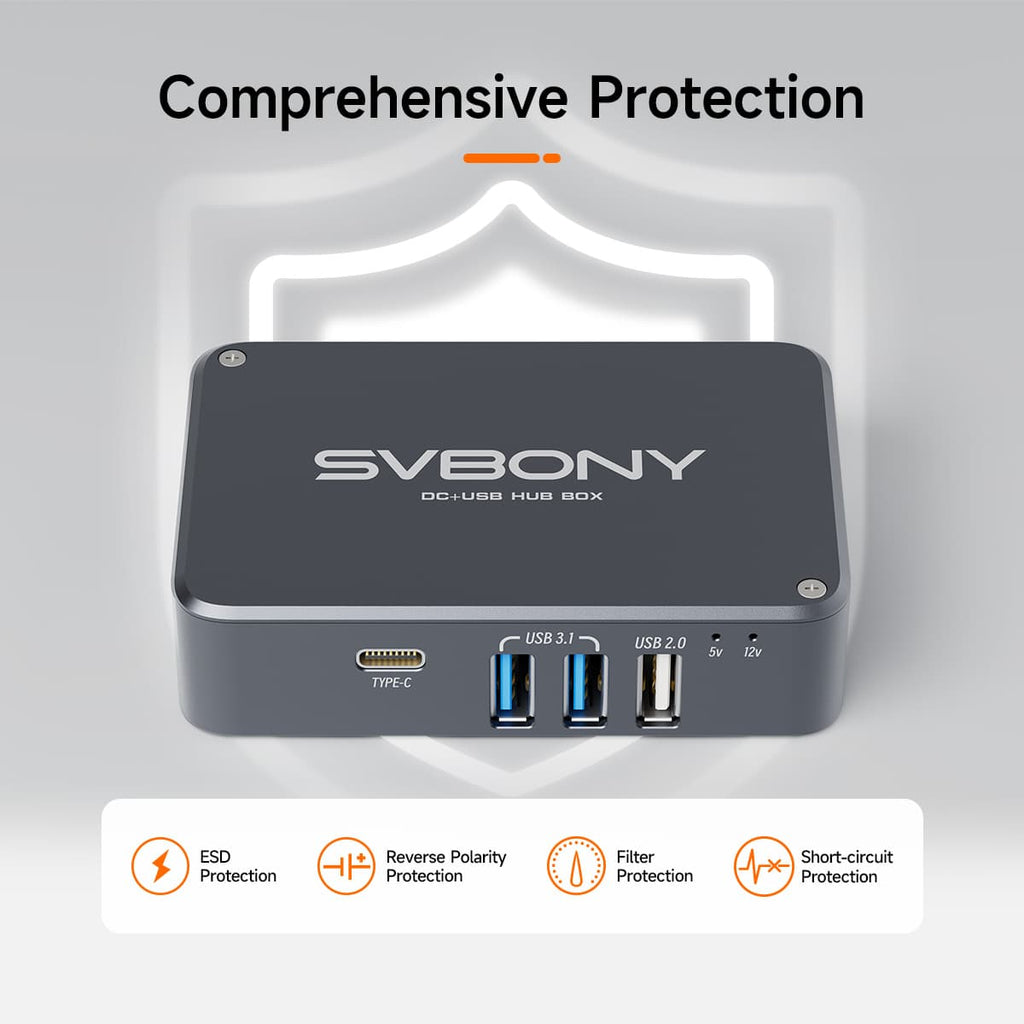

- Safe and secure; equipped with built-in ESD protection, reverse polarity prevention, and efficient filtering to prevent short circuits. Power pack acts as a safety shield for your devices. Every connection is rock-solid and worry-free.
- Versatile mounting options; the power pack features M4 and UNC 1/4-20 screw holes on the bottom; offering flexible mounting solutions for secure and stable placement in any setup.

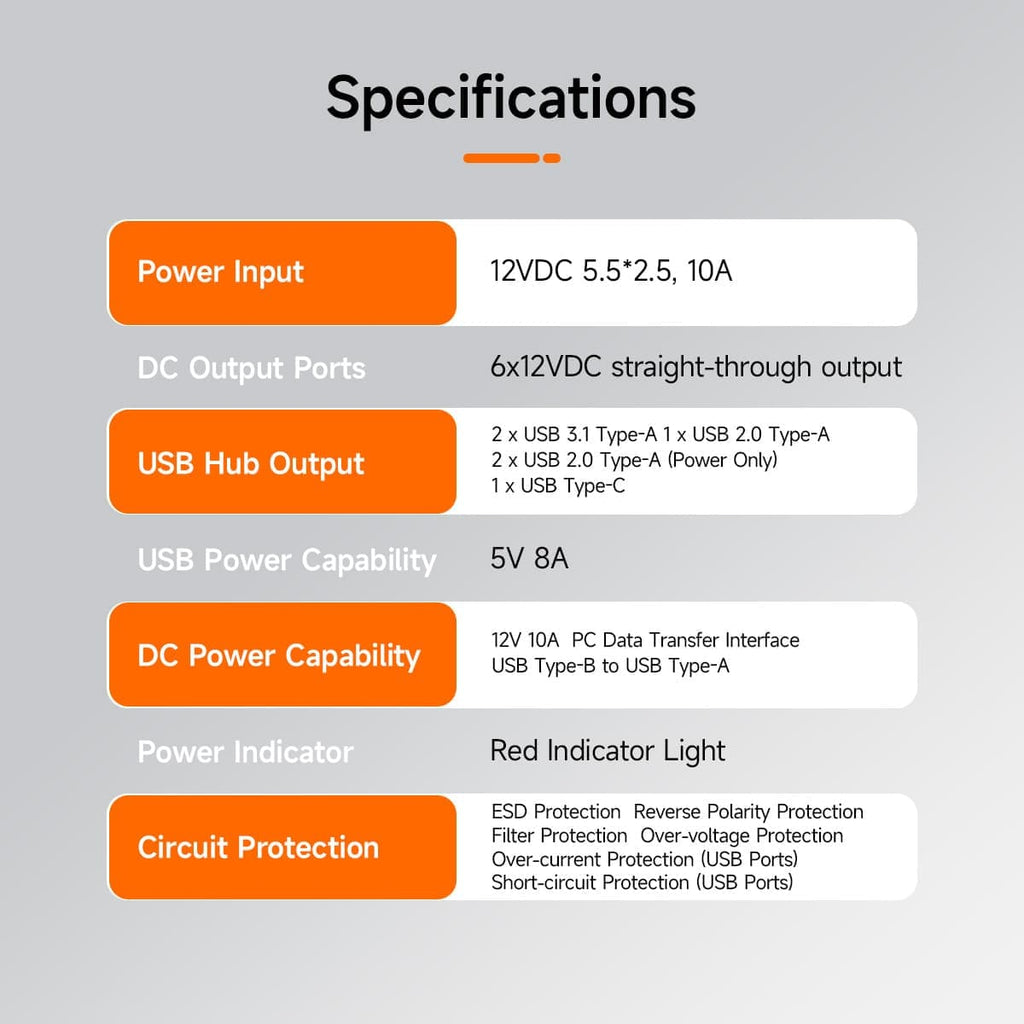

| Brand | SVBONY |
| Name | Powerbox |
| Model | SV241 |
| Power Input | 12VDC 5.5*2.5, 10A |

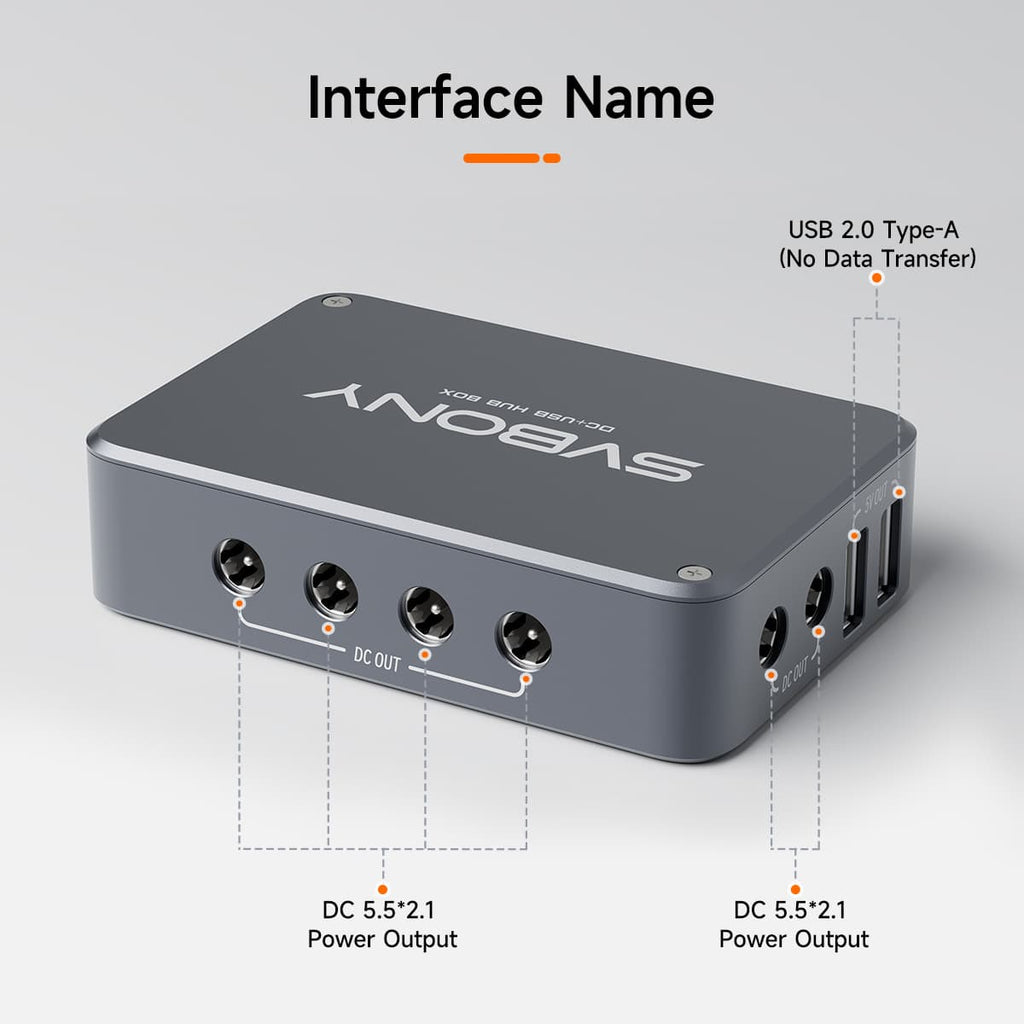

| DC Output Ports | 6x12VDC straight-through output |
| USB Hub Output | 2 x USB 3.1 Type-A |
| 1 x USB 2.0 Type-A | |
| 2 x USB 2.0 Type-A (Power Only) | |
| 1 x USB Type-C | |
| USB Power Capability | 5V 8A |
| DC Power Capability | 12V 10A |
| PC Data Transfer Interface | USB Type-B to USB Type-A |
| Power Indicator | Red Indicator Light |
| Circuit Protection | ESD Protection |
| Reverse Polarity Protection | Filter Protection |
|
Over-voltage Protection |
Over-current Protection (USB Ports) |
| Short-circuit Protection (USB Ports) | |
| Maximum Current | 10A |
|
Compatible Devices |
DC: Astronomical Camera, CAA, Computer, Equatorial Mount, Dew Heater |
| USB: Astronomical Camera, CAA, EAF, Computer, Equatorial Mount, OAG, EFW |
