Description
The main mirror housing is made of precision molded ABS plastic and the two end barrels are precision machined from aluminum. This diagonal can only be used with refractor telescopes and some catadioptric telescopes like Schmidt-Cassegrain, Maksutov-Cassegrain, etc. It not meant for use with Newtonian / DOB reflector telescopes or other variants of Newtonian telescopes.

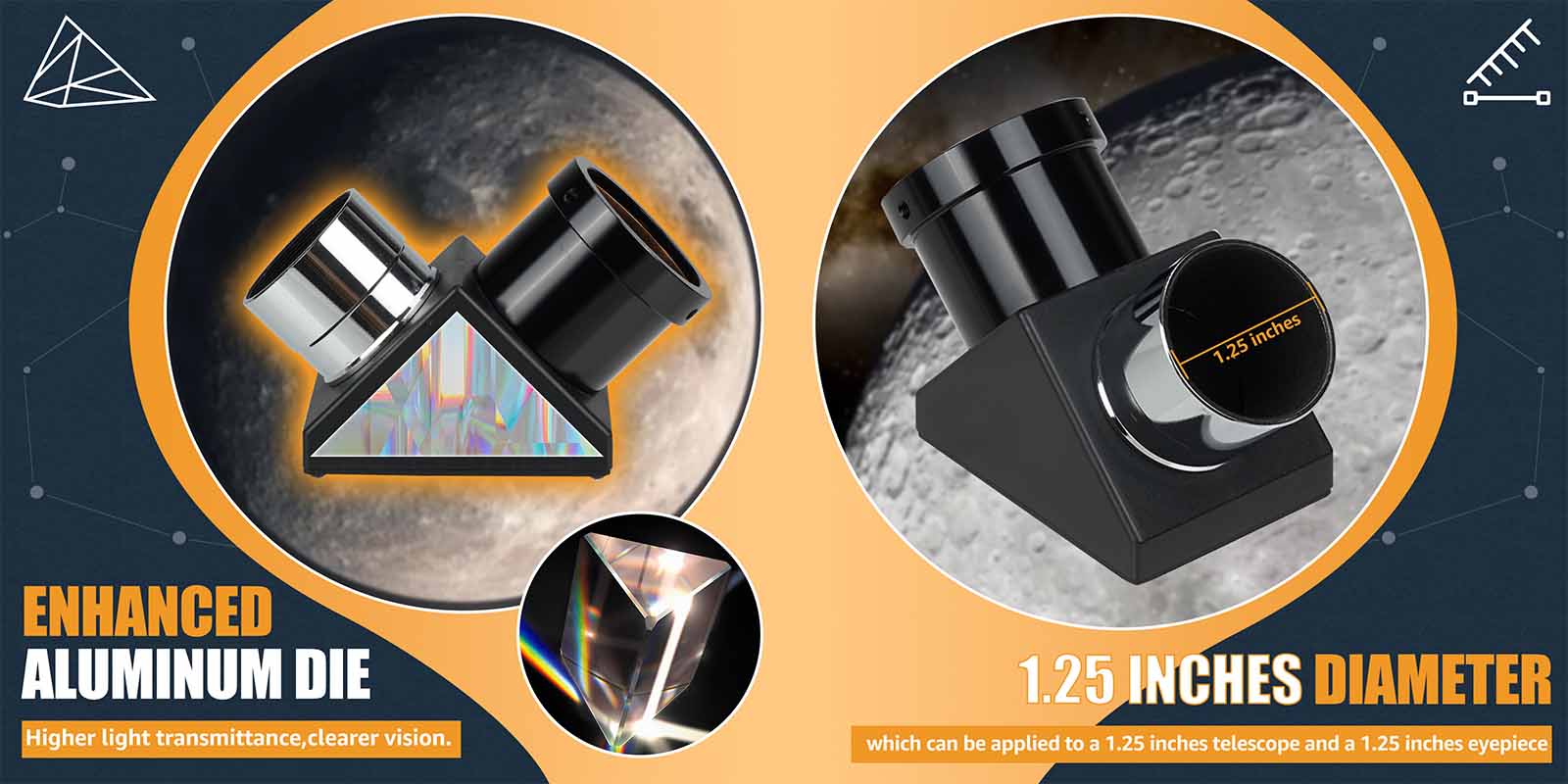

Enhanced Aluminum Die Structure
Designed with enhanced aluminum die, SV221 can provide higher light transmittance & clear vision. 1.25 inches diameter which can be applied to a 1.25 inches telescope and a 1.25 inches eyepiece.

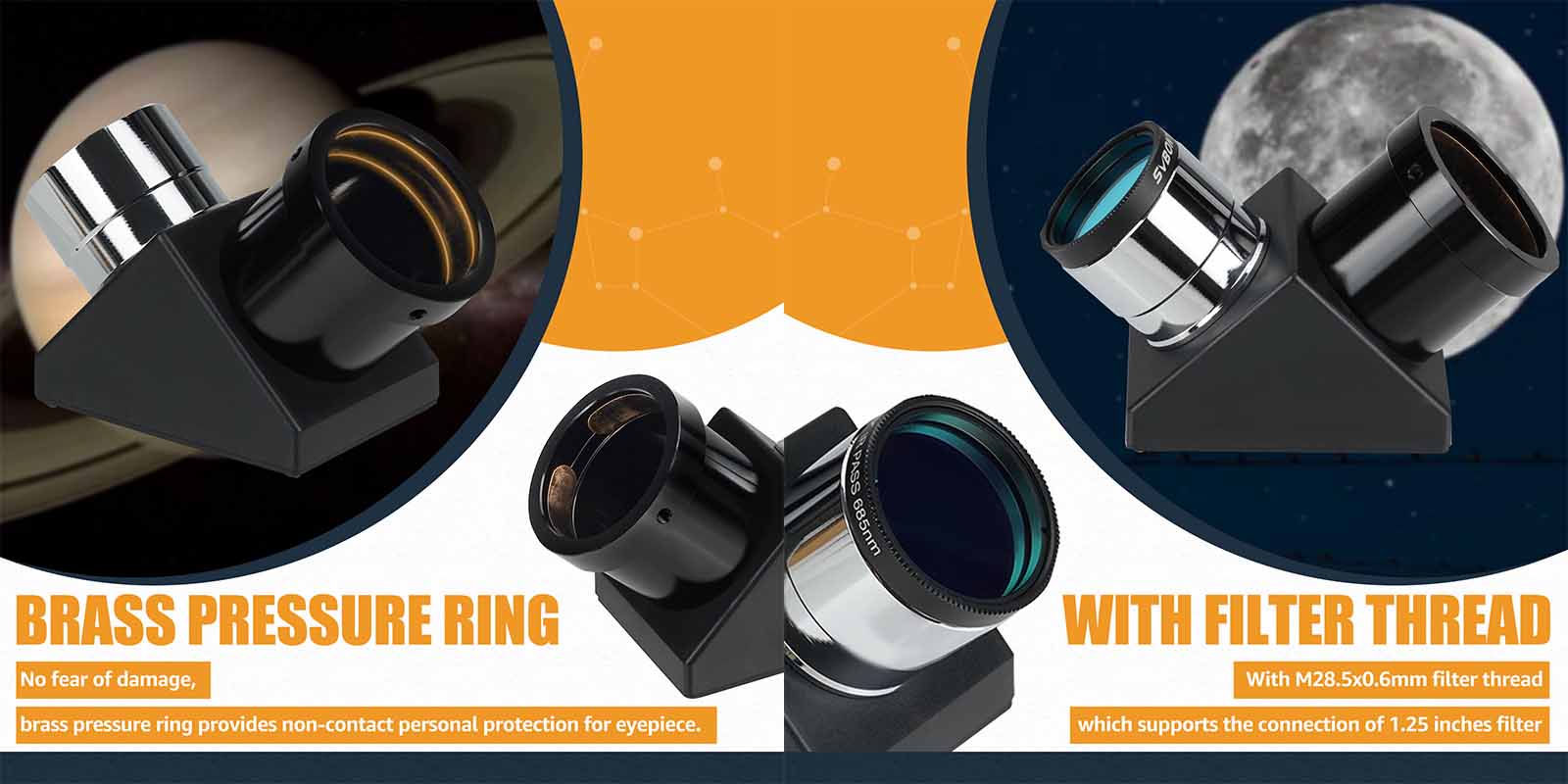

Brass Pressure Ring
Built-in brass pressure ring, you can never have to fear of damage, since brass pressure ring provides non-contact personal protection for eyepiece.

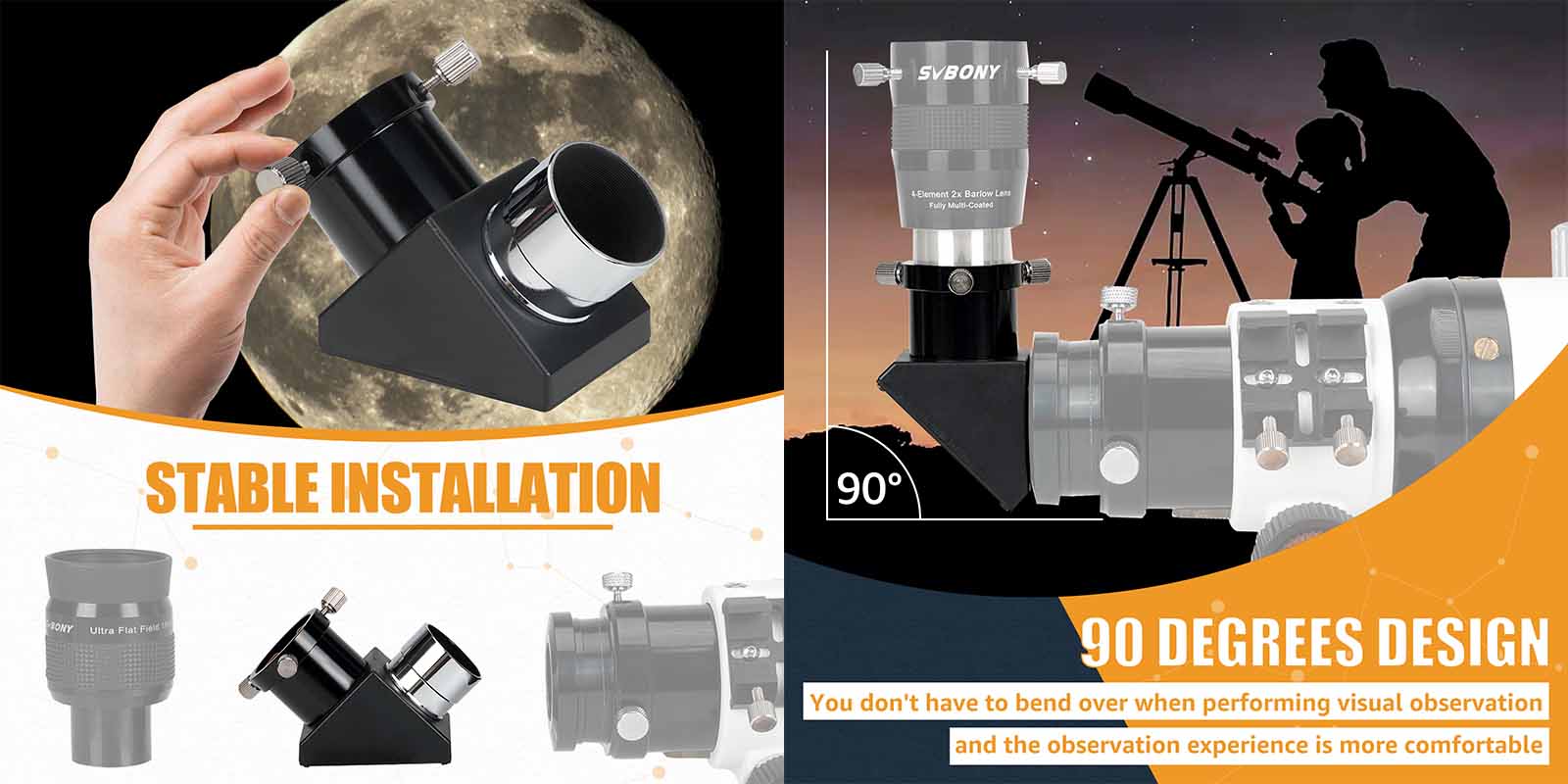

Stable Installation & 90 Degrees Design
With a 90 degree design, you don't have to bend over when performing visual observation and the observation experience can be more comfortable.

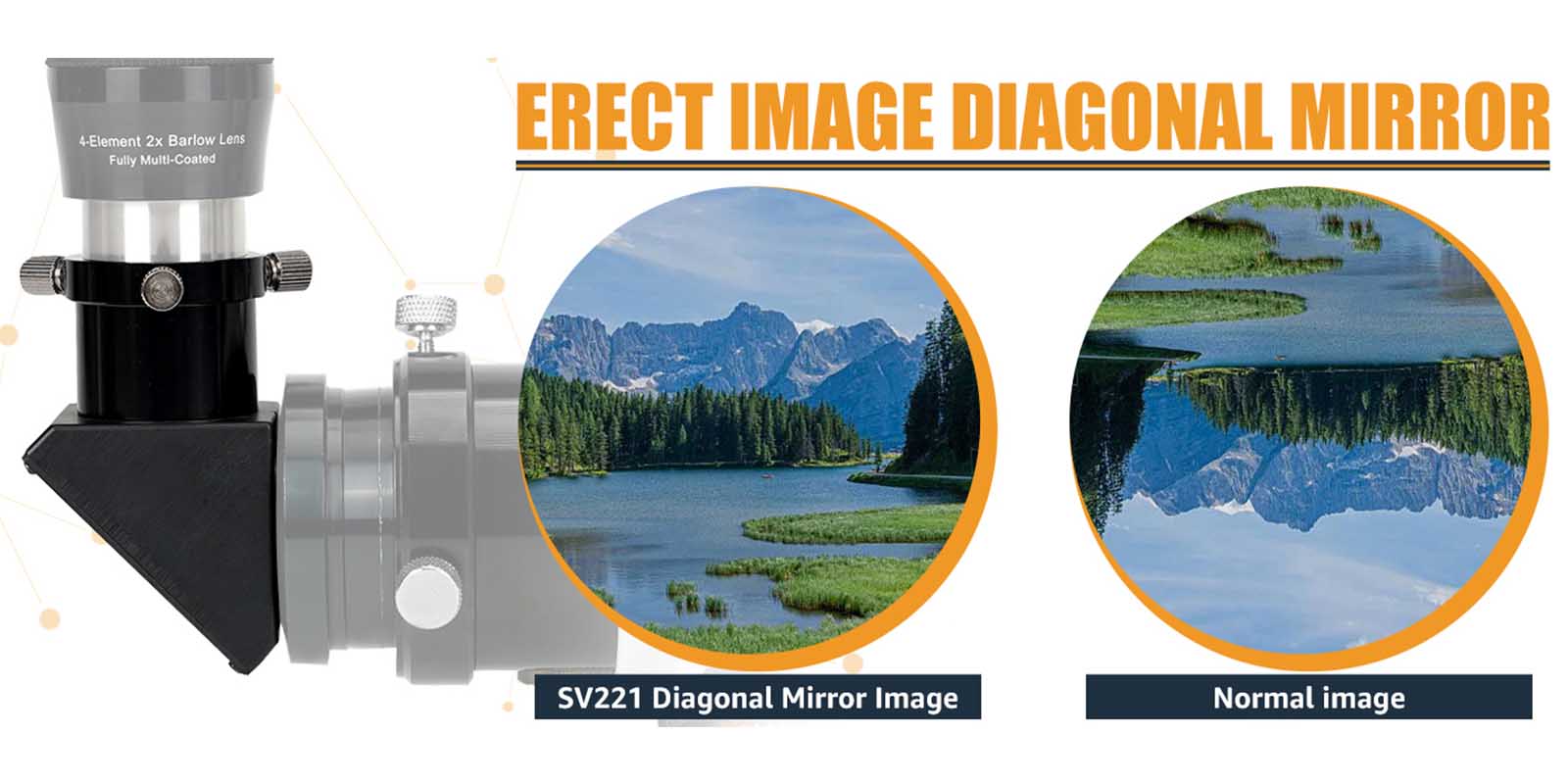

SV221 Diagonal Mirror Image VS Normal Image
The Applicable Scene of SV221 90 Degree Mirror Diagonal--
bird watching, sightseeing and astronomical observation

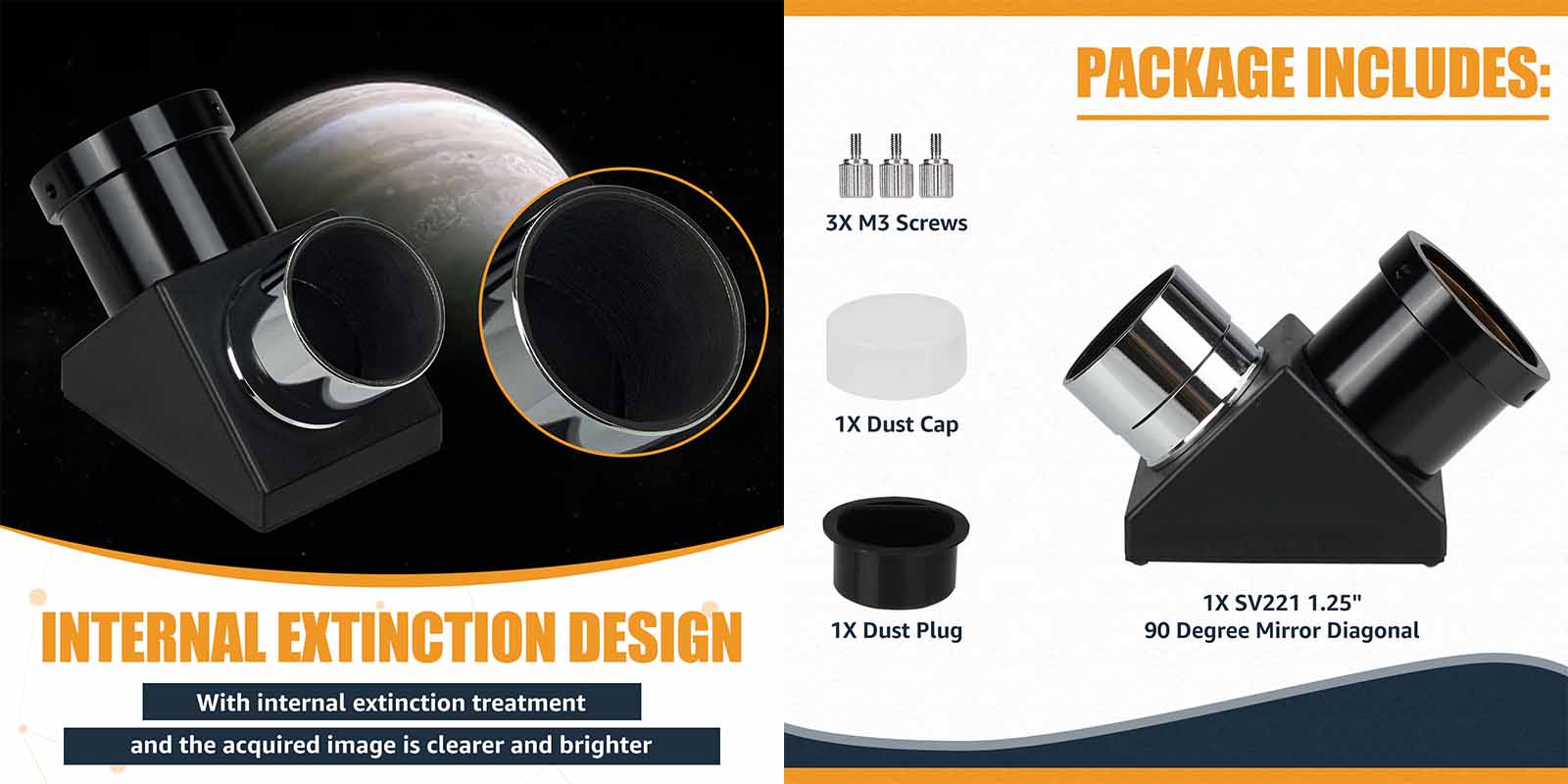

Package Includes:
- SV221 1.25" 90 Degree Mirror Diagonal
- 3PCS M3 Screws
- 1PCS Dust Cap
- 1PCS Dust Plug
| Brand | SVBONY |
| Model | SV221 |
| Size | 1.25 inch |
| Optical Design | Mirror Diagonal |
| Inner Connection (Lens Sided) | Thread M28.5x0.6 |
| Outer Connection (Lens Sided) | Barrel 1.25 inch |
| Inner Connection (Eyepiece Sided) | Clamp 1.25inch |
| Reflection Surface | Aluminum Coated |
| Reflectivity | >92% |
| Image Orientation | Erect Image, Mirror Inverted |
| Optical Length | appr. 73mm |
| Clamping System | Screw Clamps |
| Deflection Angle | 90° |
| Clear Aperture | 29.5mm |
| Material | Plastic & Metal |
| Net Weight | 90.5g/3.19oz |
