Description
Turn a compatible optical device into a stable smartphone digiscoping setup with the SVBONY SV214 Pro. Three fine-adjustment controls position the phone camera across the X, Y, and Z axes, helping center the camera over the eyepiece and set the correct eye relief for clearer images and video.
The fully metal adapter is made from rigid aluminum alloy and uses precision CNC machining for a durable structure that resists bending and wear. EVA pads on the eyepiece clamp and phone clamp help protect connected devices from abrasion, while the spring-loaded phone clamp supports quick loading and a secure fit.

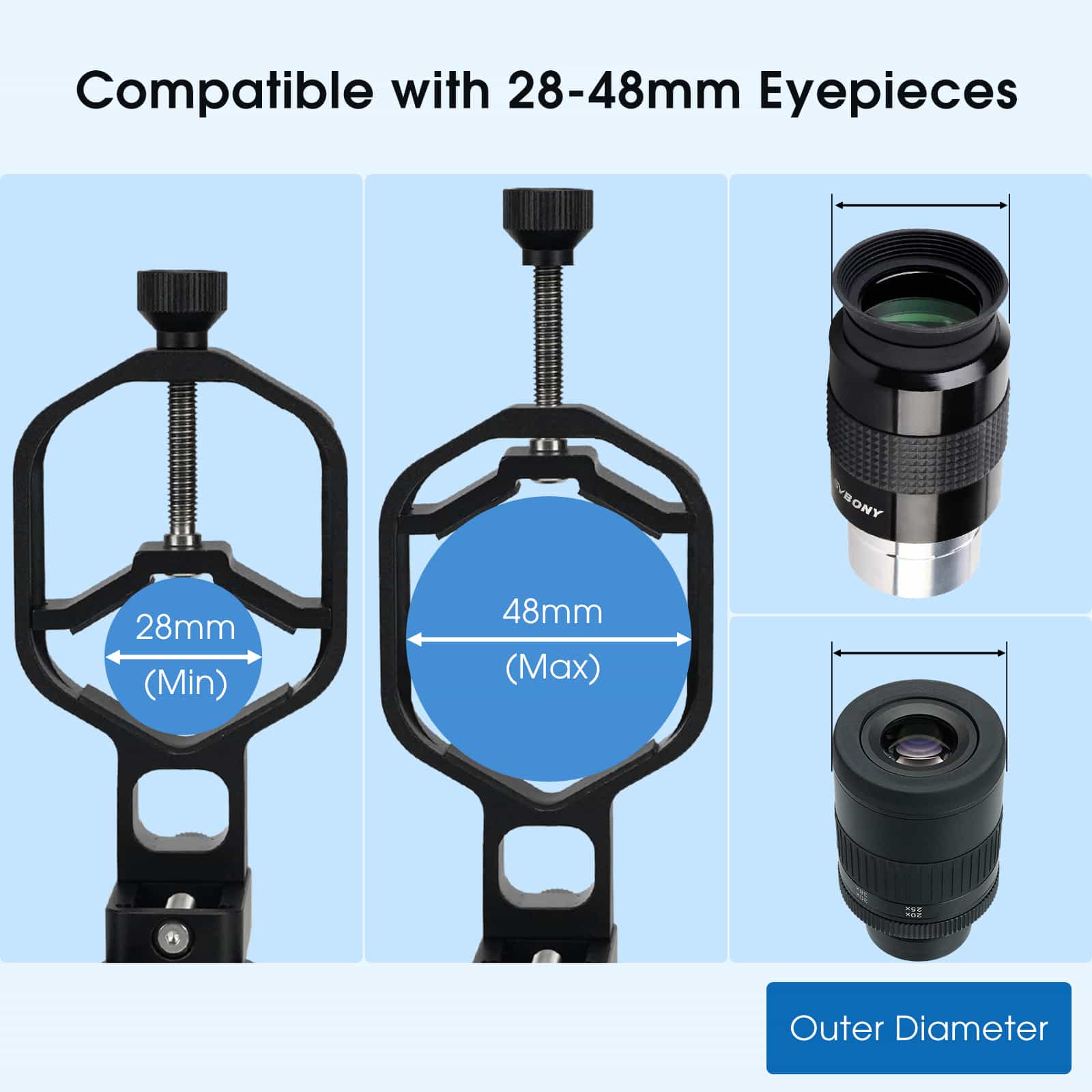

Choose the eyepiece clamp range that matches your setup: 28-48 mm or 44-64 mm. Both versions fit smartphones 55-105 mm wide and are compatible with telescopes, binoculars, spotting scopes, and monoculars.
Key Features
- 3-axis precision adjustment: Move the phone up/down, left/right, and forward/backward to center the camera over the eyepiece.
- Fine control for optical alignment: Easy-to-reach adjustment knobs support stable, accurate positioning.
- Adjustable eye relief: Forward/backward movement helps position the phone for clearer lunar, planetary, and landscape images and video.
- All-metal construction: Rigid aluminum alloy provides a durable, wear-resistant structure.
- Protective EVA pads: Padding on both clamps helps protect the phone and eyepiece from abrasion.
- Spring-loaded phone clamp: Supports quick phone loading while maintaining a secure hold.
- Broad optics compatibility: Designed for telescopes, binoculars, spotting scopes, and monoculars.
Specifications
|
Specification |
W9176A |
W9176B |
|
Model |
SV214 Pro |
SV214 Pro |
|
Eyepiece clamp range |
28-48 mm |
44-64 mm |
|
Phone clamp range |
55-105 mm |
55-105 mm |
|
Fine adjustment |
3-axis |
3-axis |
|
Phone clamp style |
Internal spring / easy load |
Internal spring / easy load |
|
Material |
Fully metal |
Fully metal |
|
Net weight |
Approx. 250 g |
Approx. 320 g |
|
Compatible optics |
Telescope, binocular, spotting scope, monocular |
Telescope, binocular, spotting scope, monocular |
Materials and Construction
- Fully metal construction made from rigid aluminum alloy.
- Precision CNC machining is stated for the aluminum alloy structure.
- EVA protective pads are fitted to the eyepiece clamp and phone clamp.
- Phone clamp uses an internal spring for easy loading.
Dimensions, Fit & Compatibility
- Phone width: 55-105 mm, based on the product specification table.
- Eyepiece option 1: 28-48 mm outside diameter.Eyepiece option 2: 44-64 mm outside diameter.
- Compatible optical devices: telescopes, binoculars, spotting scopes, and monoculars.
- Compatible phone platforms: most iPhone/iOS and Android smartphones that fall within the stated width range.
