Description
SC571CC cooled camera with a 26MP APS-C IMX571 BSI sensor, dual-stage TEC cooling to approximately 35°C below ambient, and zero amp-glow for clean, high-sensitivity deep-sky imaging.

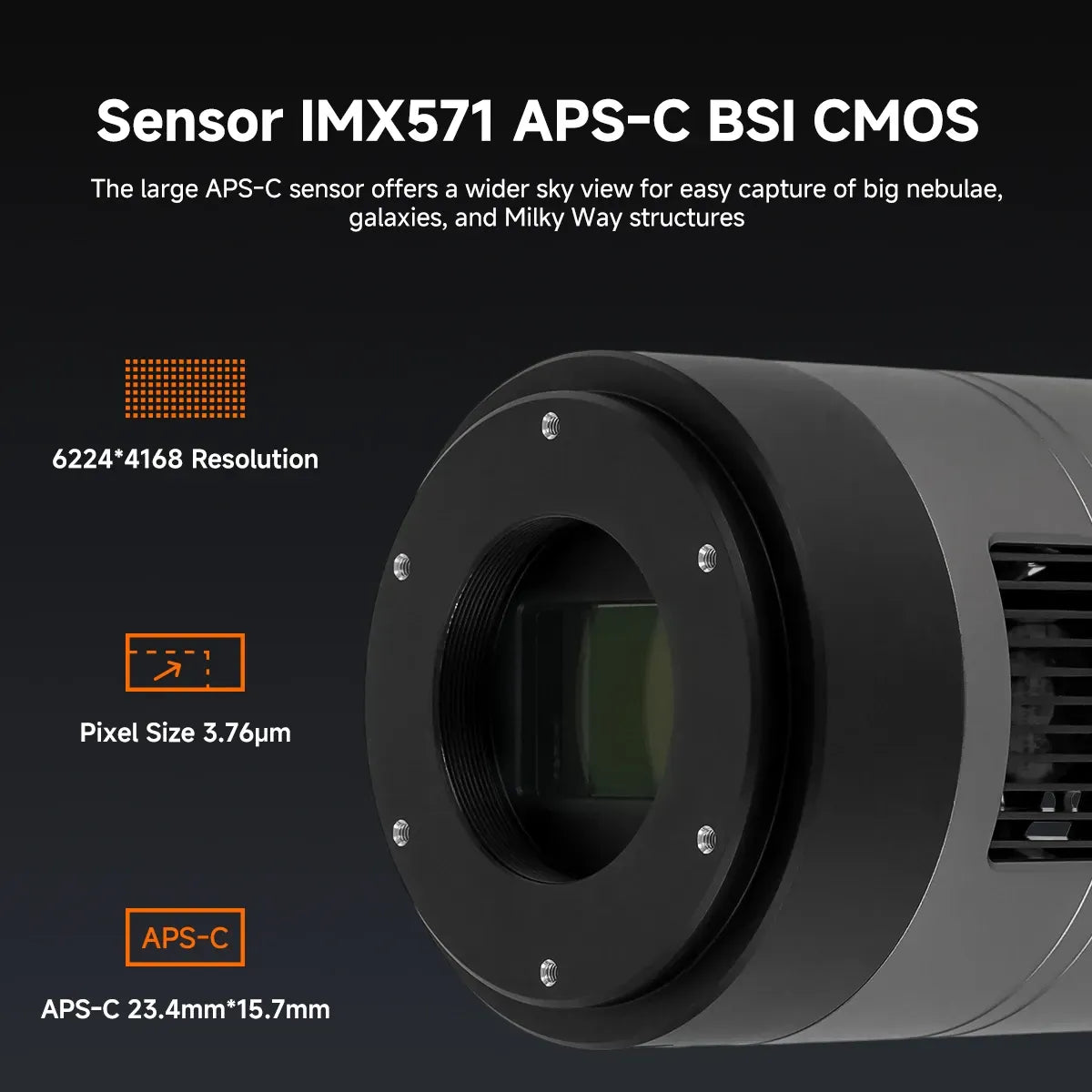

High-Performance APS-C BSI CMOS: Featuring the Sony IMX571 sensor with 26MP resolution, a large APS-C format, and a 3.76μm pixel size, delivering excellent detail and sensitivity.

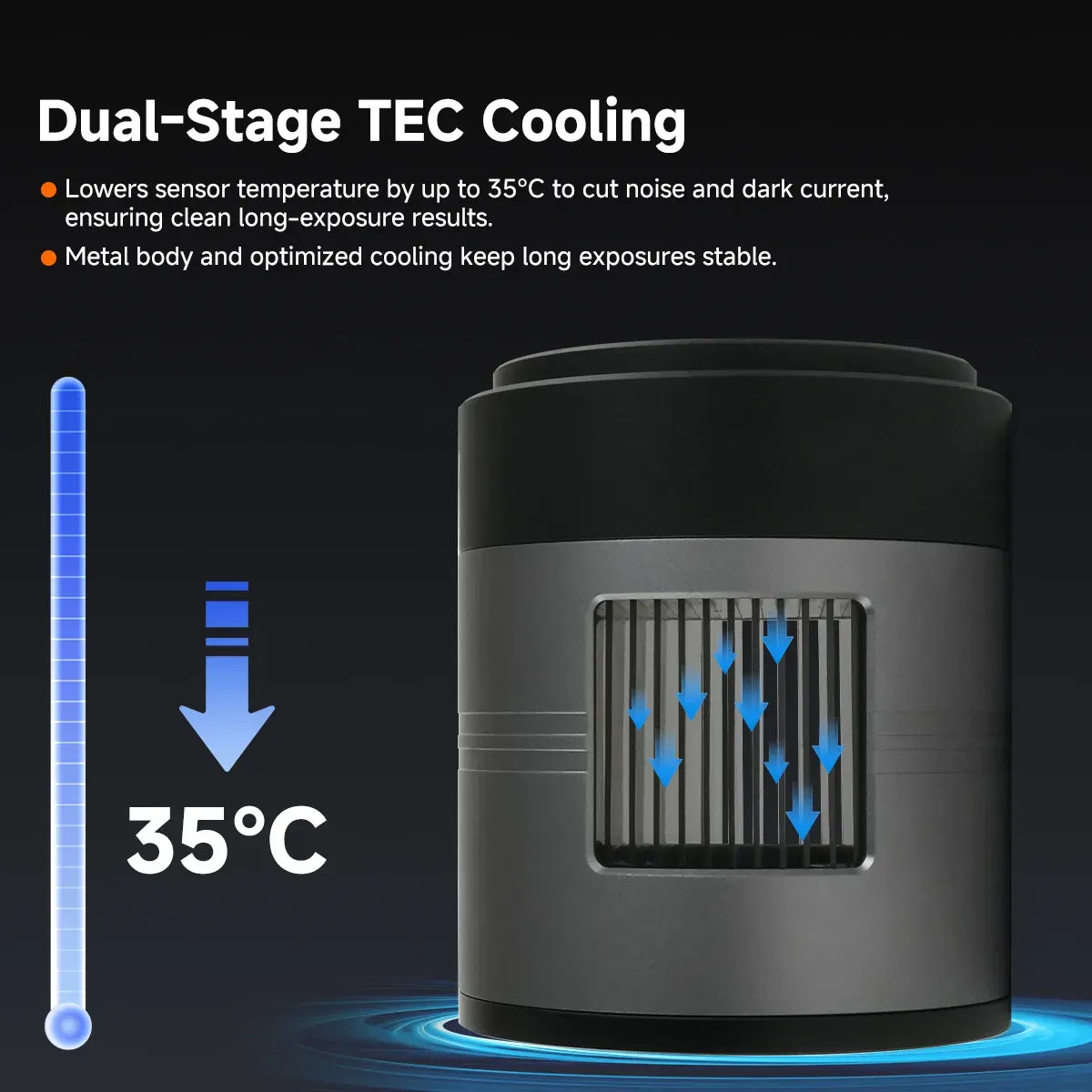

Dual-Stage TEC Cooling: Cools to approximately 35°C below ambient, suppressing dark current and noise for stable long-exposure imaging.

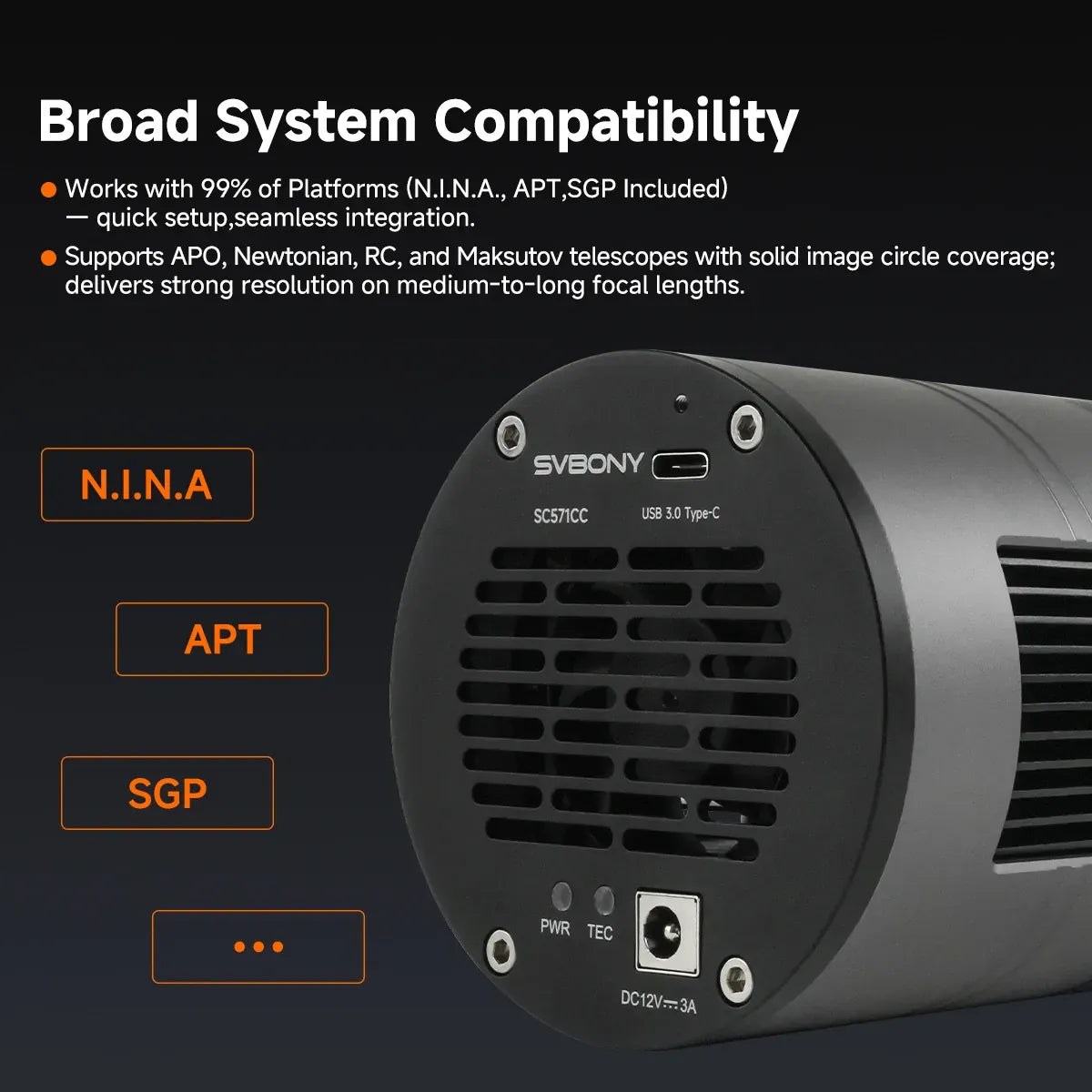

Wide Compatibility: Compatible with a variety of telescopes and popular astrophotography software, including NINA, APT, and SGP.

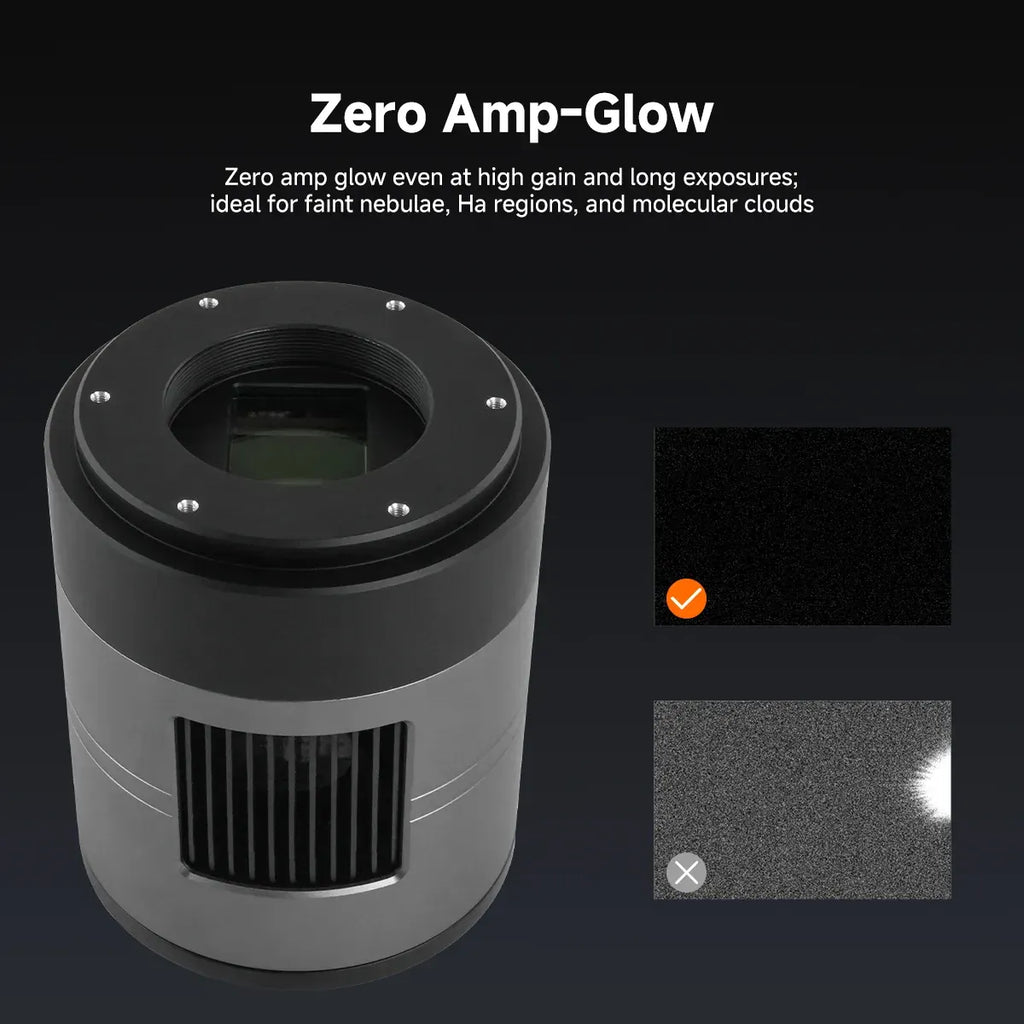

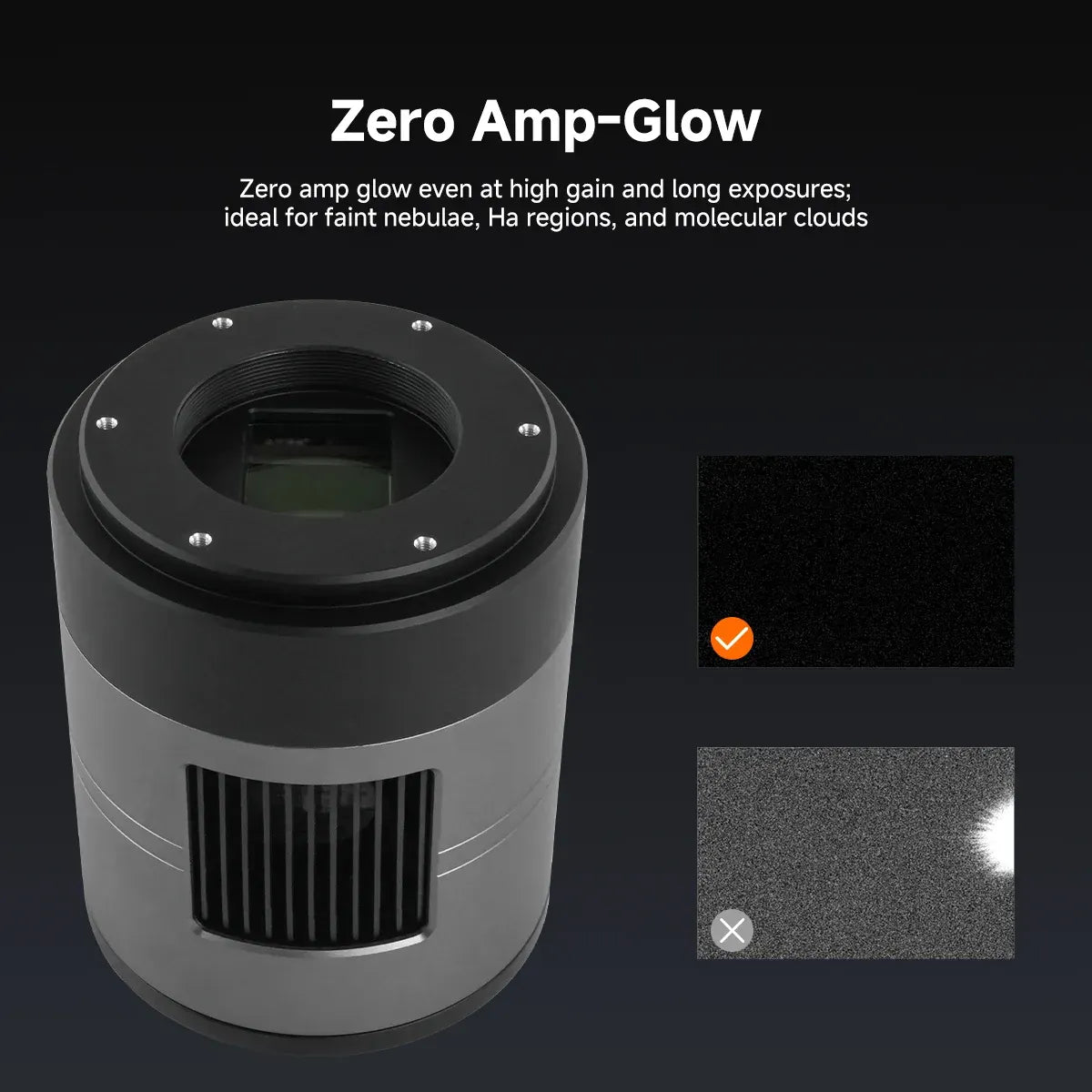

Zero Amp-Glow for Clean Image Quality: Produces no amp-glow pattern noise during long exposures, delivering clean, high-quality deep-sky images.
High Quantum Efficiency (QE >80%): The BSI design combined with 3.76μm pixels efficiently captures faint signals, making it ideal for dim targets such as nebulae and Hα regions.
Specifications
-
Brand: SVBONY
-
Model: SC571CC
-
Sensor Model: Sony IMX571 Color Sensor
-
Sensor Type: CMOS
-
Sensor Size: APS-C (23.5 × 15.7mm)
-
Resolution: 6244 × 4168 (26MP)
-
Pixel Size: 3.76μm × 3.76μm
-
Sensor Diagonal: 28.3mm
-
Read Noise: 2.6–1.14e-
-
Exposure Range: 0.1ms–3600s
-
Peak QE: >80%
-

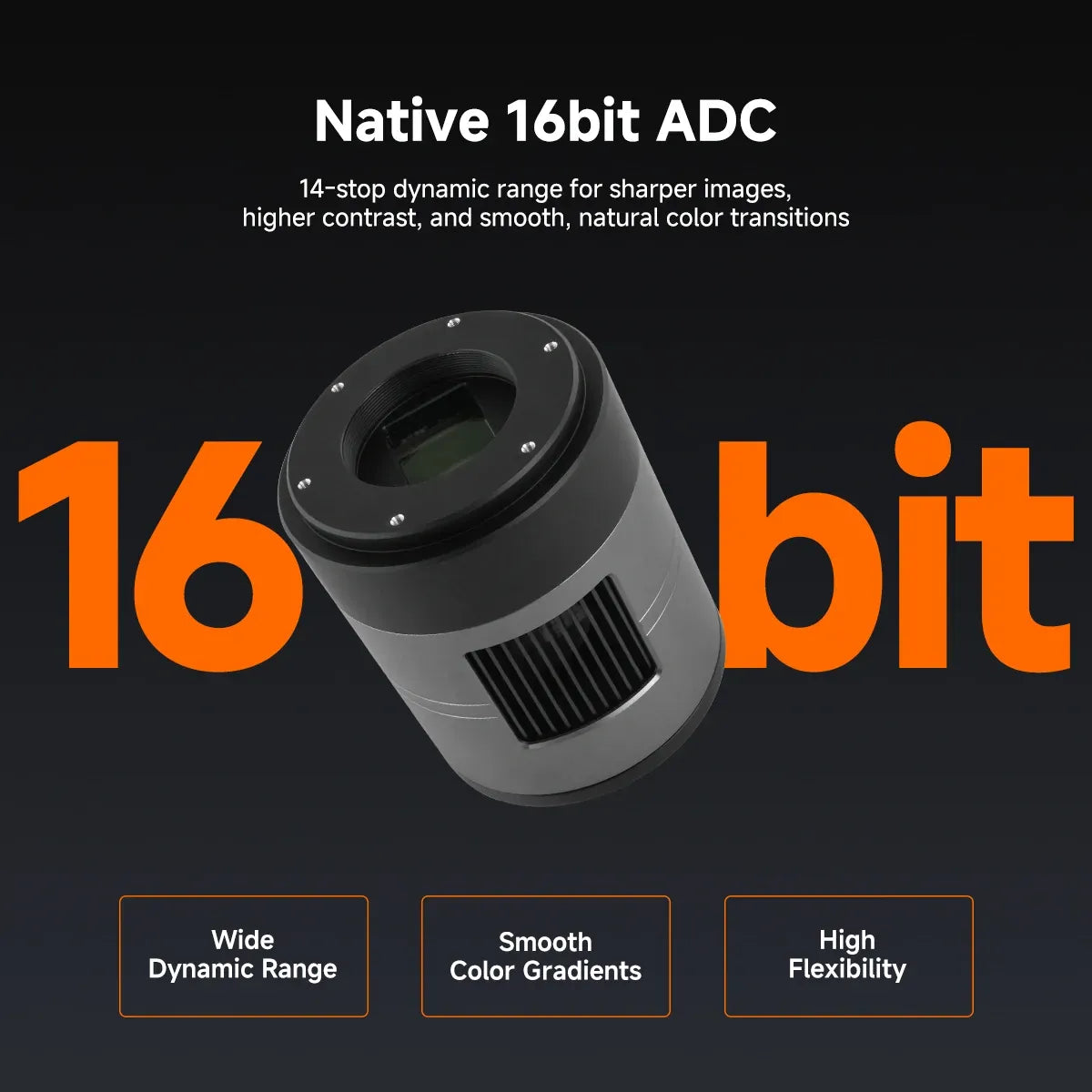

ADC: 16-bit
-
Max Frame Rate: 13.3 FPS at full resolution
-
Cooling Method: Dual-Stage TEC
-
Cooling Capacity: Approximately 35°C below ambient
-
Buffer: 512MB DDR3
-

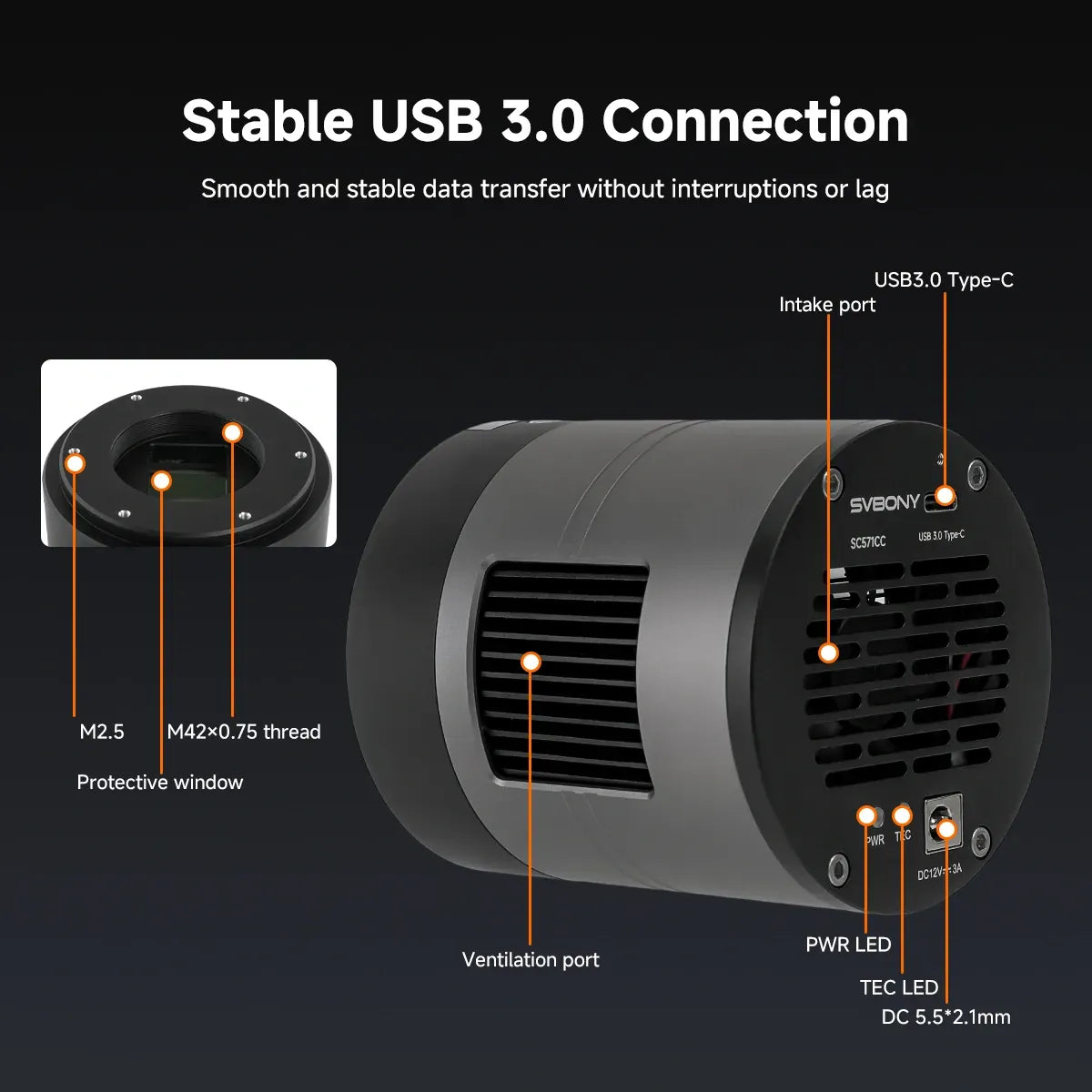

Data Interface: USB Type-C
-
Power Interface: DC 12V (5.5 × 2.1mm)
-
Camera Interface: M42 × 0.75 / 2"
-

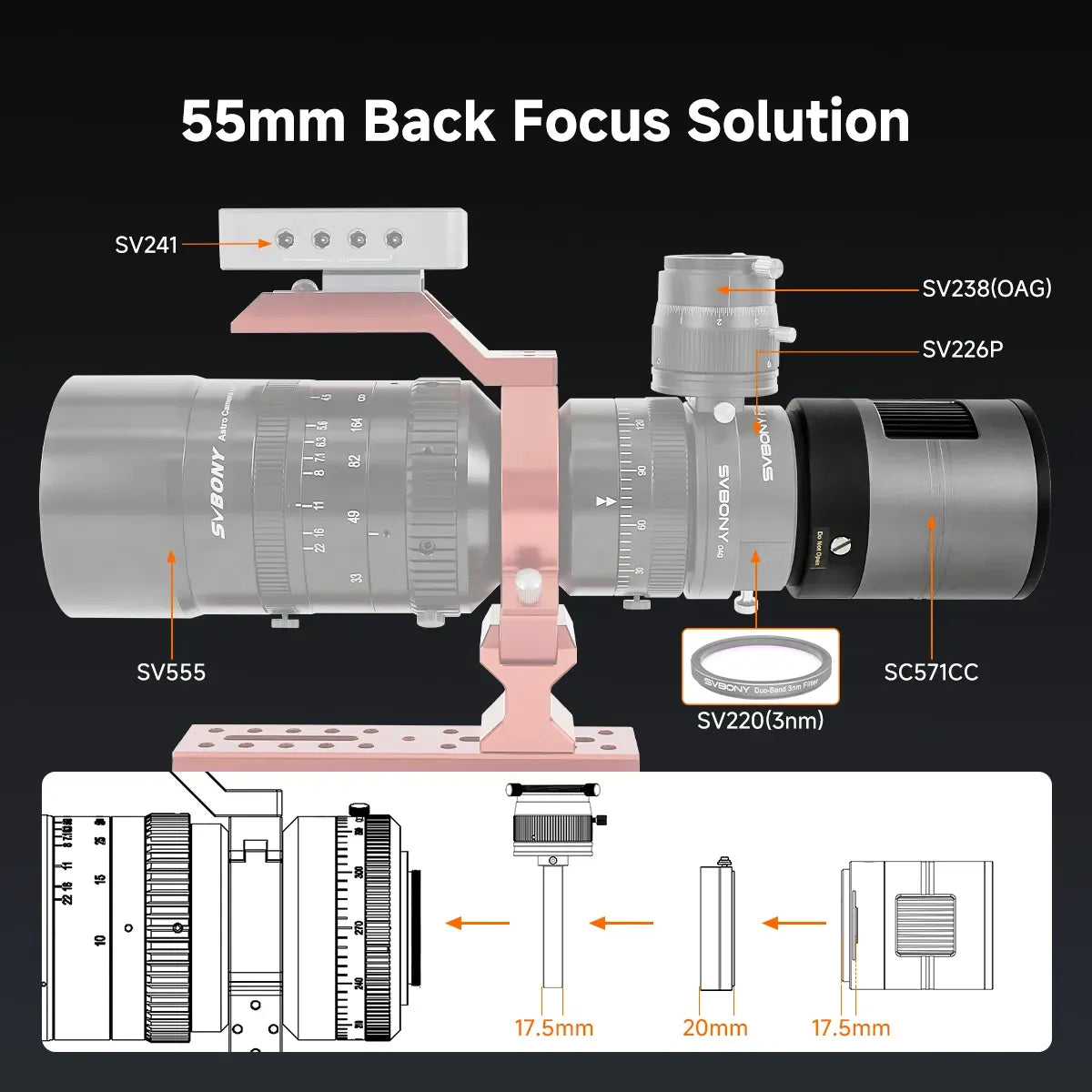

Back Focal Length: 17.5mm
-
Supported OS: Windows / macOS / Linux / Raspberry Pi
-
Protective Window: AR-Coated Glass
