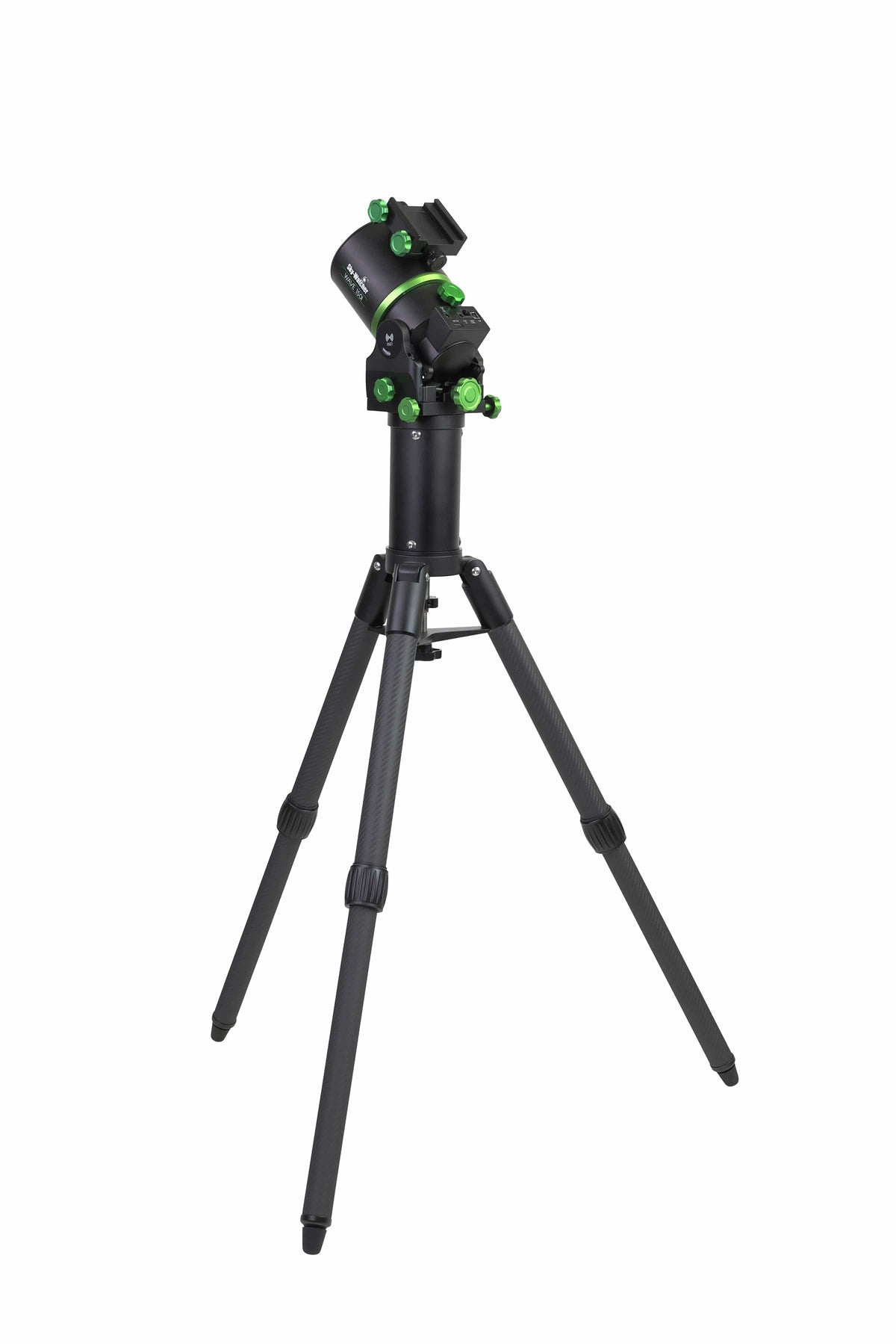

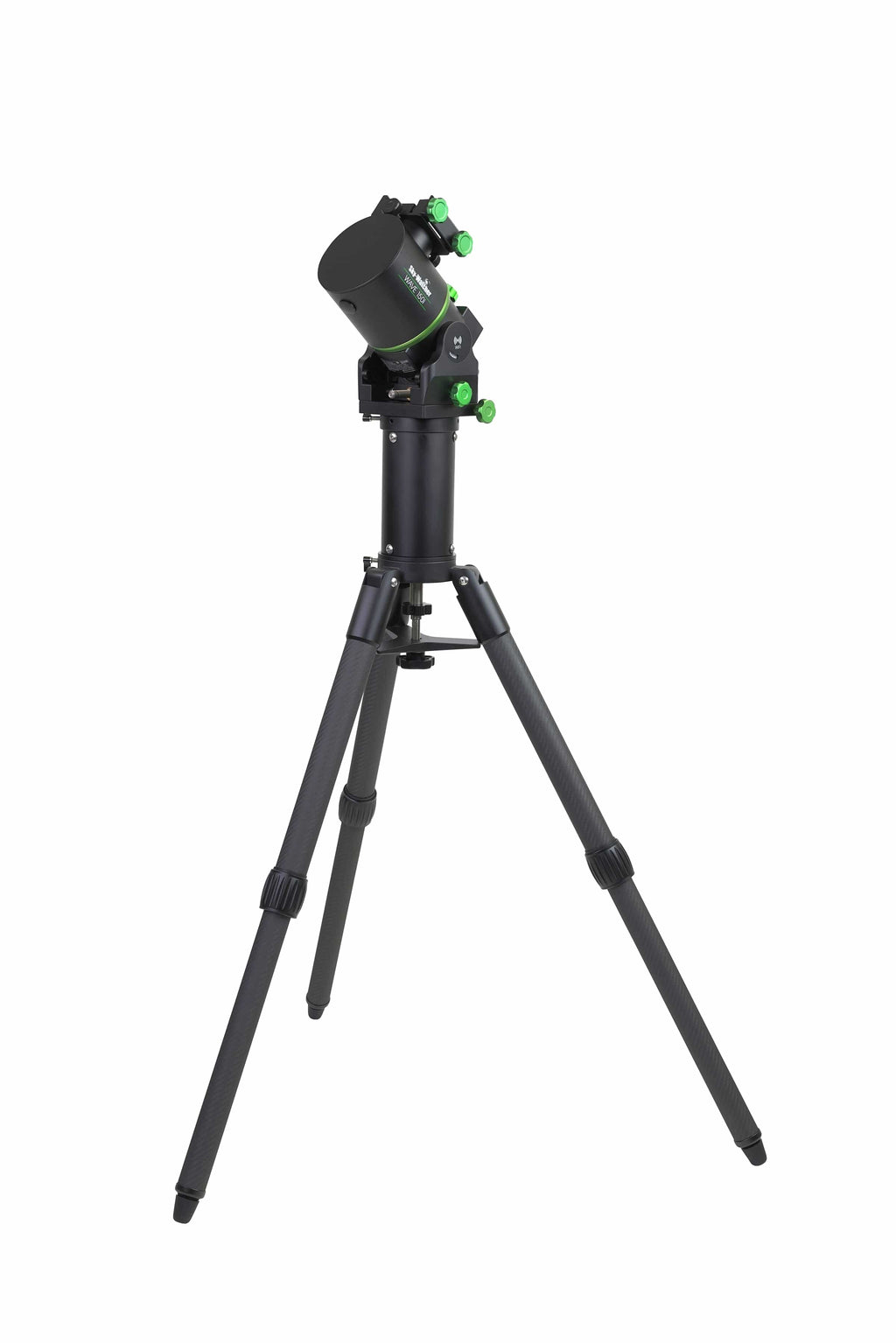

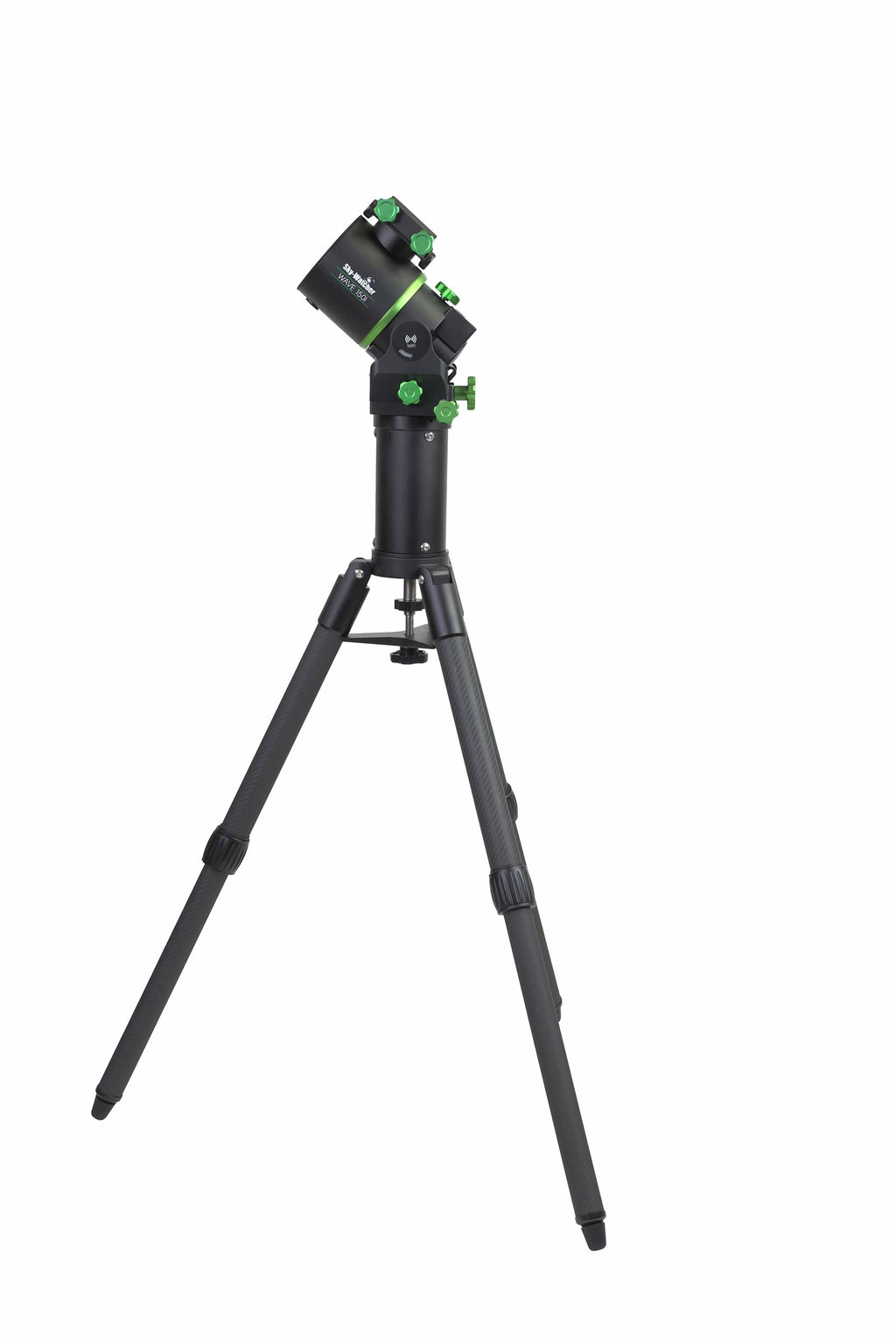

Sky-Watcher Wave 150i GoTo Strain Wave Mount with Carbon Fibre Tripod & Pier Extension

High Torque. High Precision. Exceptional Portability.

The Sky-Watcher Wave 150i combines advanced strain wave drive technology with a lightweight, compact design, delivering exceptional tracking precision and impressive payload capacity for both visual astronomy and astrophotography. This complete bundle includes the Wave 150i GoTo mount head, a lightweight carbon fibre tripod, and a pier extension for additional telescope clearance.

Weighing just 5.8 kg (12.8 lbs), the Wave 150i mount head supports payloads of up to 15 kg (33 lbs) without counterweights, or up to 25 kg (55 lbs) when equipped with the optional counterweight kit. Its high-torque strain wave gearing minimizes backlash and eliminates the need for traditional counterweight balancing in many configurations, making it an excellent choice for portable imaging setups.

Key Features

• Advanced Strain Wave Drive: High-torque harmonic gearing delivers smooth, precise tracking with minimal backlash in a compact and lightweight design.

• Impressive Payload Capacity: Supports up to 15 kg (33 lbs) without a counterweight or 25 kg (55 lbs) with the optional counterweight kit.

• Dual EQ and AZ Modes: Operates in equatorial or alt-azimuth mode, making it suitable for both astrophotography and visual observing.

• Integrated Cable Management: Built-in cable routing and a powered hub help organize connections and reduce the risk of cable snags during operation.

• Wi-Fi and Bluetooth Connectivity: Wirelessly control the mount using the Sky-Watcher SynScan app on compatible smartphones and tablets.

• ASIAIR Compatibility: Supports integration with ZWO ASIAIR controllers for automated imaging, plate solving, and GoTo operation. A USB-B cable is included.

• RA and DEC Home Positions: Dedicated home-position functions simplify setup and alignment.

• RA Power-Off Braking: Helps prevent unwanted movement of the right ascension axis when the mount is powered off.

• Dual D/V Saddle: Compatible with both Vixen-style and Losmandy-style dovetail mounting plates.

• Illuminated Setup Controls: Features a red-backlit latitude scale and bubble level for easier setup in low-light conditions.

• Carbon Fibre Tripod and Pier Extension: Provides a lightweight, stable support platform with additional clearance between the telescope and tripod legs.

Specifications

• Model: Wave 150i

• SKU: S40015

• Mount Type: GoTo strain wave (harmonic drive)

• Operating Modes: Equatorial (EQ) and Alt-Azimuth (AZ)

• Mount Head Weight: 5.8 kg (12.8 lbs)

• Payload Capacity Without Counterweight: 15 kg (33 lbs)

• Payload Capacity With Optional Counterweight: 25 kg (55 lbs)

• Saddle Type: Dual Vixen/Losmandy (D/V)

• Latitude Adjustment Range: 0°–90°

• Connectivity: Wi-Fi, Bluetooth, USB-B, autoguider and SynScan connections

• Cable Management: Integrated cable routing and powered hub

• Home Position Functions: RA and DEC

• Safety Feature: RA power-off braking

• Power Requirement: 12V DC, 2A (power supply not included)

• Tripod: Carbon fibre

• Pier Extension: Included

What's Included

• Sky-Watcher Wave 150i GoTo strain wave mount head

• Carbon fibre tripod

• Pier extension

• USB-B connection cable

Please Note: The optical tube, counterweight kit, and 12V DC power supply are not included and must be purchased separately if required.
