Description
You can pre-order this product now to reserve yours. Sky-Watcher anticipates delivery in "mid-summer" of this year (2024).

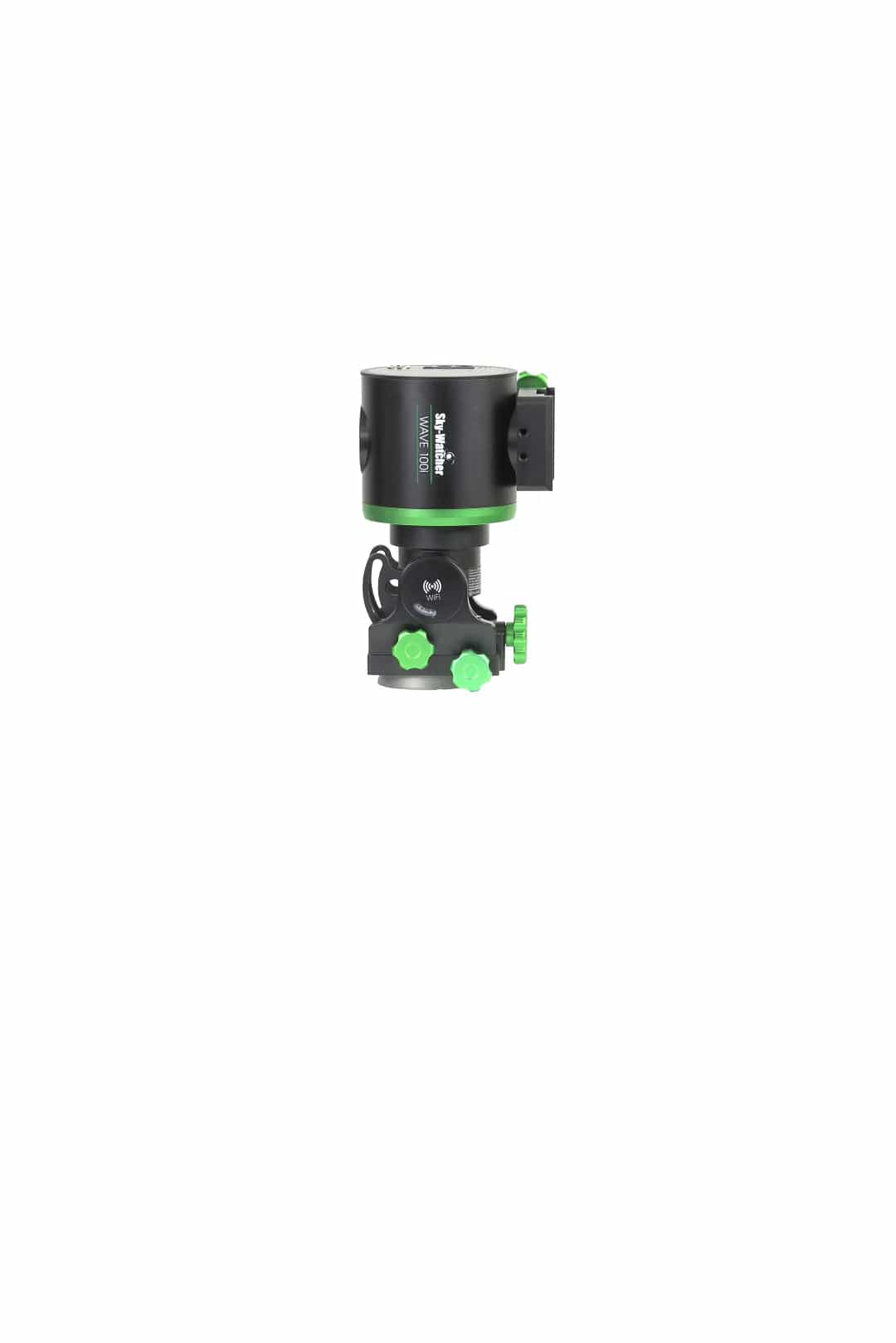

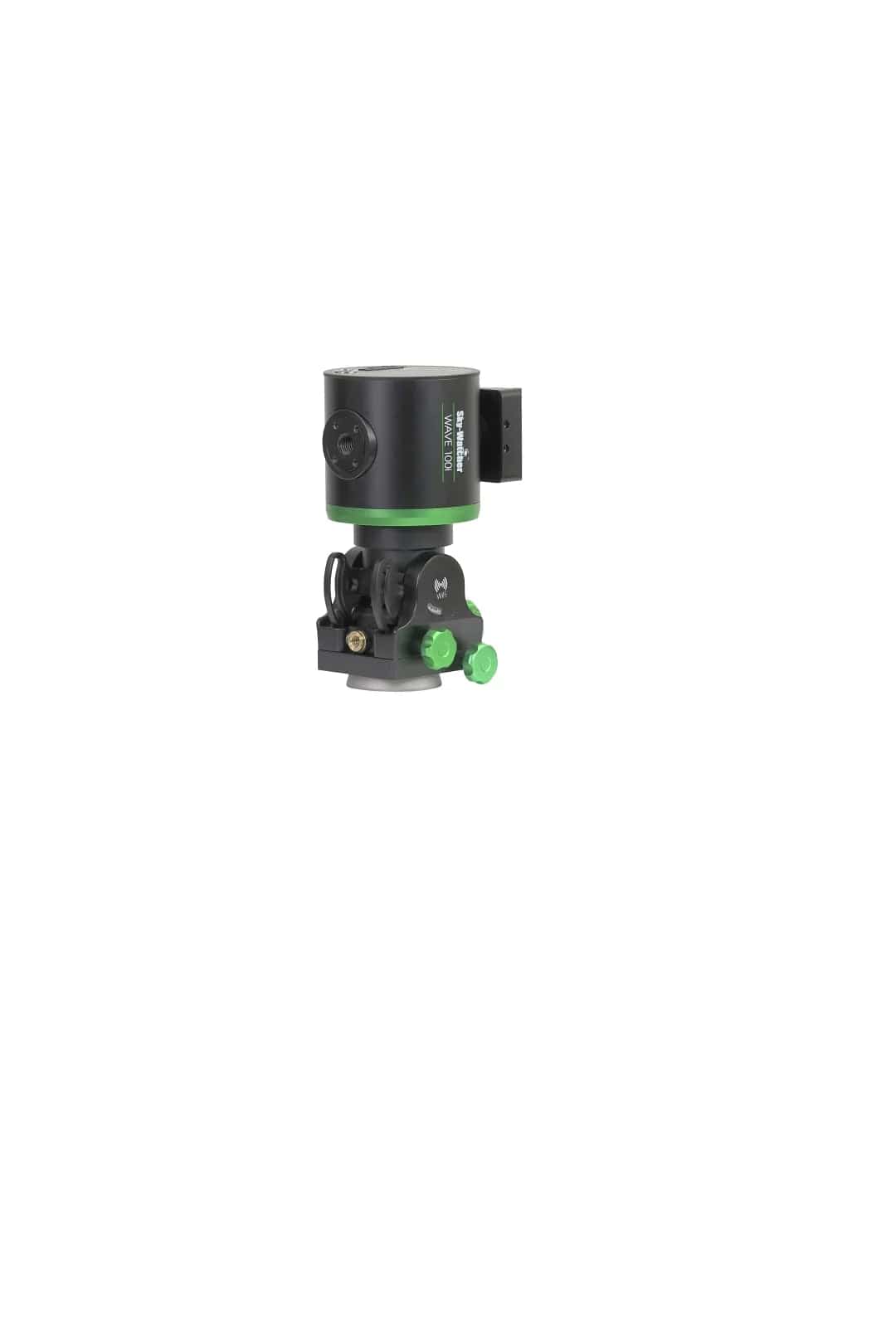

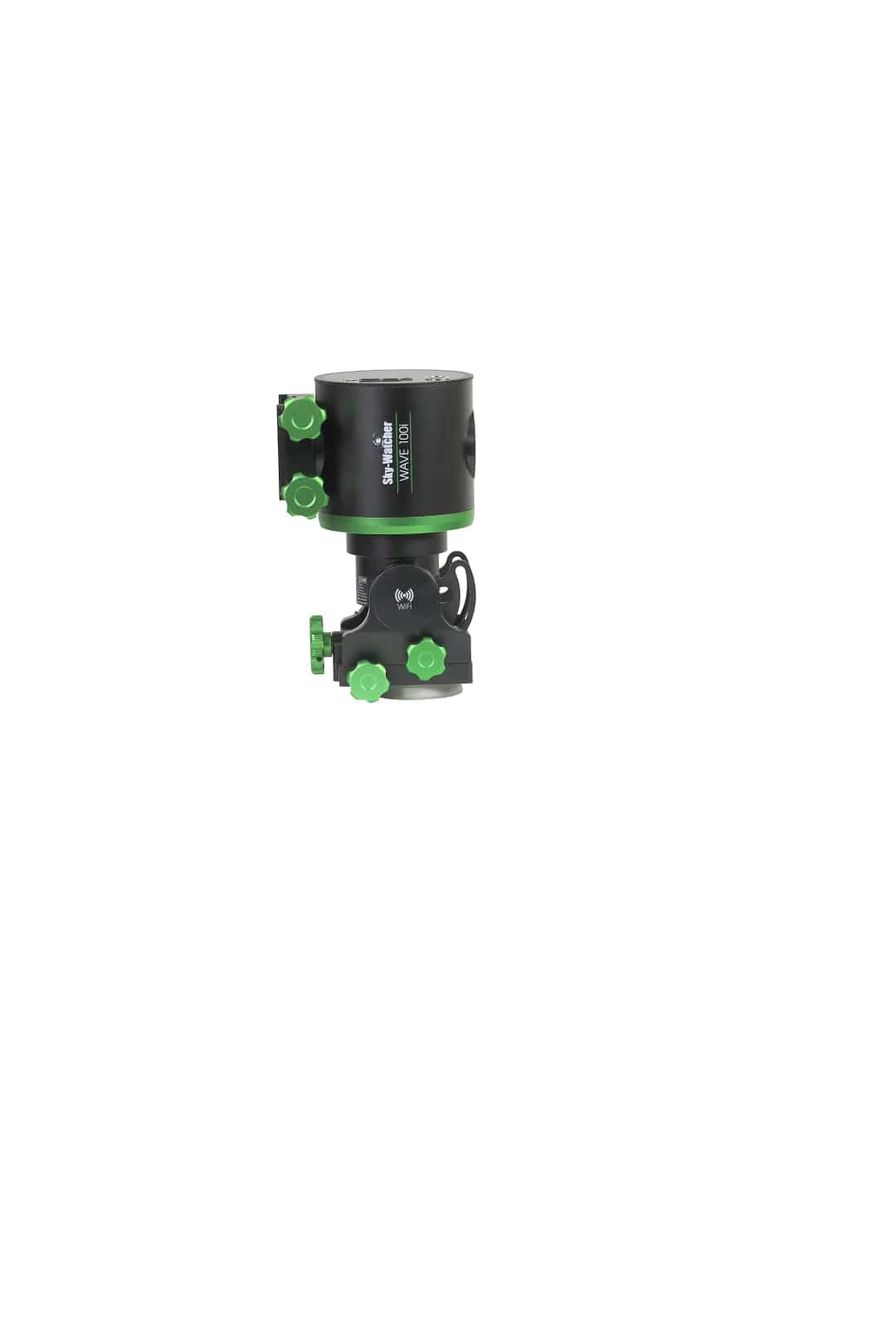

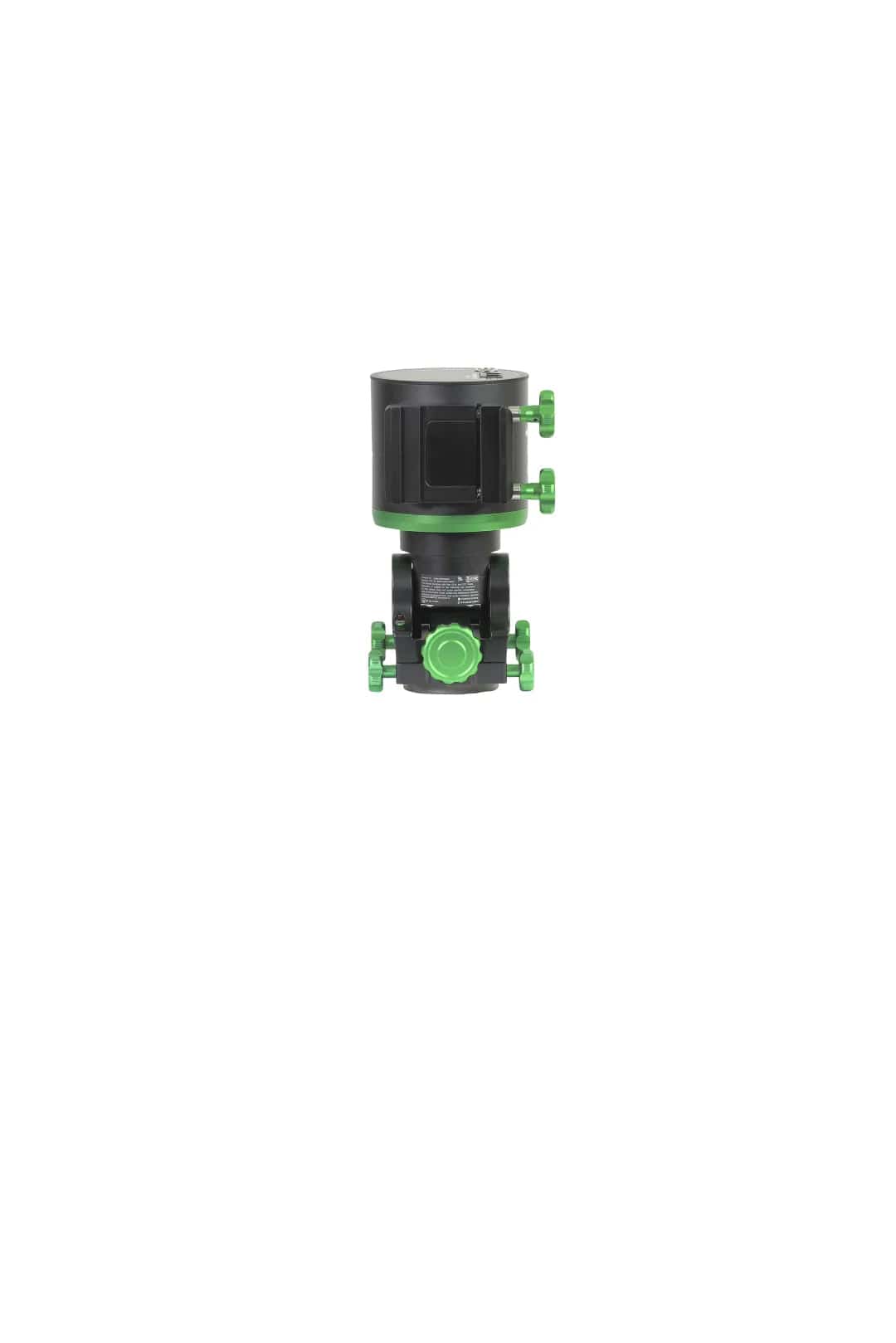

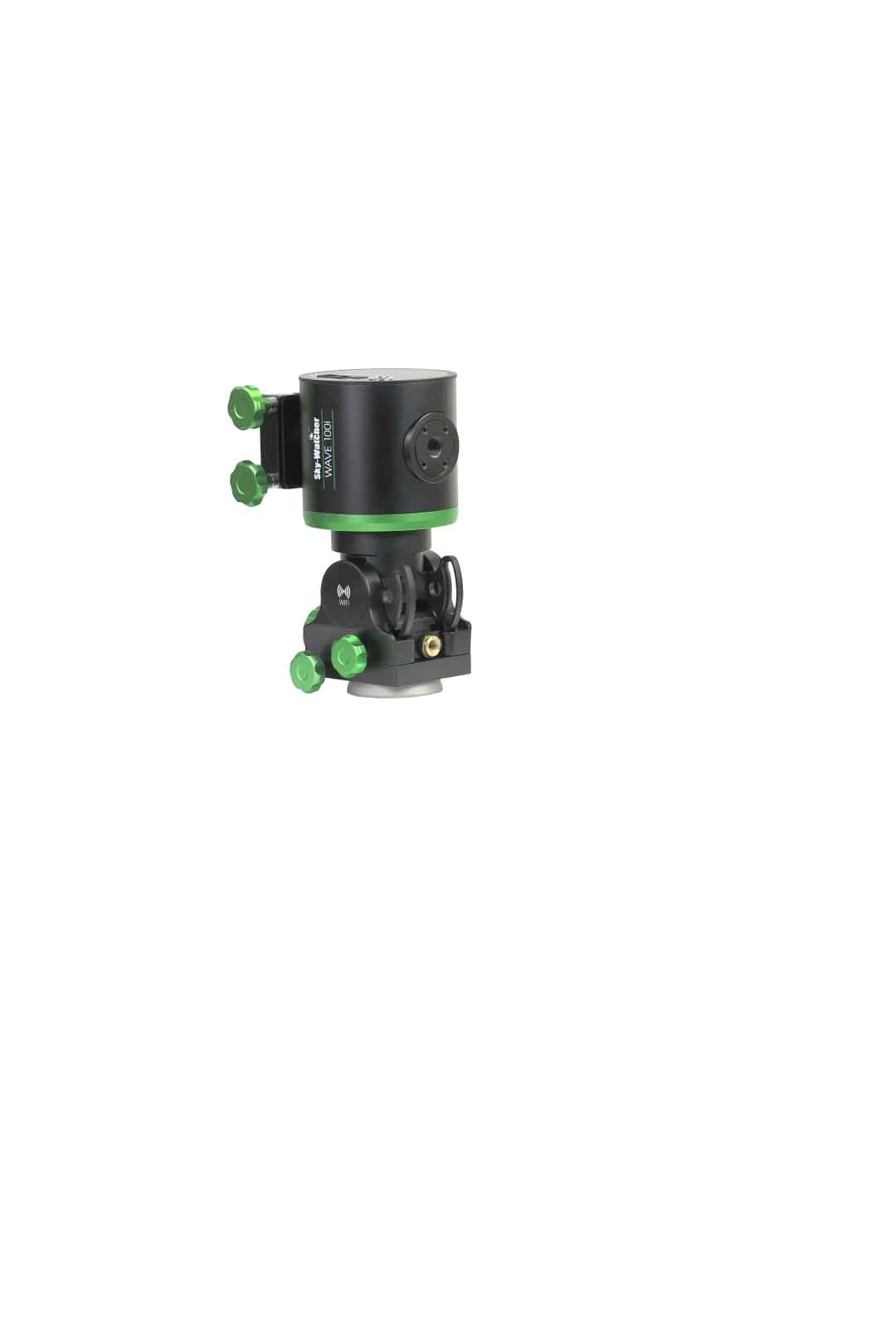

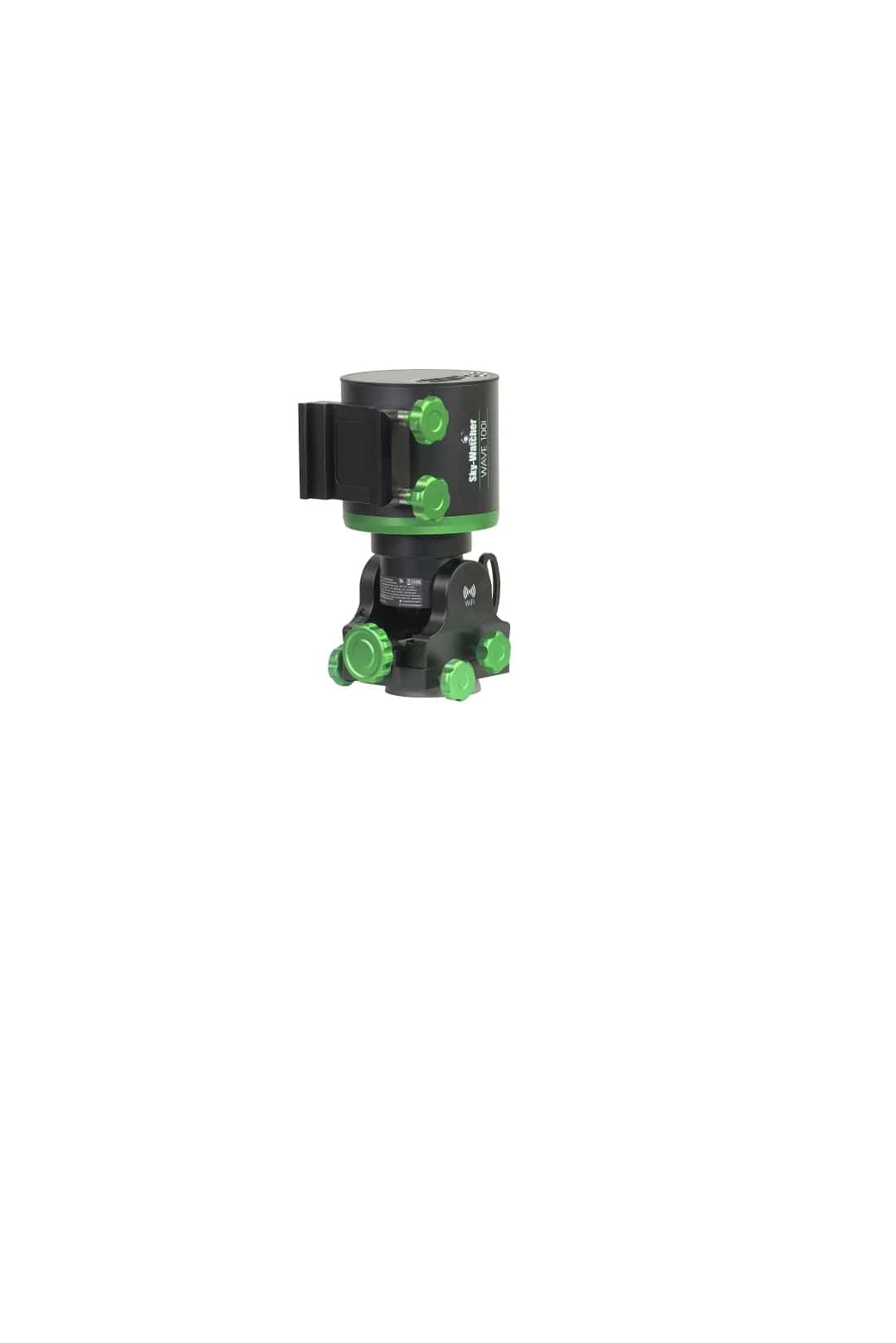

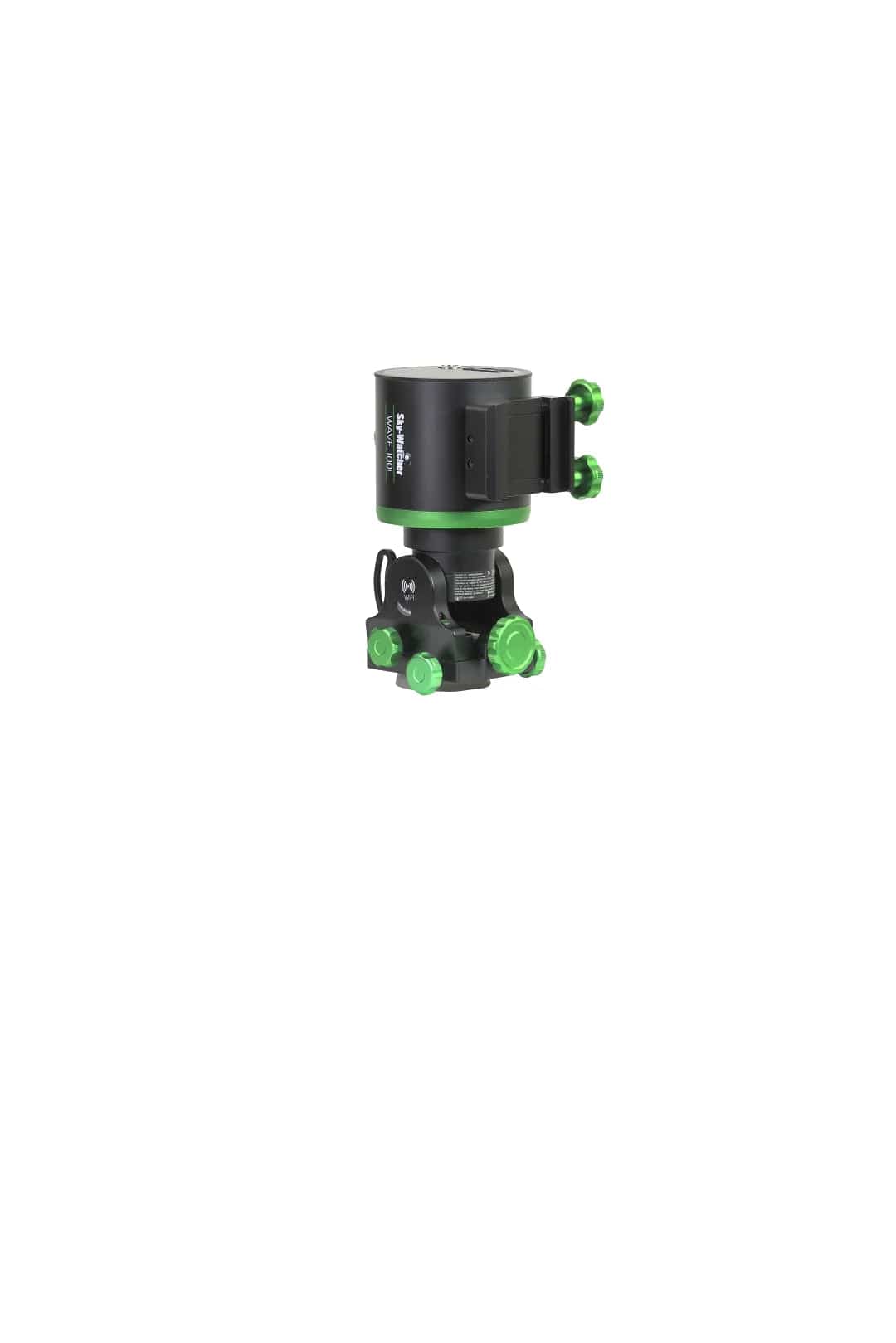

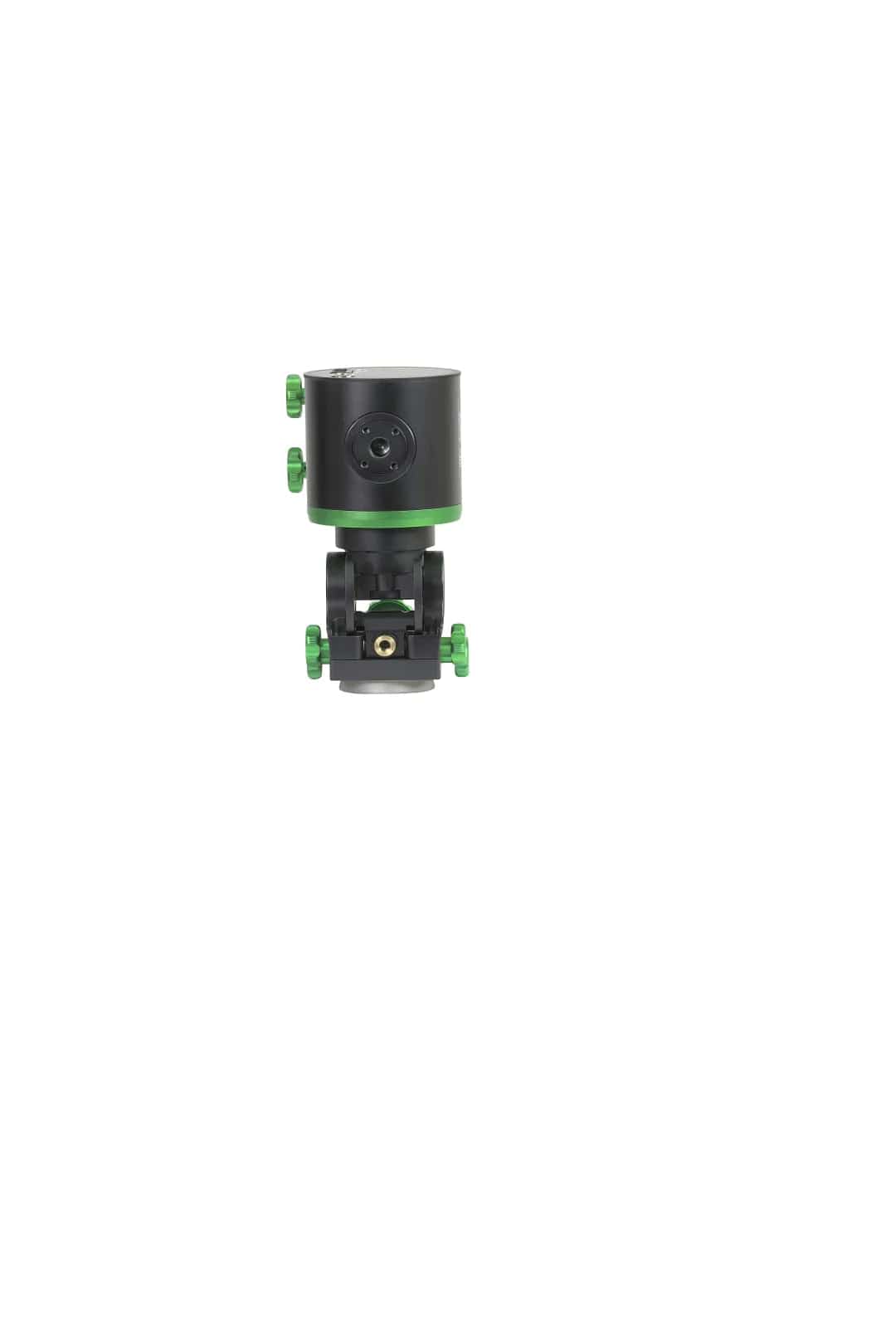

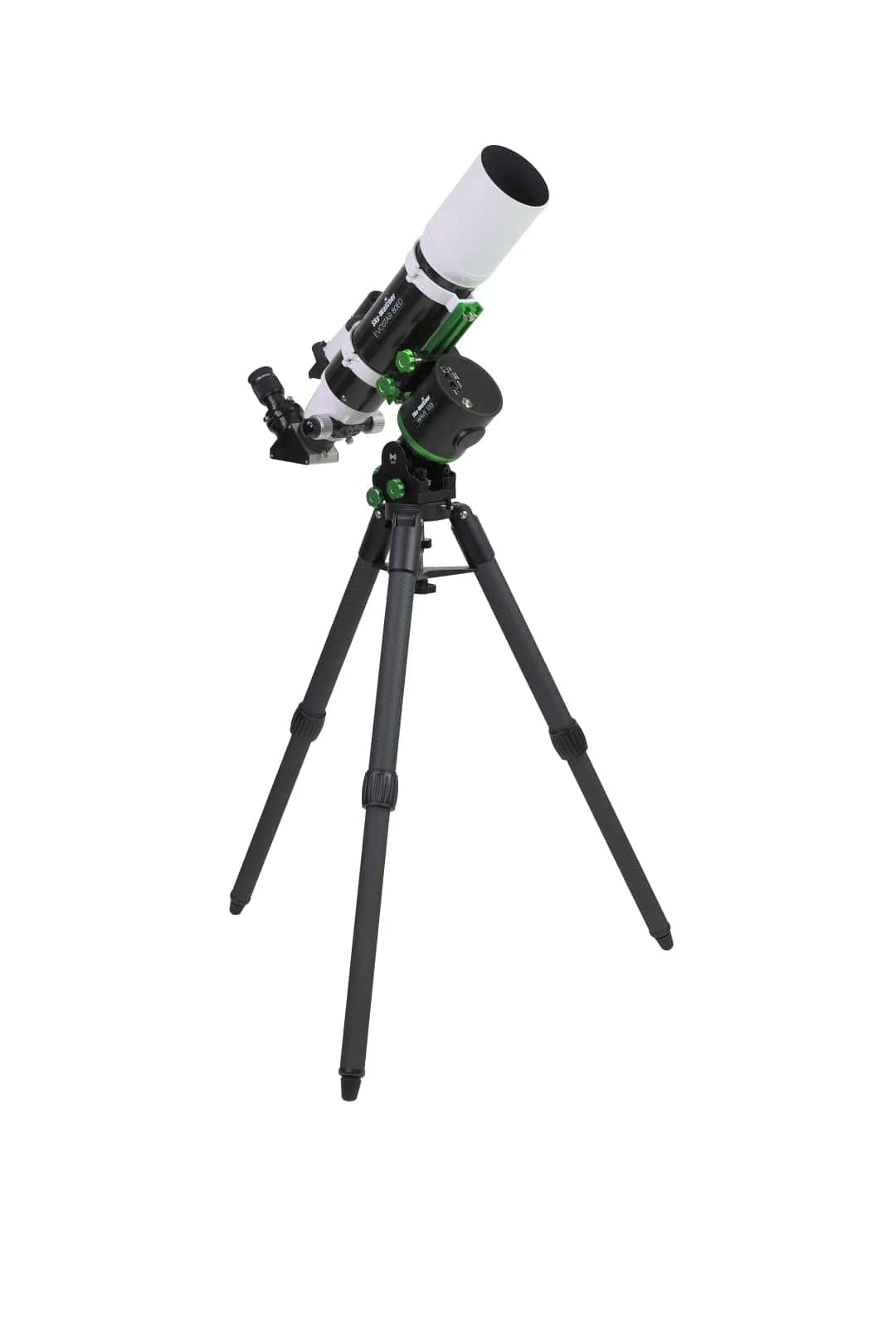

Strainwave mounts are particularly suitable for serious astrophotographers who require precise control, and for these demanding applications Sky-Watcher has developed the Wave 100i Strainwave Mount! With cable management, large payload capacity, and a small footprint, the Wave 100i is the ultimate portable imaging mount.
- Stepper motor + belt drive and harmonic reducer for a 300:1 transmission ratio

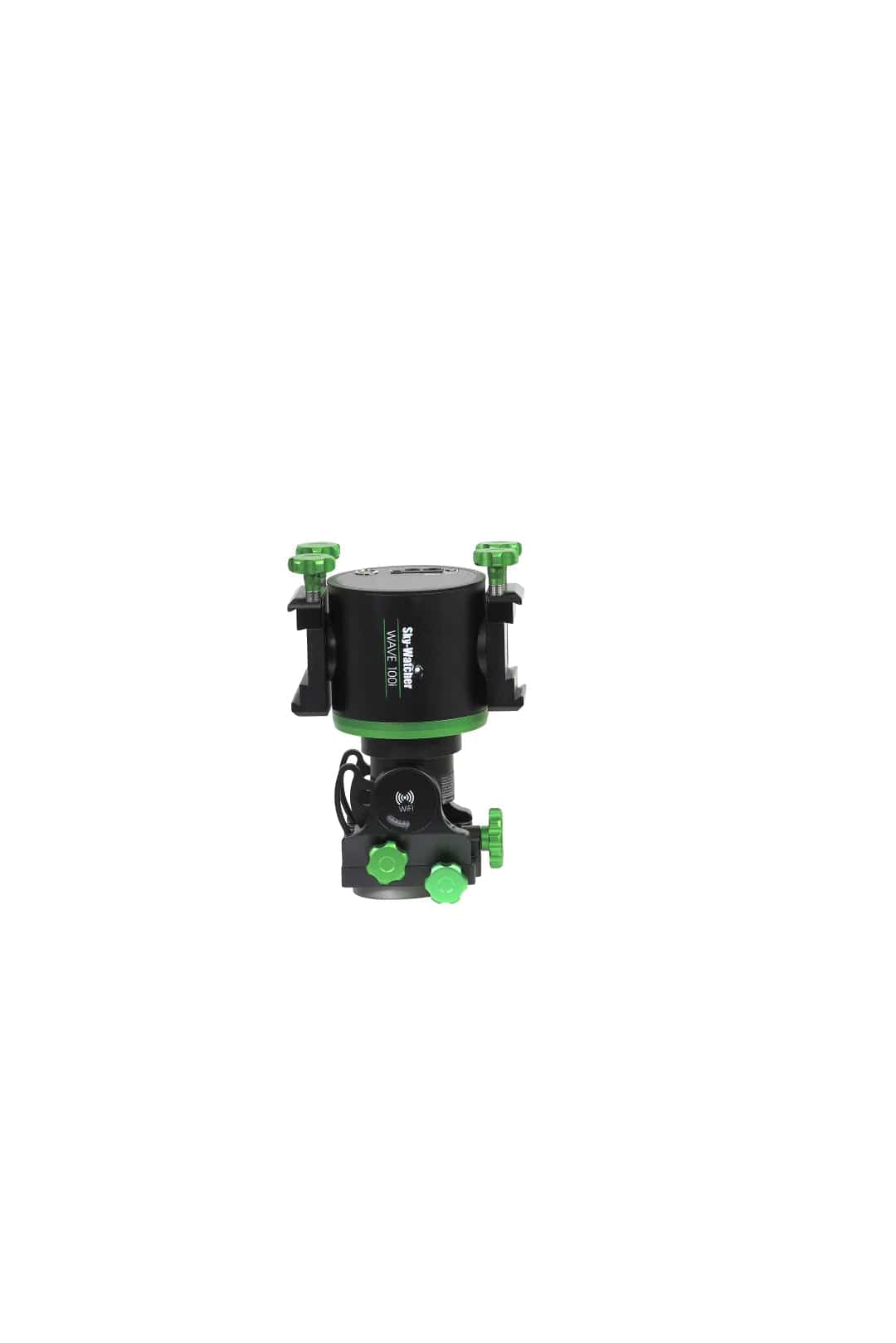

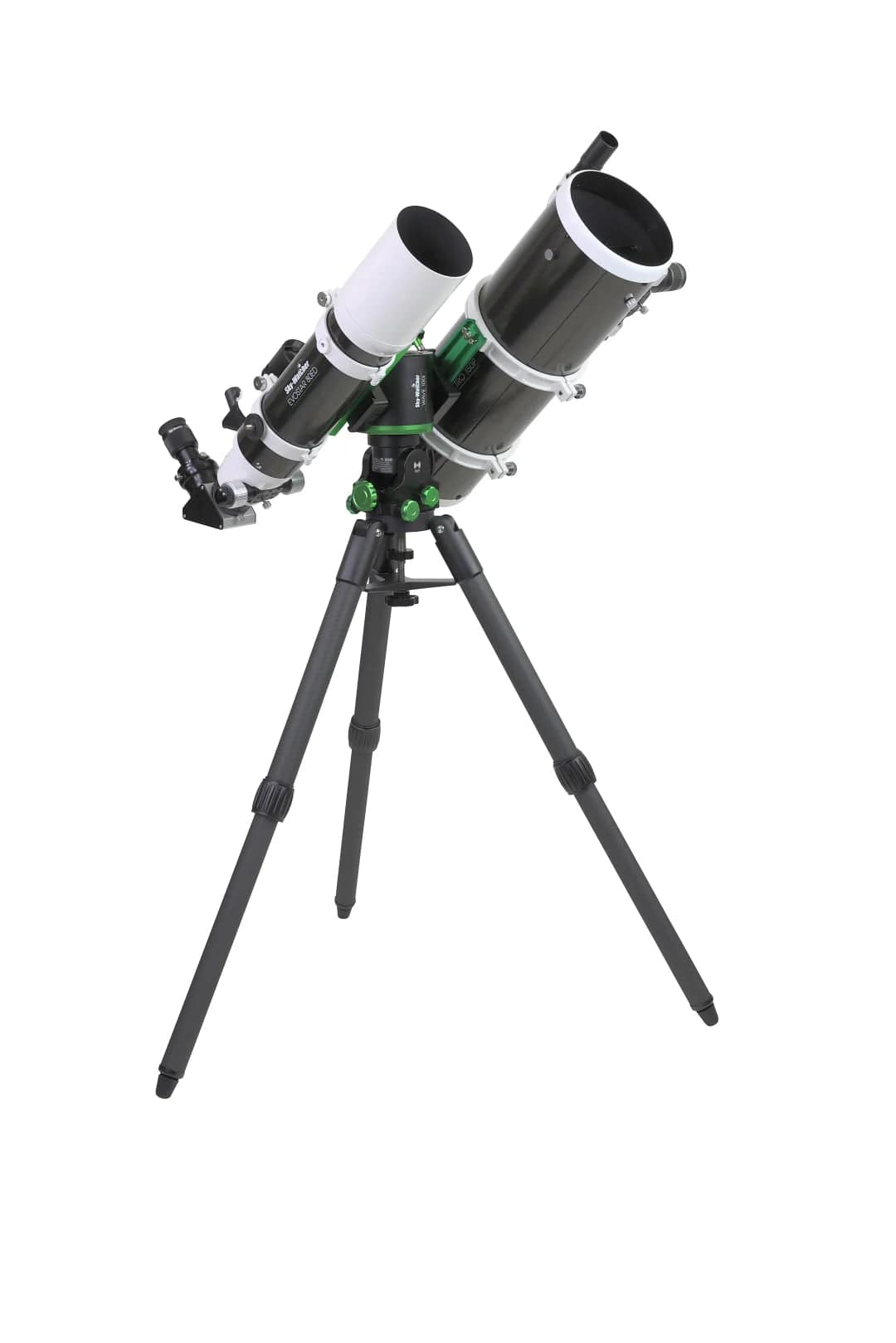

- Two dovetail saddles
- Works in both EQ and AZ modes
- Built-in WiFi and Bluetooth
- PC control capable via USB-B
- Red LED backlighting for latitude scale and bubble level
- Quiet, fast slewing up to 10 degrees per second
- Small, powerful and portable
- RA power-off braking function
- Internal homing sensors on both axis
- Compatible with Sky-Watcher SynScan hand controller (sold separately)

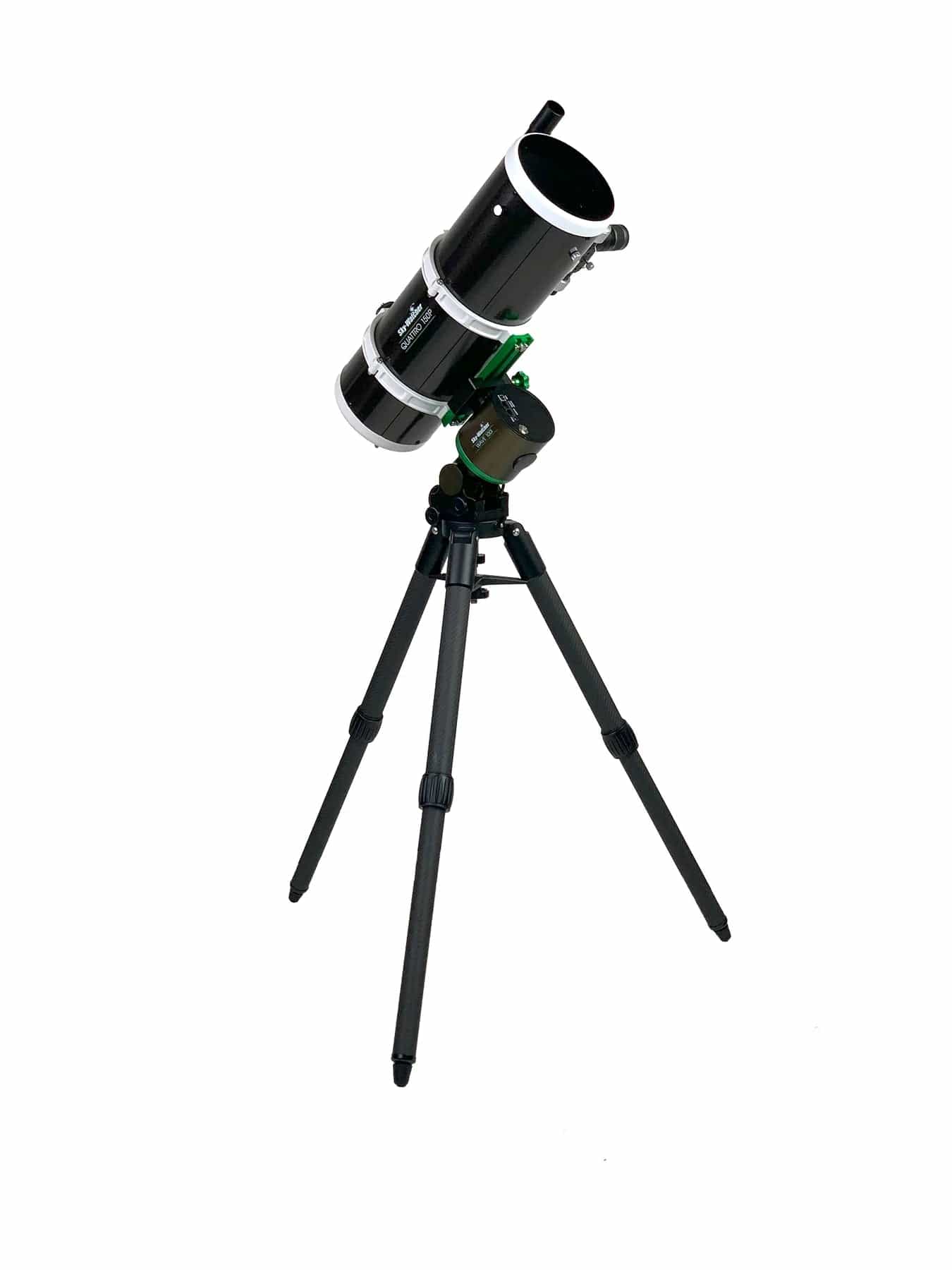

Note: This mount does not come with a tripod; you will need to purchase one separately.
|
SKU Number
|
SKY-S30900 |
|---|---|
|
Model Number
|
S30900 |
|
Mount Type
|
Dual Alt-Az/Equatorial |
|
Type of Mount Electronics
|
Computerized - GoTo |
|
Weight Capacity (lb.)
|
22 lbs. Without Counterwieght Kit, 33 lbs. With Counterweight Kit (Counterweight Kit Sold Separately) |
|
Mount Includes Tripod or Pier?
|
No |
|
Power Requirements
|
12V |
|
Includes Manual Slow Motion Controls?
|
No |
|
Mount Slew Speeds
|
Max Slew Speed of 2400x (10 ° per Second) |
|
Motor Type
|
Stepper Motor + Belt Drive and Harmonic Reducer |
|
Tracking Rates
|
Sidereal, Solar, Lunar |
|
Mount Latitude Range (°)
|
0 ° to 90 ° |
|
Includes Integrated WiFi?
|
Yes |
|
Included Accessory Ports
|

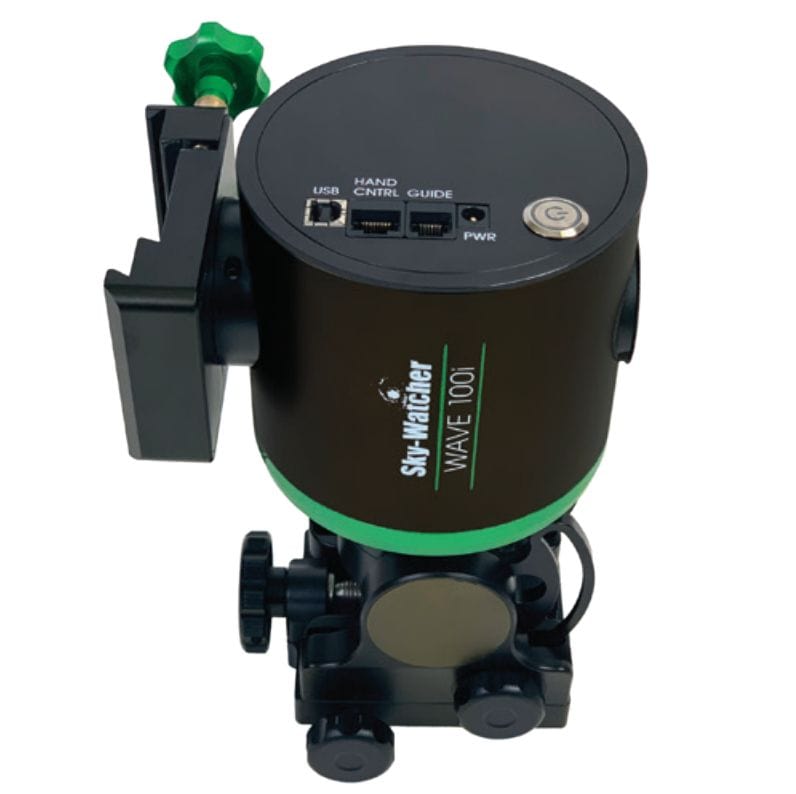

Hand Controller, ST4, USB-B, DC Power |
|
Saddle Type
|
Dual - Vixen or Losmandy |
|
Hand Controller Included
|
No |
|
Mount Weight (lb.)
|
9.5 lbs. |
|
Warranty
|
Sky-Watcher 2 Year Limited |
