Description

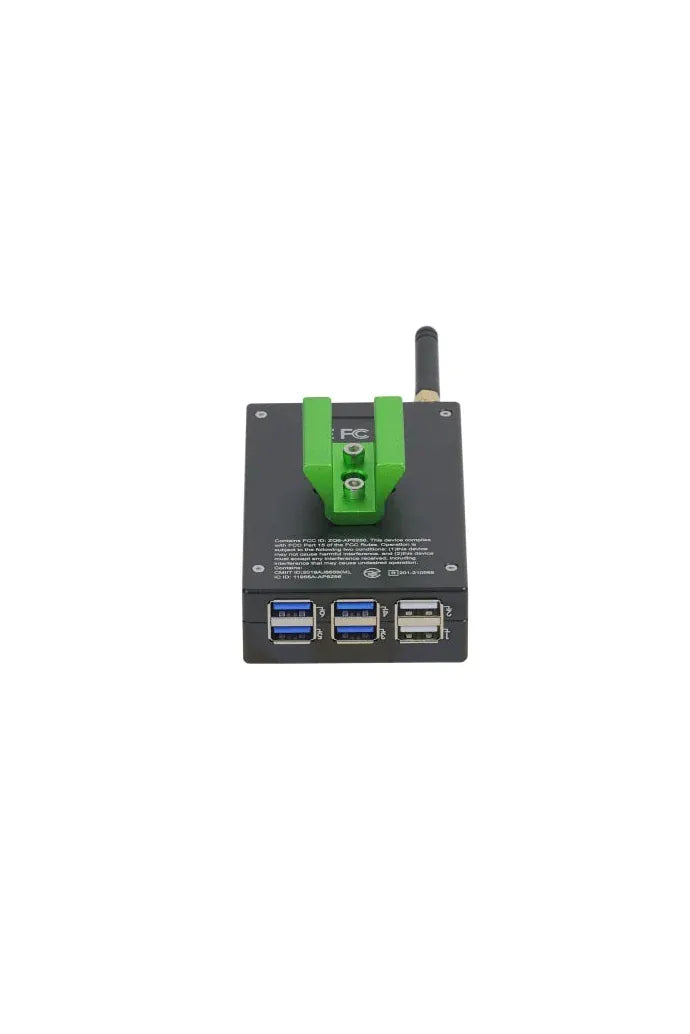

- Universal imaging controller box with dovetail mount
- Four DC power ports (10 amp max output)
- Two dew heater outlets
- Four USB 3.0 ports
- Two USB 2.0 ports
- One USB-C port
- Direct connect port & cable for Sky-Watcher EQ mounts
- 2.4G/5G Wi-Fi connection
- 64GB internal storage
- Android, iOS, Mac & Windows compatible

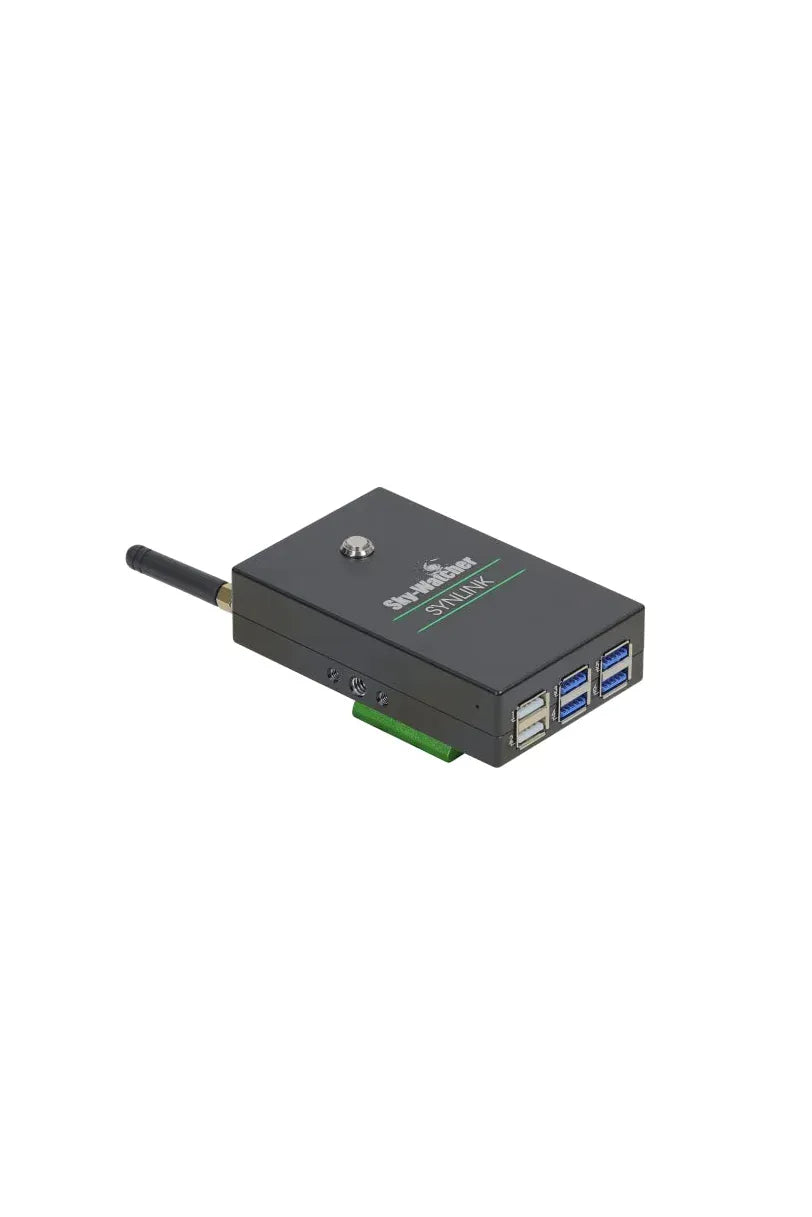

INTRODUCING THE SYNLINK UNIVERSAL ASTROIMAGING CONTROLLER

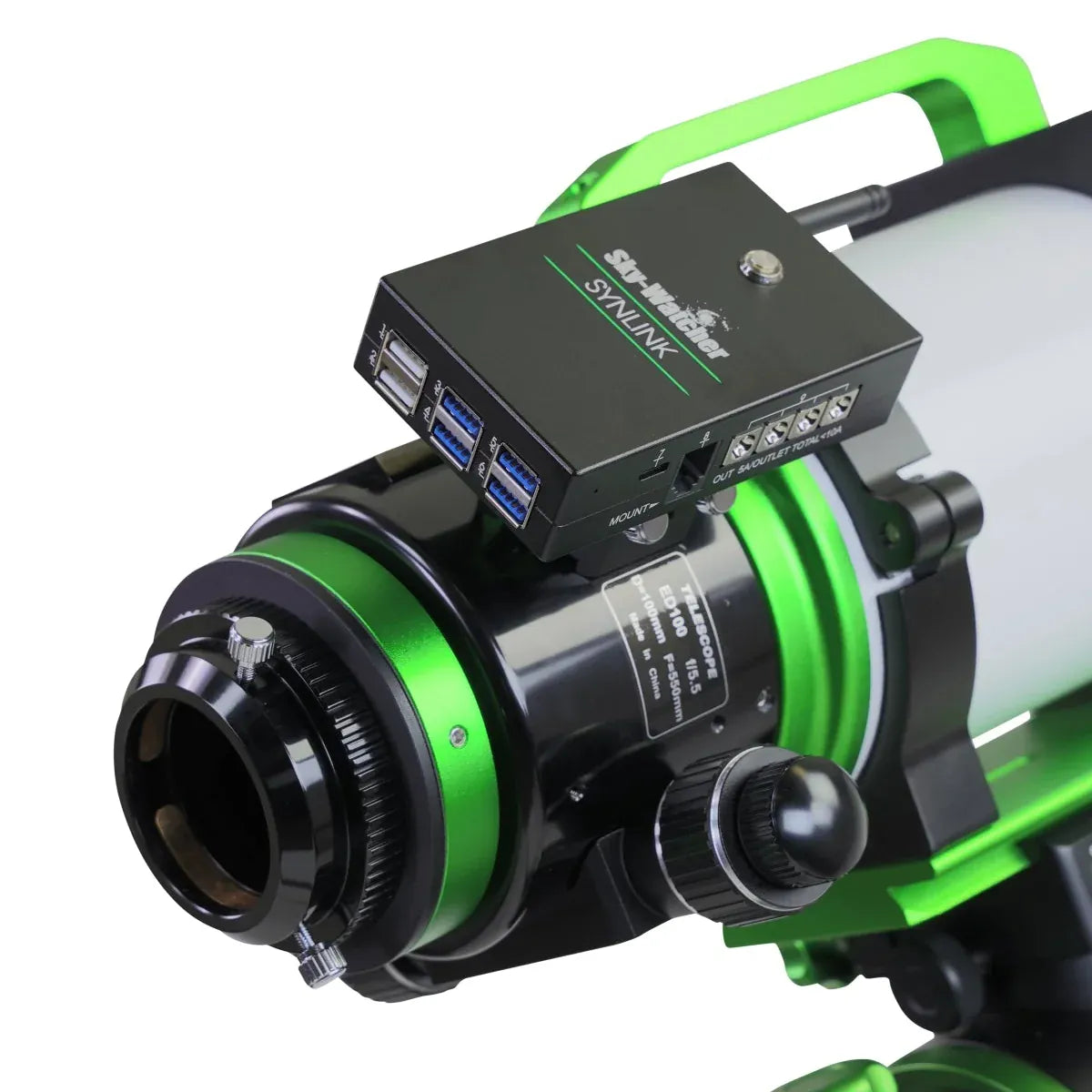

The SynLink Universal Astroimaging Controller replaces the stack of hardware that usually sits between your telescope and your images — the mini PC, the hub, the tangle of USB and power cables — with one box that mounts directly to the rig. Everything runs from the free SynLink app on Android, iOS, Windows, or Mac.
SYNLINK PLAYS WELL WITH OTHERS
The part that matters most: SynLink isn’t locked to Sky-Watcher equipment. It supports cameras, mounts, focusers, filter wheels, rotators, and flat panels across a wide range of brands, so you can bring the gear you already own. Most devices are recognized automatically when you connect them.
POWER FOR THE MODERN IMAGER

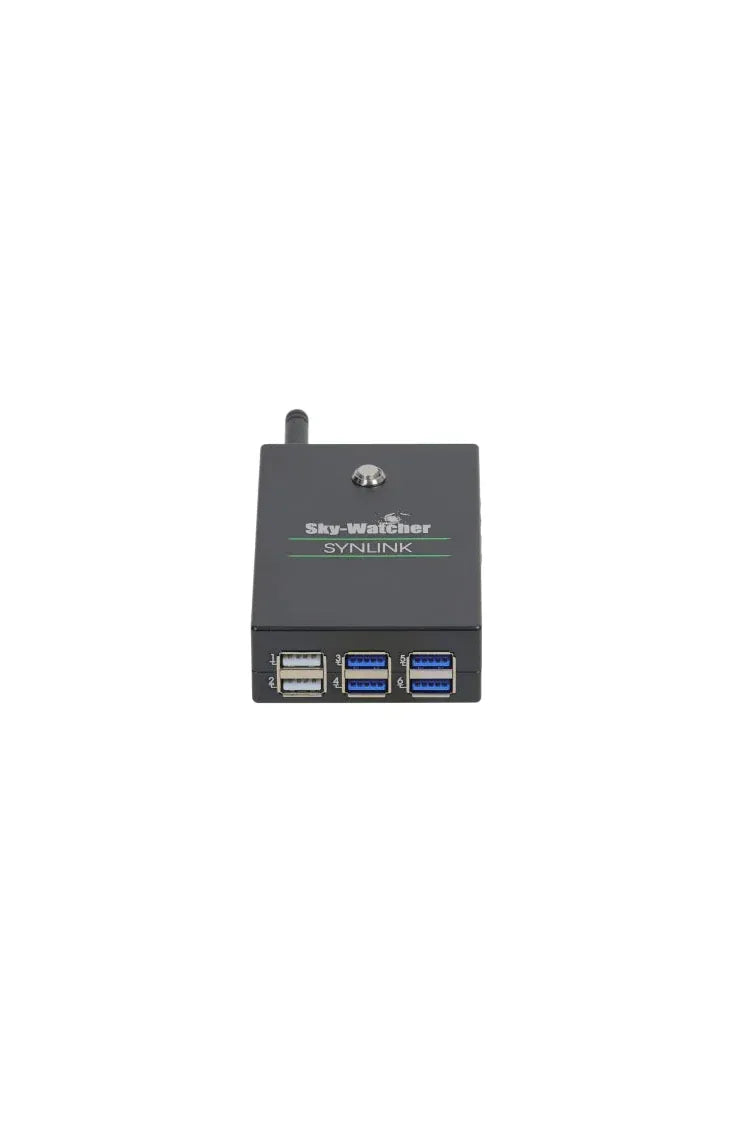

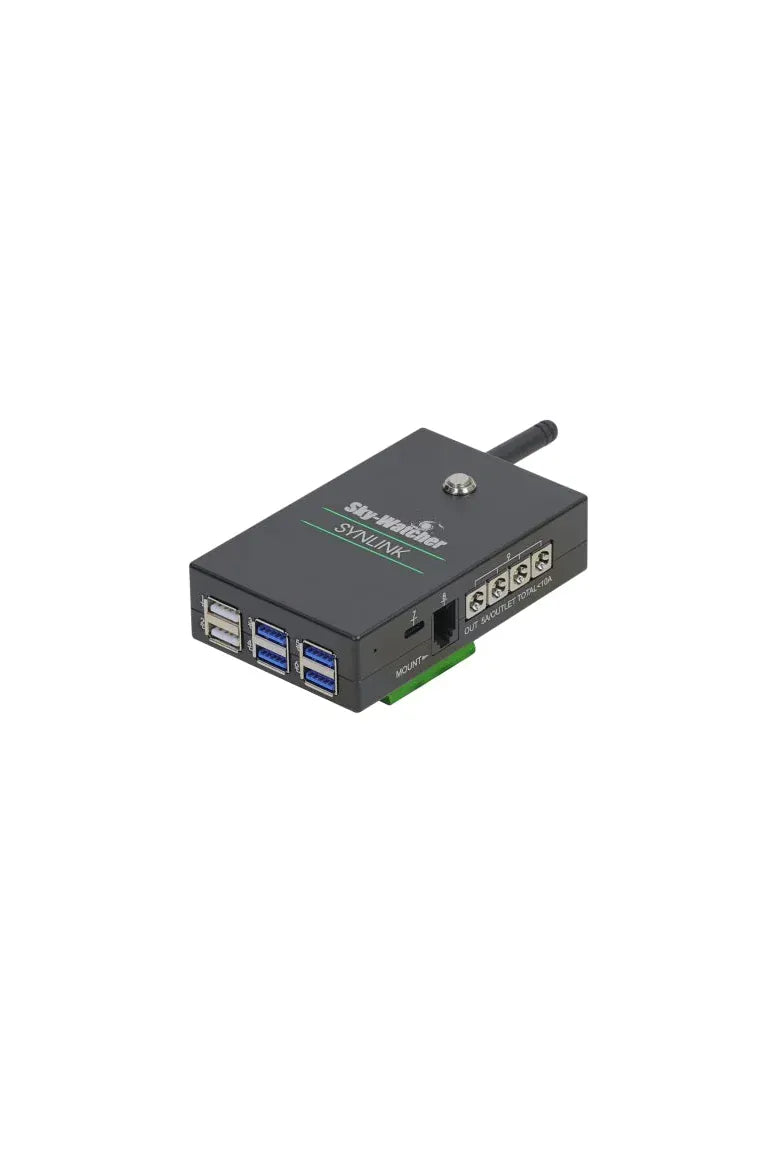

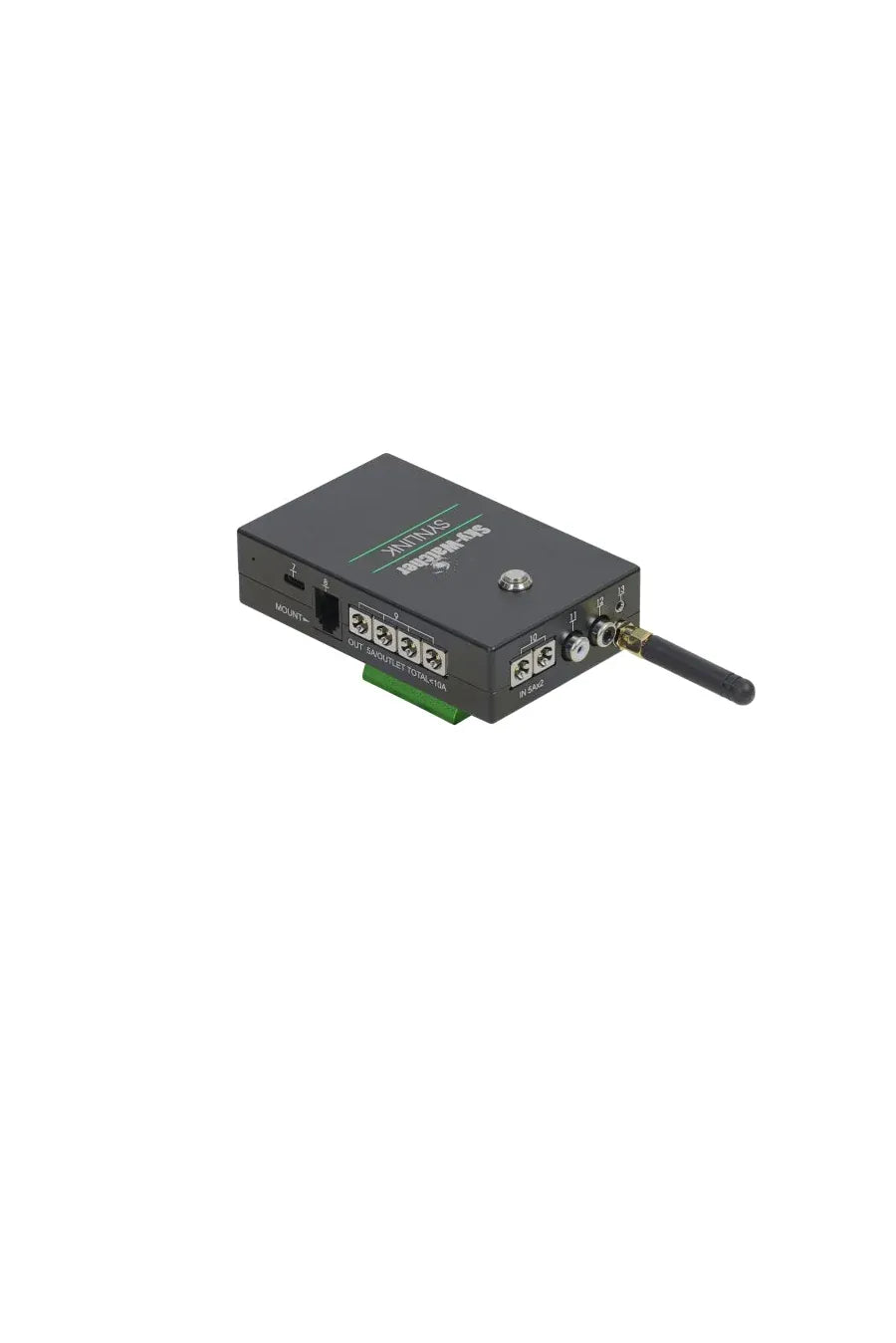

Connectivity is built for a full imaging train. Six full-size USB ports (four USB 3.0, two USB 2.0) plus a USB-C port. Four DC outputs deliver 5A each, up to10A total, alongside two DC inputs, two independently controlled dew heater channels, and a dedicated serial port for supported Sky-Watcher mounts.
ONE APP TO RULE THEM ALL

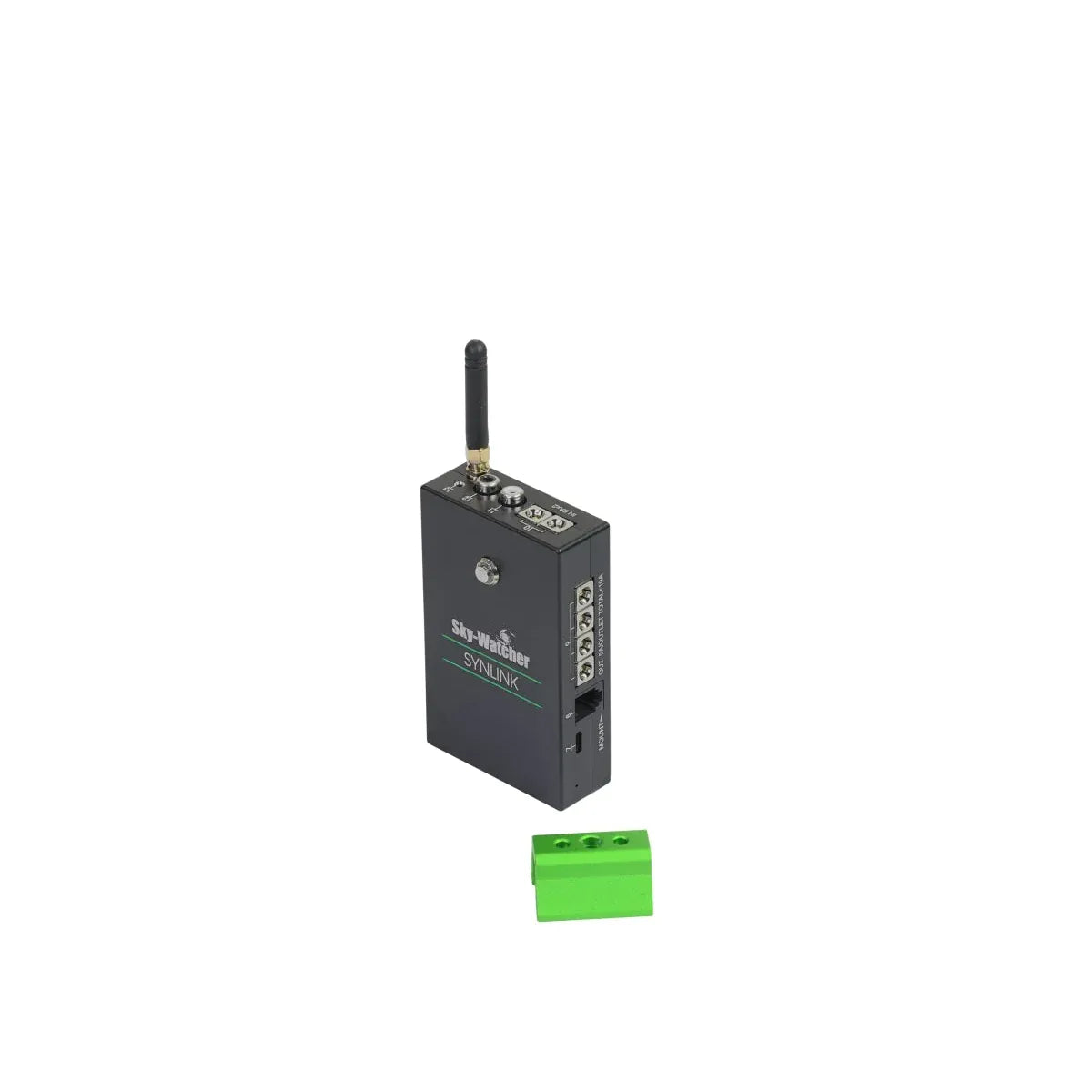

Dual-band Wi-Fi with an external antenna handles the wireless link, and the included mounting shoe attaches to the side or bottom of the unit. On the software side, SynLink covers a session end to end. Guided polar alignment walks you through slewing, plate solving, and correction. Autofocus, multi-star guiding, and plate-solved GoTo are all a tap away. Browse targets by catalog, by tonight’s best list, or by panning the interactive sky map with nebula catalog overlays switched on.
The sequencer is where unattended imaging happens. Easy mode builds a night from exposure, gain, and frame count; Pro mode opens up advanced scripting. Enable dithering, autofocus triggers, cloud recovery, and meridian flip behavior, then set the controller to park your gear and shut itself down when the sequence finishes. Built-in remote access lets you check in from anywhere over the internet.
SynLink app downloads for iOS and Android
SynLink Feedback Portal
Power supply sold separately.
| SKU | S30125 |
| UPC | 810098971058 |
| Hardware Specifications | |
|---|---|

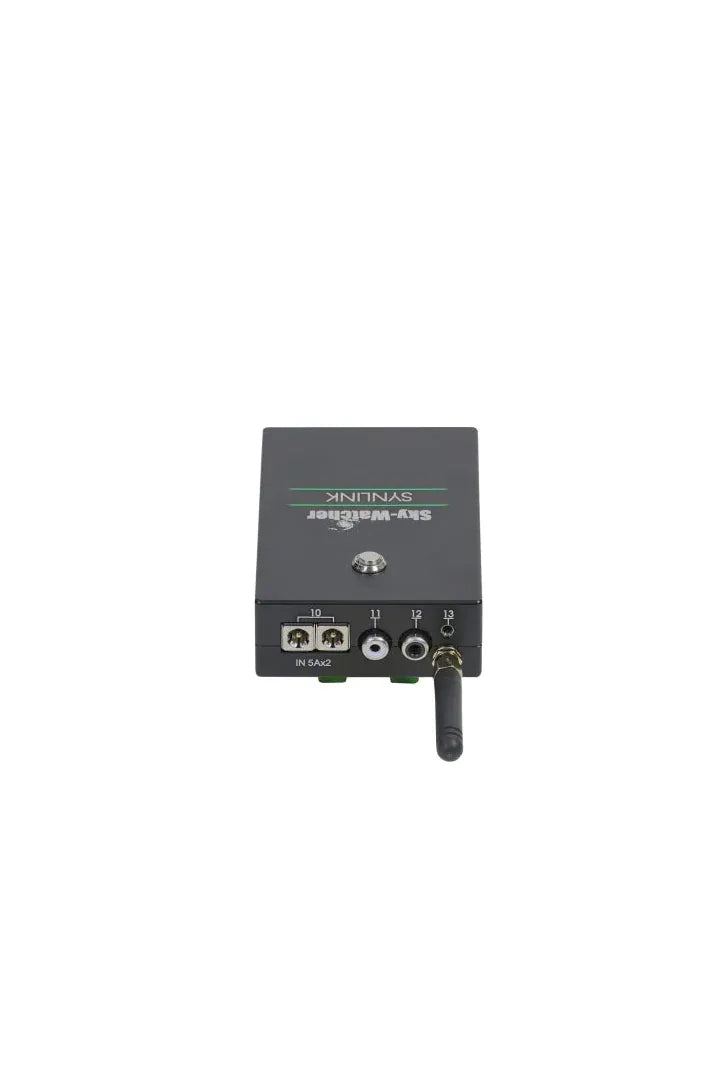

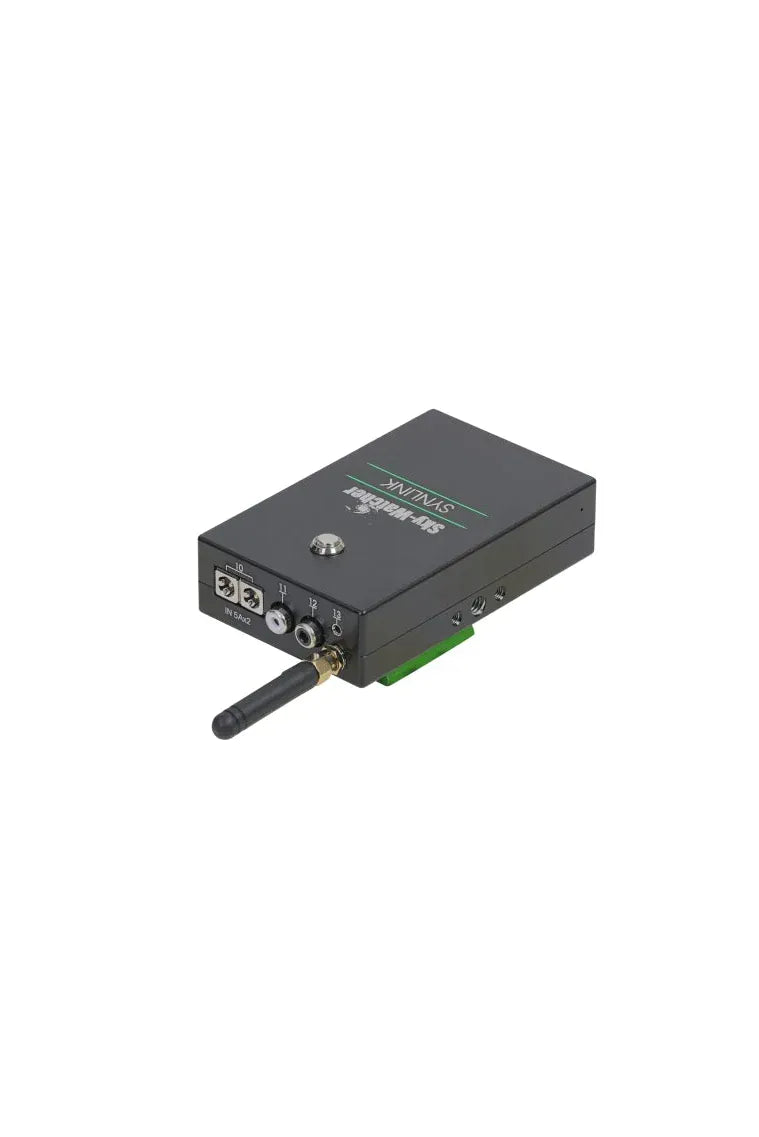

| Power Input | 2.1mm, 5 amp (2x) |

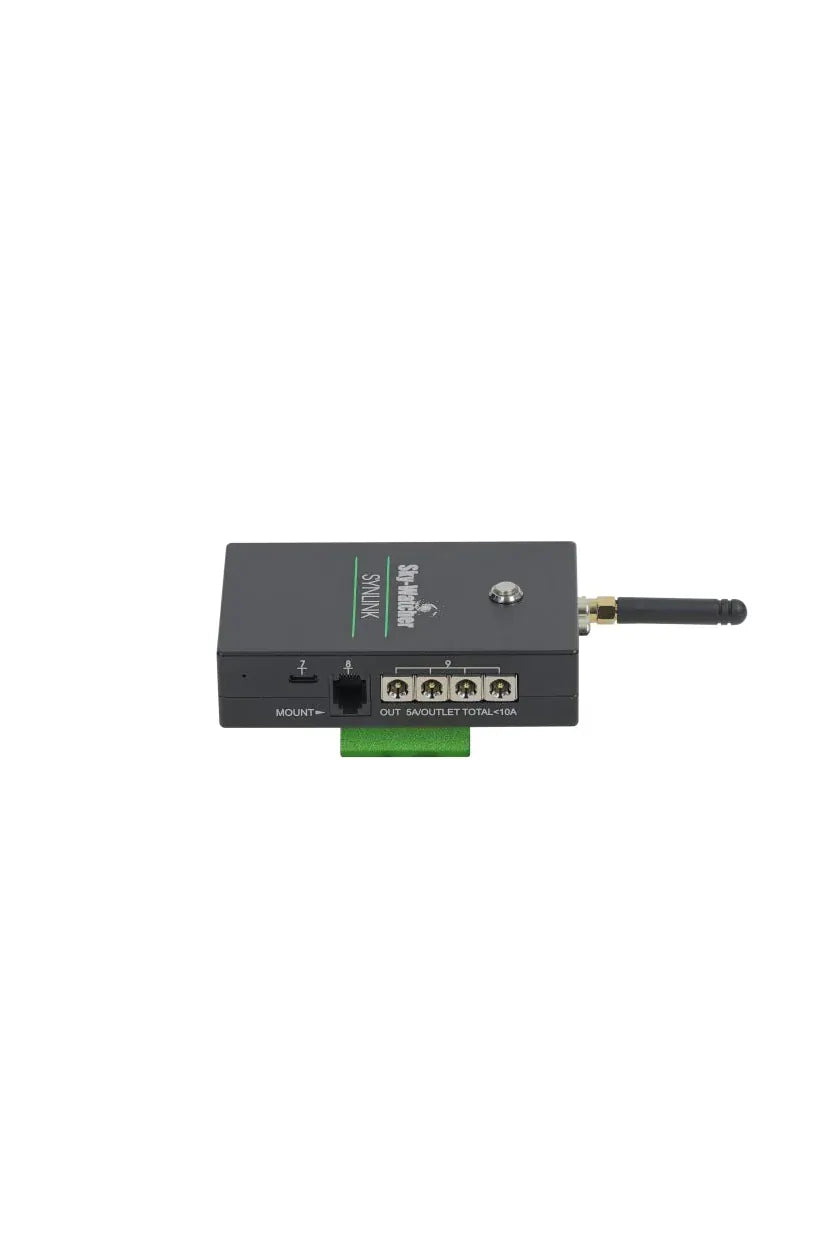

| Power Output | 2.1mm (4x) 5 amp each, 10 amp max |
| USB Inputs | USB-A 2.0 (2x) USB-A 3.0 (4x) USB-C (1x) |
| Dew Heater Ports | 2x |
| Serial Port | 1x (direct connection for Sky-Watcher) |
| WiFi | 2.4G/5G |
| Internal Storage | 64GB/Unlimited Exteneral memory |
| Sensor Port | For future sensor accessories |

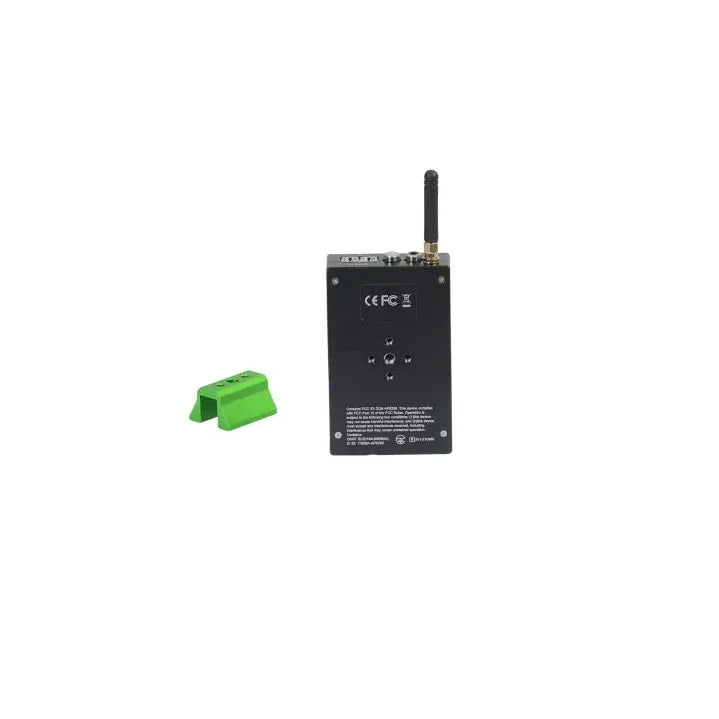

| Mounting Options | M4 and 1/4-20 mounting holes |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| Software Specifications | |
| App Compatibility | Android/iOS/macOS/Windows |
| CPU | RK3566 |
| RAM | 4GB LPDDR4 |
| Storage (ROM) | 64GB eMCC |
| Product Support | Supports many of the most popular imaging hardware brands |

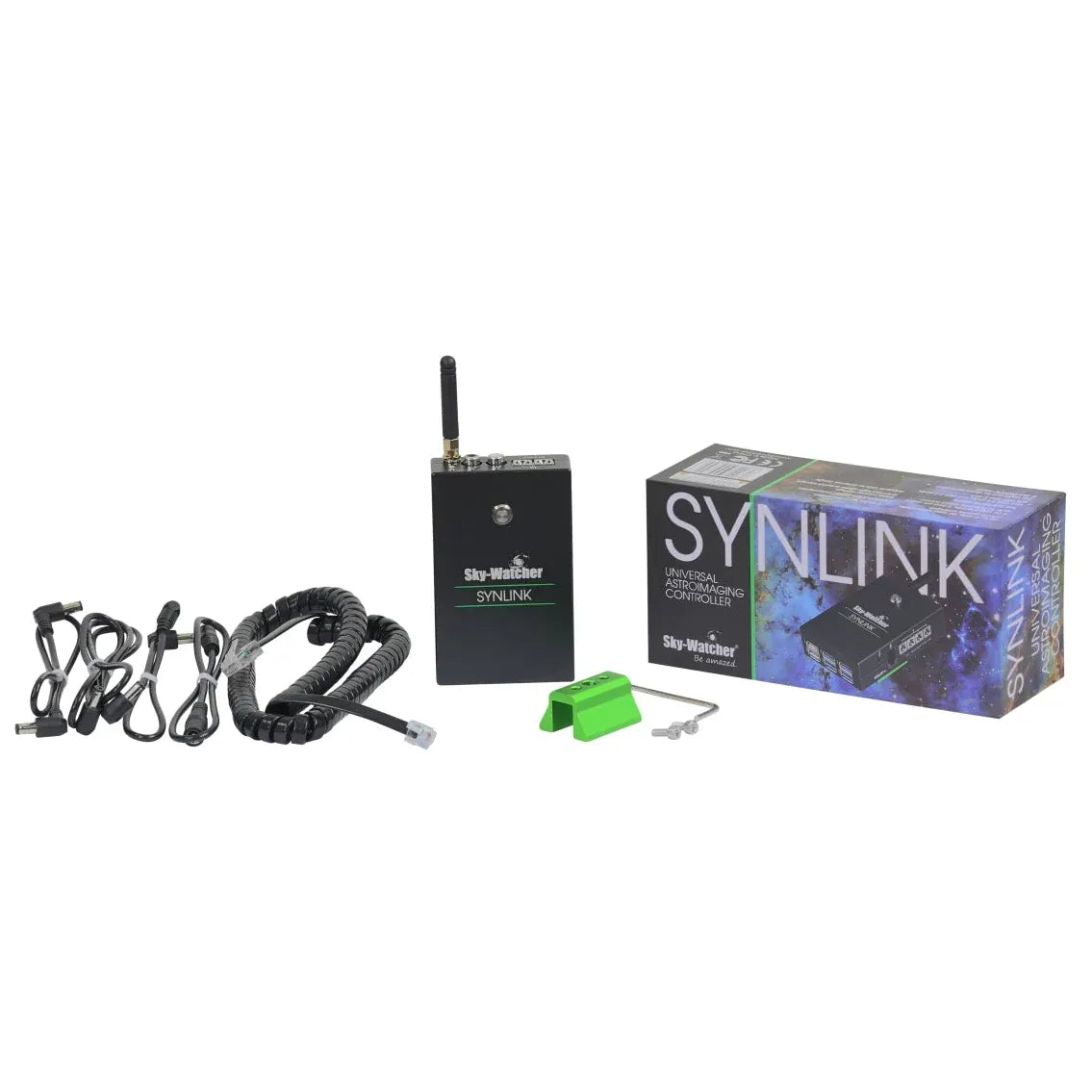

| Included Accessories | |
| Mounting | Dovetail mounting foot with mounter hardware |
| WiFi Antenna | Yes |
| Sky-Watcher Cable | Yes |
| Cables | 0.3 meter Male-to-Male DC Power cable 0.5 meter Male-to-Male DC Power cable 1.0 meter Male-to-Male DC Power Cable 0.5 meter Male-to-Female DC Power Cable |
| Weights and Dimensions | |
| Product Dimensions | 4.44" x 1.18" x 6.68" 113mm x 30mm x 68.25mm (without anntenna installed) |
| Product Weight | 9oz |
| Shipping Dimensions | 7.5" x 3.75" x 2.75" 19cm x 9.5cm x 7cm |
| Shipping Weight | 1.375 pounds |
