Pegasus Astro Pocket Powerbox Advance

Pegasus AstroSKU: PEG-PPBADV

Price:
Sale price$461 CAD
Stock:
Back-Ordered - Place an Order to Reserve Yours, Otherwise Enter Your Email Address Further Below to be Notified When it's Back in Stock.      Click Here to ask us about back-ordered product availability
Description

Pocket Powerbox Advance Gen2

This small but powerful device (in short PPBADV) is a welcome addition to our Powerbox product series. Proudly stands between Pocket Micro and Ultimate Powerbox v2. It has been designed to provide more advanced features than Pocket Powerbox Micro and especially a USB Hub that accepts up to 4 USB ports.

Pocket Powerbox Advance v2

Feature List


Pocket Powerbox Advance v2

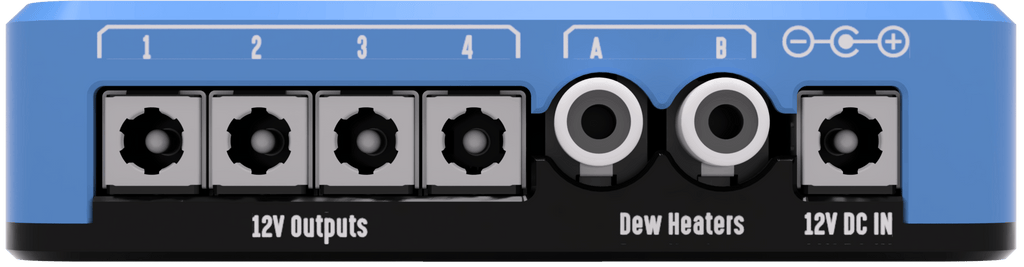

  • 4 x 12V DC Power outlets for your equipment (A single channel to switch all four outputs ON/OFF via software)
  • 12 Amps of total distributed current
  • Adjustable Output (3, 5, 7, 8, 9, 12Volt) / 3Amps (Can be switched ON/OFF) Power your DSLR / Mirrorless camera

  • Embedded Powered USB3 Hub – 2 x USB3 Ports & 2 x USB3 Ports Available (USB3 ports are backwards compatible with USB2 devices)
  • 1 x Power USB Port (up to 3Amps) – Suitable for Raspberry PI 3/4 power
  • EXT Port (RJ12) for external accessories (E.g External Focus Controller)

  • 2 Channels PWM Dew Heaters – RCA Outputs (Adjust power levels via software)

  • Humidity and Temperature Sensor (included)
  • Auto Tune Dew Heater Channels
  • Reverse Polarity Protection
  • USB / PC Controlled or Standalone Operation out of the box
  • Lightweight and extremely compact aluminium enclosure















Built in Amp-meter


An Amp-meter placed after the DC input reports the total electric current.
There are also three additional amp-meters: One for the 12V outputs and two for the Dew Heater Channels. This allows you to easily monitor the detailed and overall power consumption of your equipment.

More than 12A of total electric current

The powerbox has been designed to output up to 12 Amps of electric current. Please note that a usual backyard astrophotographic setup requires 5-7 Amps

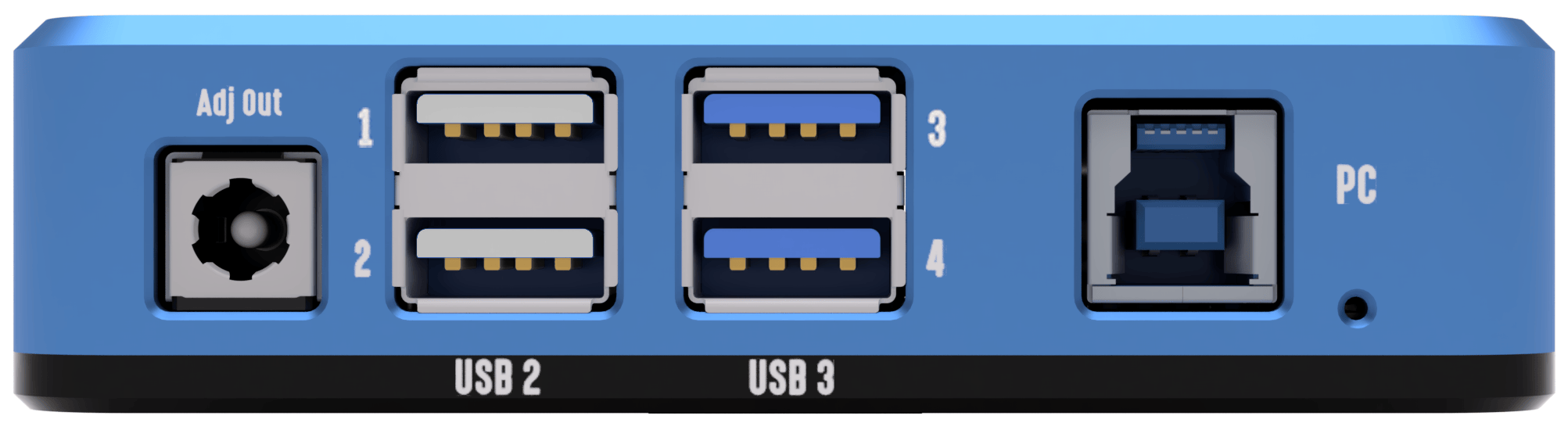

Embedded USB3 Hub – 2 x USB3 & 2 x USB2 Ports


Pocket Powerbox Advance v2
Pocket Powerbox Advance Gen2 USB

A powered USB3 Hub at the back of the device provides:

  • 2 x USB3 SuperSpeed Ports
  • 2 x USB2 High-Speed Ports.

The new SuperSpeed hubs operate in parallel with the USB 2.0 controller, so 5 Gbps SuperSpeed data transfers are not affected by slower USB 2.0 traffic.|

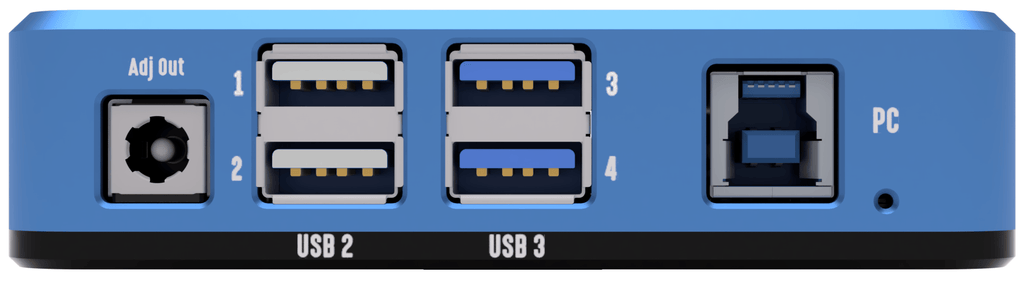

USB Port Configuration under PPBADV Gen2

  • USB Port1 supports USB2 devices
  • USB Port2 supports USB2 devices
  • USB Port3 supports USB2 & USB3 devices
  • USB Port4 supports USB2 & USB3 devices

* Older product revision (Gen1) had only 3 out of 4 USB Ports that were compatible to USB2 devices. For detailed information please check the product manual.

USB High Power Output

USB Port 1 provides up to 3Amps of current. You can connect any device that requires 5V. E.g a Raspberry PI 3/4 or Intel Compute Stick M3/M5 can receive power from this specific port.

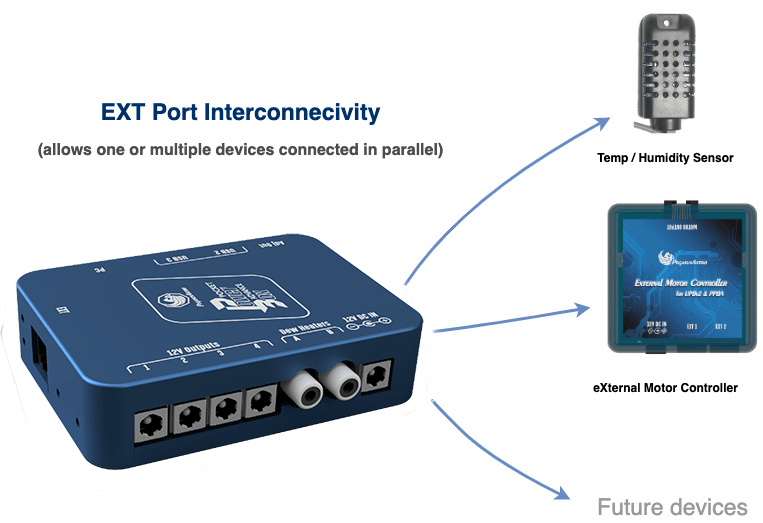

Expansion Port (EXT)


EXT (expansion) port is available for device expansion. This RJ12 socket allows the connectivity of current and future Pegasus Astro products. Plugged devices can be controlled from Pocket Powerbox Advance standalone software or dedicated ASCOM driver.

Pocket Powerbox Advance Gen2 EXT

Other Key Features


Standalone Operation
“out of the box”


Pocket Powerbox Micro can work “out of the box” as a standalone device. Just plug the cables, setup the “autodew” functionality and every time you boot the device, it will retrieve your settings. So, If you don’t like to connect to a PC every time, you don’t have to. Simple as that!

Two channel duty cycle
PWM outputs


Two Pulse width modulation (PWM) outlets are capable to provide power to your “thirsty” Dew Heaters. No more moisture fuzzing your equipment and destroying your clear nights. These outlets can be remote-controlled from your laptop using the supplied software.

Auto Adjustment of
PWM (Dew Outputs)


Controller can auto adjust the heater power levels by consulting the environmental sensor Dew Point reading. Just click “Auto” and leave to Pocket Powerbox Micro to decide if it is time to turn on and precise tune the level of your dew heaters.

More than 10A of
total power


Controller has been designed to support up to 10 Amps of total current.

Led Indications for power and failure states


Led can blink in patterns to warn you regarding important power issues (e.g over or under voltage). Moreover light can be turned off using the software. Our led is very dim but in case you don’t like it on you can switch it off via the software.

Reverse Polarity Protection


Pocket Powerbox Micro has been design with a reverse voltage polarity protection. It will definitely save your night if you accidentally connect the main power supply in reverse polarity!

A hardware
watchdog


A hardware watchdog resets the device if for any reason there is no response from the controller for two seconds. A neat feature in the unlikely event of a controller freeze – when you have a remote observatory and you need to be certain that everything works as expected.

Upgradable
Firmware


Device is firmware upgradable to support future features and bug fixes.

Compact Aluminium Enclosure


Pocket Powerbox Advance Gen2 Compact Aluminium Enclosure

A high-quality robust, blue anodized aluminum enclosure houses the electronics of the Pocket Powerbox Advance.

Size is 100mm x 71mm x 24mm. Weights 250 grams.

Supported By


ASCOM 6 Fully supported


Pocket Powerbox Advance fully supports ASCOM6. In combination with our main program which acts as a server you can use our latest ASCOM 6.5 supplied drivers to:

  • Report environmental settings to supported software (e.g Sequence Generator Pro / MaximDL )  (ASCOM ObservingConditions)
  • Switch ON / OFF 12V outputs, Adjustable Output, Tune Dew Heaters. (ASCOM Switches)

INDI Fully supported


Pocket powerbox fully supports INDI, Bundle it with Stellarmate or any other device that can use INDILib.

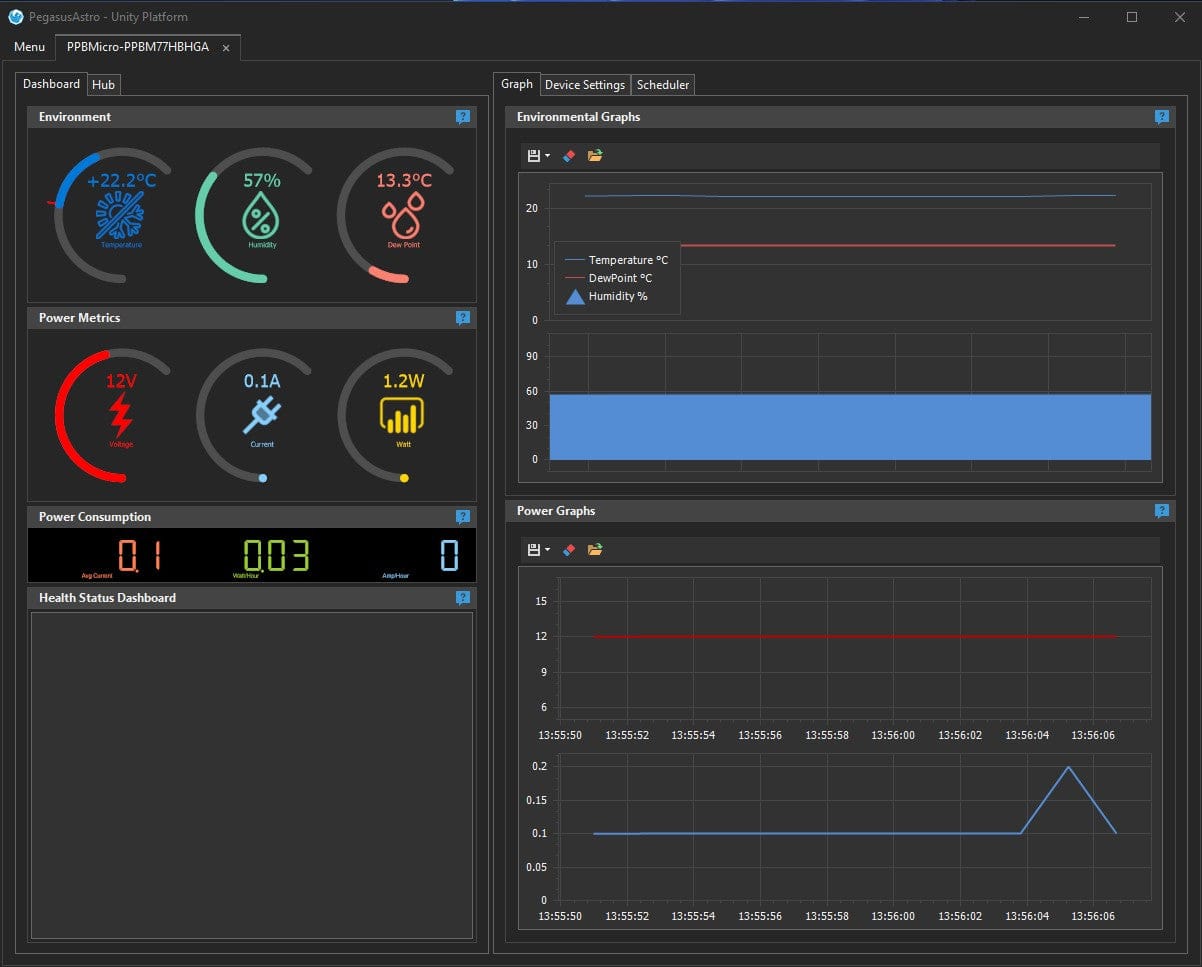

Unity Platform Support


Pegasus Astro Unity Platform is our new all around application. Our goal is to provide a robust and modern application that is going to support current and future products under one roof.

A modern frontend allows the full control of all Pegasus Astro devices.
Moreover, a REST JSON api helps developers from 3rd party software to interact with our products.
As we continuously develop our applications, based on customer feedback, lots of innovative features are going to be added in upcoming releases.

In the Box


1 x Pocket Powerbox Advance Controller


Pocket Powerbox Advance v2

1 x Temperature / Humidity Sensor


4 x Power DC 2.1 to 2.1 male cables

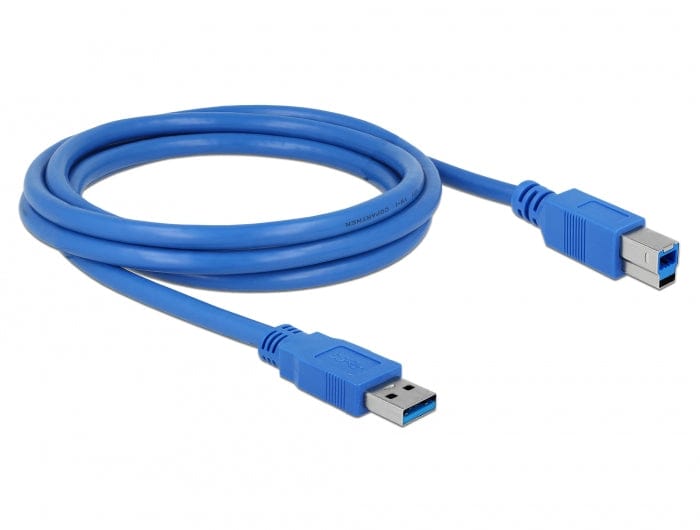

1 x USB3 Cable
Type B (1.8m)


USB3 Cable Type B (1.8m)

Technical Specification


Supply Voltage 12V – 13.8V DC
Power Input Connector DC 2.1mm
Connectivity USB2 – Type B USB Connector
4 x 12 Outputs Maximum Current 10 Amps in total.
2.1mm Center Positive
Software: ON/OFF all ports
2 Channel x 12 PWM Outputs Maximum Current 5A Each, Black Colored RCA Connector, Pulse Width Modulated (Suitable for Dew Heaters or Flatbox)



Software: Duty Cycle % / OFF

1x Sensor Input RJ12 Socket, Connectivity with Environmental Sensor



0-100% humidity readings with 2-5% accuracy
-40 to 80°C temperature readings ±0.5°C accuracy

Camera / DSLR Output  Max 3Amps, 3,5,8,9,12 Volt (Adjustable via software)
2.1mm Center Positive
Voltmeter Measures 5 – 15V
Dimensions 66mm x 66mm x 24mm
Weight 90 grams
