Description

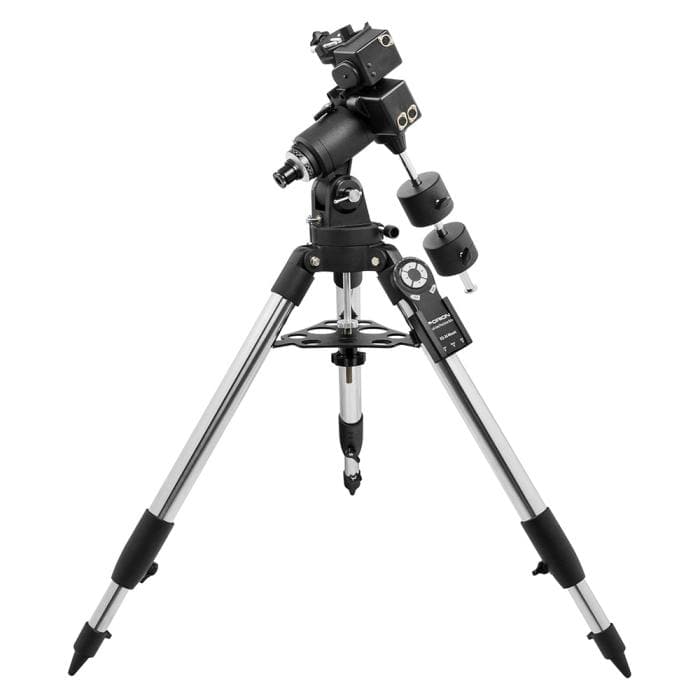

The Orion EQ-26 Motorized Equatorial Mount and Tripod provides a stable, versatile platform for amateur astronomers looking for reliable tracking and smooth electronic telescope control. With a payload capacity of up to 26 lbs (12 kg), this German equatorial mount can accommodate a variety of medium-sized refractors, reflectors, and Cassegrain optical tubes.
Equipped with dual stepper motors on the right ascension and declination axes, the EQ-26 offers sidereal tracking and electronically controlled slewing at speeds up to 800x sidereal. The included dual-axis hand controller allows for convenient telescope positioning and precise centering of celestial objects.
A Vixen-style dovetail saddle provides compatibility with a wide selection of optical tubes, while the integrated polar alignment scope helps simplify accurate setup. The sturdy stainless steel tripod features adjustable 1.75-inch diameter legs and a metal accessory tray for additional stability.
Key Features
-
26 lb (12 kg) maximum telescope payload capacity
-
Motorized right ascension and declination axes
-
Sidereal tracking for celestial observation
-
Slewing speeds up to 800x sidereal
-
Included dual-axis hand controller
-
Vixen-style dovetail saddle
-
Integrated polar alignment scope
-
Adjustable stainless steel tripod with accessory tray
-
Two 5.8 lb (2.6 kg) counterweights for balancing
-
Compatible with Northern and Southern Hemisphere operation
Technical Specifications
| Specification | Details |
|---|---|
| Mount Type | German Equatorial |
| Payload Capacity | 26 lbs (12 kg) |
| Motor System | Dual stepper motors |
| Maximum Slewing Speed | 800x sidereal |
| Tracking Rate | Sidereal |
| Hand Controller | Wired dual-axis controller |
| Telescope Connection | Vixen-style dovetail |
| Polar Scope | Included |
| Power Requirement | 12V DC, 5A |
| Tripod Leg Diameter | 1.75 inches |
| Saddle Height Range | 36–49 inches |
| Mount Head Weight | 9.7 lbs (4.4 kg) |
| Tripod Weight | 9.8 lbs (4.4 kg) |
| Counterweights | 2 × 5.8 lbs (2.6 kg) |
| Counterweight Shaft Diameter | 20 mm |
| Manufacturer Part Number | 55029 |
Important: The EQ-26 is a motorized tracking mount, not a computerized GoTo system. An external 12V DC, 5A power supply is required and is sold separately. A DC power cable is included with the standard factory kit.
Telescope optical tube and other accessories shown in example configurations are not included.
