Description
Please Note: A finder scope, diagonal and eyepiece are not included in the OTA package and must be purchased separately if desired.

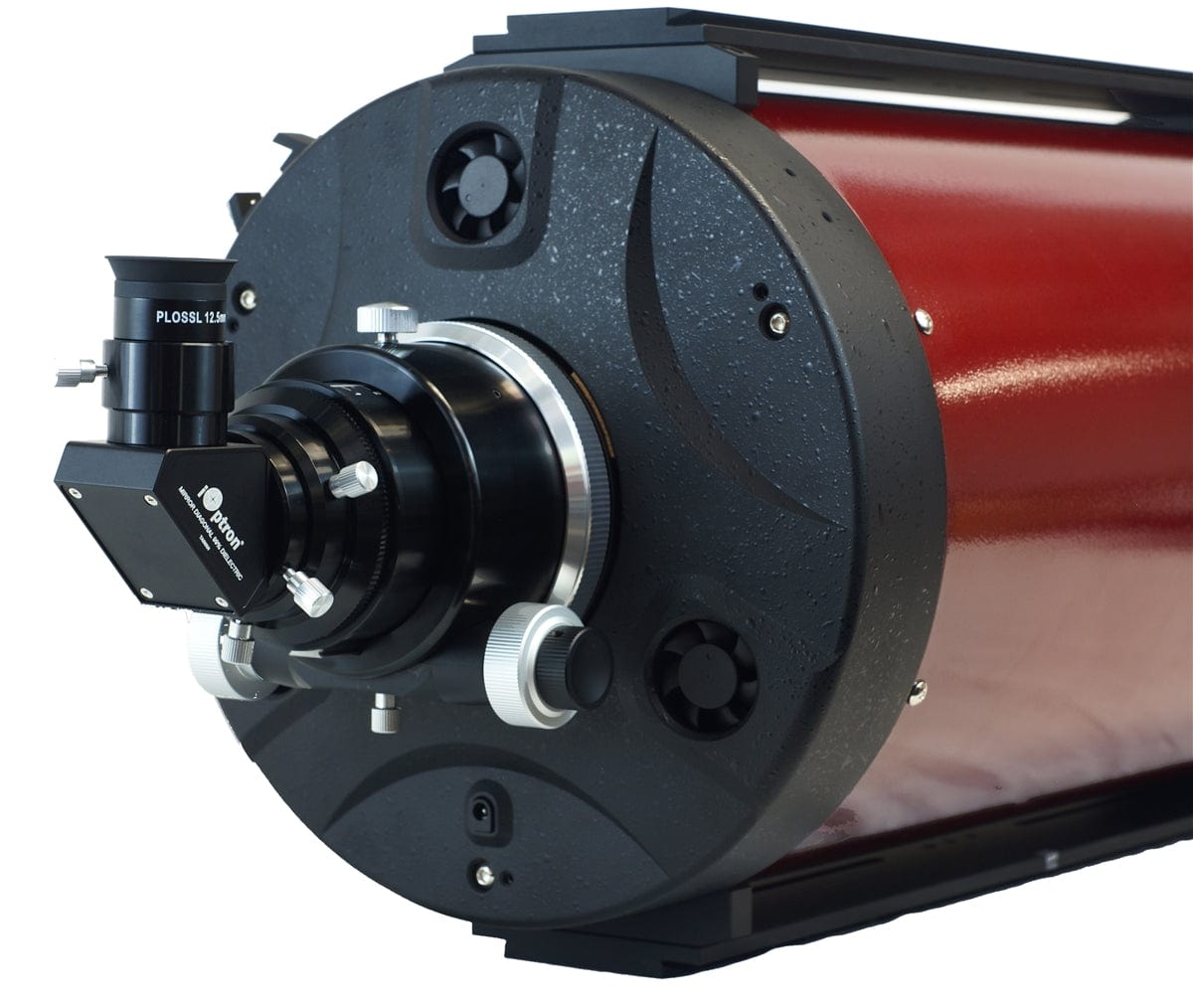

The iOptron® Photron™ Ritchey-Chretien design telescopes, feature low thermal expansion quartz primary and secondary mirrors with ninety-nine percent reflective dielectric coatings. The RC optical design delivers coma, spherical and chromatic aberration free results, perfect for color or monochrome imaging. A fixed position primary mirror eliminates image shift that occurs from focusing with other telescope designs. The iOptron RC10 comes with a 3" dual-speed linear-bearing Crayford focuser. Three focuser extension rings are provided for a "flex-free" solid extension as a means to take up any unneeded back focus. Its steel tube is equipped with 10 knife edge baffles to diminish contrast reducing stray light, improving the instrument in both visual and imaging uses. A RC10 model comes with top and bottom dovetail plates adding rigidity to the tube while providing attachment points for the mount and other accessories to be used.
Manuals:
Photron RC telescope operation manual
Electric focuser installation and operation manual
Specifications
| Optical Design | Ritchey-Chretien |
| Clear Aperture | 250mm |
| Focal Length | 2000mm |
| Focal Ratio | f/8 |
| Resolving Power | 0.46 arc seconds |
| Limiting Magnitude | 14.7 |
| Highest Useful Magnification | 295X |
| Secondary Mirror Size | 110mm in diameter |
| Focuser | 10:1 Crayford dual-speed |
| Focuser size | 3.3" |
| Dovetail Bar | Losmandy-style |
| Mounting Bar (Top) | Losmandy-style |
| Finder scope Base | Yes |
| Finder scope | Optional |
| Tube material | Steel |
| Tube Length | 28.4" |
| Tube Weight | 35 lbs |
| OTA Primary Mirror Cooling Fan | Yes (three built-in fan, with battery holder) |
| Other Accessories | 2" to 1.25" compression ring adapter; 1" long extension tube X2 2" long extension tube X1 |
| Gross Weight | 48 lbs |
| Warranty | One year limited |
Additional Resources
What can I see with this telescope?
Viewing location and sky conditions can vary and will affect actual results.
