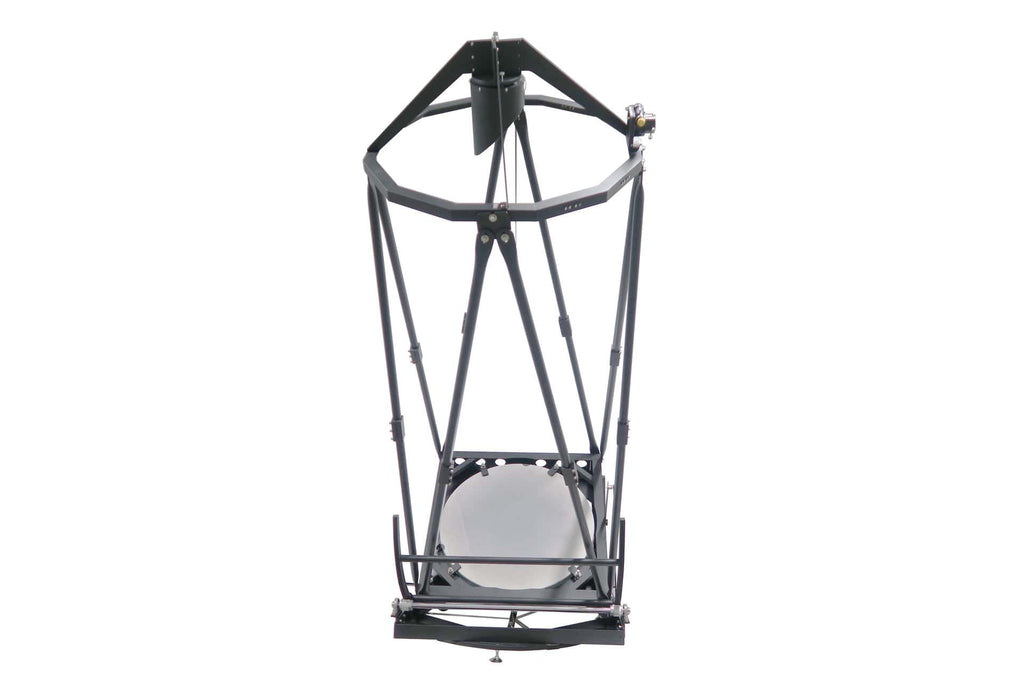

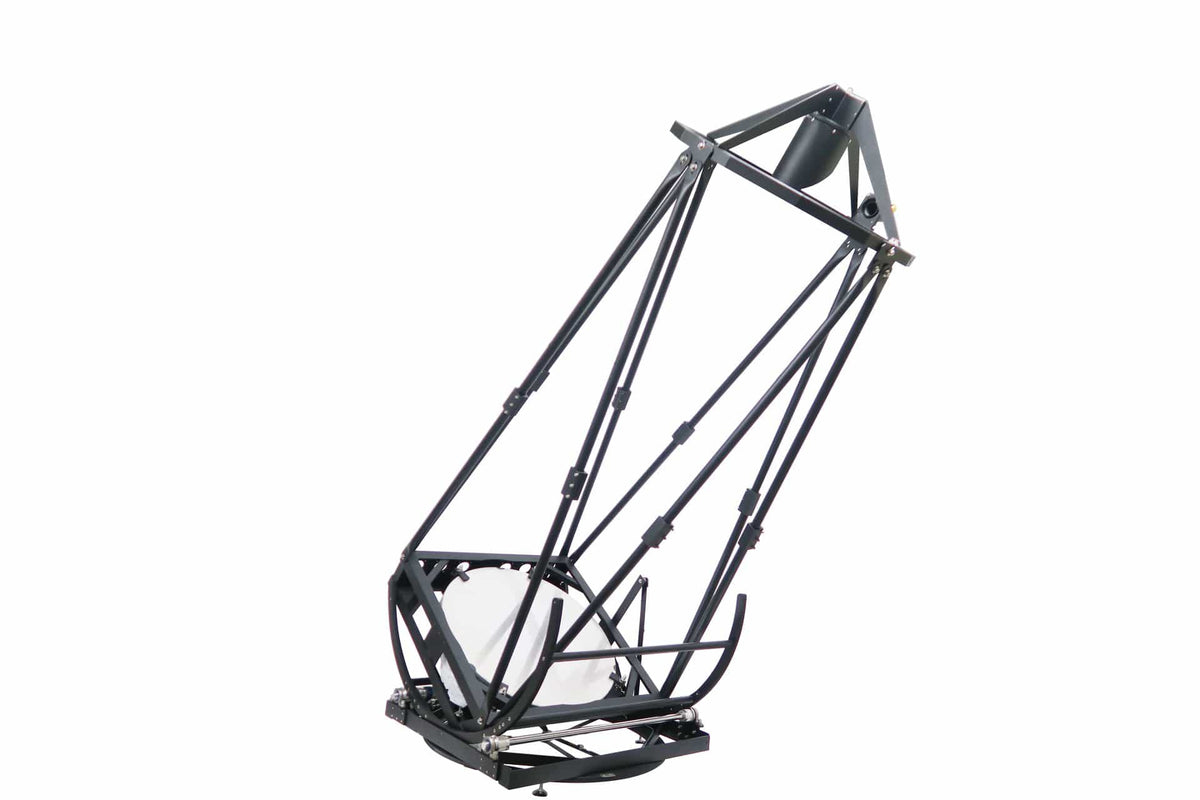

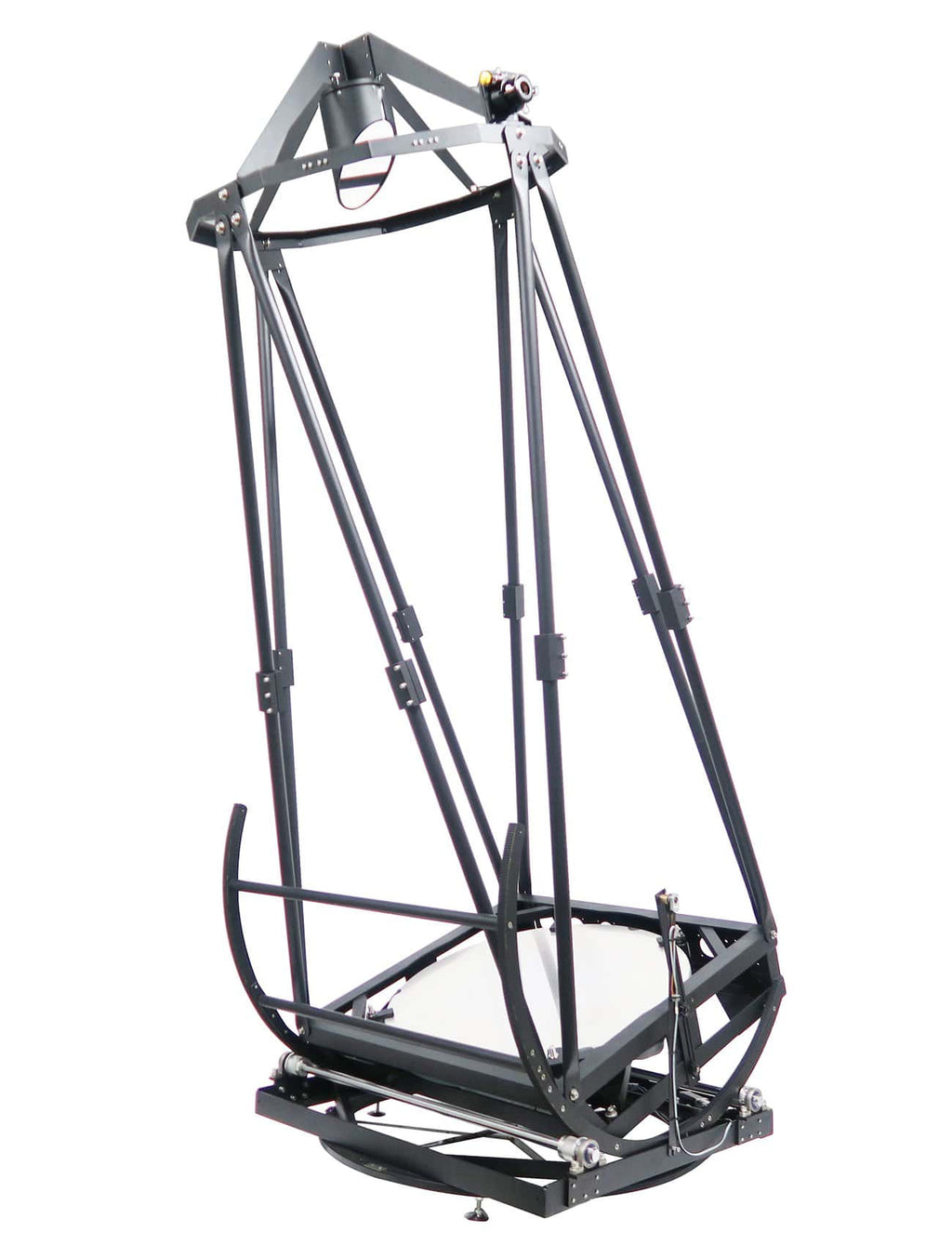

The ultimate observatory-class Dobsonian. Featuring our revolutionary Smart Finder with plate-solve technology, OnStep GoTo controller, a massive 32" parabolic primary mirror, and precision-machined all-metal construction. 16x the light grasp of an 8" reflector.
The Future of Smart Astronomy
Revolutionary Smart Finder
Our plate-solve-based Smart Finder takes GoTo to the next level. One press captures an image, plate solves, and corrects pointing for pinpoint accuracy. Supports automated star alignment, automated "Star Shows" like the Messier Marathon, EAA with live stacking, and advanced routing that reduces slewing time by 30-50%.
Enhanced Optical Coatings
96% enhanced reflective coatings on both primary and secondary mirrors with precision-controlled dielectric layers. Maximum light throughput for bright, contrast-rich images on the deepest sky targets.
27-Point Mirror Support
Extensively modeled and optimized 27-point flotation system with sling and 90-degree pivoting lateral supports. Three-point rod-end collimation is completely independent from lateral support, eliminating potato-chip astigmatism. Housed in a real mirror box for safe protection and transportation.
All Metal Construction
CNC-machined 6063-T6 aluminum alloy truss tubes, structural steel mirror cell, and aluminum alloy OTA and mount structure. 8 rigid sectional truss tubes with an extremely strong folding ALT bearing. Finished with environmentally friendly black powder coating.
OnStep GoTo Controller
State-of-the-art GoTo with built-in WiFi and Bluetooth. Works with SkySafari, Stellarium, ASCOM, INDI, and more. Smart Hand Controller with ~30,000 objects. Telescope encoders for extra pointing accuracy, real-time clock, park/unpark, sidereal/lunar/solar tracking, and spiral search.
Full Technical Details
| Optical Design | Reflector |
| Optical Diameter | 812.8mm |
| Focal Length | ~2683mm (f/3.3) |
| Focal Ratio | f/3.3 |
| Eyepiece Height at Zenith | ~2570mm (~101") |
| Optics Type | Parabolic |
| GoTo Controller | OnStep with built-in WiFi and Bluetooth |
| Optical Quality | Diffraction limited++ (Strehl 0.95+, 1/10 lambda PV secondary) |
| Focuser | 2" dual-speed linear bearing Crayford (~50mm travel) |
| Secondary Obstruction | 180mm / 22.1% diameter / 4.9% area |
| Mirror Coatings | 96% Enhanced on both primary and secondary |
| Tube Material | 6063-T6 Aluminum Alloy, structural steel mirror cell |
| Tube Length | ~2600mm (102") |
| Weight (Tube) | 120 kg |
| Weight (Assembled) | ~150 kg (~330 lbs) |
| Power Supply | Control: 12 VDC 2A, 5.5-2.1/2.5mm; Motor: 24 VDC 5A, 5.5-2.5mm |
| Dawes Limit | 0.14 arcsec |
| Rayleigh Limit | 0.17 arcsec |
| Limiting Magnitude | 17.3 |
| Max Magnification | 1600x |
| Accessories | Smart Finder, Shroud, Wheelbarrow, Cushioned Grips (optional) |
| Other Features | Sling lateral support, push-pull brass knob collimation, real mirror box |
GoTo Controller Capabilities
Software Compatibility
INDI Drivers (CdC, KStars, Ekos), ASCOM drivers with IP and Serial support (LX200 protocol), direct WiFi support for SkySafari and Stellarium, Bluetooth 4.2 for ASCOM connections, iOS and Android Virtual Handpad Apps.
Smart Hand Controller
~30,000 objects database. Full initialization, configuration, alignment, and movement control. Advanced 1-9 star alignment (3 stars usually gives excellent results). Park/Unpark, sidereal/lunar/solar tracking rates, and spiral search.
Precision & Speed
Telescope encoders for extra accuracy in pointing and tracking. Real-time clock module. Manual/guide rates: 0.5x, 1x, 2x, 8x, 20x, 48x, 0.5 Max, Max (2 deg/s). Slewing rates: 48x, Max (default), 2x Max (4 deg/s).
