Svbony SV604 LCD 7 Inch Portable Microscope - F9368A

SvbonySKU: F9368A

Sale price$138 CAD
Only 1 unit left

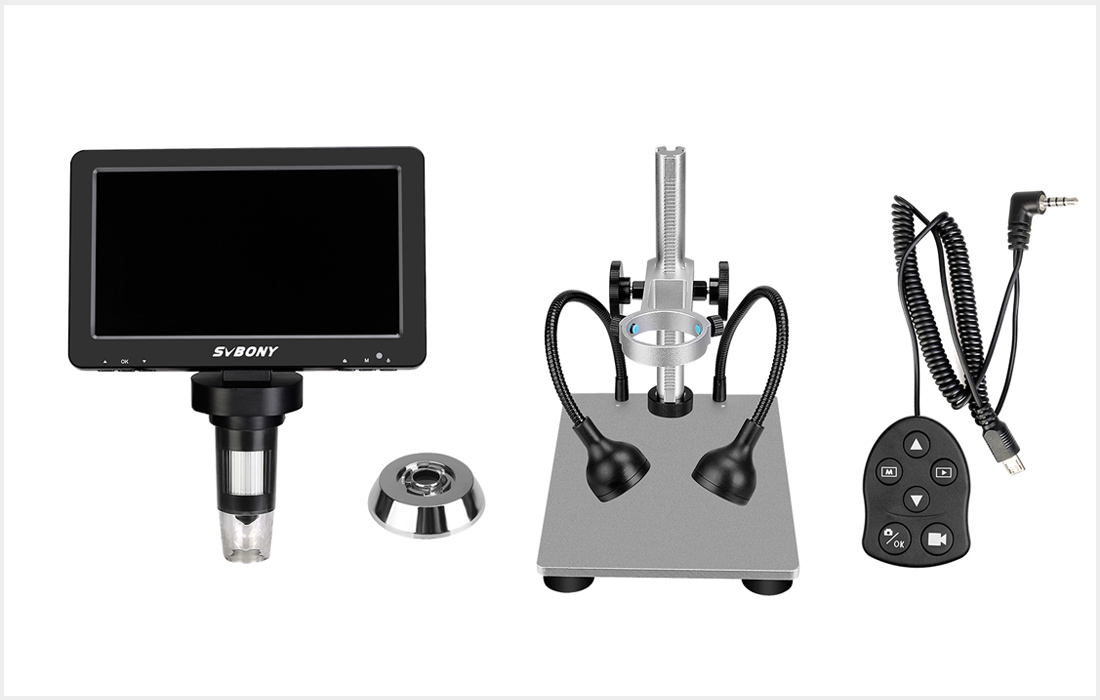

SV604 LCD 7 Inch portable microscope 1x-1200x magnification, wired remote, camera video recorder with HD screen suitable, for teaching, circuit boards, observing antiques, jewelry identification.

  • Equipped with a 7-inch high-definition LCD screen, which can provide high-quality 1080p images for clearer viewing
  • 1x-1200x continuous zoom in and zoom out, adjustable bracket, freely adjust the distance between the lens and the object, manual focus to observe the micro details
  • The 2000mah rechargeable lithium-ion battery on the host provides power support for 8 LED lights and 2 auxiliary lights
  • Wired remote control, no need to touch the host, one key to call up the menu, making taking pictures and videos more stable and convenient
  • Support multi-version computer system connection view, such as: Windows xp, win7, win8.1, win10, Mac OS x 10.5 or higherJust open the software on the CD to view,if your computer can't support CD, you could download it here:

Note: before using this microscope, you should read the user manual carefully

SV604 LCD  Portable Microscope.jpgSV604 Microscope Manual Focus.jpgsv604 Microscope Clear Observation.jpgSV604  Microscope 1080p.jpgSV604 Adijustable Bracket.jpgsv604 LED fill light.jpgSV604 Light barrier.jpgsv604 using stable and convenient.jpgMicroscope Function keys.jpgSV604 LCD  Portable Microscope Package.jpg


Model SV604
Color Black
Video maximum pixels 1080FHD
Lens Optical Size 1/4"
Language support English, Portuguese, Japanese, French, German, Korean, Russian, Italian, Dutch, Arabic, Simplified Chinese, Traditional Chinese
Photo resolution 12M, 10M, 8M, 5M, 3M
Video resolution 1080FHD, 1080P, 720P
Video format AVI
Focus mode Manual
Image Format JPG
Digital zoom Not support
Light source 8 led lights (brightness adjustable)
Focusing range 10 ~ 40mm (viewing distant view)
PC resolution and image propagation 1280*720/26fps
White balance Automatic
Exposure Automatic
PC operating system Windows xp, win7, win8.1, winl10, Mac OS x 10.5 or higher
Lens structure 2G+IR
Aperture F4.5
Camera angle 16°
Interface and signal transmission Micro/usb1.1
Operating temperature -20°C - +60°C
Working humidity 30%~85%Rh
Working current 700mA
Power consumption 3.5W
