Description

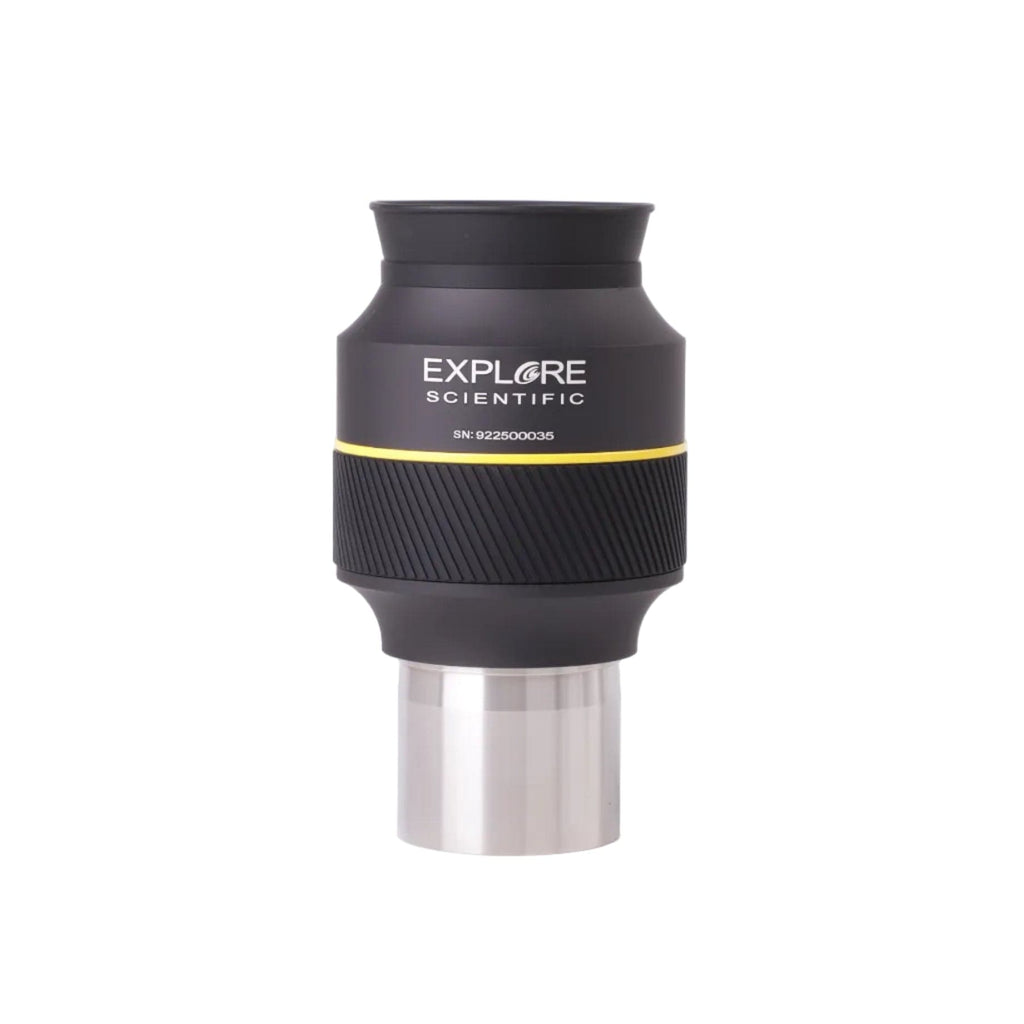

Explore the night sky through an expansive 92° apparent field of view. Explore Scientific 92° ED Series waterproof eyepieces combine extra-low dispersion glass with long eye relief for comfortable observing and reduced colour fringing.
Choose from four focal lengths to suit your telescope and observing targets. Every model uses a 2-inch barrel and requires a compatible 2-inch focuser or diagonal.
Features
- 92° apparent field of view for immersive observing.
- ED glass helps improve contrast and colour correction.
- Waterproof construction for outdoor observing.
- Long eye relief supports a relaxed viewing position.
Choose your focal length

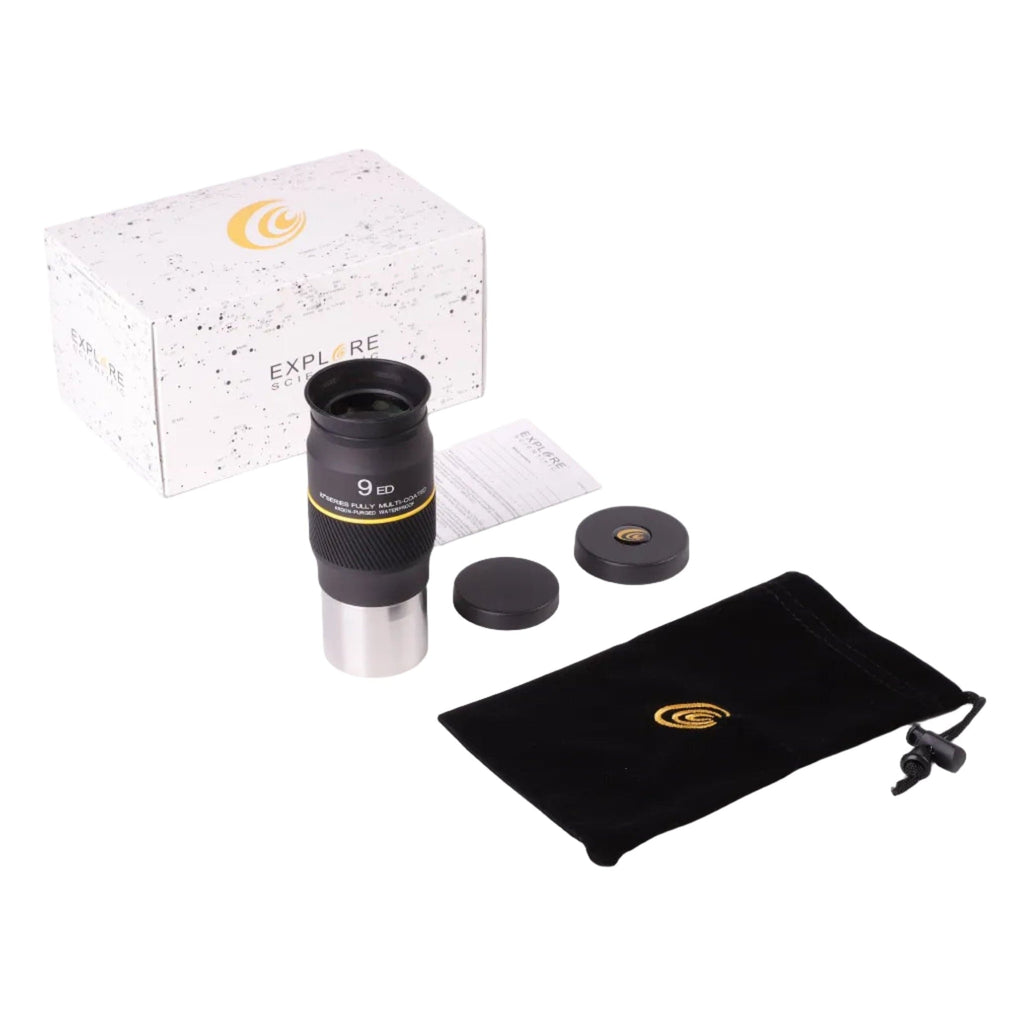

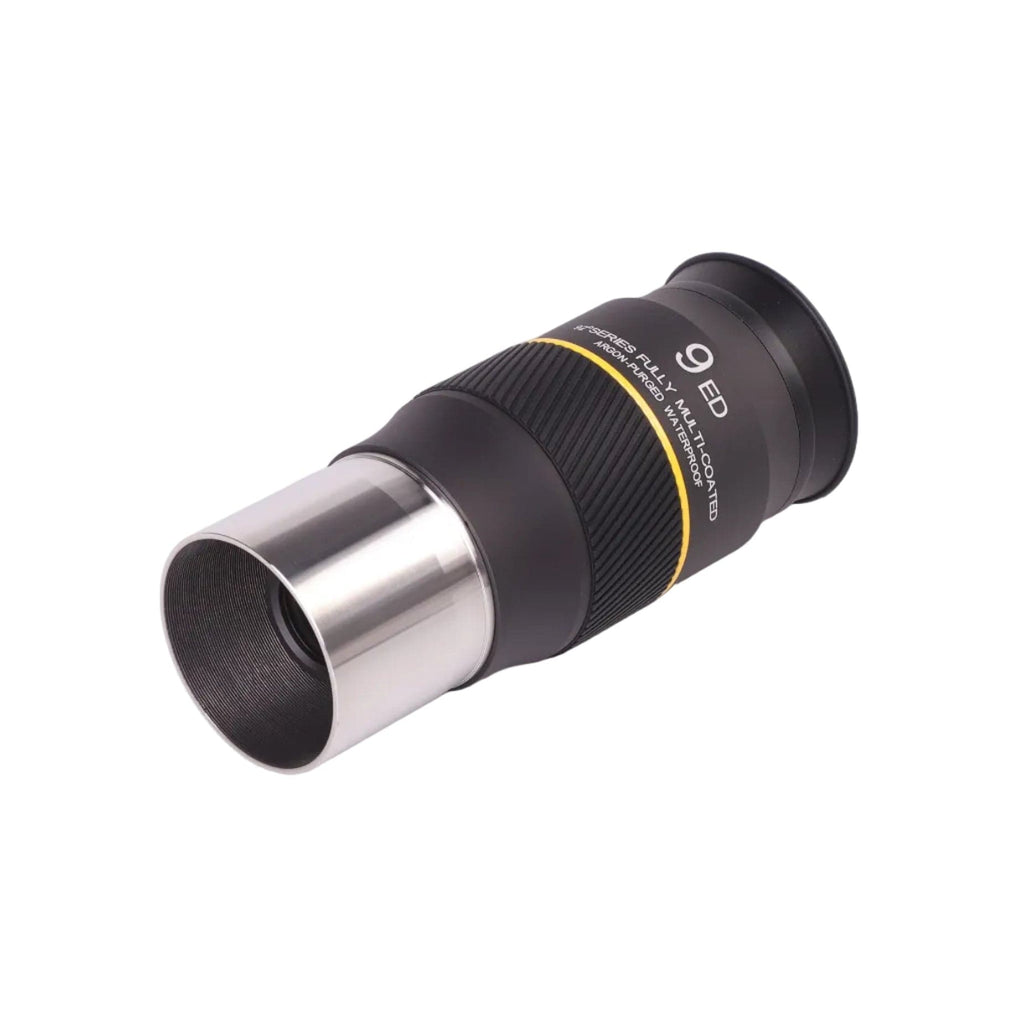

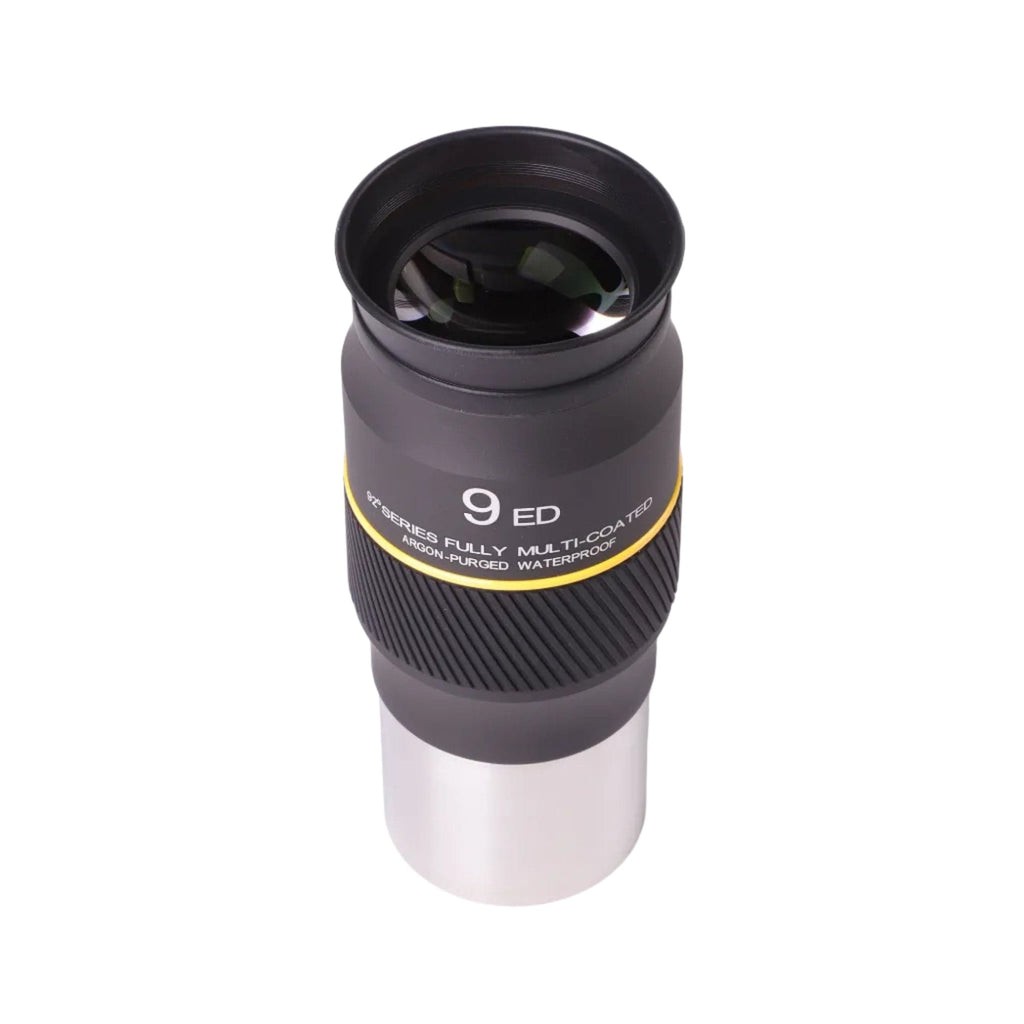

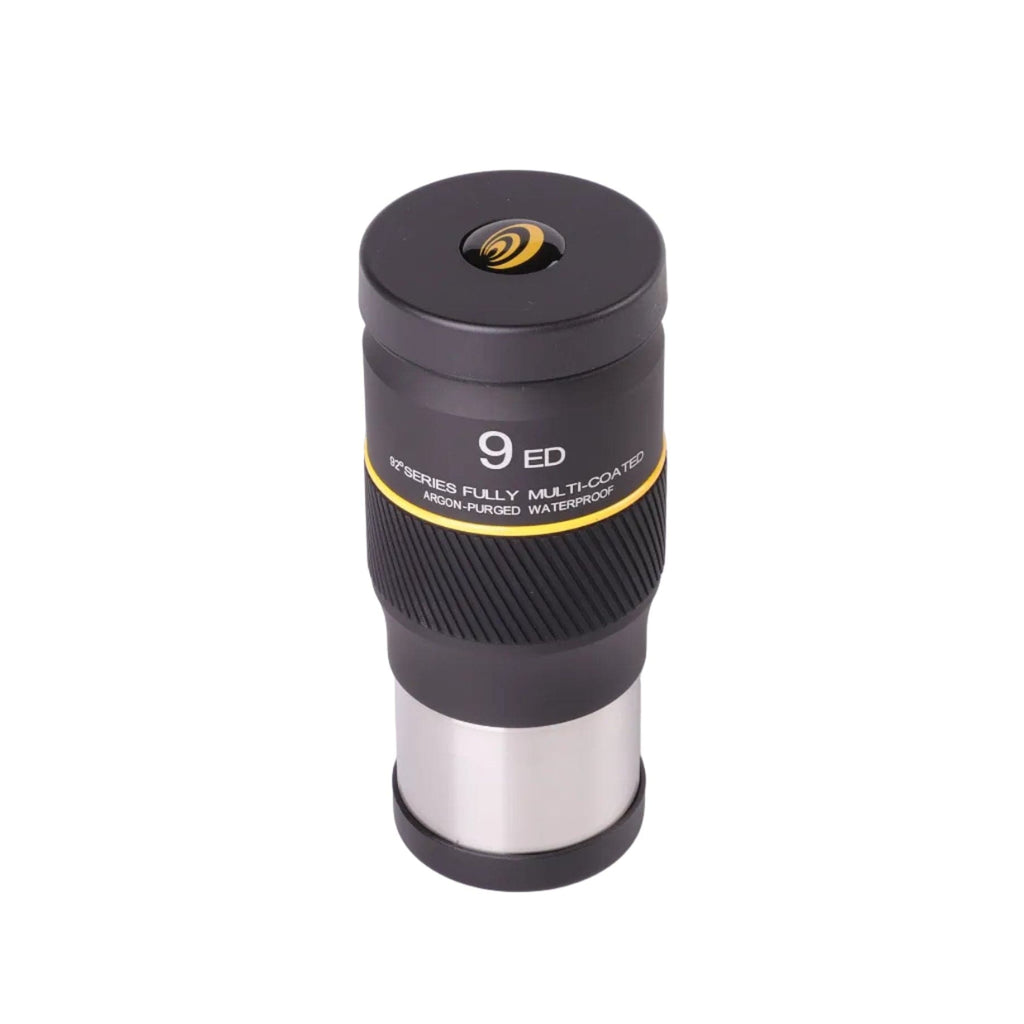

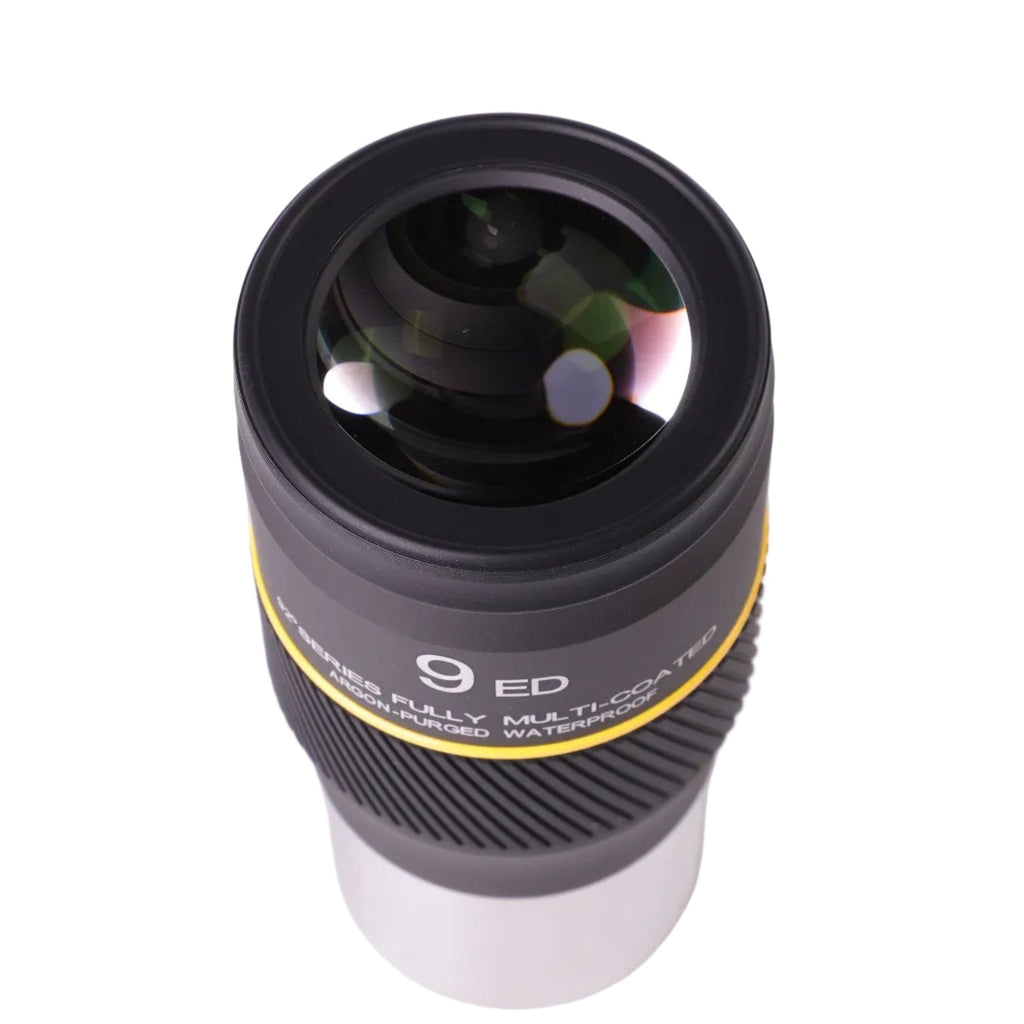

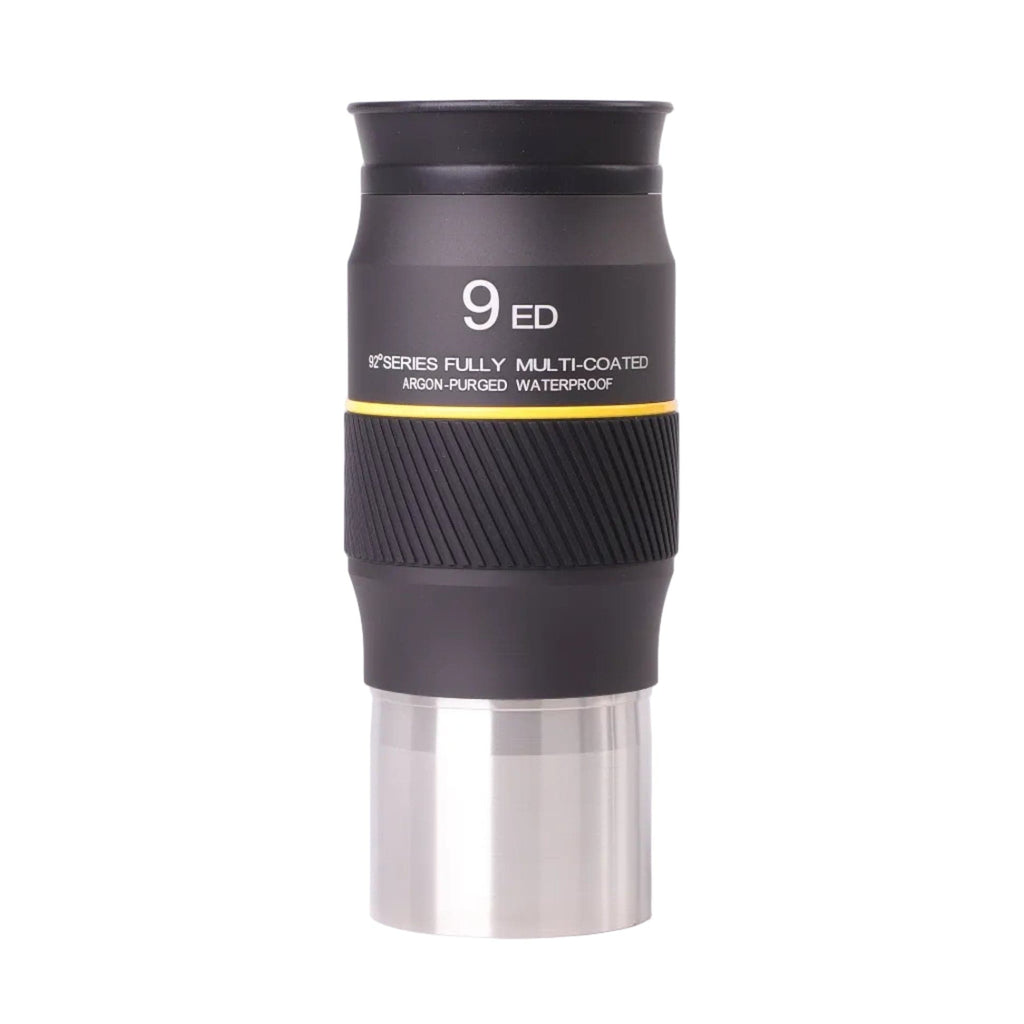

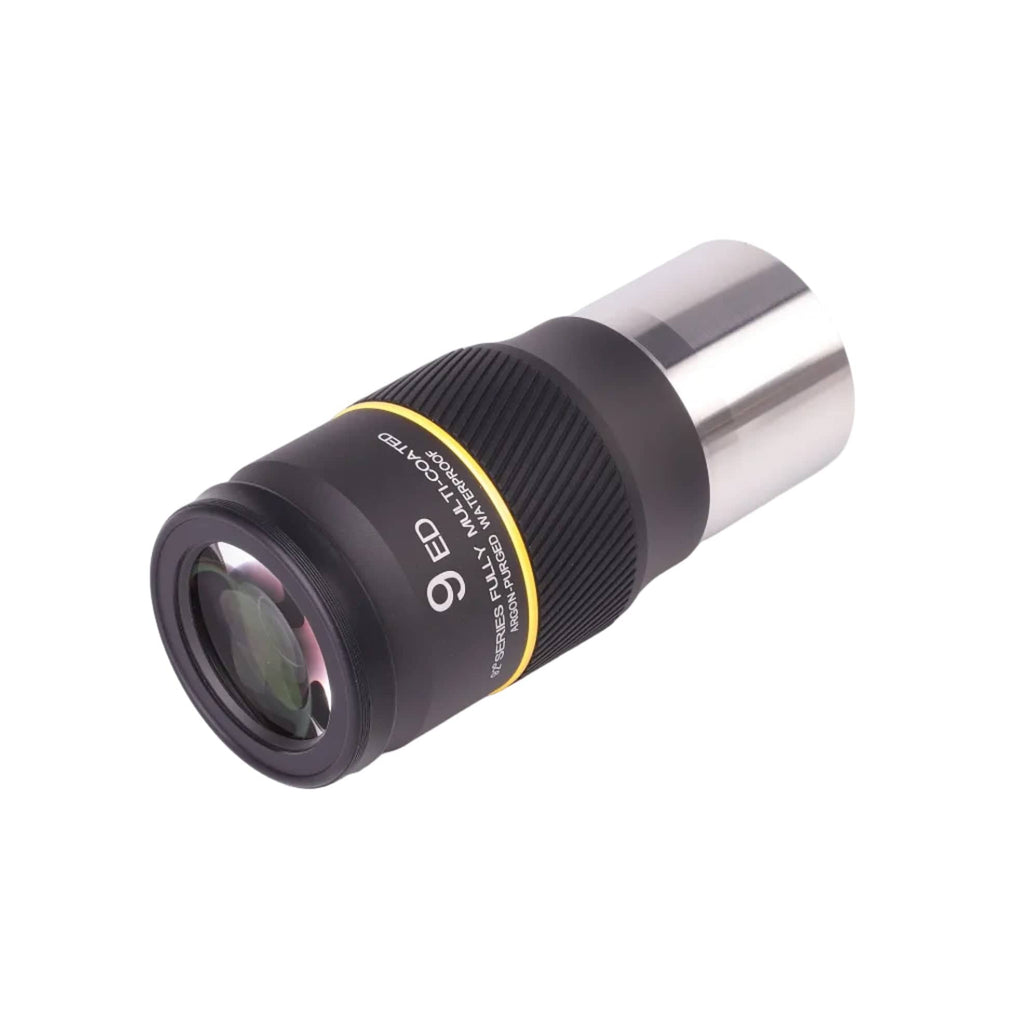

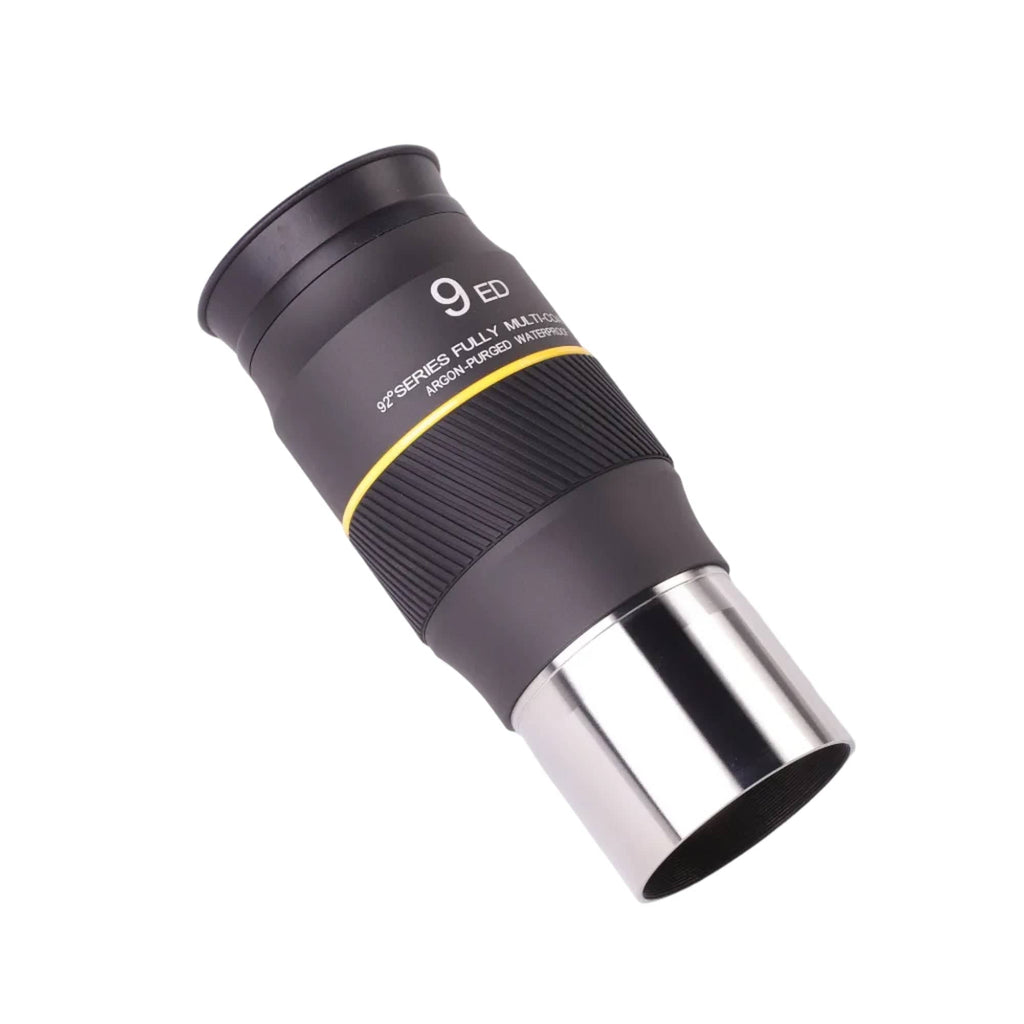

- 9mm: Higher magnification for lunar and planetary detail and compact deep-sky targets.

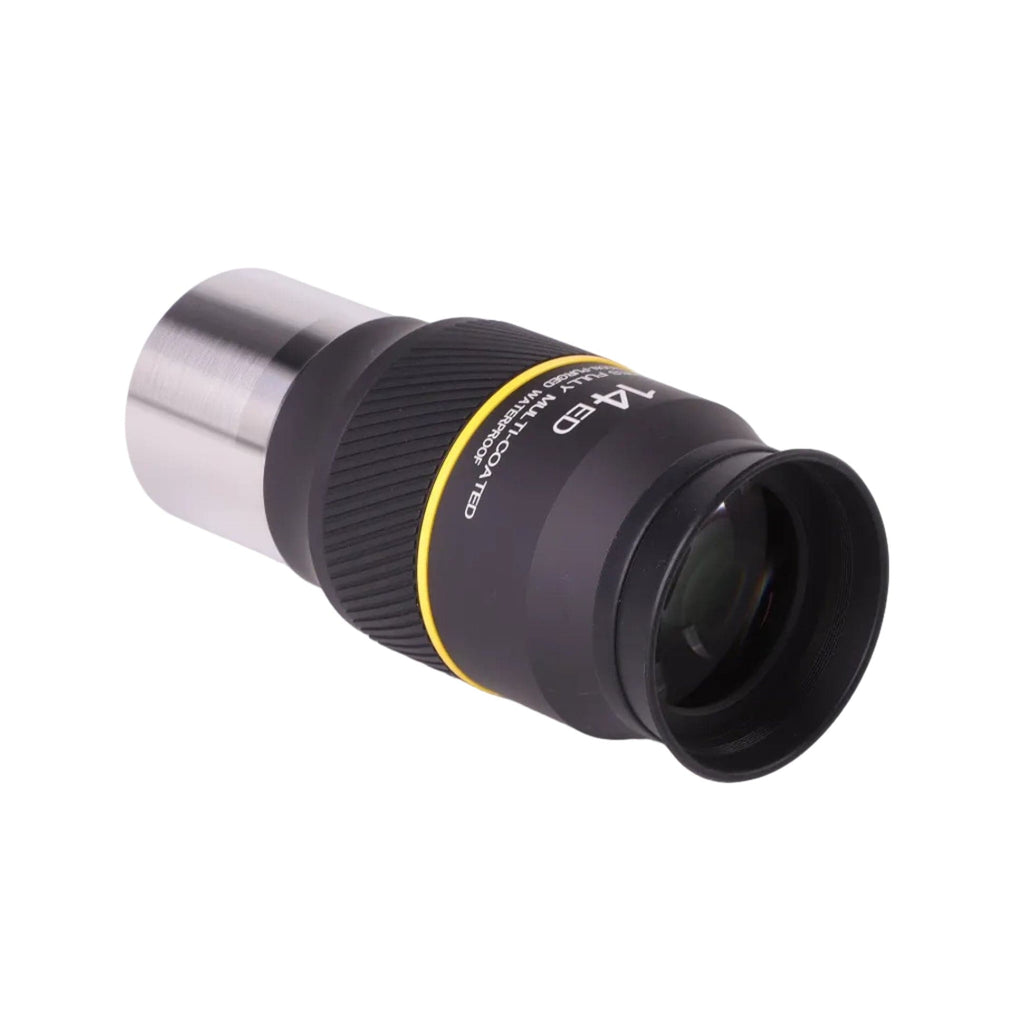

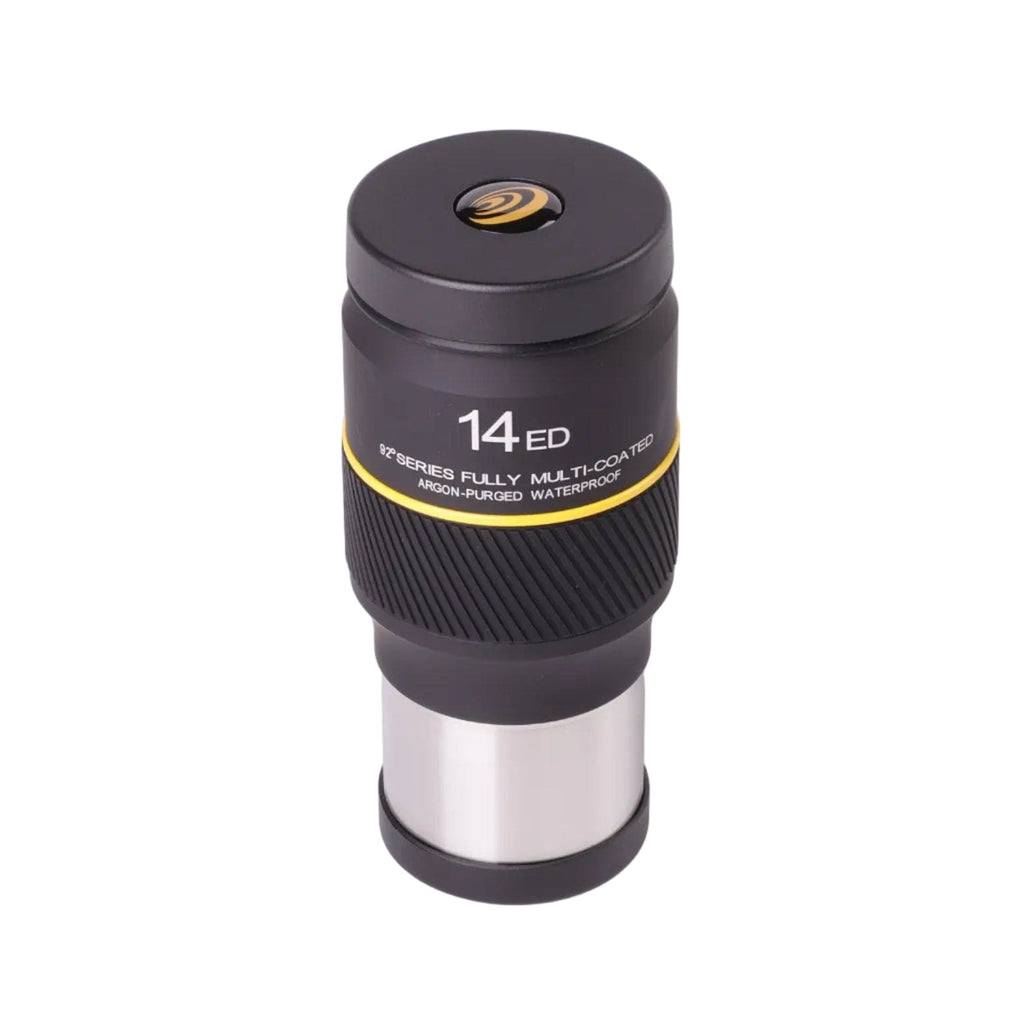

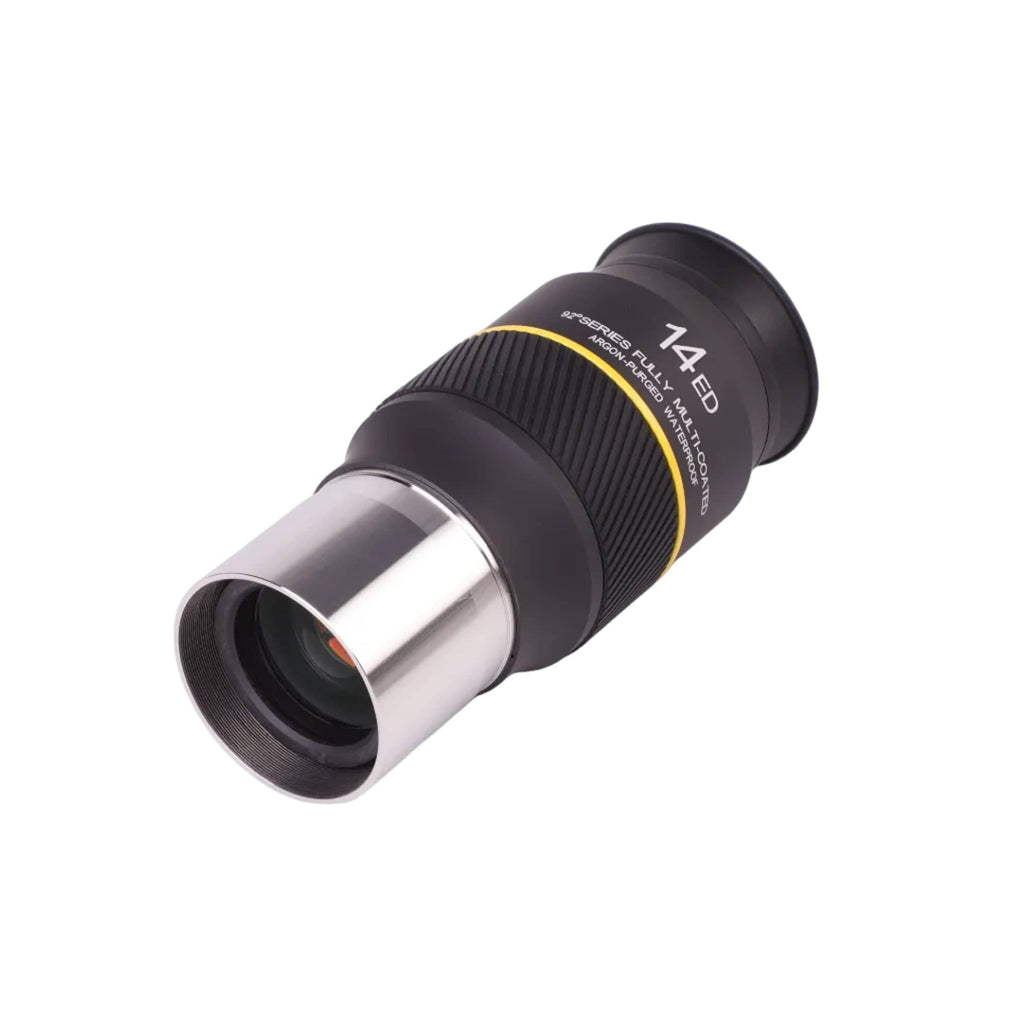

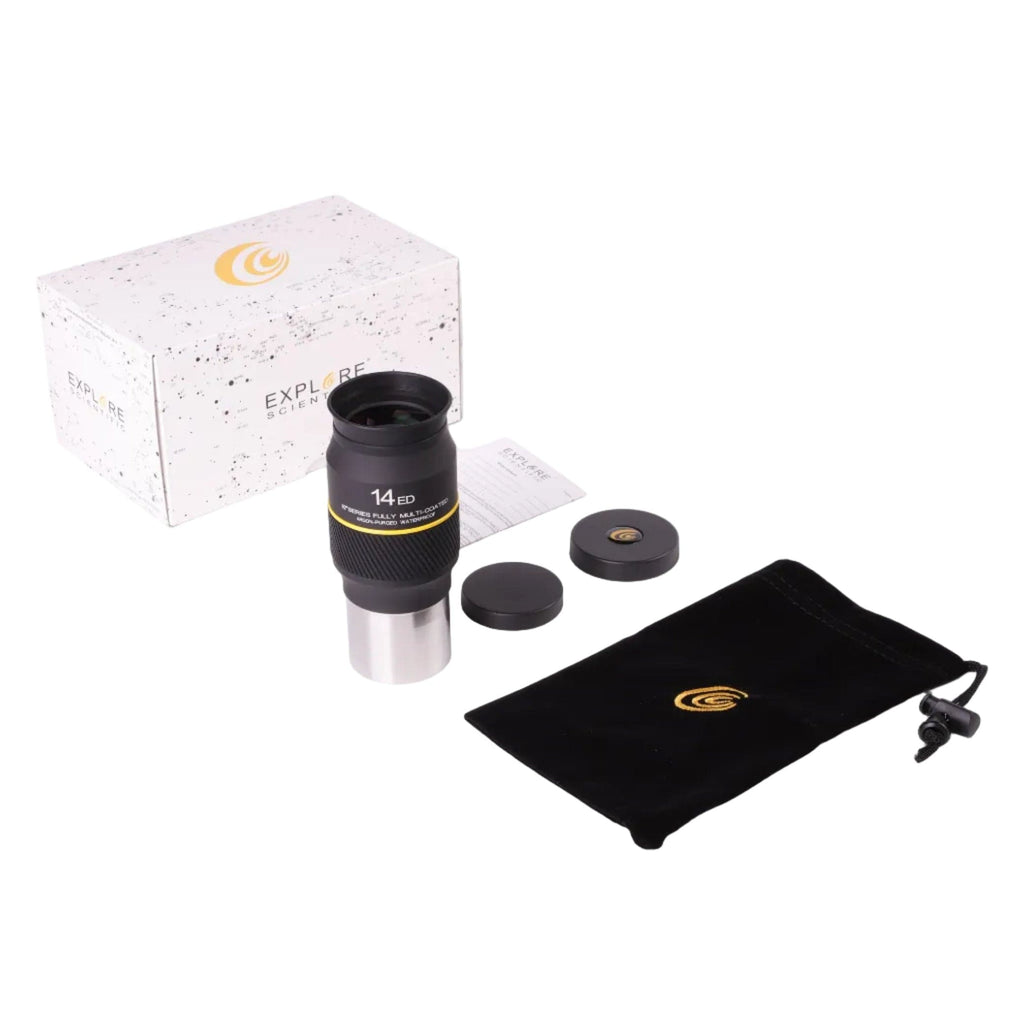

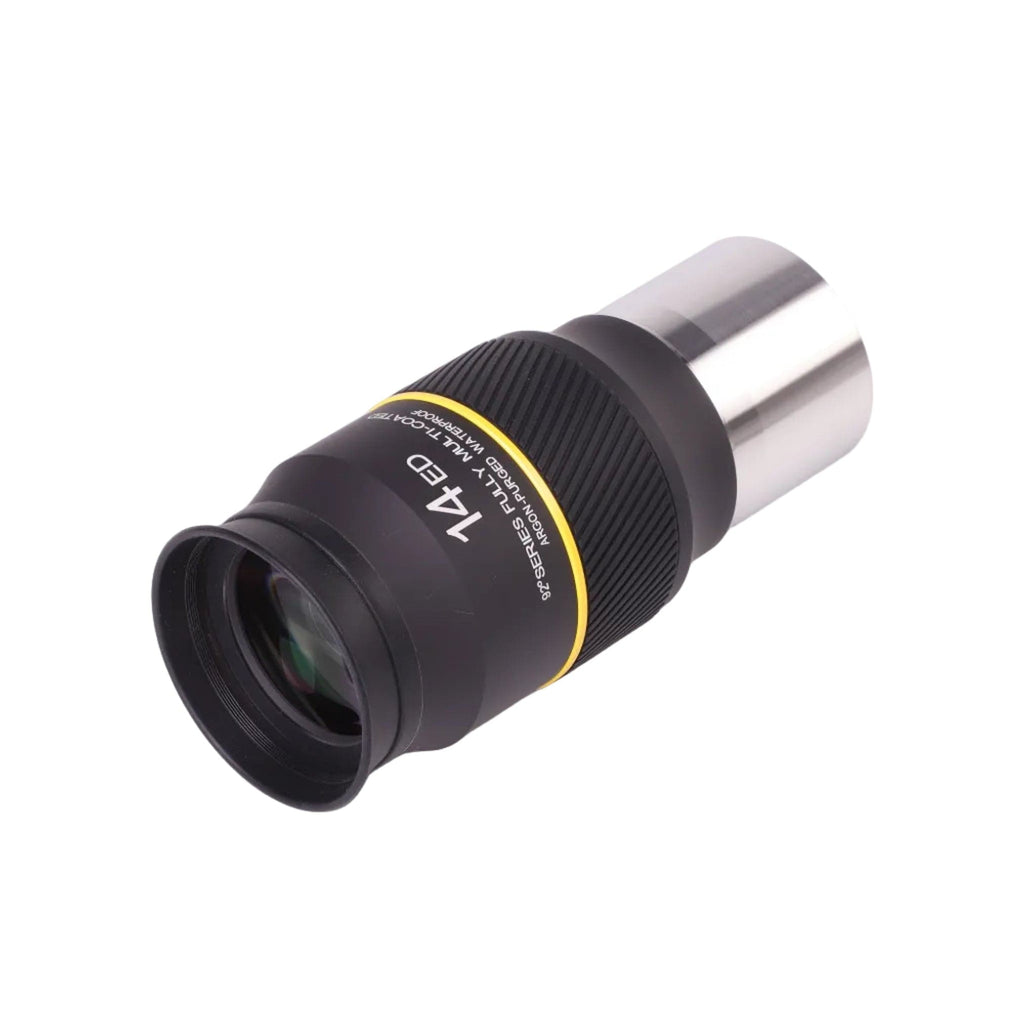

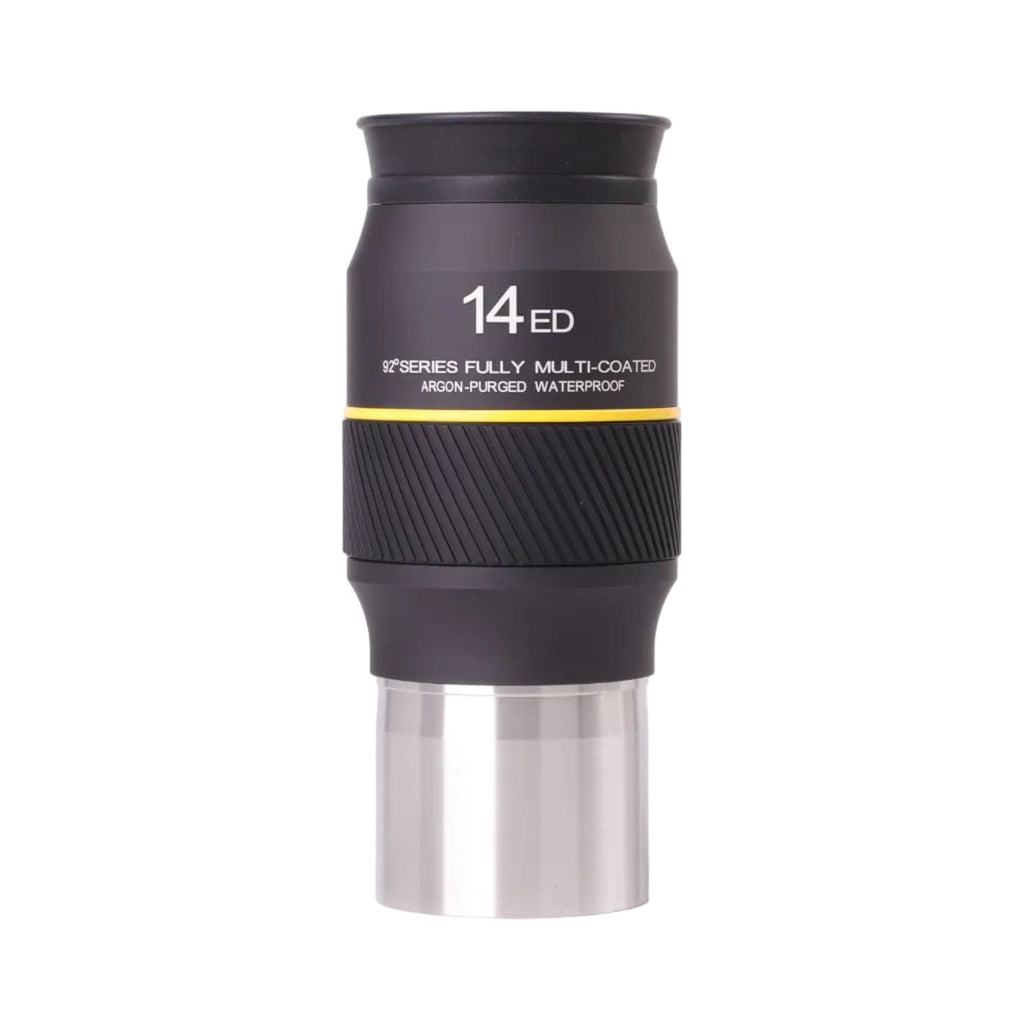

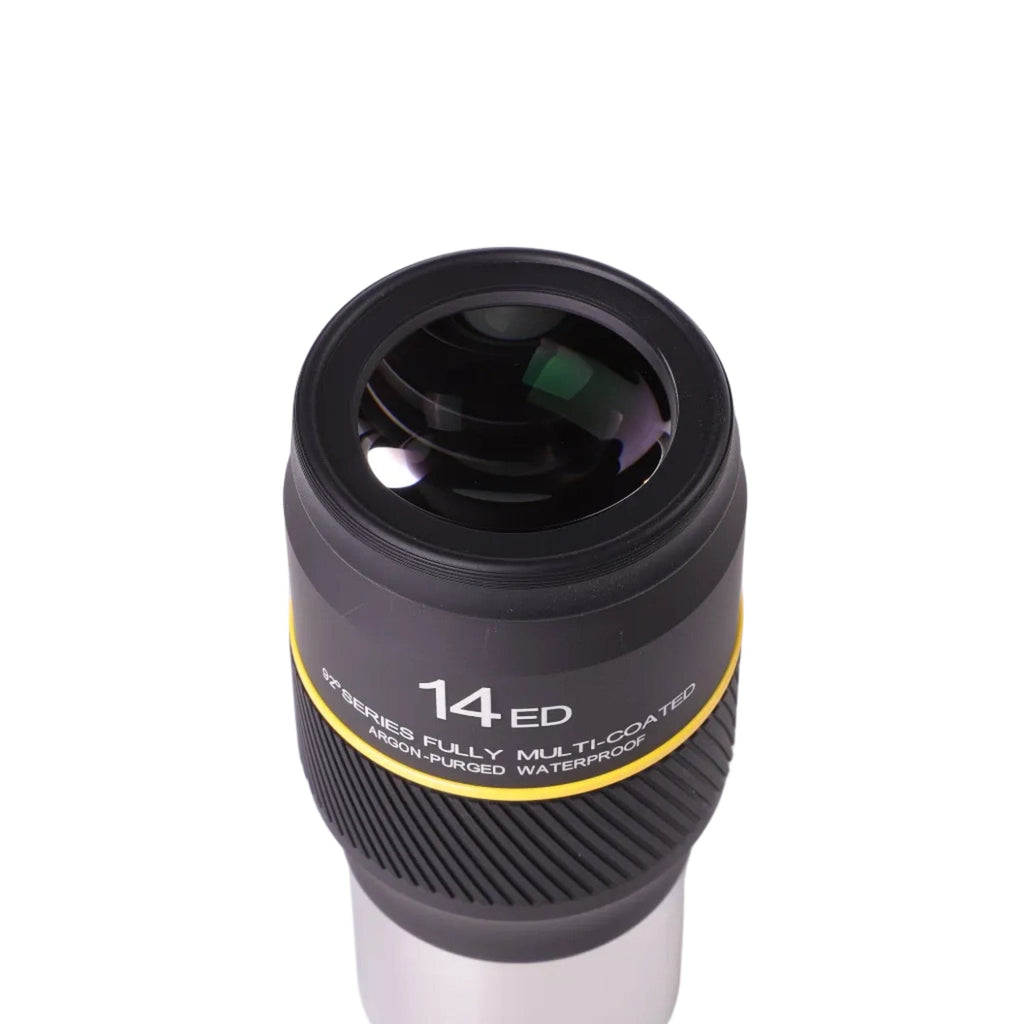

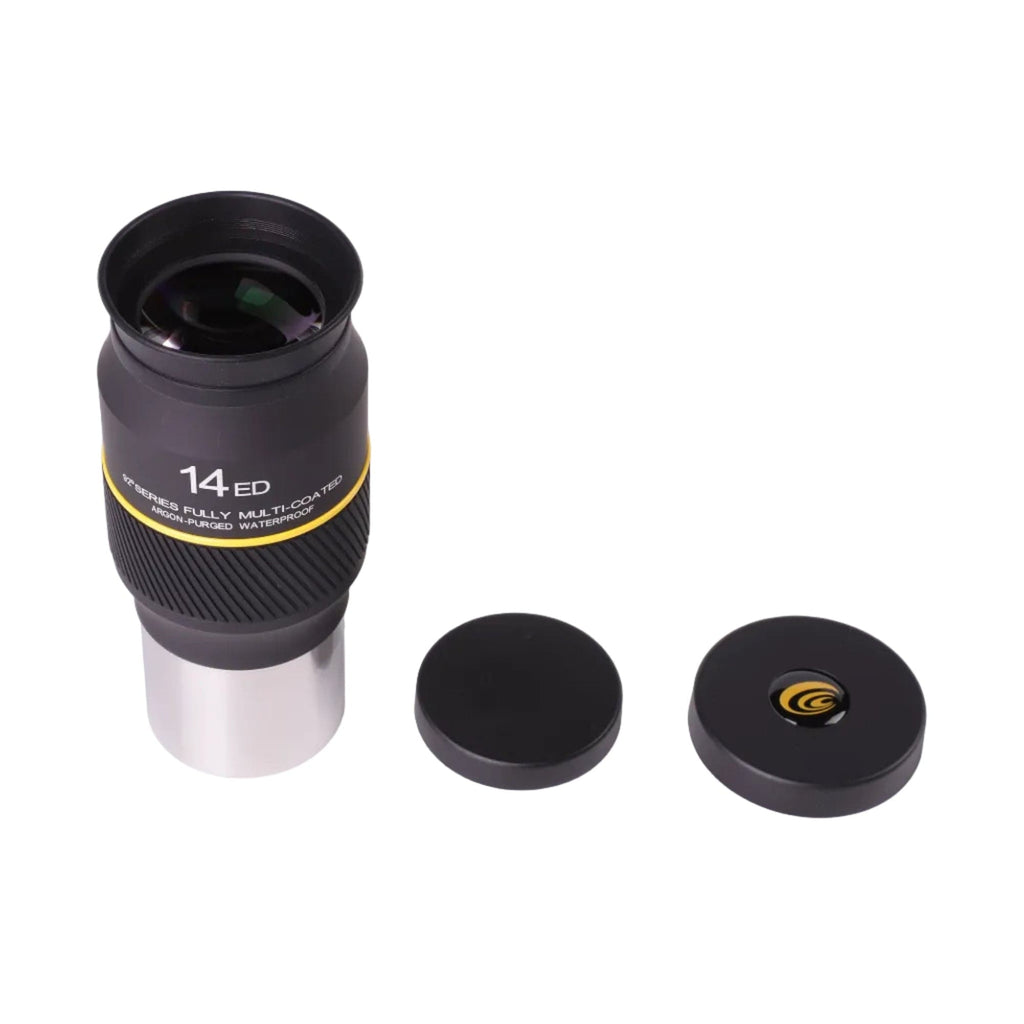

- 14mm: A versatile step between higher-power detail and wider-field observing.

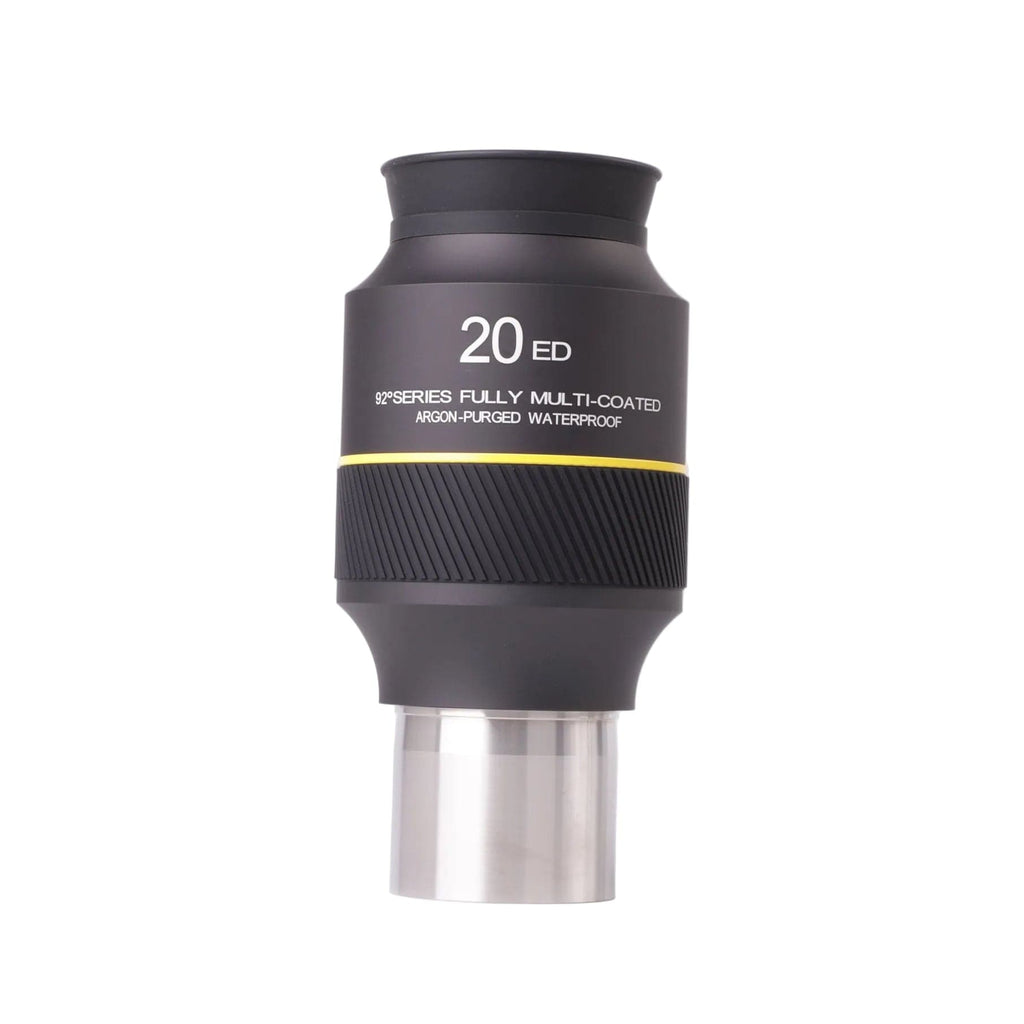

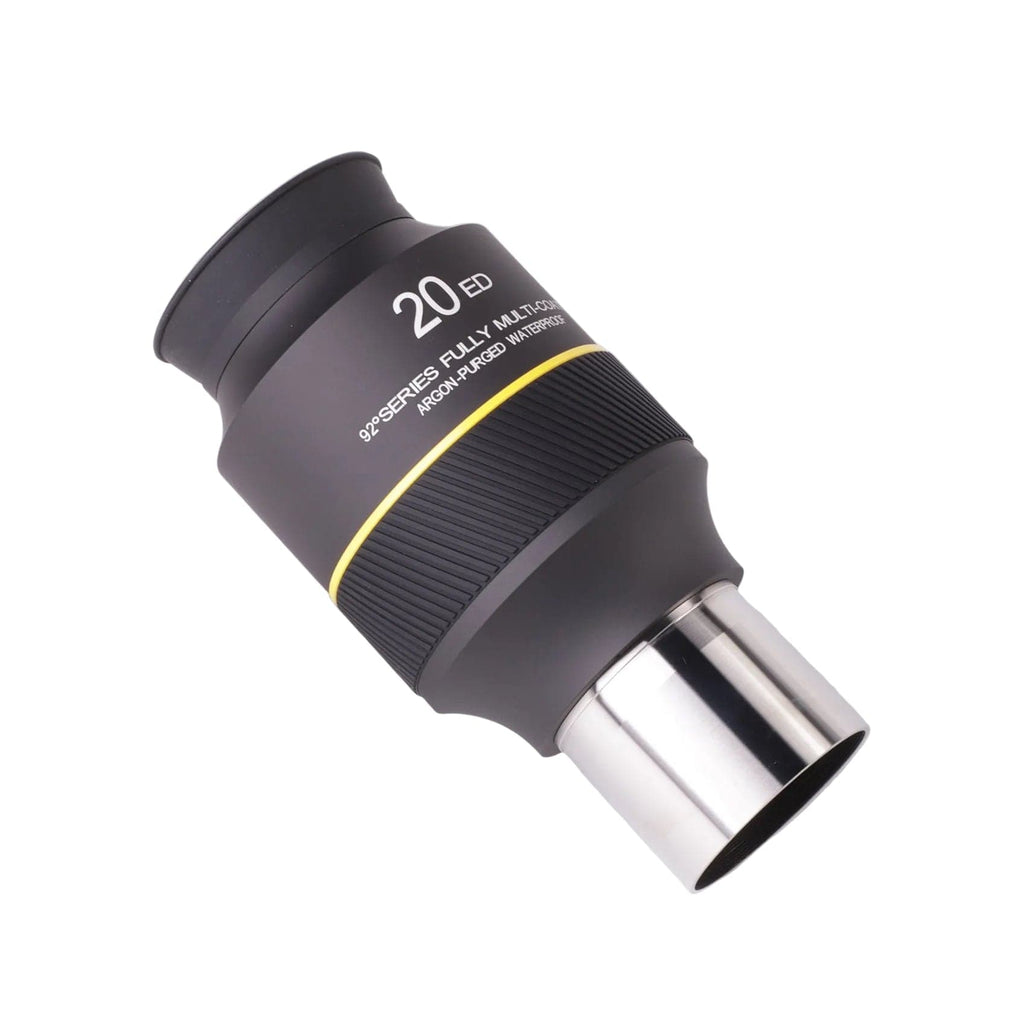

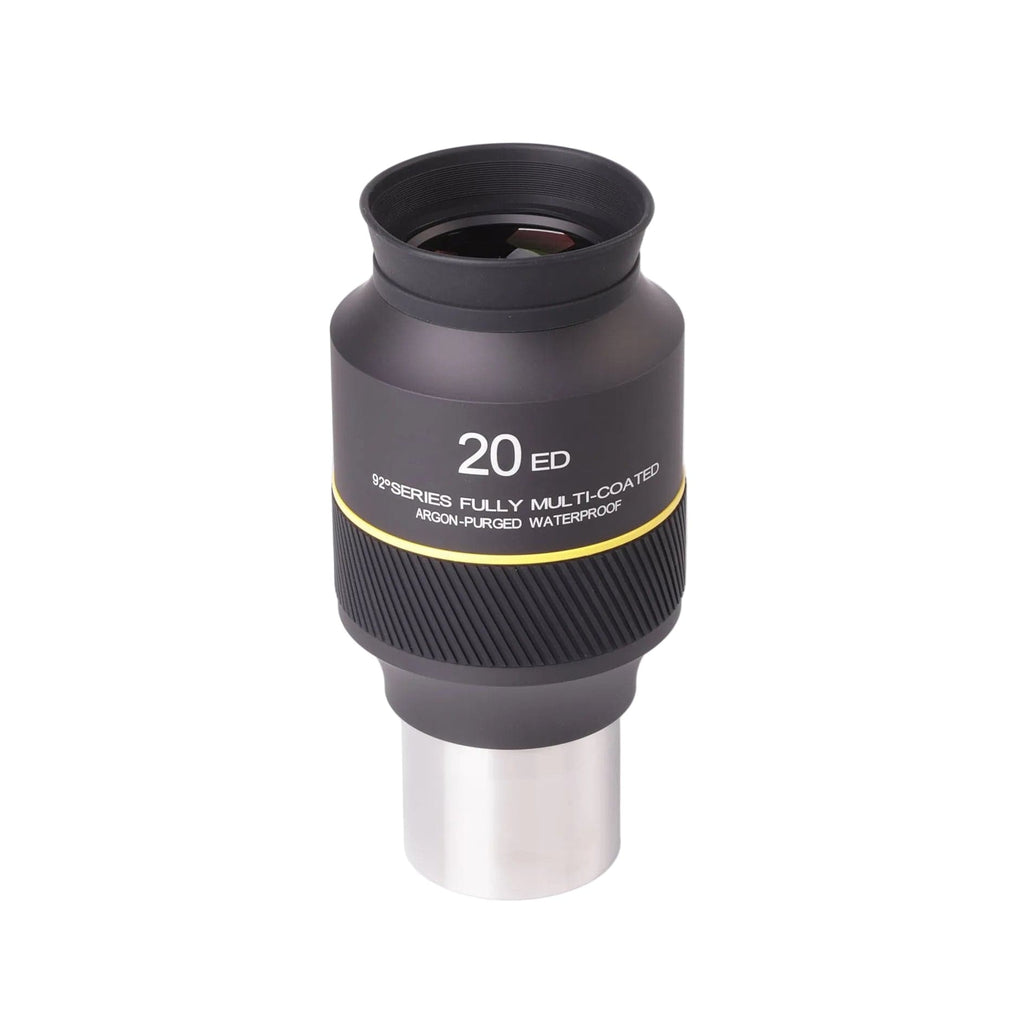

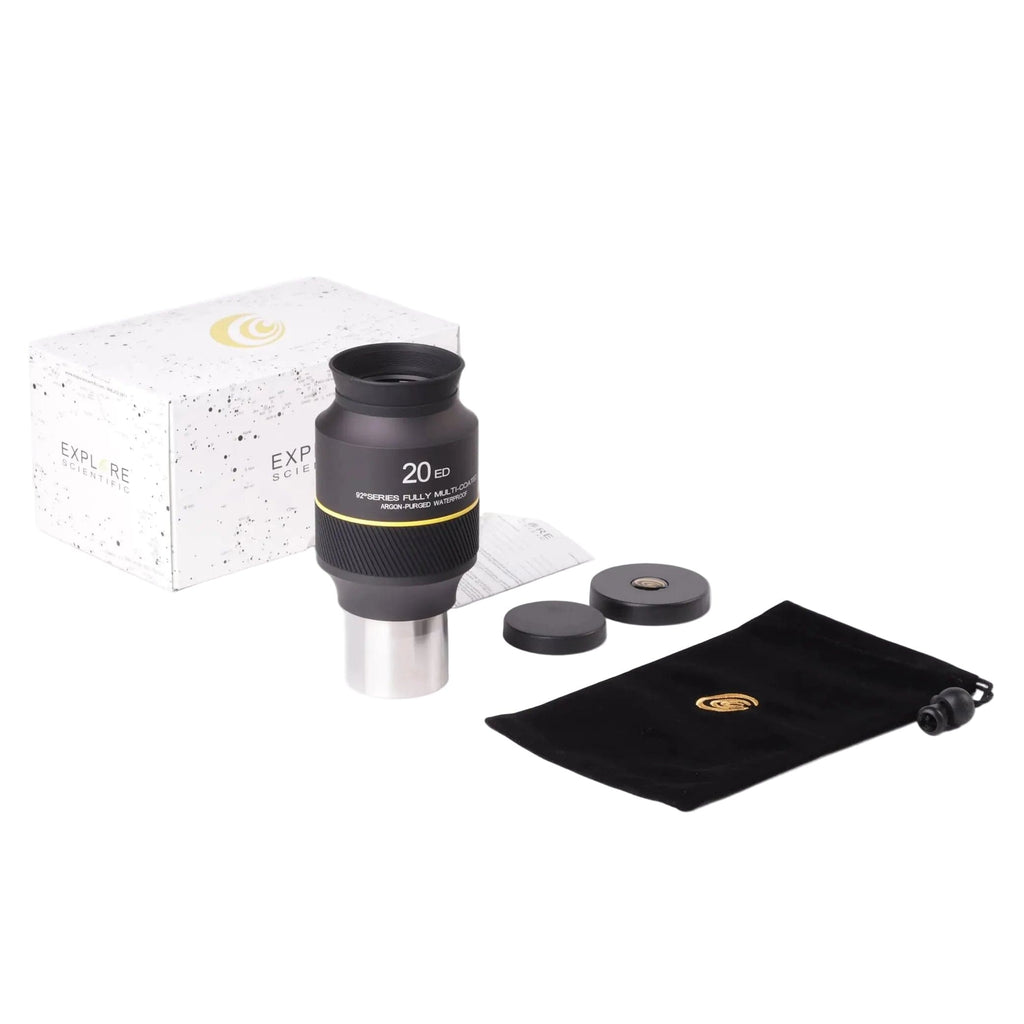

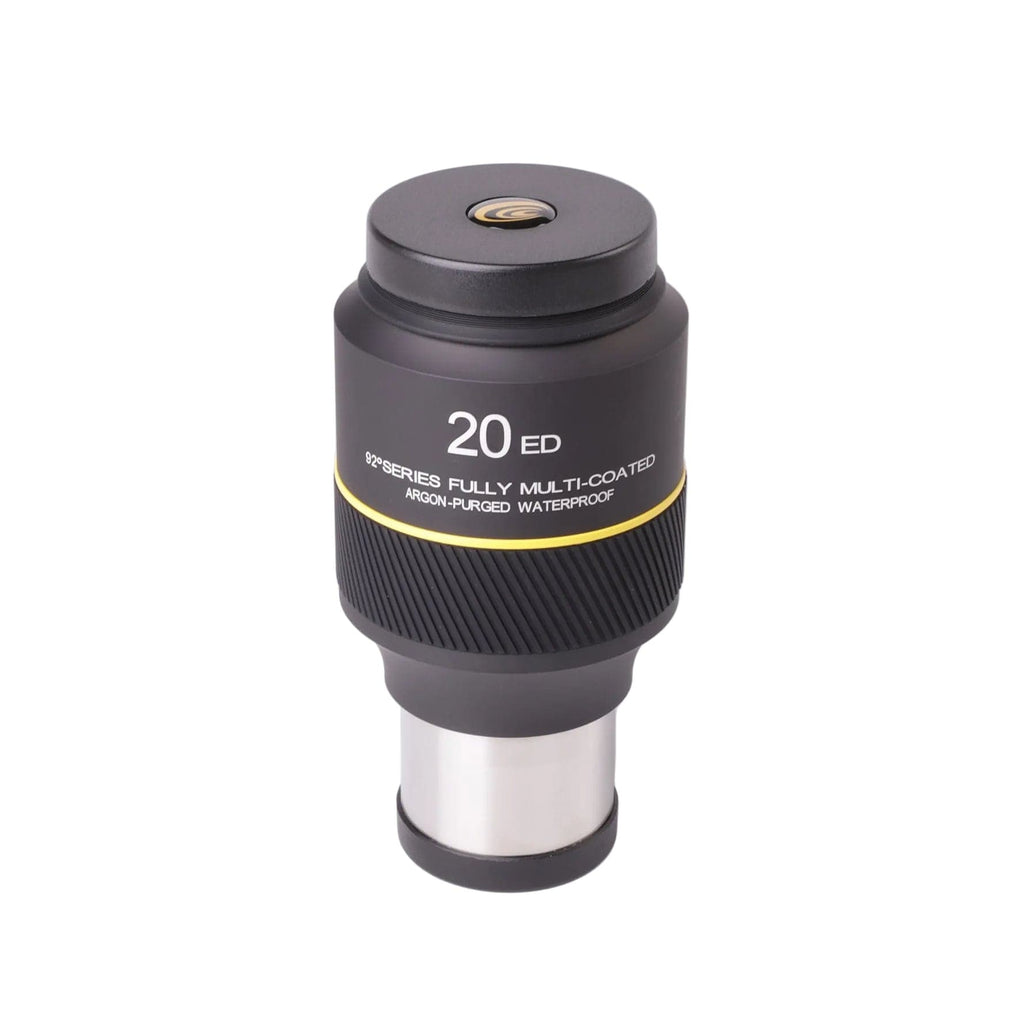

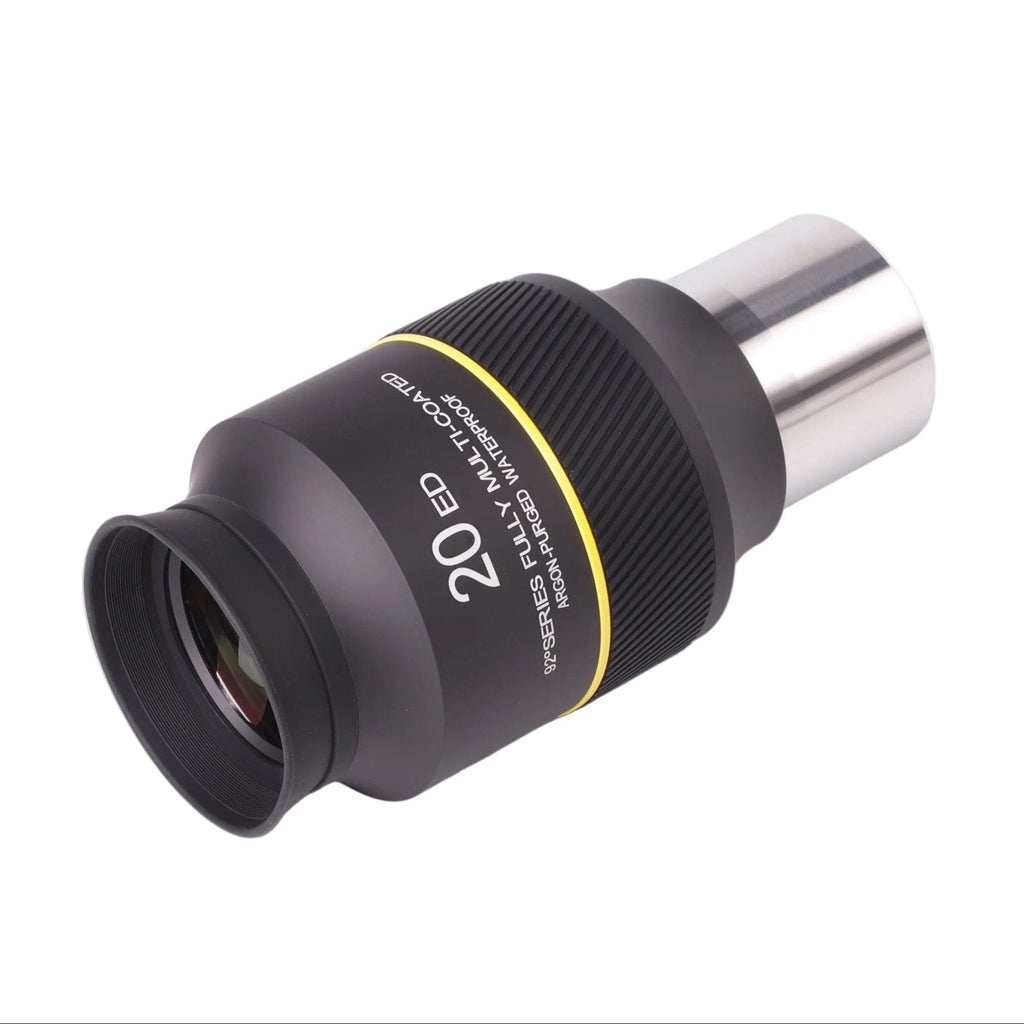

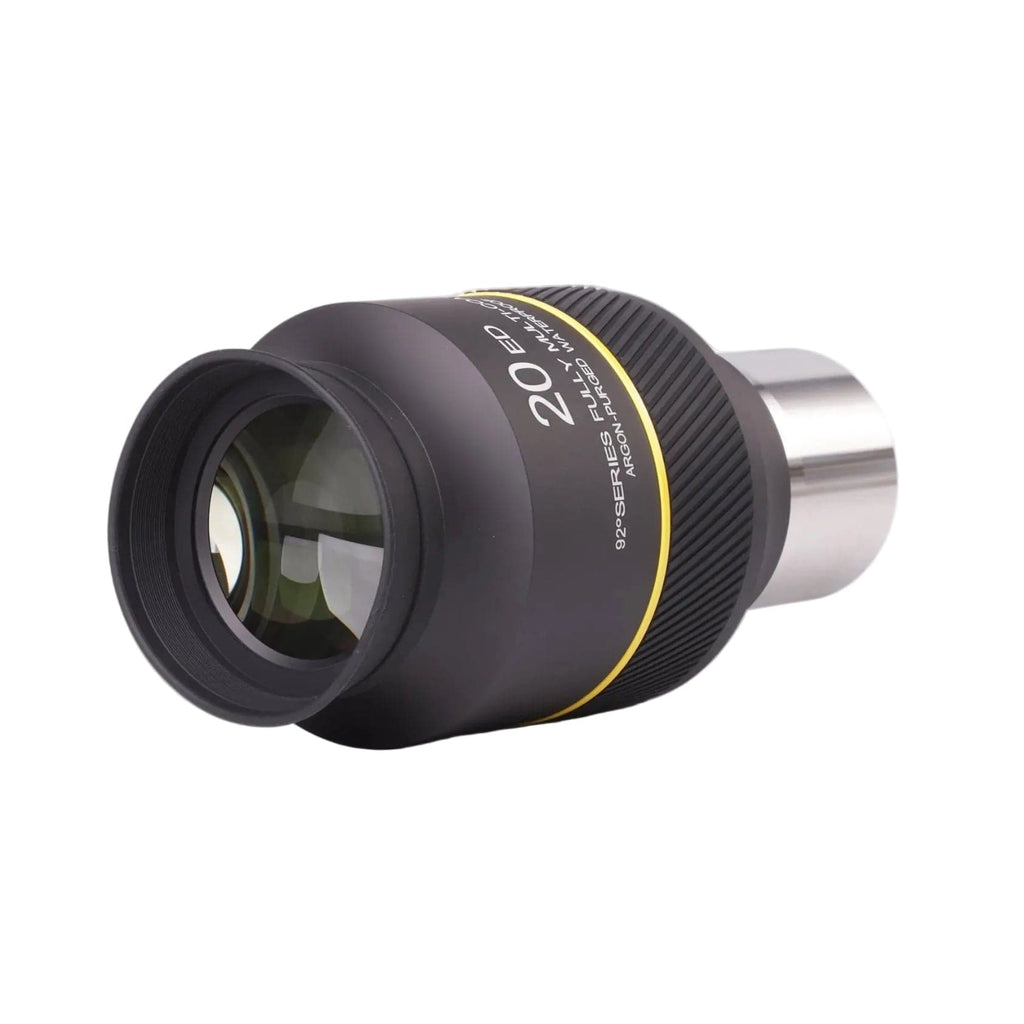

- 20mm: Lower magnification and a wider true field than the shorter focal lengths in the same telescope.

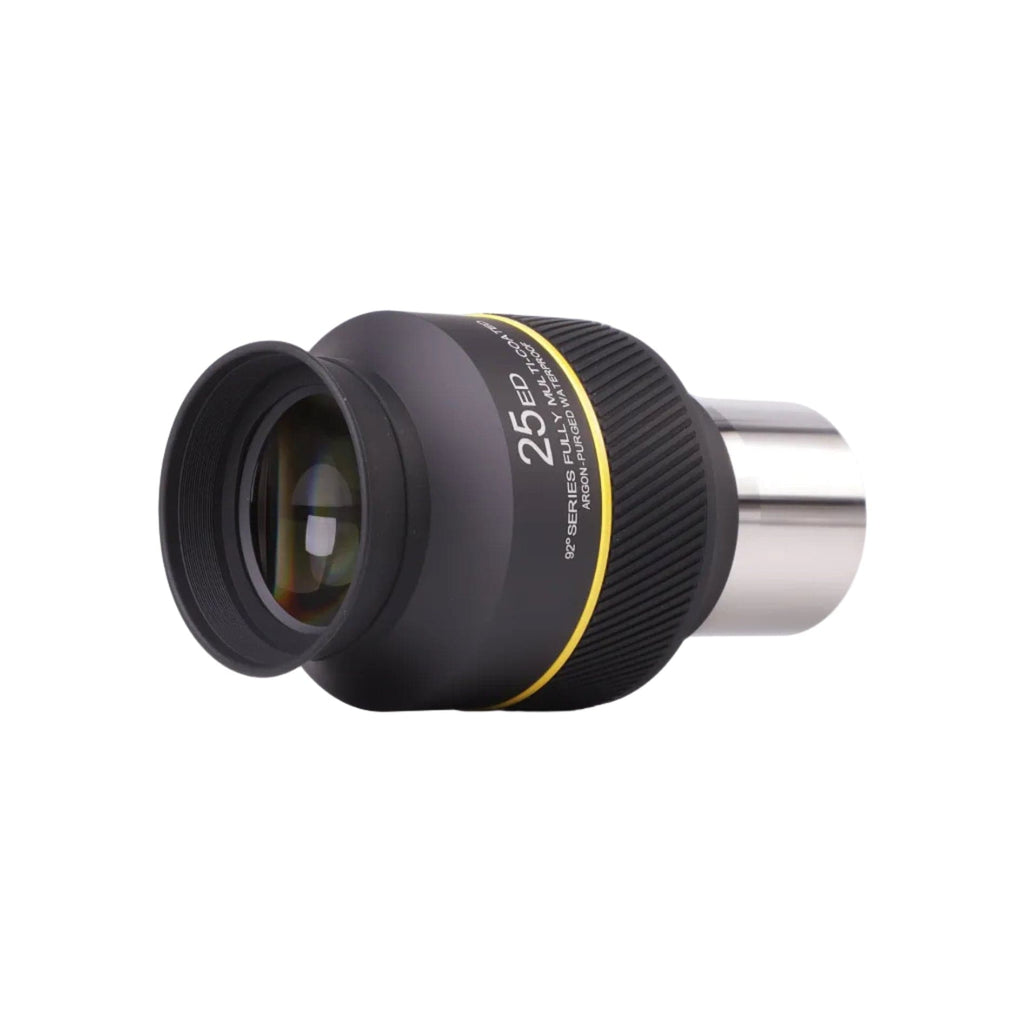

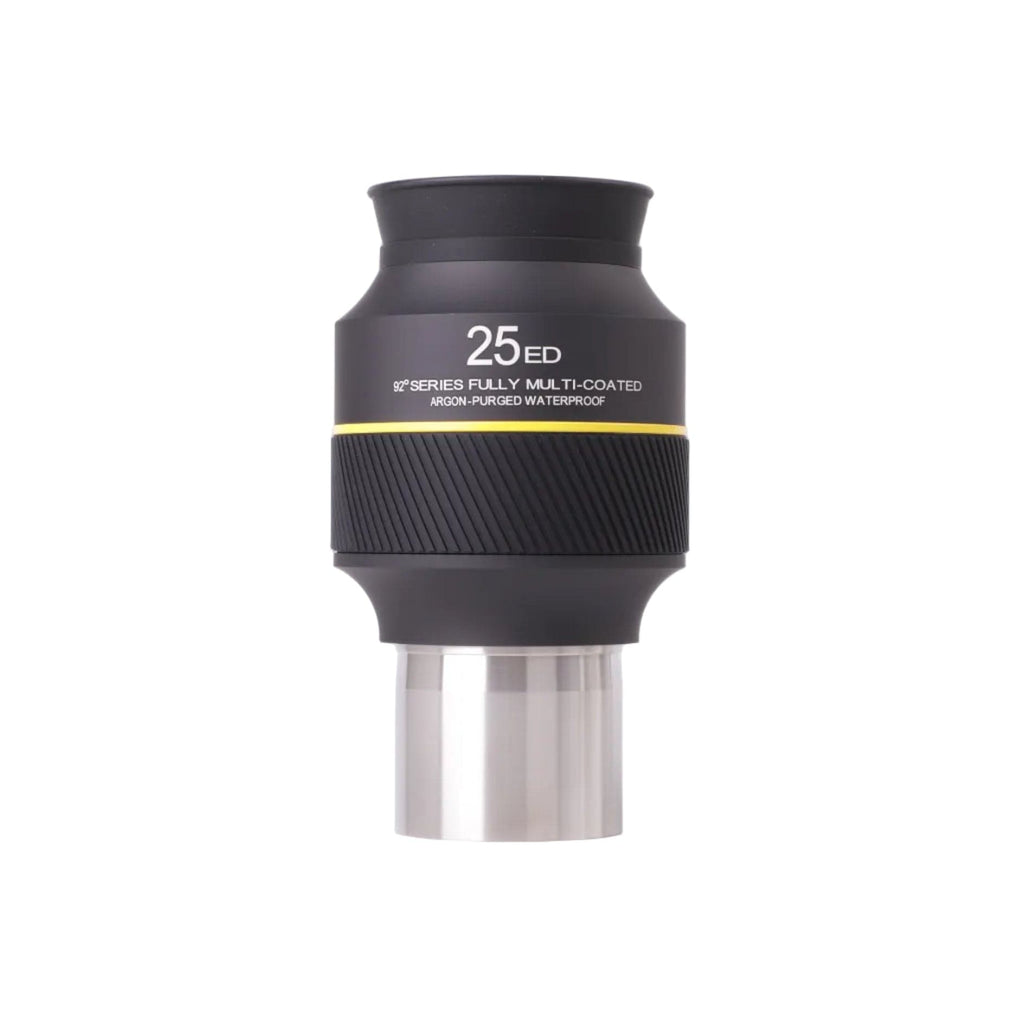

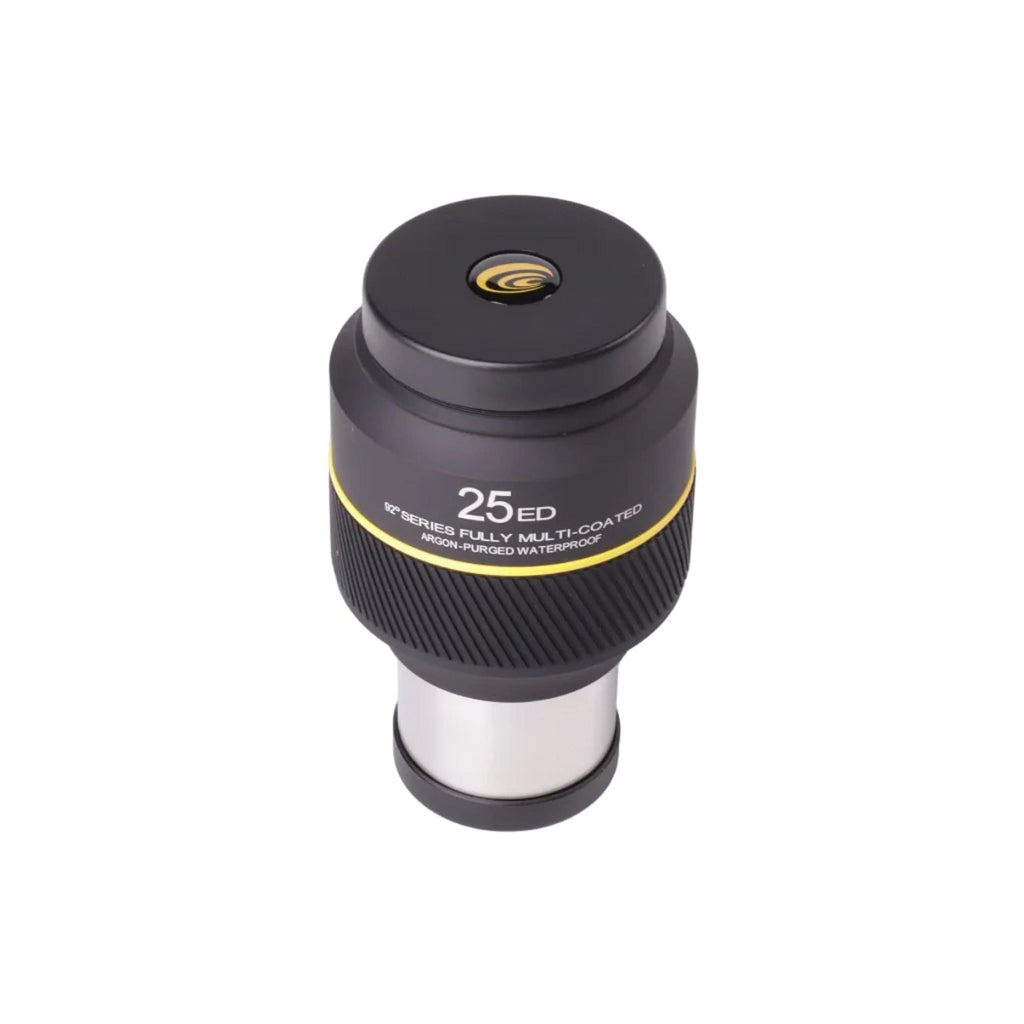

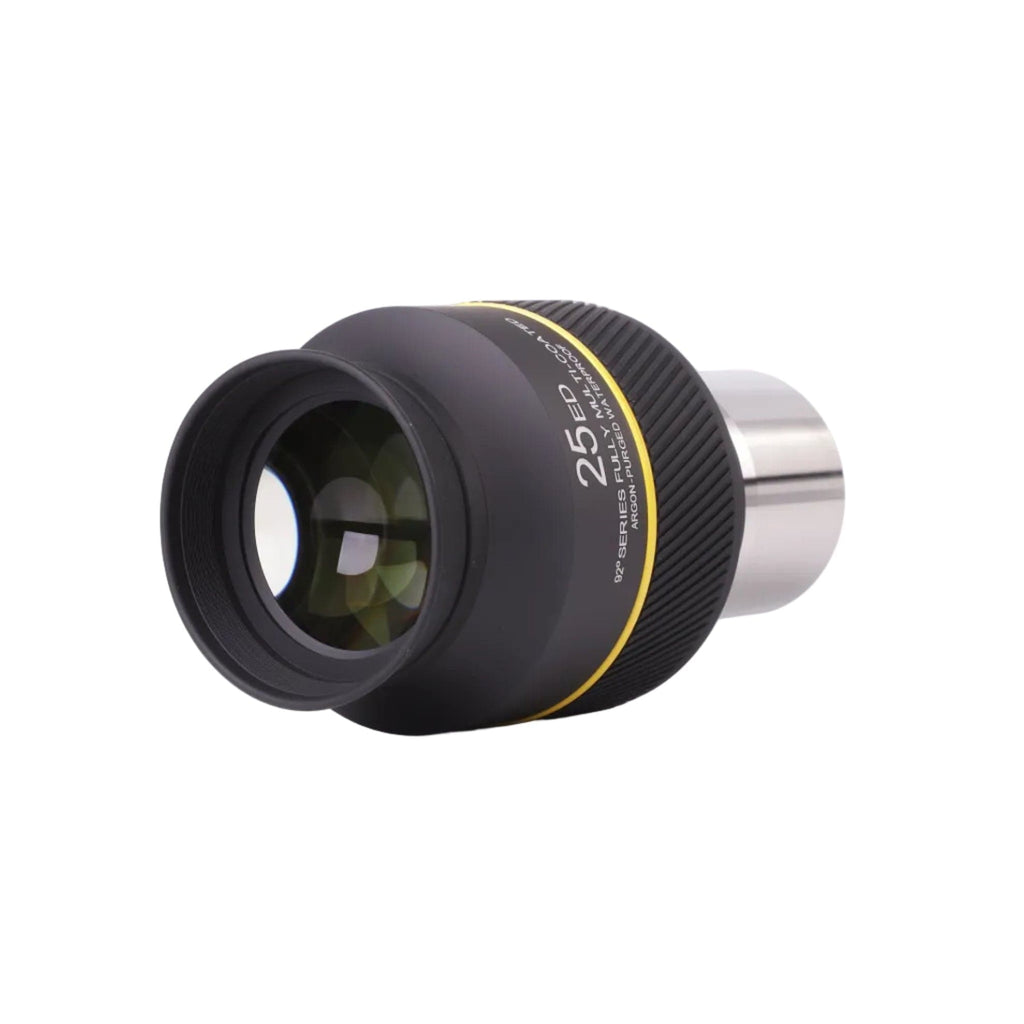

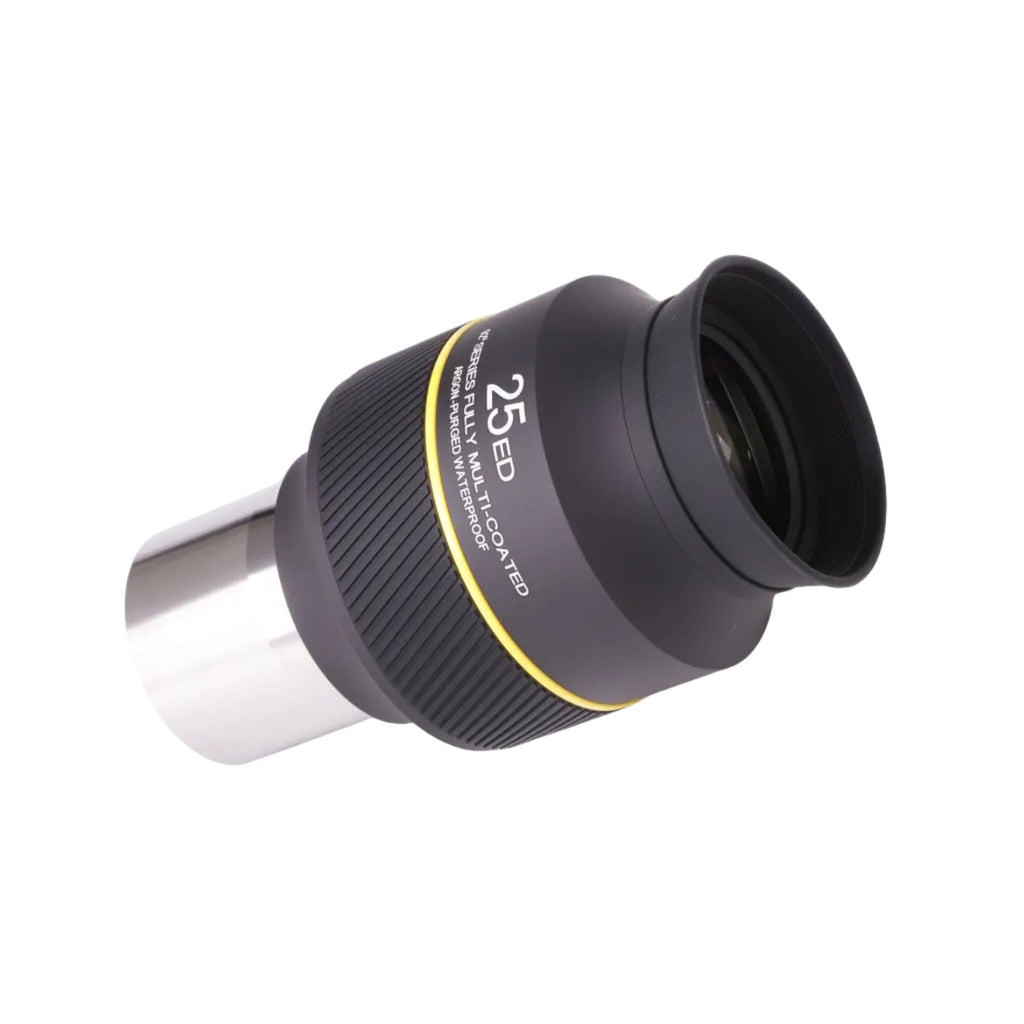

- 25mm: The widest true field in this series for sweeping star fields and framing larger targets.
Magnification depends on your telescope: divide its focal length by the eyepiece focal length. Each variant is sold individually.
Availability: Supplier currently lists this series for preorder. Contact Telescopes Canada to confirm availability and delivery timing.
Specifications by focal length
| Focal length | SKU | Field stop | Eye relief | Optical design | Dimensions (L × W) |
|---|---|---|---|---|---|
| 9mm | EPWP9209ED-01 | 13.5mm | 18mm | 9 elements in 6 groups | 141 × 58mm |
| 14mm | EPWP9214ED-01 | 20.6mm | 18mm | 9 elements in 6 groups | 141 × 60mm |
| 20mm | EPWP9220ED-01 | 31.7mm | 20.2mm | 9 elements in 6 groups | 164 × 77mm |
| 25mm | EPWP9225ED-01 | 36.7mm | 19.6mm | 10 elements in 7 groups | 143 × 76mm |
All four models feature a 92° apparent field, 2-inch barrel, H-FK61 extra-low dispersion glass (Abbe number 81.6), and multi-layer coatings. Manufacturer weights are not specified.
