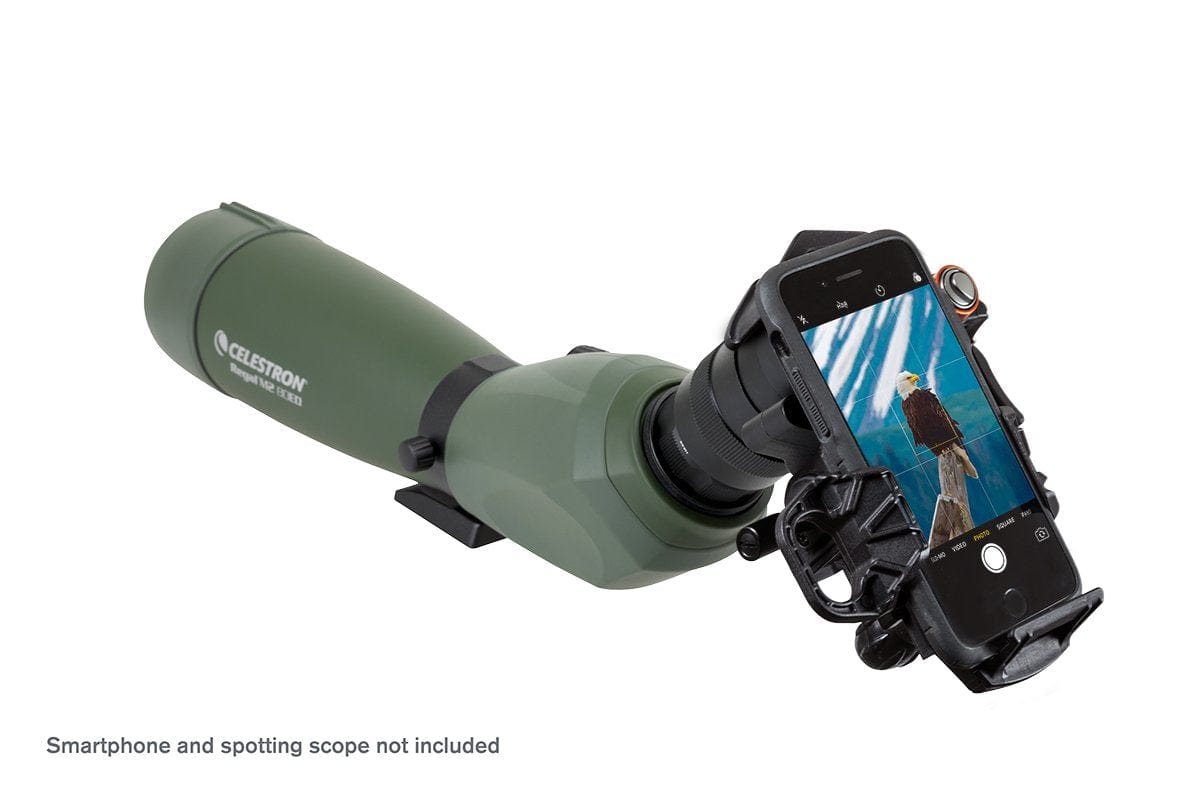

NexYZ connects your smartphone to your telescope, spotting scope, binocular, monocular, and microscope so you can capture images and video through the eyepiece.
Works with a wide range of mobile phone models, including all the latest devices from Samsung, Google, and Apple.

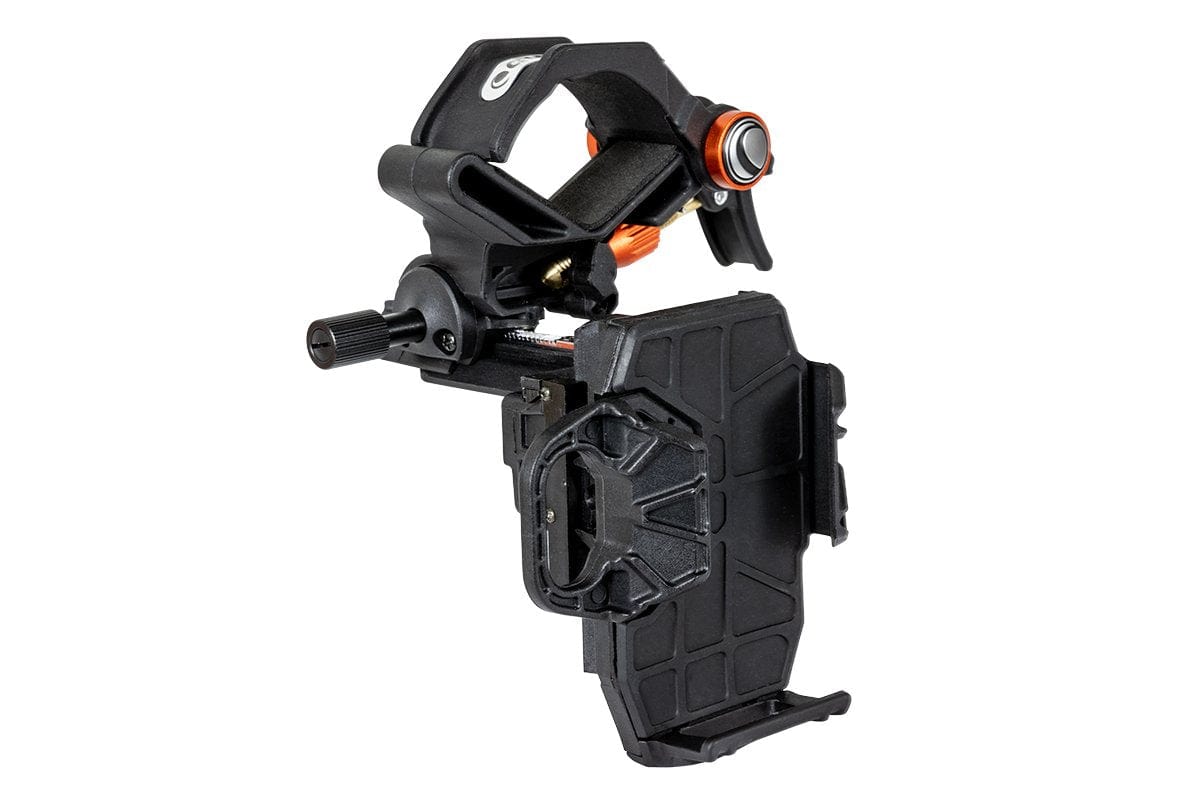

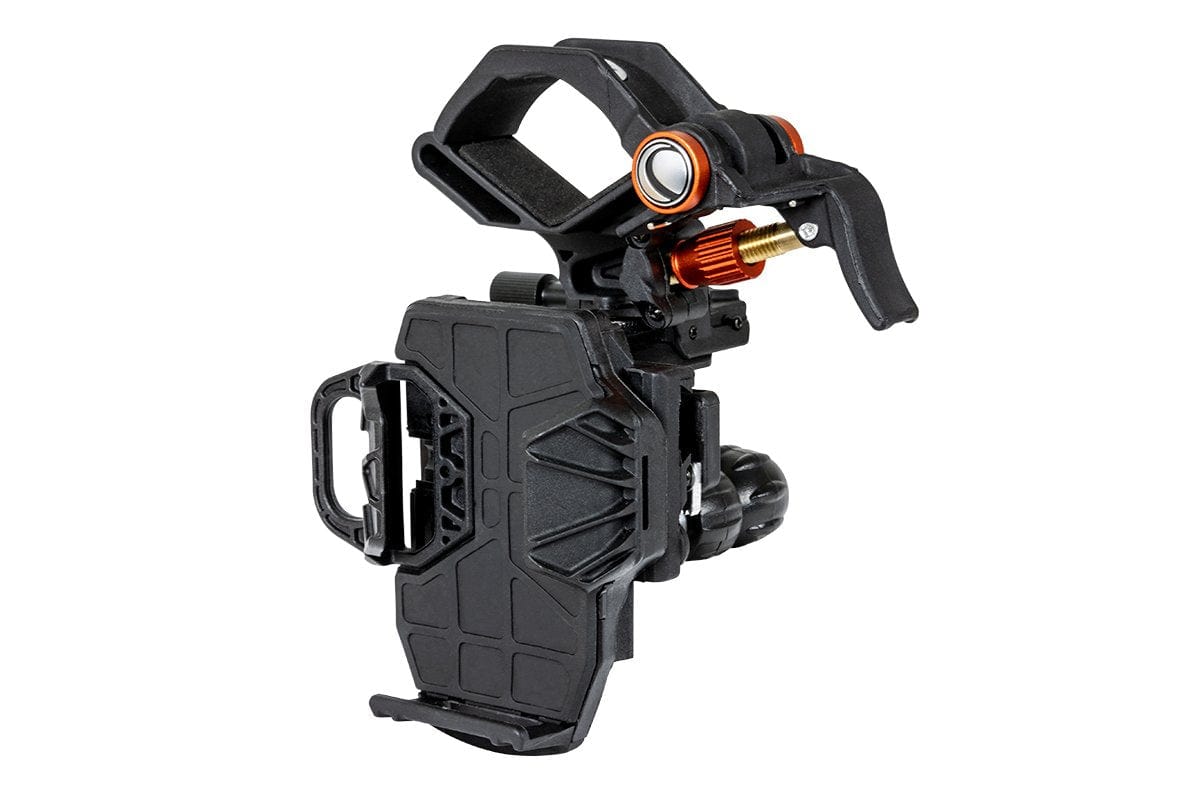

Unlike other adapters, NexYZ features three directional knobs (X, Y, and Z axis) that perfectly align your phone's camera with the eyepiece in seconds so you are ready to snap the perfect image. In addition, you can make tension adjustments to keep the phone firmly in place.
NexYZ stands up to rigorous field use thanks to its robust, durable construction with a metal frame and polymer body.

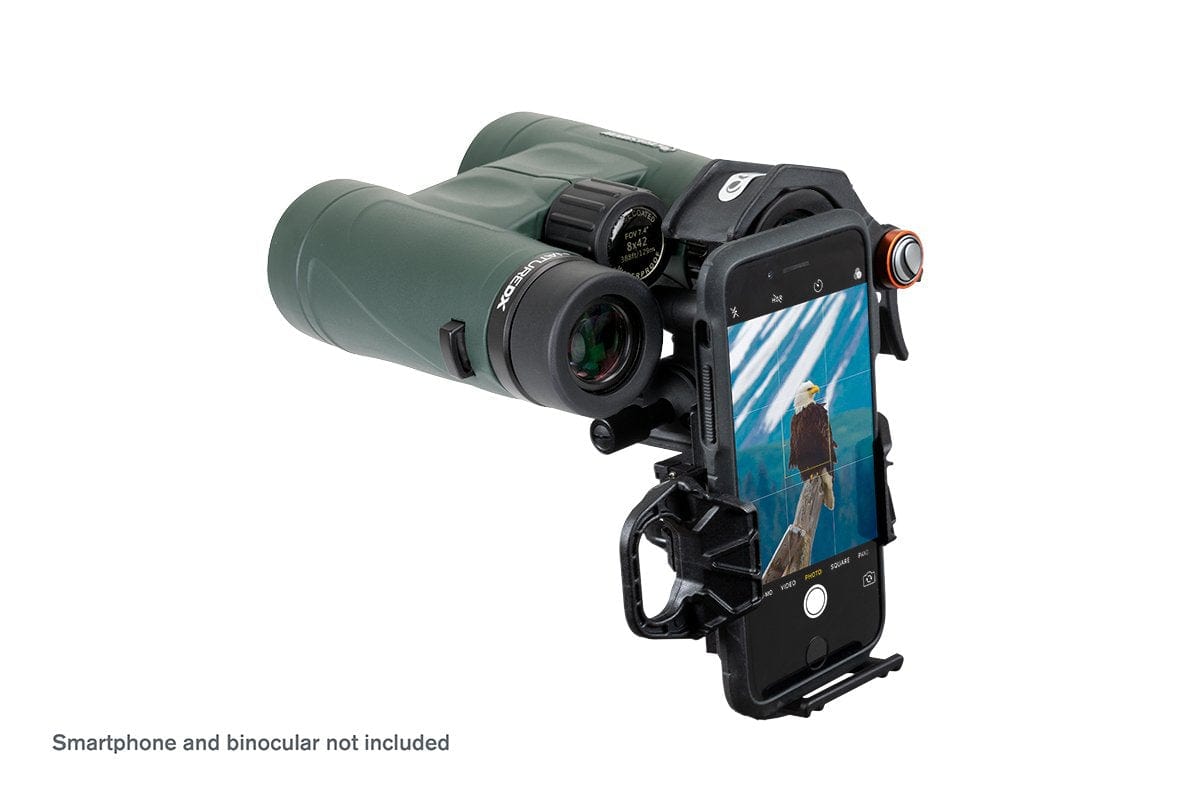

NexYZ fits any eyepiece from 35mm to 60mm in diameter including telescopes with 1.25” and 2” eyepieces, spotting scopes, monoculars, and binoculars. NexYZ will also attach to microscopes with the addition of the included adapter ring, which takes the usable diameter down to 25mm, the size of a standard microscope eyepiece. A strong spring and a threaded twist lock provide a two-level strong and secure grip on the optical instrument's eyepiece so you can image with confidence.

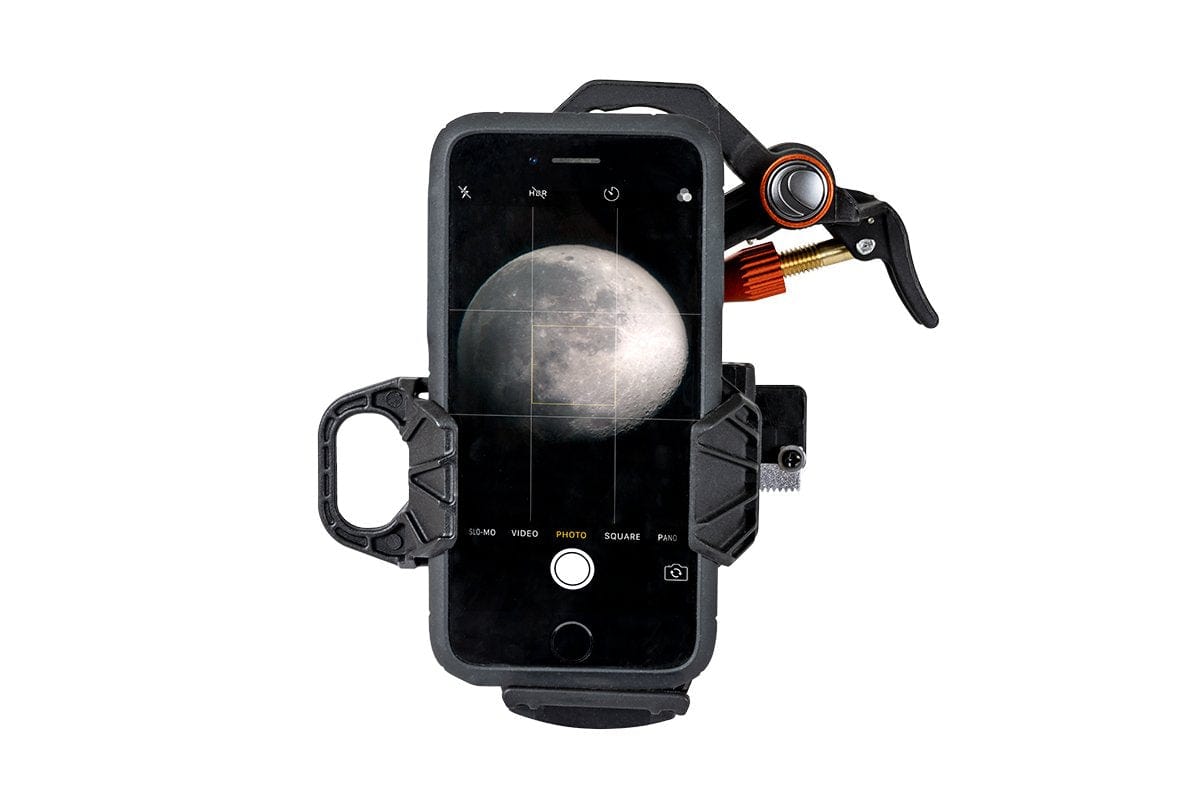

NexYZ also accommodates a huge range of smartphones. The phone platform is fully adjustable and can fit any device—usually with the case still on. Even larger “phablets” like the iPhone 8 Plus and latest Samsung Galaxy devices work perfectly. The secure platform stands up to the weight of these heavier devices with ease.
If multiple people want to capture a shot through your optic, NexYZ's simple spring-loaded clamps make it easy to remove one device and replace it with another in seconds. NexYZ is the ideal solution for star parties and group bird walks where everyone wants their own shot of the action.
Easy as X-Y-Z

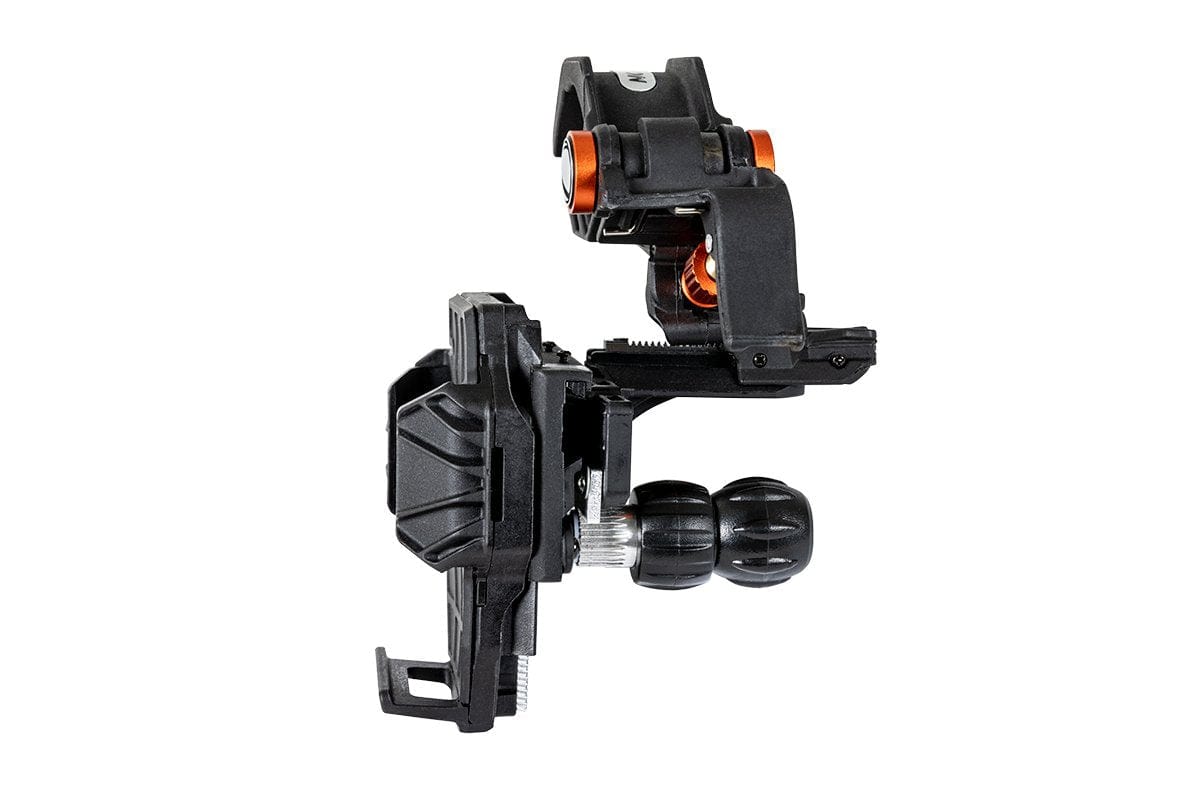

What makes NexYZ different from other smartphone adapters'The three-axis adjustment. Most adapters rely on you placing your phone perfectly on the platform and only offer limited adjustment in two axes. But NexYZ gives you the power to place your phone on the platform, center it over the eyepiece with the X and Y knobs, and then move up or down over the eyepiece until you have the entire field of view in your shot.
And even though this adjustment is ultra-precise, it's still quicker and easier than with other adapters. From start to finish, the process only takes about 30 seconds, including the time it takes to insert the phone into NexYZ, attach NexYZ to an eyepiece, start the camera app, and center the camera over the eyepiece using the knobs. If you switch phones, eyepieces, or optical instruments, you will need only slight adjustments to re-center the camera over the new eyepiece.
You can also switch your image from portrait to landscape simply by turning the padded eyepiece clamp and readjusting the X, Y, and Z axis to realign your phone with the eyepiece.
NOTE: NexYZ fits telescopes, spotting scopes, binoculars, monoculars, and microscopes. NexYZ will work with most phone cases, but if you have an especially large phone case with built-in batteries or a folio style case, Celestron recommends removing it for optimal use.
“Unlike other adapters, the NexYZ features three directional knobs (X, Y and Z axes) that perfectly align your phone's camera with the scope eyepiece in seconds. In addition, you can make tension adjustments to keep the phone firmly in place and, rather pleasingly, the clamp system allows the phone to be positioned to capture images in landscape mode as opposed to portrait, which is so often the hallmark of most smartphone images.” – from Expert Reviews, “Birdwatch” magazine, November 2018
“Fitting the phone to the adapter is simple and quick, and the phone is held securely in place – no need to worry about it dropping out as you move around. You then adjust the phone's position using the X and Y axis knobs – this too is easy and relatively quick. Finally, the Z axis knob enables you to lower or raise the phone to eliminate vignetting.” – Matt Merritt, “Unlock your phone's potential,” Gear Reviews, “Birdwatching” magazine, August 2018
Smartphone Adapter Instructions
Connect The Adapter
For Telescopes, Binoculars, and Spotting Scopes
Squeeze the lever to open the clamp. Position the clamp around the eyepiece and release. Tighten the safety lock.

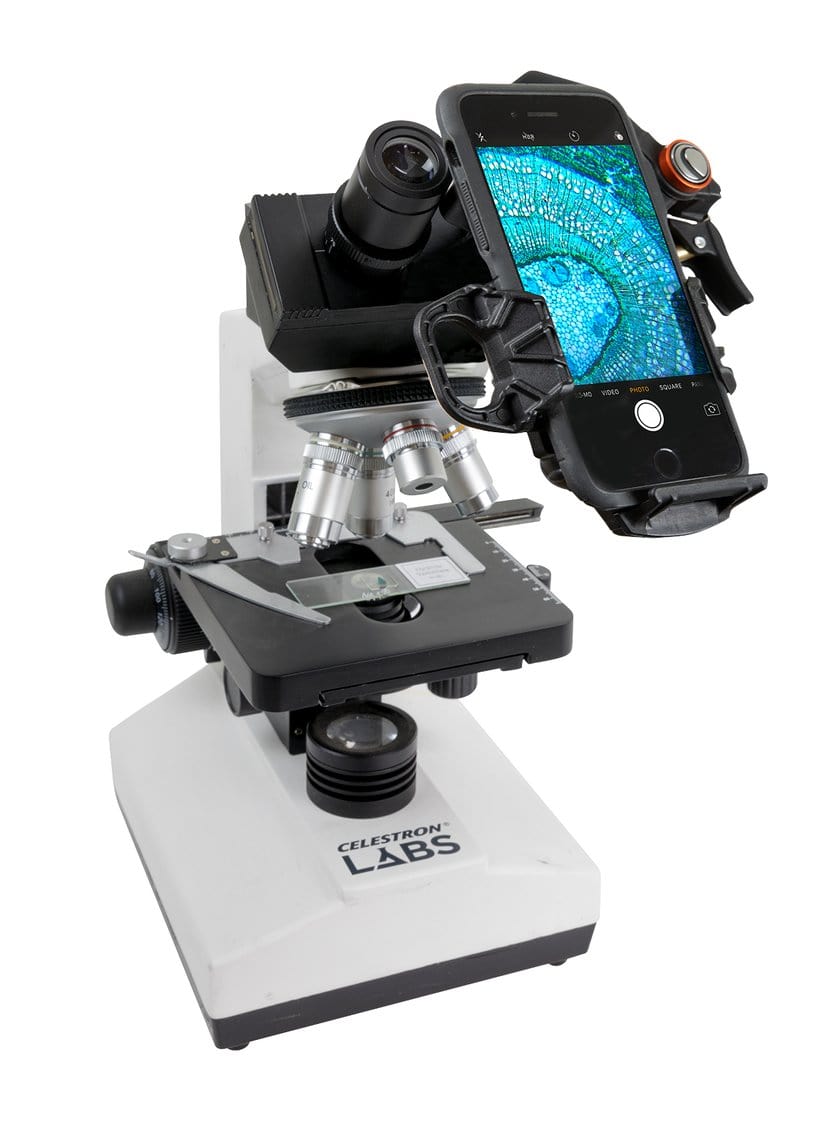

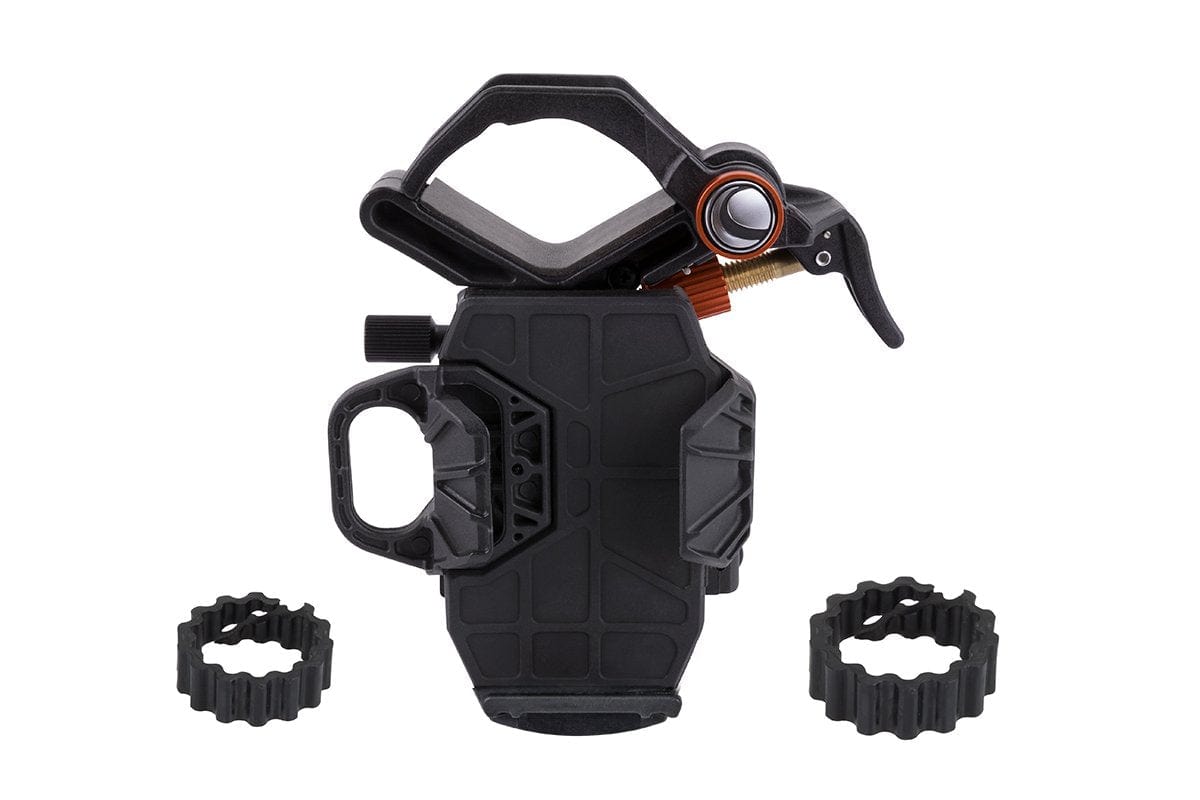

Choose one of the two provided adapter rings that best fits your microscope's eyepiece and secure it in place. (You may need to remove the eyepiece from the microscope to install the ring.) Then, follow the instructions above.
Attach Your Phone

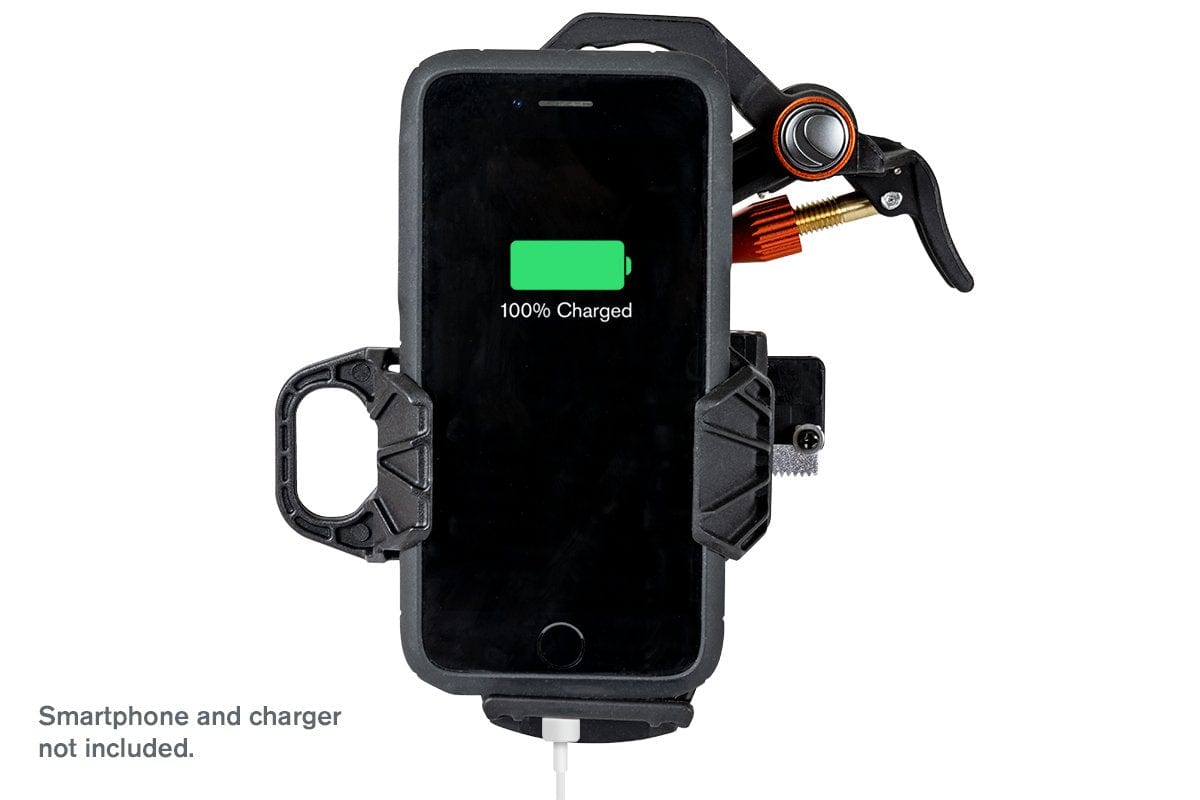

NeXYZ works with regular phone cases, but you will need to remove “folio-style” cases. Extend the slider. Place your phone on the platform, making sure the bottom is touching the rubber base. Release the slider. Your phone is now secure and ready for imaging. If needed, you can make tension adjustments to keep the phone firmly in place; reference NexYZ Tension Adjustment Guide under Support & Downloads.
Align and Shoot

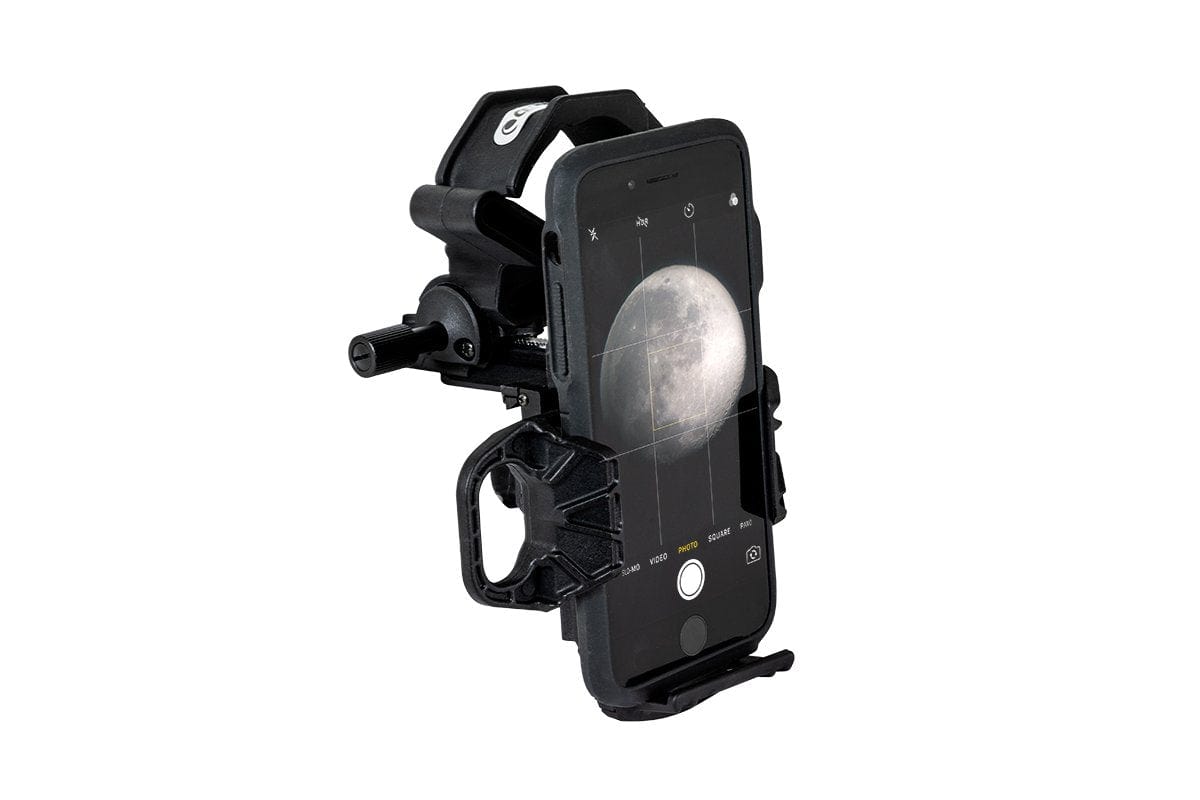

Open your camera app. Position your phone over the eyepiece using the X and Y axis knobs. Then, use the Z axis knob to move closer or further away from the eyepiece until you have achieved your desired framing. Finally, adjust the focus using the focuser on your optics and snap the image.
For further NexYZ Imaging Tips and Tricks, check out our knowledgeable base filehere
