Description
Highlights
- Lab-ready compound microscope with 2000x power
- 10x and 20x eyepieces (10x with pointer)
- 4 fully achromatic objective lenses - 4x, 10x, 40x, 100x
- View specimens at 40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x magnification
- All-metal construction with fully mechanical stage
- Coarse and fine focus knobs
- Built-in halogen lower illumination for easy viewing
- Universal AC adapter included

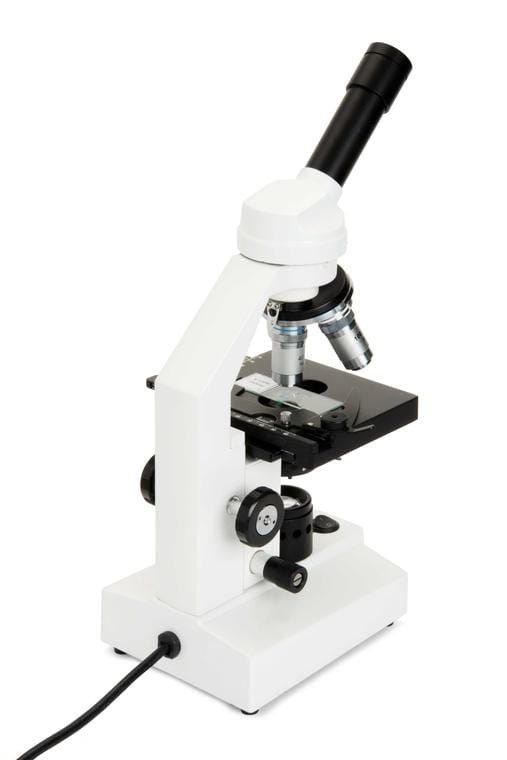

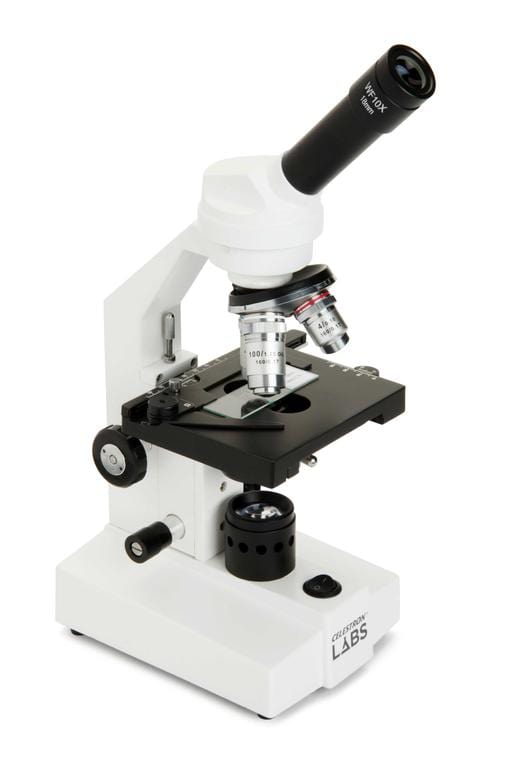

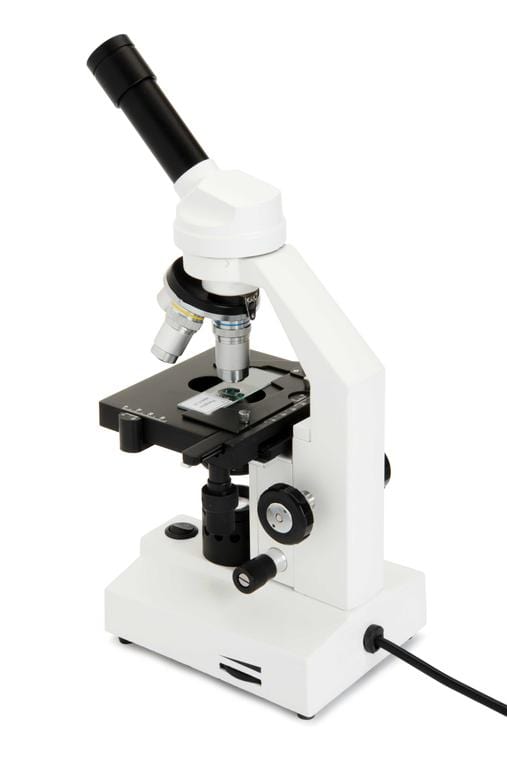

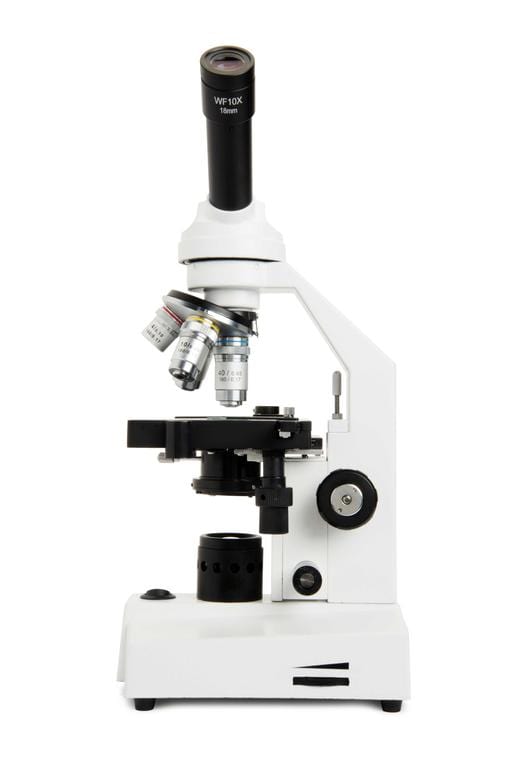

The Celestron Labs CM2000CF Compound Microscope offers all the advanced features you’re looking for at an economical price. With 10x and 20x eyepieces and 4 included objective lenses (4x, 10x, 40x and 100x), you’ll achieve magnification ranging from 40x to 2000x.
Strong and stable thanks to its all-metal construction, this microscope features a fully adjustable, mechanical stage so you can easily center your specimen slides. Improve the quality of your magnified images with the included 3 colored filters. The 10 included prepared slides guarantee exciting discoveries right out of the box. The NA 1.25 Abbe condenser with iris diaphragm concentrates and focuses the lower illumination for enhanced viewing making the CM2000CF an excellent tool for labs, schools, scientific research and more.
| MANUALS: |
|---|
| Celestron Labs CM2000CF Manual |
| OTHER PRODUCT FILES: |
| Microscope basics |
Specifications
| General | |
|---|---|
| Type of Microscope: | Compound |
| Head: | Monocular with 360° rotatable 45° incline |
| Eyepiece(s) Magnification: | (1) 10x and (1) 20x (10x with pointer) |
| Eyepiece(s) Diameter: | 23.2mm (.91") |
| Nosepiece: | quadruple, rotational |
| Objective(s) Type: | Refractive |
| Objective(s) Standard: | DIN |

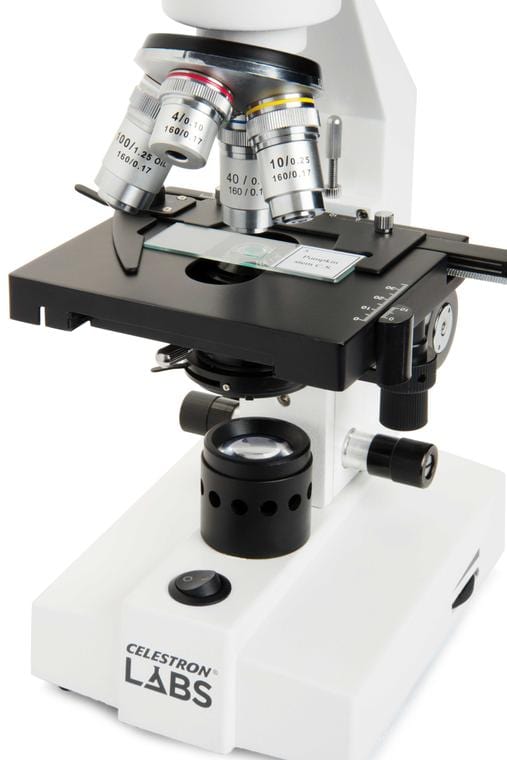

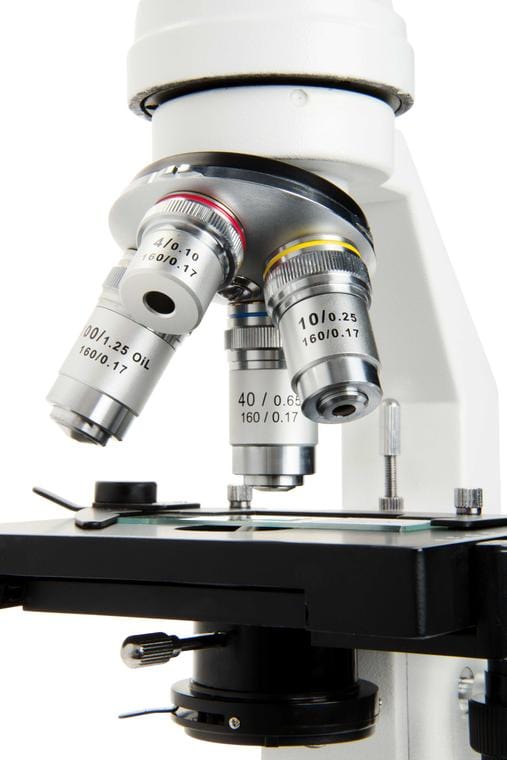

| Objective(s) Magnification: | (4) 4x, 10x, 40x, 100x immersion, all achromatic |
| Objective(s) Thread: | 4/5" x 1/36" |
| Focus Type(s): | Rack and pinion, coarse and fine focus (individual dials) |
| Focus Travel (per rotation): | 0.1mm (.004") |
| Magnification Range: | 40x to 2000x (40x, 80x, 100x, 200x, 400x, 800x, 1000x and 2000x) |
| Illumination Type: | LED |
| Illumination Position(s): | Lower |
| Illumination Adjustability Mechanism: | Dial |
| Power Source: | Universal AC 100-240V adapter and interchangeable plugs of type A, C, G, and I configurations |
| Battery Option: | N/A |
| Stage: | Mechanical stage, 110mm x 125mm (4.3" x 4.9") |

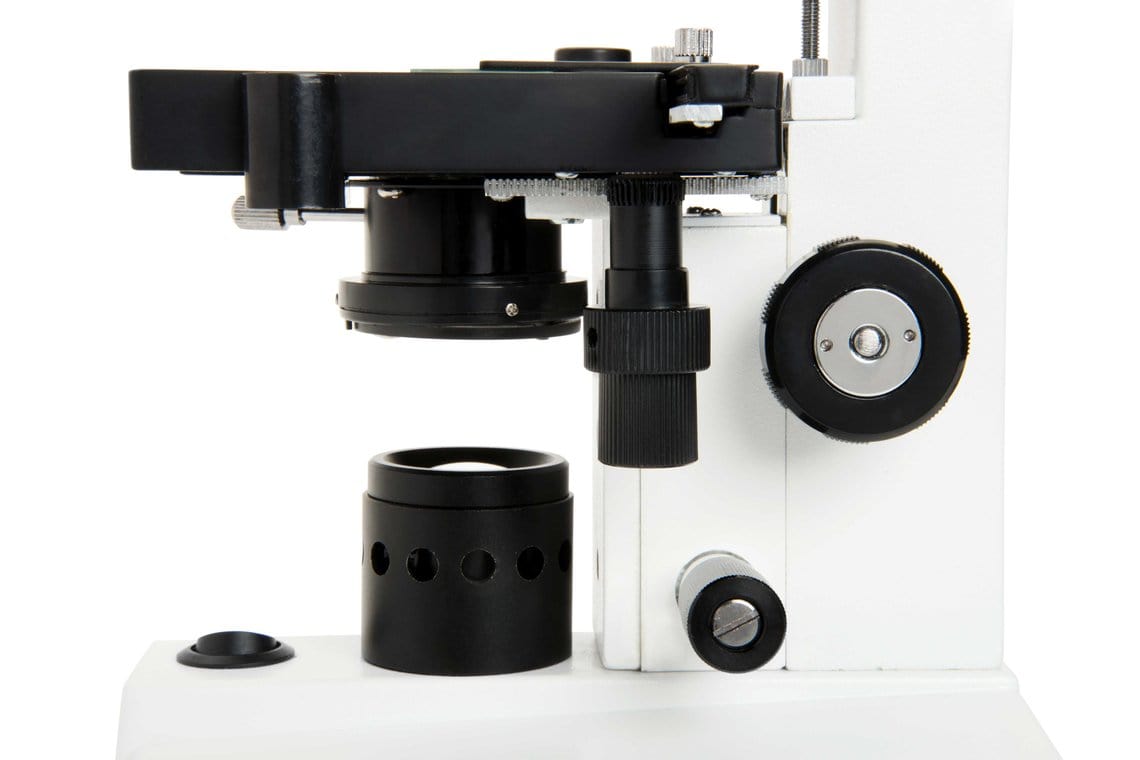

| Condenser Type: | Abbe with Iris adjustment |
| Condenser N.A.: | 1.25 |
| Stage Diaphragm: | N/A |
| Included Items: | 3 color filters (blue, white opaque, green) Immersion oil 10 Prepared Slides: 1. Wall of stomach, sec. 2. Stratified flat epithelium, sec. 3. Testis, sec. 4. Aspergillus, w.m. 5. Rhizopus nigricans, w.m. 6. Small intestine, c.s. 7. Lily anther, c.s. 8. Hydrilla verticallata, w.m. 9. Spirogyra, w.m. 10. Lily ovary, c.s. |
| Solar Warning |
