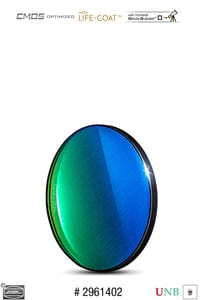

Baader 3.5 / 4nm Ultra-Narrowband-Filterset 65x65mm – CMOS-optimized (H-alpha / O-III / S-II)
Roll over image to zoom in Click on image to zoom
Baader 3.5 / 4nm Ultra-Narrowband-Filterset 65x65mm – CMOS-optimized (H-alpha / O-III / S-II)

Baader 3.5 / 4nm Ultra-Narrowband-Filterset 65x65mm – CMOS-optimized (H-alpha / O-III / S-II)

Baader PlanetariumSKU: 2961676
Price:
$2,494 CAD
Stock:
Back-Ordered - Place an Order to Reserve Yours, Otherwise Enter Your Email Address Further Below to be Notified When it's Back in Stock.      Click Here to ask us about back-ordered product availability

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Description

Highlights

  • 65 x 65 mm x 3 mm Baader CMOS H-alpha / O-III / S-II Ultra-Narrowband Filter Set – Premium Grade
  • 3.5 / 4 nm FWHM (to harmonize the exposure time from H-alpha with O-III / S-II), recommended for optical systems from > f/3.4
  • For highest contrast even at strongest light pollution, minimizes star size, emphasizes finest nebula detail – indispensable under Bortle 9/8/7/(6) skies
  • Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
  • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
  • Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies

Description

This new generation of Baader CMOS-filters features:

CMOS-optimized Baader Filters



  • Increased contrast
  • Ever more narrow passbands
  • Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most
    adverse conditions concerning aux-optics
  • FWHM on each filter category carefully designed to allow for 1:1:1 exposures, matched for typical CMOS quantum efficiency and s/n ratio
  • Identical filter thickness to existing standards, with utmost care for parfocality
  • Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
  • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
  • Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment

    •

    Specifications

    Additional Information

    Manufacturer Baader Planetarium
    SKU (#) 2961676
    EAN Code 4047825104090
    Net weight (kg) 0.26
    Suitable for f/ratio > f/3.4
    Transmission Range H-alpha / O-III / S-II
    Filter Thickness (without cell) 3 mm
    HBW (Halfbandwidth) 3.5 nm (H-alpha) / 4 nm (O-III / S-II)
    CWL (Central Wavelength) 656,3 nm / 500,7 nm / 671,7 nm
    AR-Coating Reflex-Blocker™ hard coated, planeoptically polished
    Special Features CMOS-optimized with Life-Coat™
    Filter size 65 x 65 mm
    Filter Usage CMOS, CCD, H-alpha, O-III, S-II
    Filter mounted Unmounted
    Type of Filter Ultra-Narrowband
    Single or Set? Filter-Set
    Filter shape square
