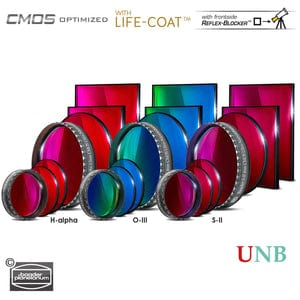

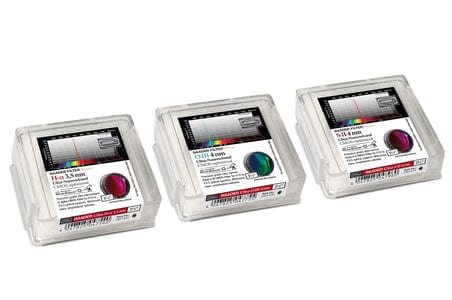

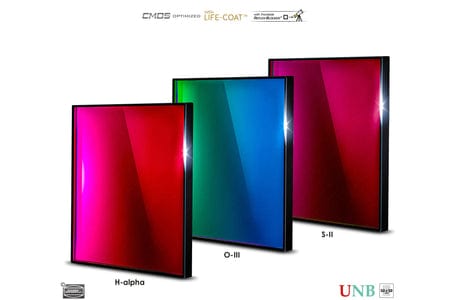

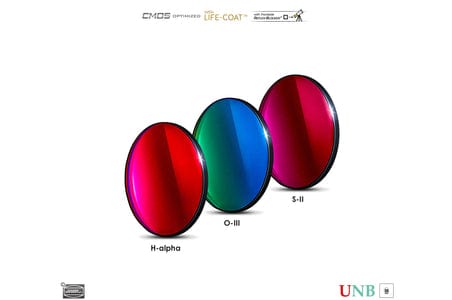

Baader 3.5 / 4nm Ultra-Narrowband-Filterset 2" – CMOS-optimized (H-alpha / O-III / S-II)

Baader PlanetariumSKU: 2961673
Price:
$1,569 CAD
Stock:
Back-Ordered - Place an Order to Reserve Yours, Otherwise Enter Your Email Address Further Below to be Notified When it's Back in Stock.      Click Here to ask us about this product's availability

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Highlights

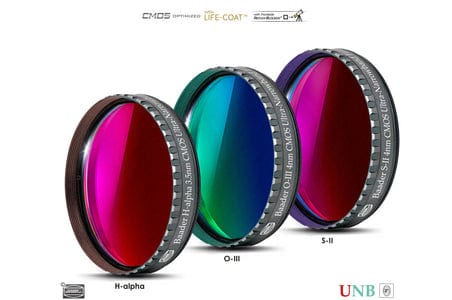

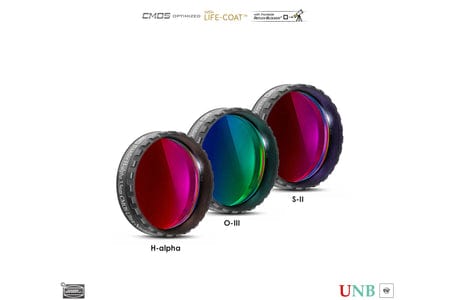

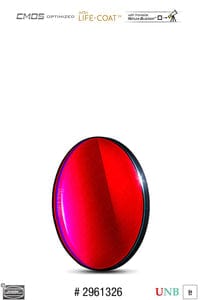

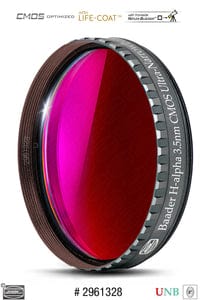

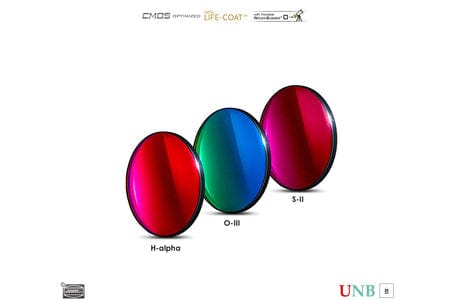

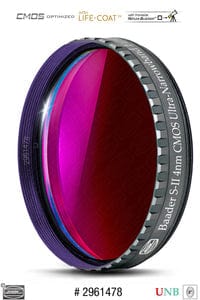

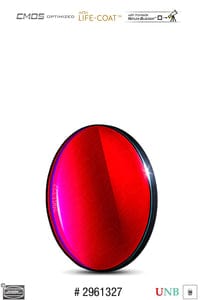

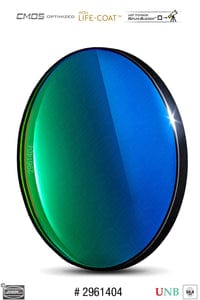

  • 2" x 2 mm Baader CMOS H-alpha / O-III / S-II Ultra-Narrowband Filter Set – Premium Grade – with 2" (M48) filter thread
  • 3.5 / 4 nm FWHM (to harmonize the exposure time from H-alpha with O-III / S-II), recommended for optical systems from > f/3.4
  • For highest contrast even at strongest light pollution, minimizes star size, emphasizes finest nebula detail – indispensable under Bortle 9/8/7/(6) skies
  • Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
  • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
  • Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies
  • Mounted in Baader Low Profile Filter Cell (LPFC) – 6 mm height

Description

This new generation of Baader CMOS-filters features:

CMOS-optimized Baader Filters



  • Increased contrast
  • Ever more narrow passbands

  • Reflex-Blocker™ coatings, for largest ever freedom from halos, even under most
    adverse conditions concerning aux-optics
  • FWHM on each filter category carefully designed to allow for 1:1:1 exposures, matched for typical CMOS quantum efficiency and s/n ratio
  • Identical filter thickness to existing standards, with utmost care for parfocality
  • Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
  • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
  • Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment

    • Specifications

    Additional Information

    Manufacturer Baader Planetarium
    SKU (#) 2961673
    EAN Code 4047825104069
    Net weight (kg) 0.20
    Suitable for f/ratio > f/3.4
    Transmission Range H-alpha / O-III / S-II
    Filter Thickness (without cell) 2 mm

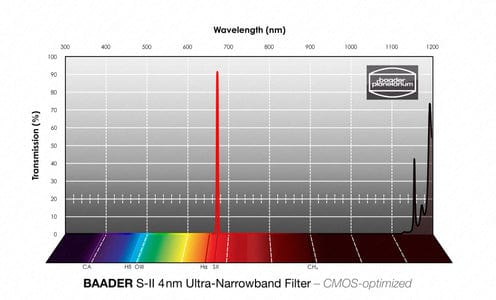

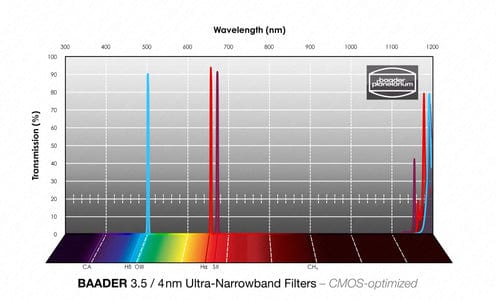

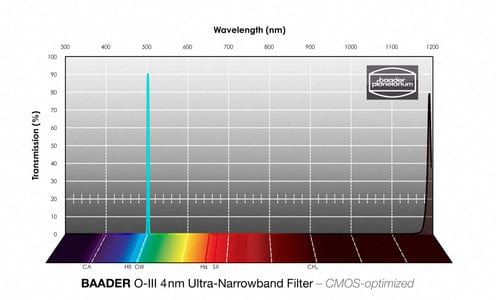

    HBW (Halfbandwidth) 3.5 nm (H-alpha) / 4 nm (O-III / S-II)
    CWL (Central Wavelength) 656,3 nm / 500,7 nm / 671,7 nm
    AR-Coating Reflex-Blocker™ hard coated, planeoptically polished
    Special Features CMOS-optimized with Life-Coat™
    Filter size 2 inch
    Filter Usage CMOS, CCD, H-alpha, O-III, S-II
    Filter mounted Mounted (LPFC 6mm)
    Type of Filter Ultra-Narrowband
    Single or Set? Filter-Set
    Filter shape round
