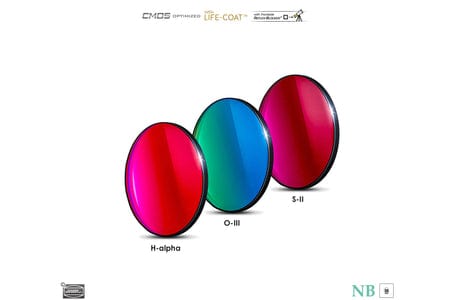

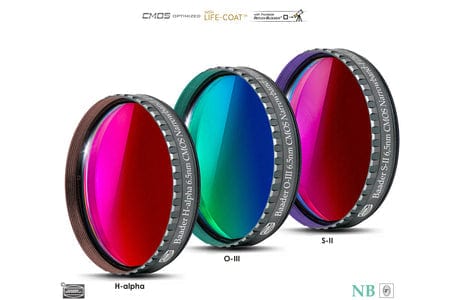

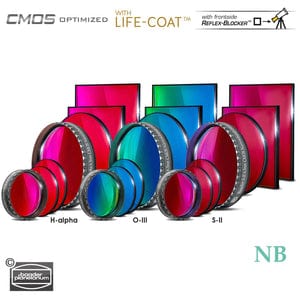

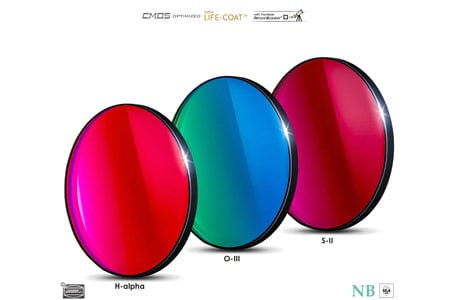

Baader 6.5nm Narrowband-Filterset 1¼" – CMOS-optimized (H-alpha / O-III / S-II)

Baader PlanetariumSKU: 2961650

Price:
Sale price$603 CAD
Stock:
Back-Ordered - Place an Order to Reserve Yours, Otherwise Enter Your Email Address Further Below to be Notified When it's Back in Stock

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Highlights

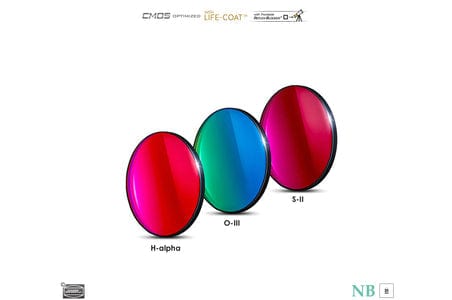

  • 1¼" x 2 mm Baader CMOS H-alpha / O-III / S-II Narrowband Filter Set – Precision Grade – with 1¼" (28,5 mm) filter thread
  • 6.5 nm FWHM, recommended for optical systems from > f/3.4
  • Reflex-Blocker™ hard coated and planeoptically polished – with sealed coating edges (Life-Coat™)
  • Blackened edges all around, with filter-lead-side-indicator in the form of a telescope-sided black outer rim
  • Optimized for modern CMOS cameras, but likewise excellent for CCD camera technologies

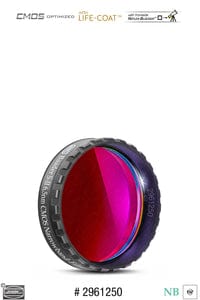

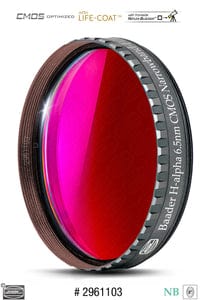

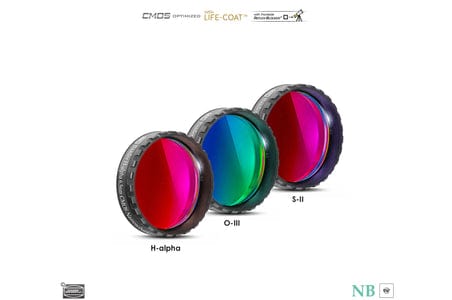

  • Mounted in Baader Low Profile Filter Cell (LPFC) – 6 mm height

Description

This new generation of Baader CMOS-filters features:

CMOS-optimized Baader Filters

  • Increased contrast
  • Ever more narrow passbands
  • Reflex-Blocker coatings, for largest ever freedom from halos, even under most
    adverse conditions concerning aux-optics
  • FWHM on each filter category carefully designed to allow for 1:1:1 exposures, matched for typical CMOS quantum efficiency and s/n ratio
  • Identical filter thickness to existing standards, with utmost care for parfocality
  • Blackened edges all around, with filter-lead-side-indicator in the form of a black frontside outer rim, to additionally eliminate any reflection due to light falling onto the edge of a filter
  • Each filter coated individually, with sealed coating edge (NOT cut out of a larger plate with coatings left exposed, read more)
  • Life-Coat™: evermore hard coatings to enable a non-aging coating for life – even in a most adverse environment
  •

    Specifications

    Manufacturer Baader Planetarium
    SKU (#) 2961650
    EAN Code 4047825103895
    Net weight (kg) 0.18
    Suitable for f/ratio > f/3.4
    Transmission Range H-alpha / O-III / S-II
    Filter Thickness (without cell) 2 mm

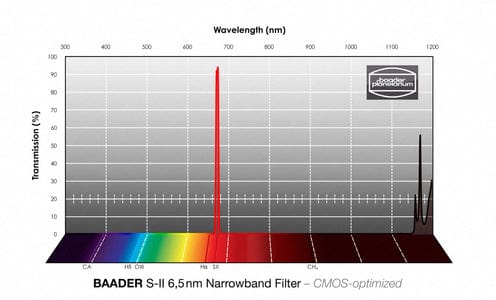

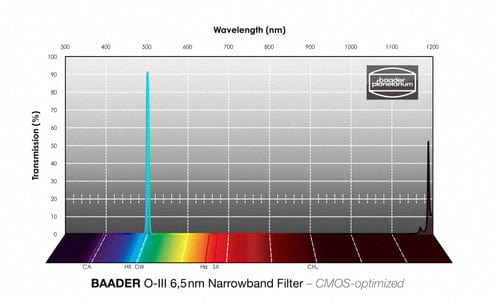

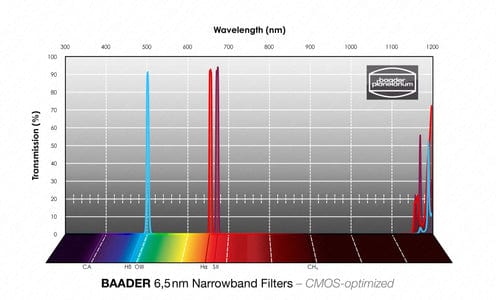

    HBW (Halfbandwidth) 6.5 nm

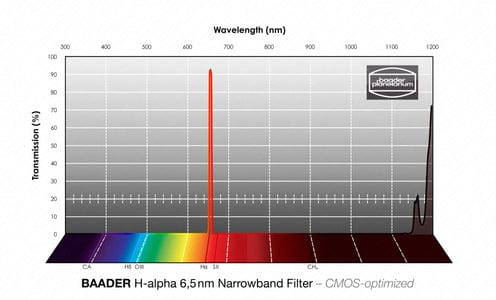

    CWL (Central Wavelength) 656,3 nm / 500,7 nm / 671,7 nm
    AR-Coating Reflex-Blocker™ hard coated, planeoptically polished
    Special Features CMOS-optimized with Life-Coat™
    Filter size 1 25 inch
    Filter Usage CMOS, CCD, H-alpha, O-III, S-II
    Filter mounted Mounted (LPFC 6mm)
    Type of Filter Narrowband
    Single or Set? Filter-Set
    Filter shape round
