SC Deluxe 2" Visual Back with integrated 2" filter holder

Baader PlanetariumSKU: 2958144

Price:
Sale price$104 CAD
Stock:
Back-Ordered - Place an Order to Reserve Yours, Otherwise Enter Your Email Address Further Below to be Notified When it's Back in Stock.      Click Here to ask us about back-ordered product availability

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Highlights

  • Eyepiece deLuxe 2" with filter holder (M48), 2" and M58 thread for connection to all SC-Telescopes
  • For permanent attachment of 2" filters at the end of the tube of SC telescopes
  • Protects the interior of your SC-tube from dust by the incorporation of any Baader 2 "filter (UV / IR cut filter).
  • Filters from other manufacturers may cause problems when the filter outer diameter is larger than the Baader filter.

Description

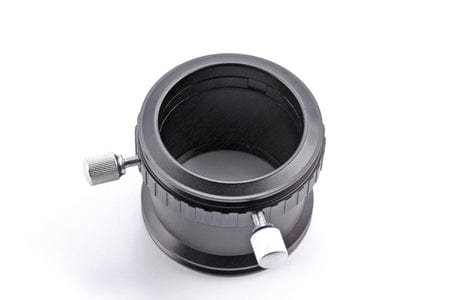

2" Deluxe eyepiece clamp for SC-telescope

Recommended in the version with filterholder or 60mm extension incl. 2x filter holder

Right below you see a short animation to our accessory, the Baader 2" DeLuxe eyepiece clamp in the version with 2" filter holder (#2958144) – to use on the 2" tube thread on most SC-telescopes. With the 3,3" Adapter (#2408145) you can also use it on C11 / C14 telescopes.

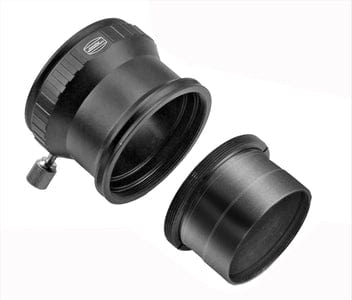

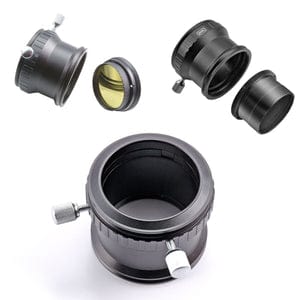

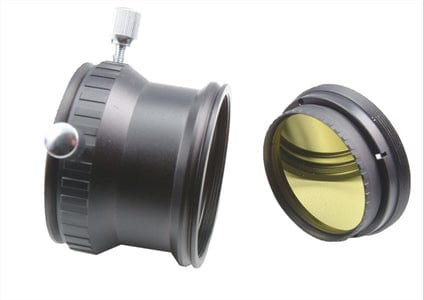

The 2" Deluxe eyepiece clamp consists in the base version of two parts. The eyepiece clamp and a factory-mounted inner thread ring, that reduces the native telescope sided M58 inner thread to a 2" inner thread. In theVersion SC-Deluxe eyepiececlamp with 2" filter holder(#2958144) the third part is a M48 filter holder. This filterholder must be threaded onto the 2" telescope-thread to hold any of our 2" filters.

When both parts are threaded onto any SC-telescope, the combo looks like our normal 2" Deluxe-clamp, but the performance is much better than any 2" SC-clamp on the market, since the customer may seal the optical tube from dust and moisture and may cut off the unwanted parts of the light for their application, like using a UV/IR-Filter to cut the infrared - or use a nebula filter UHC-S or O III - or any other filter.

The important difference is that our 2" filters are optically polished to not destroy or impair the wavefront of light and to retain perfect sharpness even under high magnification.

Specifications



Additional Information

Manufacturer Baader Planetarium
SKU (#) 2958144
EAN Code 4047825007292
Net weight (kg) 0.17
Optical length (mm) 53
Clamping System Screw clamps
T-2 Part # 17A + 17B
Usage to permanently mount 2" filters am Tubusende von SC-Teleskopen
Screw Type 2x M4 clamping screws
Inner Diameter / Clear Aperture (mm) 47
Outer Diameter 67
Inner Connection (eyepiece/-camera-sided) ø 2" (50.8mm)
Outer Connection (eyepiece/-camera-sided) S65
Inner Connection (lens sided) M48, 2"/SCT Thread (50.8mm), M58
Outer Connection (lens sided) S65
Compatible Brands UNC, Baader Planetarium, Celestron
Type of Adapter Eyepiece Clamp, Filter holder
