Description
Highlights

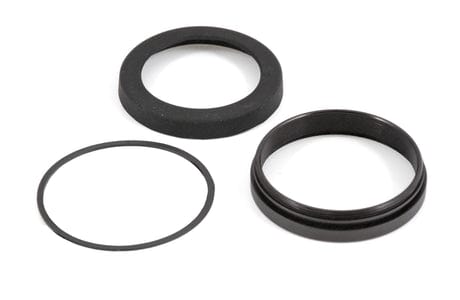

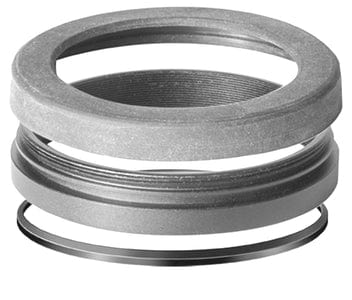

- Extension Ring with 11mm optical path length, with threaded protective flap for the SP54 external thread
- Required for the connection of the DT-rings SP54 / M28 and SP54 / M37
- The Hyperion DT-rings are optimized for the shortest distance between eyepiece lens and digital camera lens. Only in this way is a vignetting image illumination possible
- 2 adjusting rings for SP54 thread are free with the purchase at each Hyperion DT-ring.
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2958090 |
| EAN Code | 4047825007360 |
| Net weight (kg) | 0.01 |
| Optical length (mm) | 11 |
| Usage | for the DSLR 2" filter holder and direct connection on all Hyperion 68° eyepieces |
| Inner Diameter / Clear Aperture (mm) | 50 |
| Outer Diameter | 57 |
| Outer Connection (lens sided) | Thread, SP54 |
| Inner Connection (eyepiece/-camera-sided) | Thread, SP54 |
| Adaptable to | DTAdapter II&III and Hyperion eyepieces. Fits also onto Morpheus® 76° eyepieces (in combination with #2408040 and #2958080) |
| Compatible Brands | Baader Planetarium |
| Type of Adapter | Extension |
