This high-quality 2.25x Barlow made of exotic glasses provides the rare extension factor of 2.25x. So, there are no duplicate focal lengths when used with the eyepieces of the Q-Turret Set, and you can achieve higher magnification than with standard 2x barlow lenses if you do planetary photography with a web or video camera, and you can make better use of the camera's resolution. Read here the detailed report by Dipl.-Ing W. Paech: Hints + tricks for high-resolution lunar and planetary photography with a video module - a short "workflow" for SC telescopes with Baader accessories.

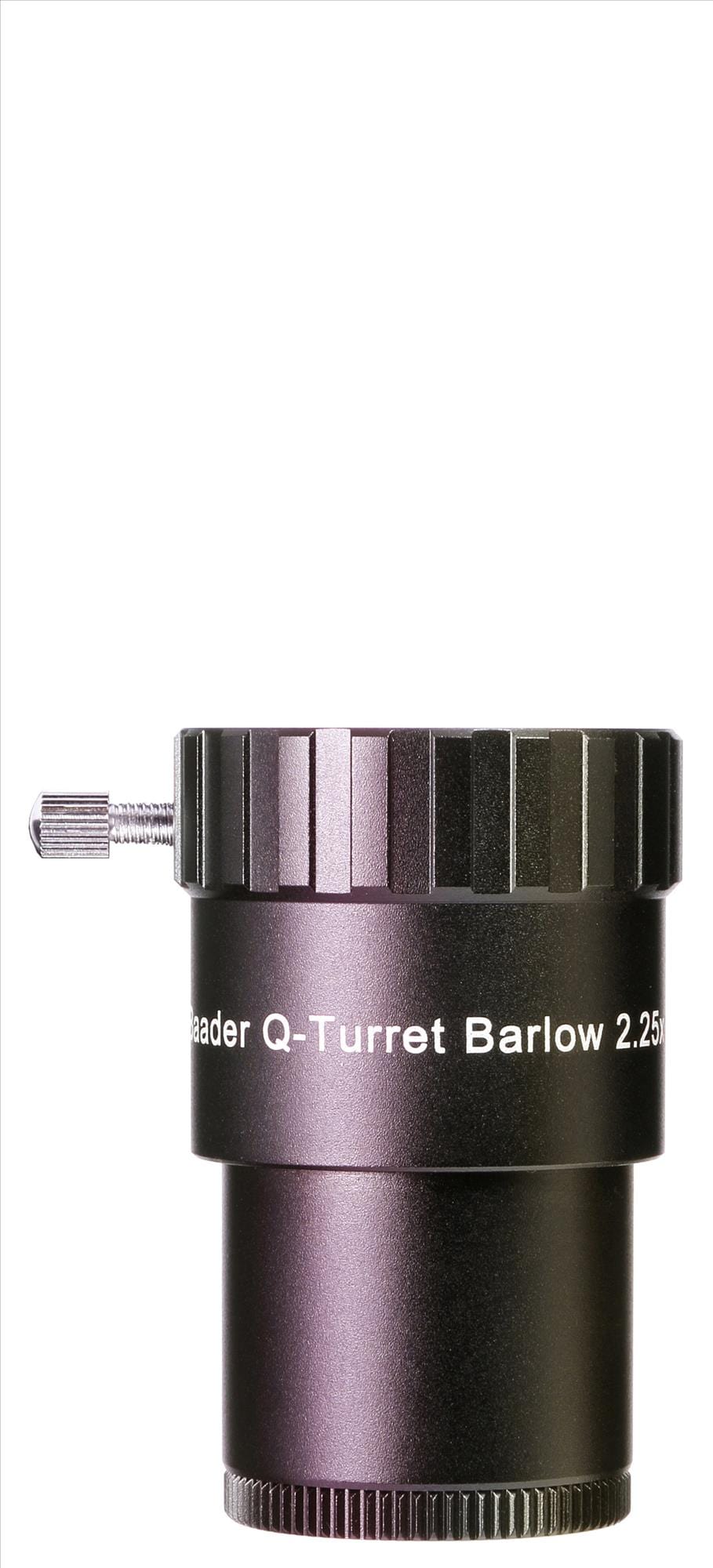

The Barlow can either be screwed into the Q-Turret eyepiece turret or combined via the special, included adapter with all 1.25 "eyepieces. In this case, it acts as a 2.25x Barlow. With the Q-turret revolver and the Classic Eyepieces, this results in the following focal lengths: 2.7 mm, 4.5 mm, 8 mm and 14 mm
Alternatively, it can also be screwed directly into an eyepiece and then increases the telescope focal length by a factor of 1.3. The Barlow element has an M28.5 male thread (corresponding to the filter thread of 1¼ "eyepieces), the housing has got a M28.5 female thread. The factor 1.3x is achieved when the Q-Barlow is completely screwed into the 24mm long push-in sleeve of an eyepiece whose field diaphragm lies 2mm inside the push-in sleeve. This corresponds to the design of our Classic Plössl/Ortho eyepieces; with other eyepiece designs, the magnification factor may vary slightly.
Attention: When fully screwed in, the Barlow element protrudes 13mm into the 1.25" plug-in sleeve. On eyepieces where lens elements in the 1.25" sleeve do not allow the Q-Barlow element to be screwed in, it can only be used in the 1.25" adapter with factor 2.25x. If necessary, you can use it on these eyepieces with the 18.5mm long 1¼" extension sleeve with 1¼" filter thread on both sides: Baader 1¼" - 31.8mm nosepiece extension with 1¼" filter thread on both sides (T-2 part #05) (#1905130, € 14,13)

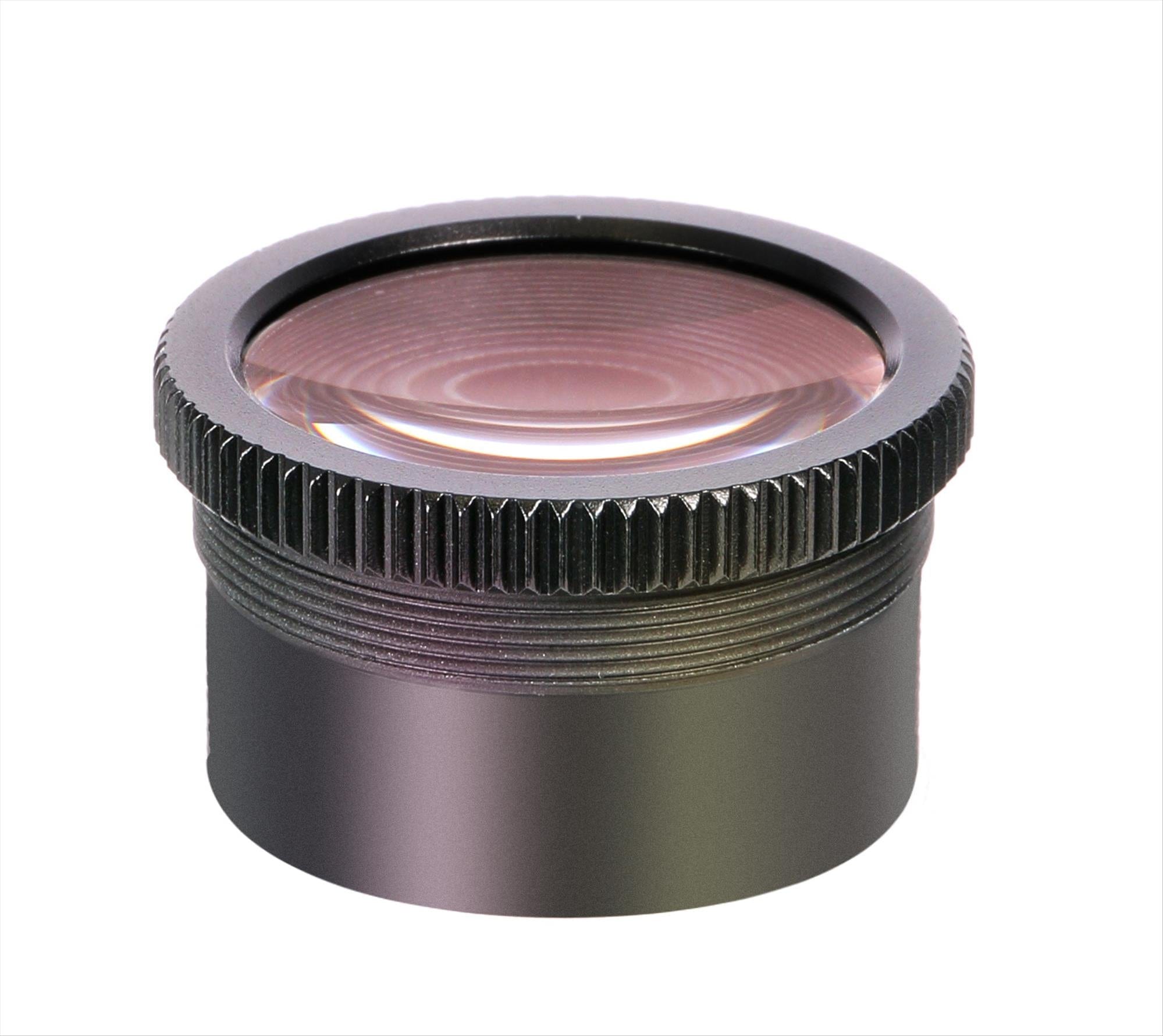

The bare lens mount of the 2.25x Q-Barlow lens (without the 1.25" eyepiece holder) can be screwed into every 1.25" filter thread. To do so, remove the lenses with their threaded mount from the rest of the housing. Without the eyepiece clamp, the Barlow has no longer an extension factor of 2.25x, but only of 1.3x (when it is screwed completely into the filter thread). The reason for this is the shorter distance between the lenses and the image plane.
It may be that you can't insert the lens mount completely into the filter thread, then the magnification factor is closer to 1.5x.
But if the 1.25" nose piece of a camera provides a M28.5 filter thread, you can usually insert the Barlow completely, and because of the shorter distance the provided factor is ca. 1.3x. This is intentional and was one of the aims of the design. At 2.25x, an image circle of 25 mm is provided free of vignetting, while the fully lit image circle at 1.3x is 13mm.
You may return most new, unopened items within 30 days of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).
Items that have been opened, damaged or are otherwise unsaleable will be subject to a minimum 10% restocking fee, to be assessed by Telescopes Canada upon receipt of the returned goods
You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).
If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.
We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.
When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.
Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.
EAN Code | 4047825027818 |
---|---|
Manufacturer | Baader Planetarium |
SKU (#) | 2956185 |
Weight (kg) | 0.067 |
Inner Connection (lens sided) | Thread, M28,5 |
Outer Connection (lens sided) | Barrel, 1¼" |
Outer Connection (eyepiece/-camera-sided) | Clamp, 1¼" |
Clamping System | Screw clamps |
Magnification (x) | 2,25x / 1,3x |
AR-Coating | High transmission multi-coated (HT-MC) |
Adaptable to | Q-Turret Okularrevolver und Classic Ortho/Plössl Okulare, 1¼ Okulare |
Usage | Erweitert die möglichen Brennweiten des Q-Turret Okularsatzes. |
Barrel Size (in) | 1¼" |
Optical Design | Barlow |
