Description
Product Description

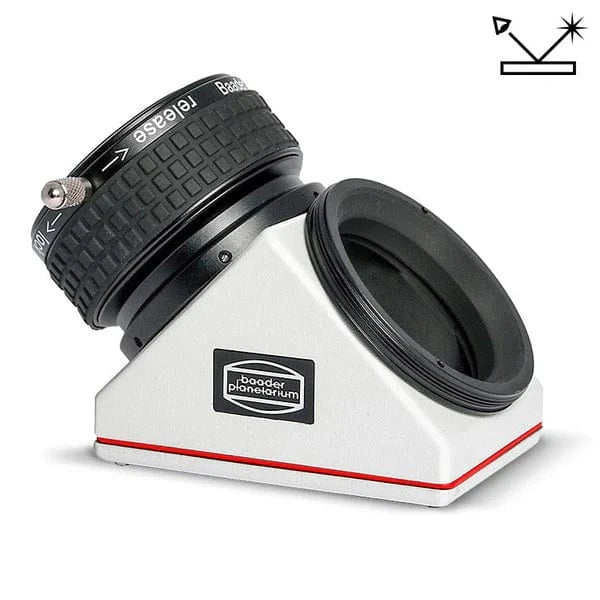

Baader 2" ClickLock® Diagonal Mirror M68 (Zeiss) Thread
- Telescope side with Carl Zeiss M68 thread / optical length = 109 mm
- Scratch resistant hard coated mirror surface for safe cleaning, to remain scratch free even if subjected to harsh environment
- Mirror rejects deep UV and IR radiation, safe for solar viewing with all White-Light and H-alpha solar filters
- Baader 2" ClickLock clamp for ultrafast clamping action
- Clamps heavy accessories effortless, with fingertip action

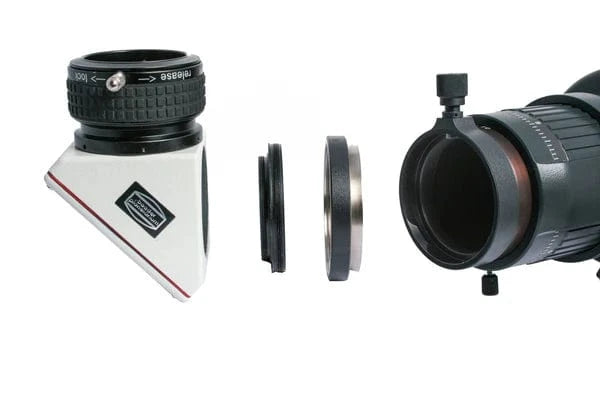

- DC design as # 2956100: Instead of 2" Safety Kerf nosepiece it has a M68 thread, which makes it possible to mount the mirrors on our extensive range M68 with the largest possible passage on many telescopes
Specifications
| MANUFACTURER | Baader Planetarium |
| SKU (#) | 2956100Z |
| EAN CODE | 4047825022530 |
| NET WEIGHT (KG) | 0.50 |
| OPTICAL DESIGN | Mirror Diagonal |
| INNER CONNECTION (LENS SIDED) | M48, M55 |
| OUTER CONNECTION (LENS SIDED) | S58, M68 x 1 |
| INNER CONNECTION (EYEPIECE/-CAMERA-SIDED) | ø 2" (50.8mm) |
| REFLECTION SURFACE | Dielectrically coated |
| IMAGE ORIENTATION | Erect image, Mirror inverted |
| OPTICAL LENGTH (MM) | 109 |
| CLAMPING SYSTEM | ClickLock |
| DEFLECTION ANGLE | 90° |
| INNER DIAMETER / CLEAR APERTURE (MM) | 46.6 |
