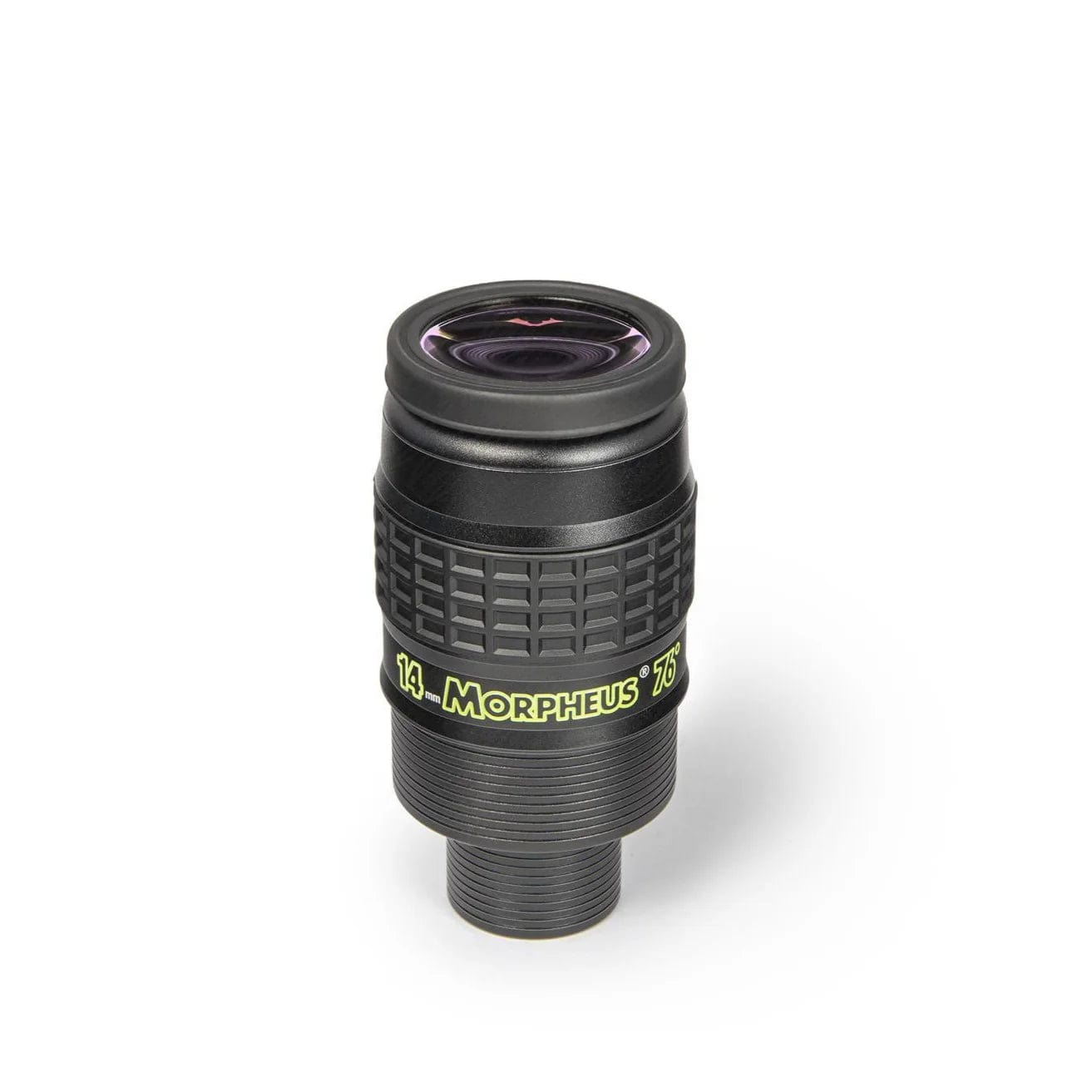

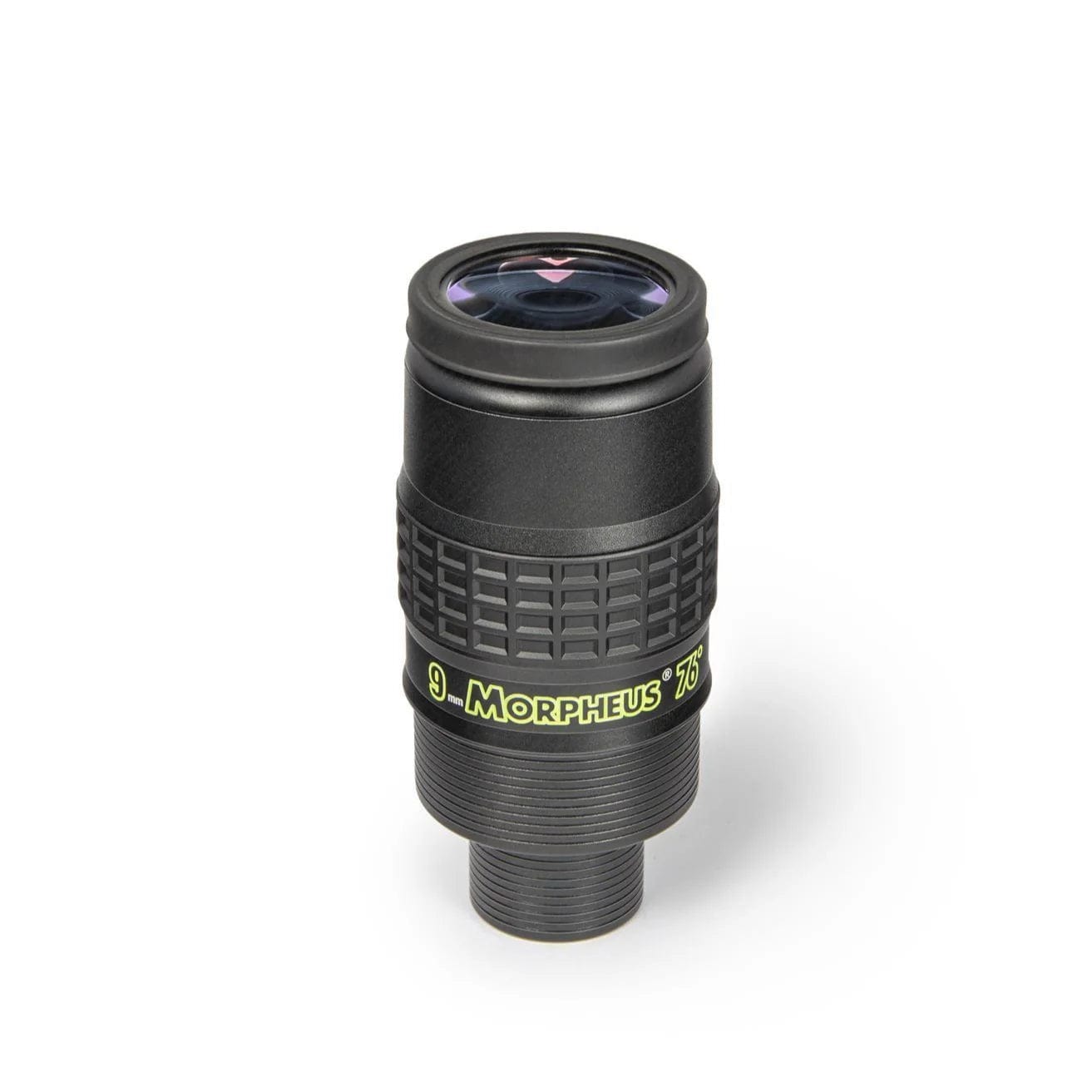

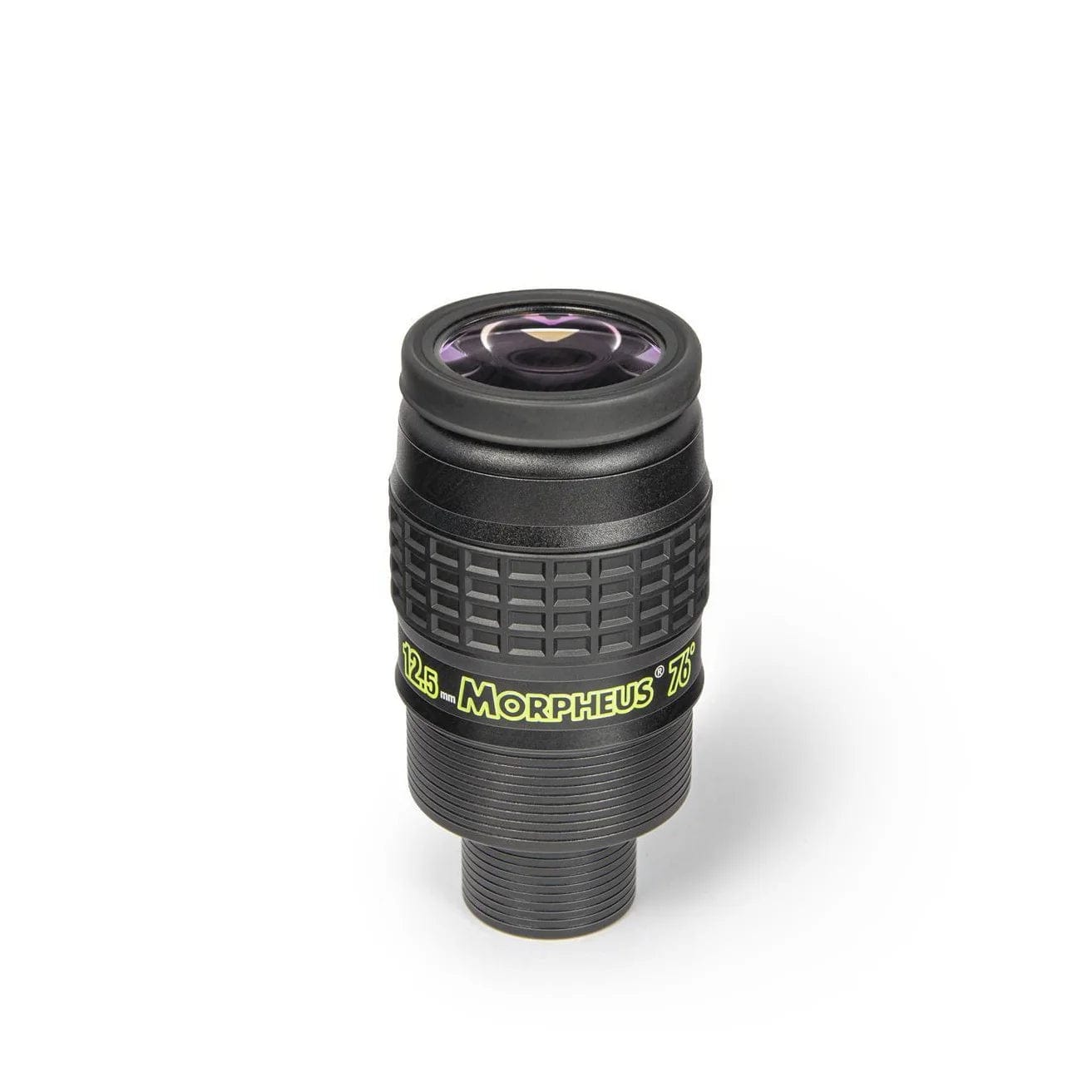

Baader Morpheus 76° Eyepieces

1 In Stock - Ships Today if Ordered by 2pm EDT! (Mon - Fri)
Eyepiece
2954204
$380 CAD

We will price-match in-stock Canadian astronomy dealer pricing

*Size

Green Right Arrow Click here to simulate views with this eyepiece and your scope


Ask a Question About This Product

Highlights

  • Full field sharpness: The ultra-sharp 76° undistorted flat field is unsurpassed by any other modern wide field eyepiece. Also on-axis sharpness and contrast rivals our best, ever released planetary eyepieces, the Zeiss Abbe ZAO I & II.
  • Long Eye Relief and optimized for bino-viewing:  ~ 20mm of eye relief provides that famous spacewalk feeling, incredibly impressive with bino and both eyes.
  • Hard aluminum alloy with industrial quality UV-stabilized anodizing surrounds a set of 8 lenses with one ED- and two Lanthanum elements.
  • 2" and 1¼" nosepiece: integrated into one eyepiece of 55mm max outer diameter, supports bino-viewing even for kids.
  • Photo-Video Adaption: Like their Hyperion siblings, all Morpheus eyepieces make superb imaging projection optics with the M43 photo/video-thread
  • The Morpheus 17.5 mm is the only eyepiece of the Morpheus series that is not parfocal to the rest of the series. It requires 2.5 mm in focus

Large scope of supply:

  • Metal / Rubber eyecup: The folding rubber eyecup now comes with an integral M43 threaded metal ring (this accounts for the complete line of Morpheus-eyepieces). The threaded attachment enables the eyecup to stay soft and compliant, while keeping the eyecup securely attached to the eyepiece while folding it up or down.
  • M43/M43 extension: all Morpheus eyepieces now include the M43 extension #2954250. It is used for optimizing the position of the eyecup in setting the personal viewing position as well as for adapting a camera with M43-thread (eg. Sony / Panasonic). In addition this extension serves also as clamping surface for smartphone holders
  • Eyepiece-Holster: Not enough space at the telescope? The pouch does not only protect the eyepiece – you can even use it as a belt pouch or attach it to your tripod.
  • Focal-Length Indicator-Clips: these stainless steel clips can be attached e.g. to the eyepiece holster and one or more of the little indicator fingers is bent upward - according to the focal length used. In this way the user experiences a tactile ("braille"-equivalent) sensation, being able to identify each eyepiece without looking and without using a flashlight
  • Winged Eyecup: Soft and compliant rubber-eye cap with foldable side shield. Provides the ultimate comfort and exclusion of stray light necessary for bino-viewing with eyeglasses
  • 10-page manual: a manual with many application examples and a list of optional accessories (similar to the Hyperion manual) is included (also under Tab "Downloads")

Morpheus folding rubber eyecups

[Custom Product Page]
General
Manufacturer Baader Planetarium
SKU (#) 2954217
Net weight (kg) 0.38
Eyepiece Series Morpheus
Specifications

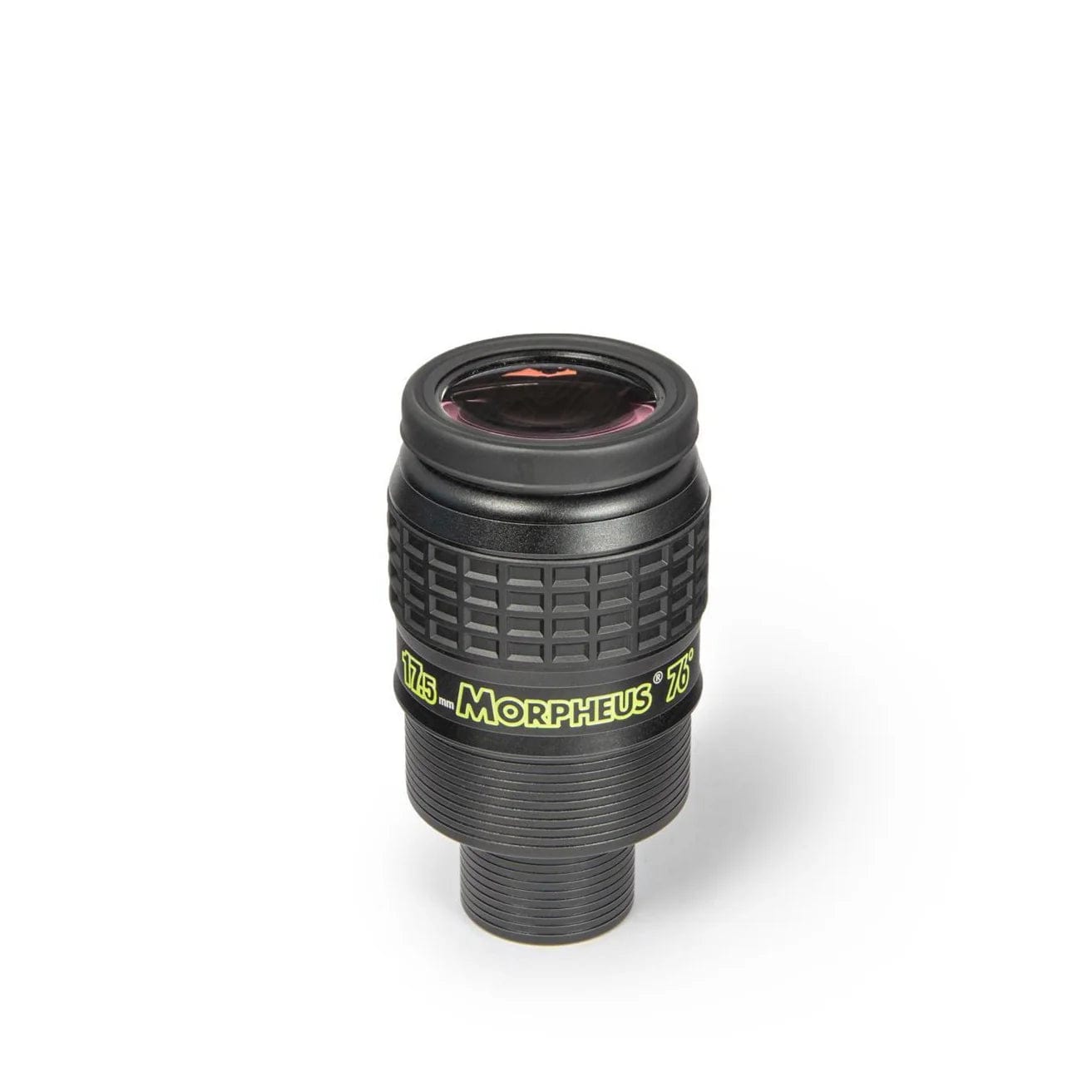

Focal Length 17,5 mm
Apparent Field of View 76°
Eye Relief (mm) 23 mm
AR-Coating Phantom Coating® Group
Parfocal Eyepieces No
Special Features Photo-luminescent engraving: lets you find the correct eyepiece at all times
Barrel Size (in) 1¼", 2"
Optical Design Wide Angle
Speciality Eyepiece projection: classical
Eyepiece Design
Field Stop Diameter 23,55 mm
Field Stop Displacement to reference plane + 2,5 mm
Number of Lens Elements 8
Number of Groups 5
Backfocus gain w. 2“ Barrel (mm) 21 mm
Slip Protect Safety Safety Kerfs
Eyepiece Body above Reference Plane (mm) 77,5 mm
Length of 1¼" barrel (mm) 24 mm
Length of 2" barrel (mm) 21 mm
Outer Diameter 55 mm
Connections
Outer Connection (eyepiece/-camera-sided) Thread, M43
Inner Connection (lens sided) Thread, M28,5
Outer Connection (lens sided) Barrel, 1¼", 2" (50,8mm)
Camera Thread M43
Threaded for filters Yes
Included Items
Dustcaps 1¼" dustcap (31,8mm), 2" dustcap (46.5mm - fits over eyecup), 2" dustcap (49mm)
Eyecups rubber/metal, folding eyecup with M43 thread, winged eyecup (M43)
Included Accessories Cordura eyepiece holster for fast access, Focallength Indicator-Clip, M43/M43 extension
Optional Accessories Baader Utility Bag #2954201 for small accessories
