Description
Highlights

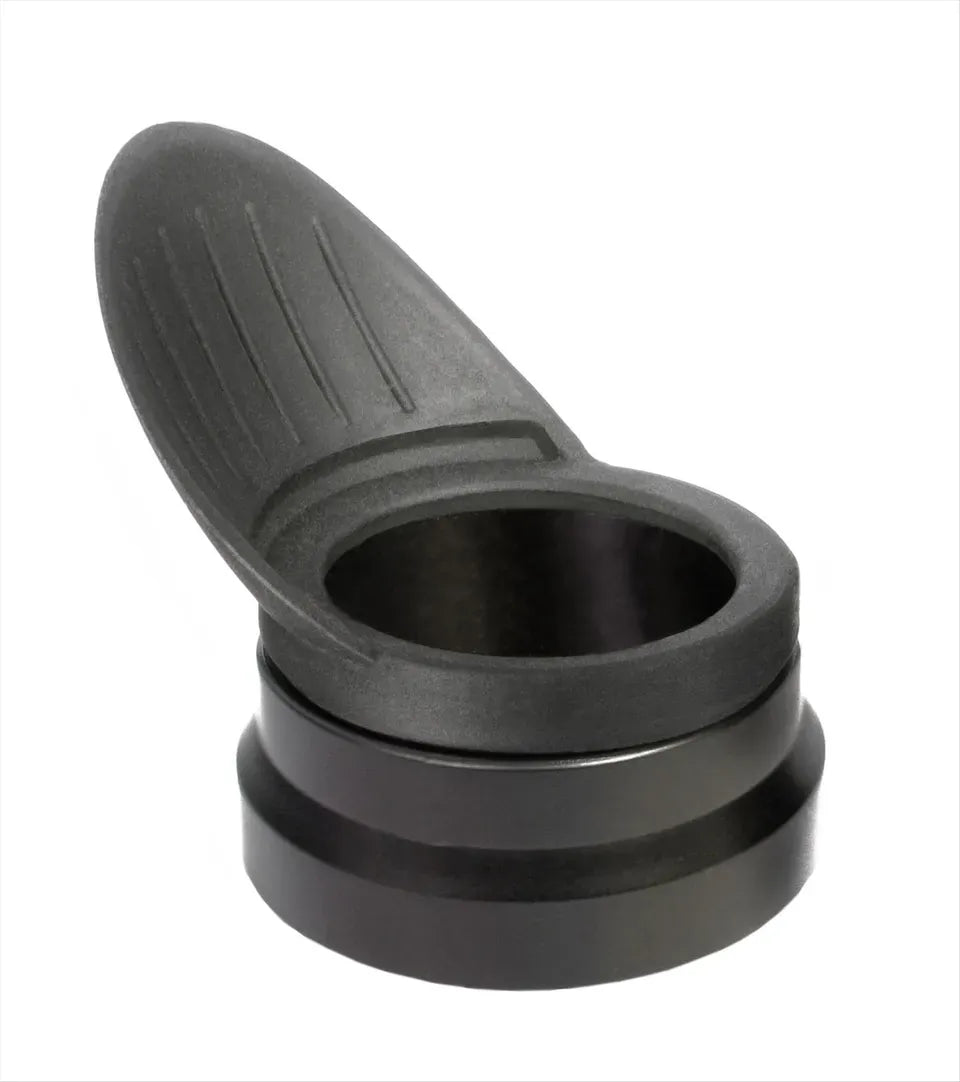

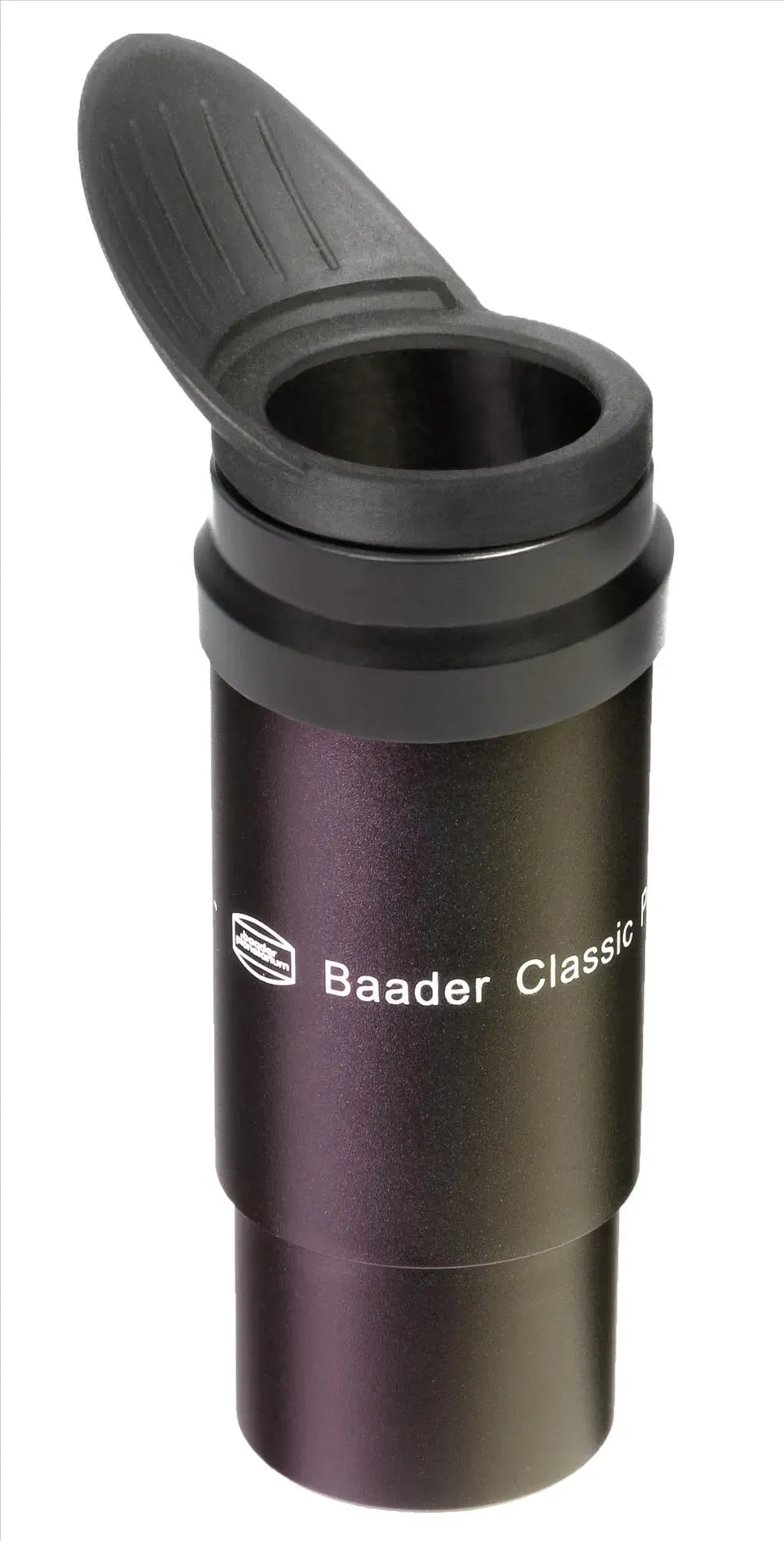

- Baader Classic Plössl 32mm 1¼" eyepiece, apparent field of view 50°, with aux spacer tube and winged rubber eyecup
- Parfocal Eyepiece series with very high transmission
- This eyepiece delivers a pure-white image with outstanding sharpness and contrast
- True High-Transmission- (HT) Multi-Coating (MC) on all glass-air-surfaces offer a brilliant image while showing almost no internal reflections
- Suitable as projection eyepiece for ADPS (Afocal Digital Projection System)
Specifications
| General | |
|---|---|
| Manufacturer | Baader Planetarium |
| SKU (#) | 2954132 |
| Weight (kg) | 0.108 |
| Eyepiece Series | Classic (Q-Turret) |
| Specifications | |
| Focal Length | 32 mm |
| Apparent Field of View | 50° |
| Eye Relief (mm) | 21 mm |
| AR-Coating | High transmission multi-coated (HT-MC) |
| Parfocal Eyepieces | Yes |
| Barrel Size (in) | 1¼" |
| Optical Design | Ploessl |
| Speciality | Eyepiece projection: afocal |
| Eyepiece Design | |
| Field Stop Diameter | 26 mm |
| Number of Lens Elements | 4 |
| Number of Groups | 2 |
| Slip Protect Safety | Classic Undercut |
| Eyepiece Body above Reference Plane (mm) | 54,8 mm |
| Length of 1¼" barrel (mm) | 24 mm |
| Outer Diameter | 34,8 mm |
| Connections | |
| Included Items | |
| Dustcaps | 1¼" dustcap (31,8mm) |
| Eyecups | winged eyecup (1¼") |
| Optional Accessories | Q-Turret Eyepiece Revolver |
