Baader UFC S70 VariLock 15-20mm Extension with S70 Dovetail and receptor for S70 dovetail - 2459145

Baader PlanetariumSKU: 2459145

Sale price$150 CAD
Only 1 unit left

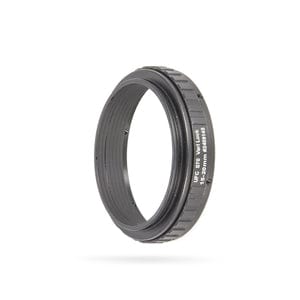

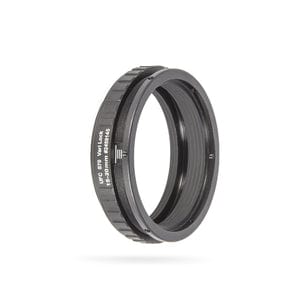

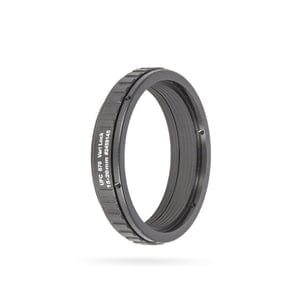

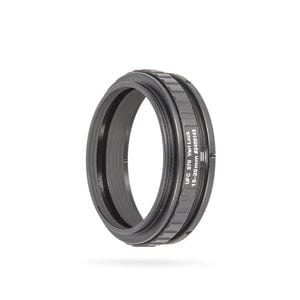

  • Baader UFC S70/5 VariLock Extension 15-20mm
  • Continuously (step-less) adaptable UFC extension with millimetre scale for fine-tuning of the optical height between 15 and 20mm in the UFC system
  • Telescope-sided with S70 dovetail clamp (screws included)
  • Camera-sided with S70 dovetail
  • Can be adapted via the S70 dovetail to the UFC filter base #2459110 and allows adaption of telescope-sided adapters with the S70 dovetail clamp


Manufacturer Baader Planetarium
SKU (#) 2459145
Optical length (mm) 15 - 20
Inner Diameter / Clear Aperture (mm) 65 mm
Outer Diameter 82,1 mm
Inner Connection (lens sided) Dovetail ring clamp, S70
Outer Connection (eyepiece/-camera-sided) Dovetail ring, S70
Type of Adapter Extension, Variable
