Description

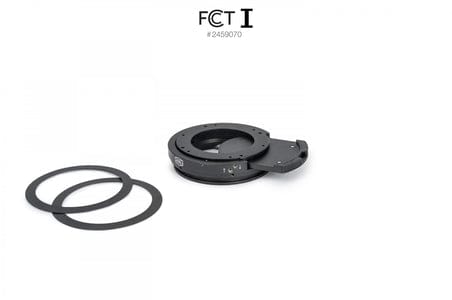

Baader FCCT I Filter holder for RASA 8, suitable for Ø 77 mm QHY-Cameras (e.g. QHY 174 / 163 / 183)
- Filter changer and Tilter (mechanical image position corrector), specially designed for Celestron RASA 8" Astrograph and large QHY cameras with 77 mm diameter (e.g. QHY 174 / 163 / 183)
- The Baader FCCT (Filter Changer Camera Tilter) allows the use of filters as well as the adjustment of camera plus filter to the optical path
- With the FCCT, a very fast adjustment or finest readjustments are possible - without having to unscrew the camera each time. This makes working with the RASA 8 a pleasure
- 3D-printed filter sliders are available for the FCCT, which exclusively accommodate unmounted filters with diameters of 31 mm / 36 mm and 2" (w/o cell)
- We offer selected 2" filters specifically for the FCCT in an unmounted variant, but basically all Baader 2" filters will work when removed from the filter cell
Scope of supply:

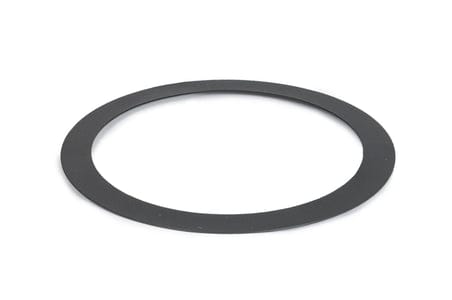

- Baader FCCT I with inserted dark slider and two 0.5mm spacer rings for focus finetuning
- extra long 2mm hexagon screwdriver as torque wrench (28cm long), as well as short 0.9mm, 1.3mm and 1.5mm hex keys
- Three long M2 hexagon socket screws for camera adaption
- Filter-Extractor-Tool for inserting/extracting the filter drawer
- Storage bag for four filter holders (to be purchased separately)
- 1 Pair Cotton Cloves for mounting sensitive accessories (#2905050 , € 5.50 )
Product Details
-
SKU: 2459070
-
EAN Code: 4047825044716
Dimensions & Weight
-
Net weight (kg): 0.15
-
Outer Diameter: 93mm
Optical & Usage Specifications
-
Optical length (mm): 21.5mm (incl. 2x 0,5mm Spacer wich can be added)
-
Type of Adapter: Camera Adapter
Additional Resources
