Description
Highlights

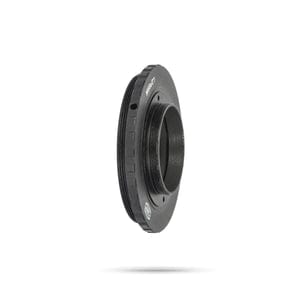

- Reducing piece: M68a to T-2a
- to change an M68 female into T-2 male thread

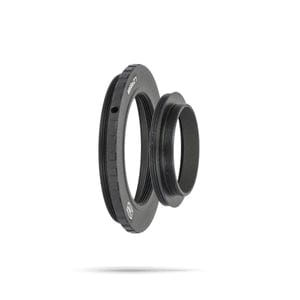

- combination of M68/2" UNFi changer ring (#2458232) and T-2/2" changer ring (#1508035)
- The built-in 2"/T-2 ring is removable (for this we recommend our Adjustable pin-type face wrench #2450062) and reveals a 2" SC (50,8mm) female thread
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2458233 |
| EAN Code | 4047825035455 |
| Net weight (kg) | 0.05 |
| Optical length (mm) | 5.5 mm |
| Inner Diameter / Clear Aperture (mm) | 38 |
| Outer Diameter | 76 |
| Inner Connection (eyepiece/-camera-sided) | 2"/SCT Thread (50.8mm) |
| Outer Connection (eyepiece/-camera-sided) | M42 x 0.75 (T-2) |
| Outer Connection (lens sided) | M68 x 1 |
| Compatible Brands | Astro T-2, Baader Planetarium, Zeiss |
| Type of Adapter | Reducing Adapter |
| Adapters Family | T-2 System, M68 System |
