Description
Highlights

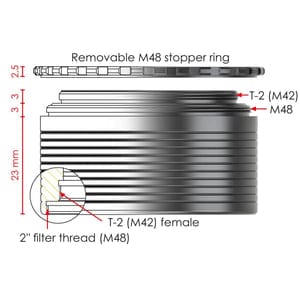

- Nosepiece with Baader proprietary Safety Kerfs grooves so that even the heaviest accessories cannot fall to the ground
- Equipped with only 3 mm long T-2 thread
- Eyepiece-/camera side with male T-2 and M48 threads
- Telescope side with 2" outer diameter and 48mm filter thread for 2" filters
- Effective optical length 3 mm
- Also available as version without Safety-Kerfs and with longer T-2 thread (5mm):
Baader 2" nosepiece to T-2 / M48 (T-2 part #16) (#2408150)
Description
Modern cameras are usually characterized by extremely short optical heights, in order to be able to be mounted on various telescope constructions. The old T-2 standard with 5mm thread depth is a hindrance to this. To take care of this new development, all new Baader T-2 and M48 parts are delivered with the new 3 mm standard.
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2458130 |
| EAN Code | 4047825045621 |
| Net weight (kg) | 0.02 |
| Optical length (mm) | 3 |
| Inner Diameter / Clear Aperture (mm) | 37,5 mm |
| Outer Diameter | 54 mm |
| Outer Connection (eyepiece/-camera-sided) | M42 x 0.75 (T-2), M48 |
| Inner Connection (lens sided) | M42 x 0.75 (T-2), M48 |
| Outer Connection (lens sided) | ø 2" (50.8mm) |
| Compatible Brands | Astro T-2, Baader Planetarium, Celestron |
| Type of Adapter | Nosepiece, Filter holder |
