Description

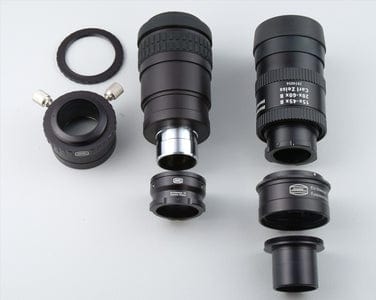

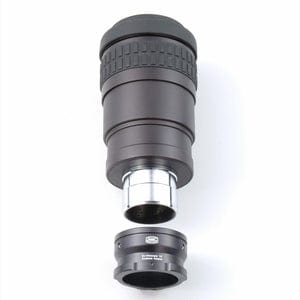

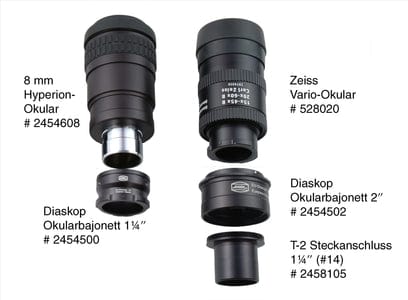

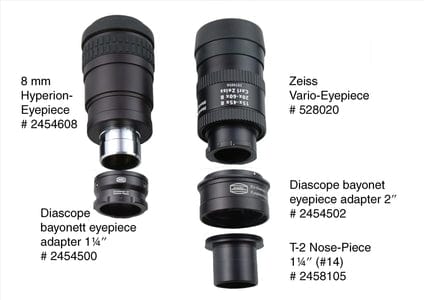

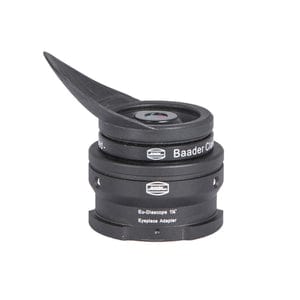

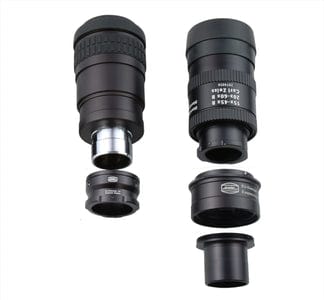

- Bayonet adapter to fit suitable 1¼" astro-eyepieces onto all Carl Zeiss Diascope Fluorit spotting scopes

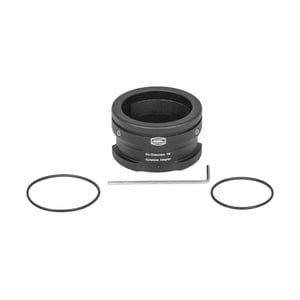

- includes Allen Wrench key and two O-rings to adjust stiffness when switching eyepieces

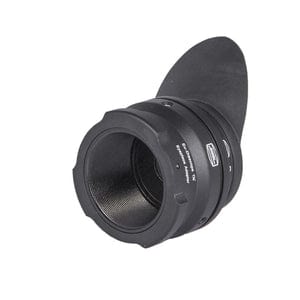

For astronomical use, you need a fast eyepiece change, without changing the orientation of the Diascope. We therefore provide the eyepiece adapter without a mounted sealing ring, so that the eyepieces can be switched easily. The bayonet has got an undercut, which serves to receive one of the two supplied O-rings. If you prefer a sealing ring, you can adjust the stiffness when switching eyepieces between tight (large O-ring) and light (small Oring) with these two different rings. The image shows the undercut to place the O-Rings
For more Information see the tab "Downloads"
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2454500 |
| EAN Code | 4047825011541 |
| Weight (kg) | 0.04 |
| Optical length (mm) | 24 |
| Clamping System | Screw clamps |
| Inner Diameter / Clear Aperture (mm) | 31,75 mm |
| Outer Diameter | 41 mm |
| Outer Connection (lens sided) | Bayonet |
| Inner Connection (eyepiece/-camera-sided) | Clamp, 1¼" |
| Adaptable to | Zeiss Fluorit-Diascope |
| Compatible Brands | Zeiss, Mixed |
| Type of Adapter | Changer Adapter, Eyepiece Clamp |
