Description
Highlights

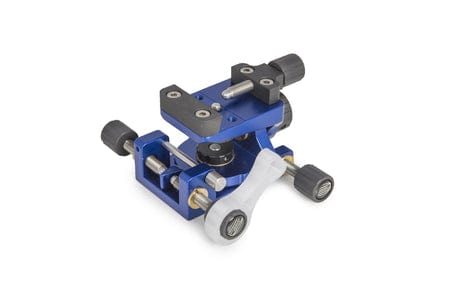

Quick mounting of optics with all EQ standard Celestron / Sky-Watcher / Vixen dovetail
Massive but lightweight EQ-clamp, 190 mm (7.5") long w. multi-contact ribbed dovetail face
Bottom side featuring various predrilled hole patterns to fit onto DEC-face of most mounts (Takahashi, 10Micron, Astro-Physics, Vixen, Celestron)
With an integrated 3 "dovetail, suitable for all mounts with 3" (Losmandy)

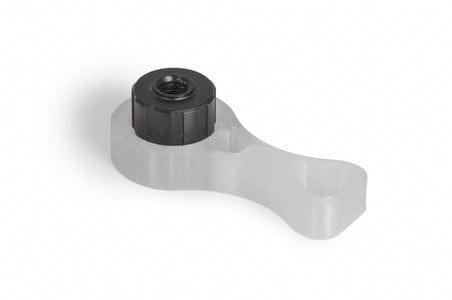

3D-printed ring wrench for Baader clamping knobs #2450071 is recommended
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| EAN Code | 4.04783E+12 |
| SKU (#) | 2451525 |
| Weight (kg) | 0.663 |
| Bar length | 190 mm |
| Clamping System | Dovetail clamp |
| Dual mounting | Yes |
| Base plate mounting options | bodenseitig mit eingefrästem 3"-Schwalbenschwanz als Reduzierstück von 3"- auf EQ-Norm |
| Bar or Clamp? | Clamp |
| Design | 3" (76mm) Losmandy, V (44mm) Celestron/Vixen |
| Thread Drillings for | 10Micron, Astro Physics, Baader GuideScope Rings, Baader Stronghold, Celestron C8, Takahashi, Vixen |
