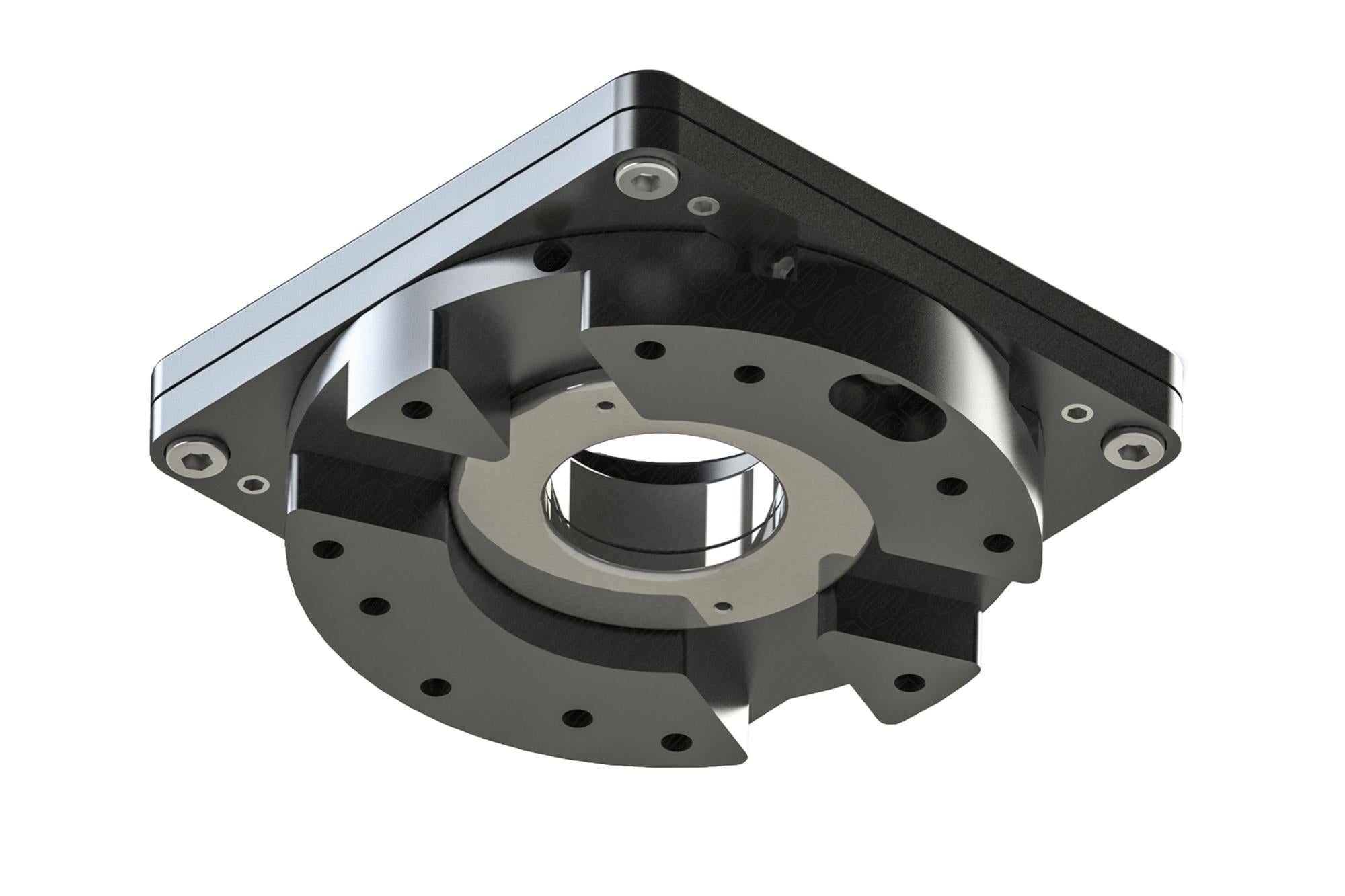

Pan Adjuster for adjusting the optical axis of parallel mounted telescopes

Highlights

• Compact, mobile rotary stage for adjustment of 3" or 8" PAN EQ clamps on double mounting plates or mounts of the L-Mount series.
• Makes it possible to adjust the optical axes of parallel mounted telescopes to each other.

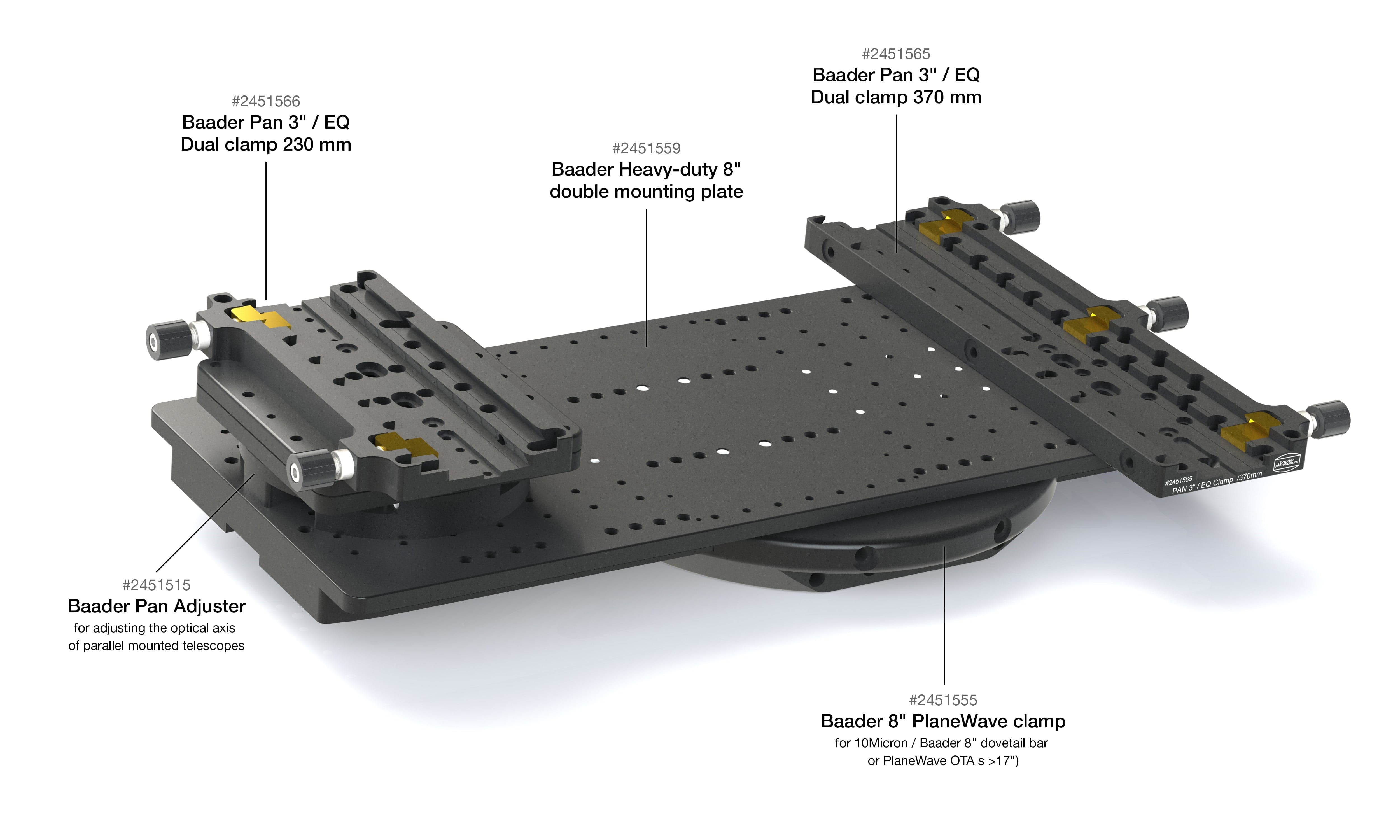

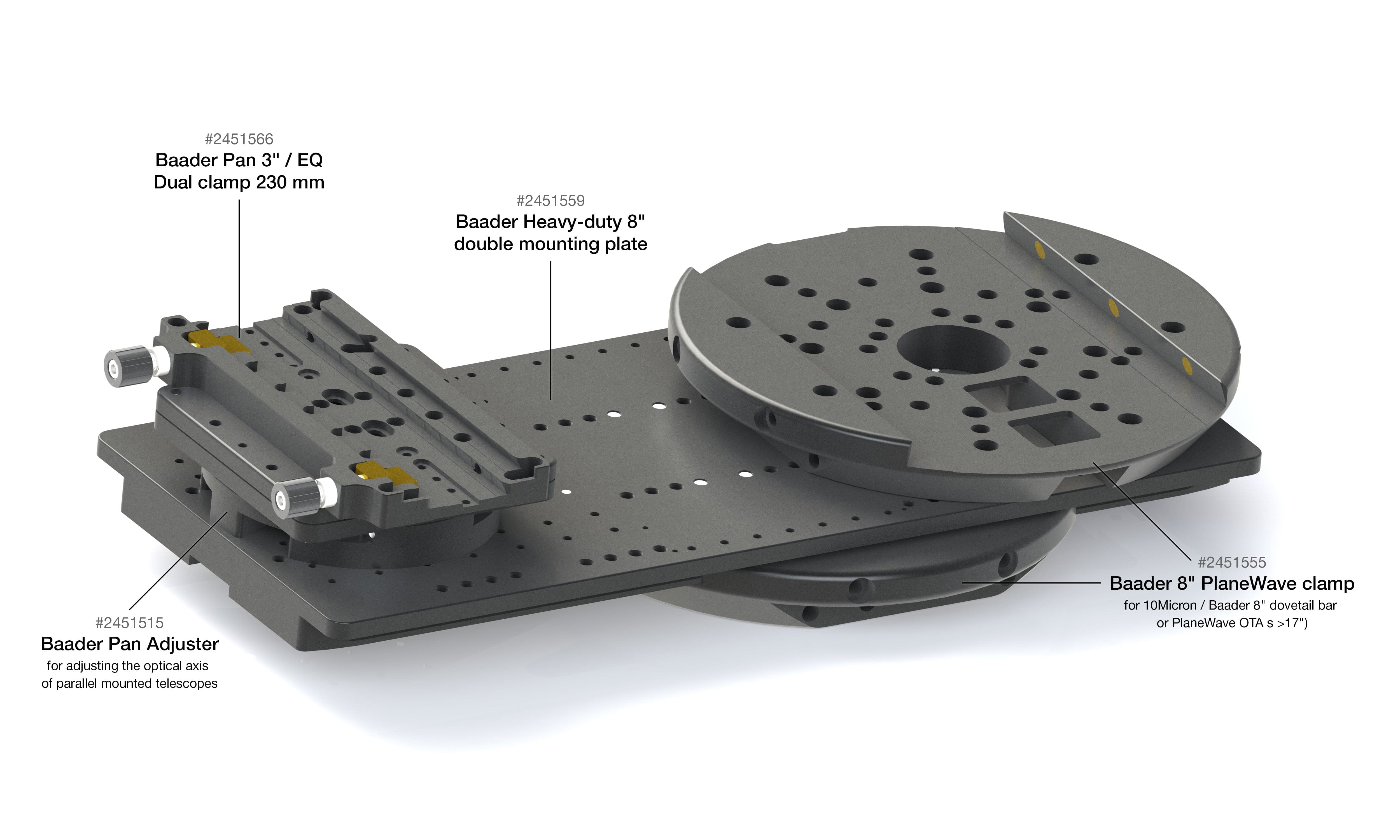

• Mounts parallel to the main telescope on the side of the dual mount or on the side port of a PlaneWave L-mount to align and simultaneously operate secondary telescopes such as RASA-, or Newtonian telescopes parallel to the main telescope in the azimuthal or equatorial configuration. To connect the PAN adjuster to the L-350 mount, the Adapter to mount PAN-Adjuster to PlaneWave L-350 (#2451516 , € 143,- ) is required.
• Push pull screws allow to adjust the angle of the installation plate to the rotation plate.
• Adjustment screws allow to adjust the rotational angle between the attachment plate and the rotation plate
• Cutouts and hole in the middle allows for cabeling
• Made of solid Dural Aluminum and connected with stainless steel clamping rings.
• Developed and manufactured at Baader Planetarium in Germany.
