Highlights
- Baader Wide-T-Ring to connect Fuji X cameras on the Astro T-2 system
- All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring to use adapters to M48, M68 or the UFC filter changer
- Ultra-short Backfocus of only 26 mm (17.7 mm camera, 8.3 mm Wide-T-ring)
- Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
- On the camera side: Fuji X Bayonet
- Telescope side: S52 dovetail clamp incl. S52/T-2 internal thread with 0.75mm pitch

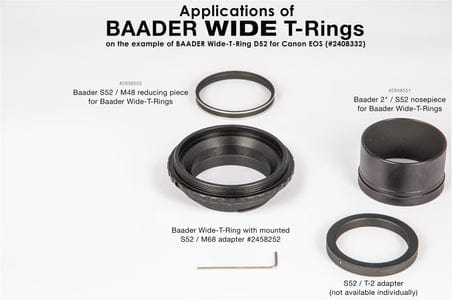

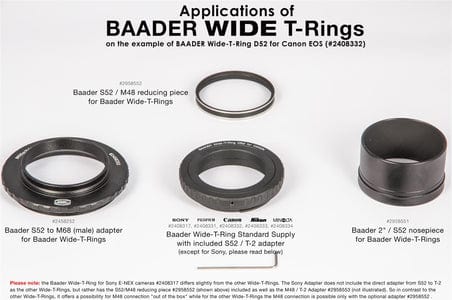

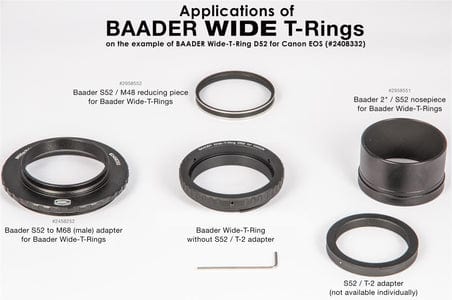

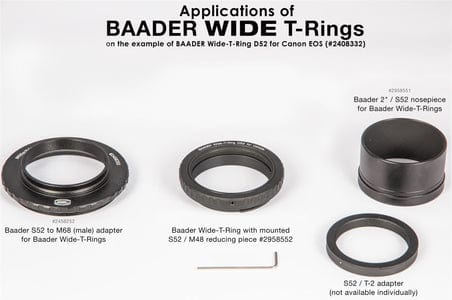

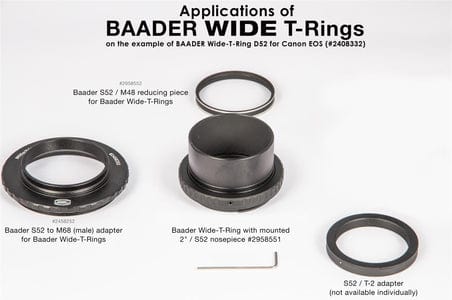

All Baader Wide-T-rings have an S52 dovetail in addition to the inserted T-2 ring. This allows the T-ring to be modified to an M48 female thread using the S52 / M48 adapter #2958552, or to use the S52 barrel #2958551 without the T-2 reduction. With the S52 / M68 adapter # 2458252, the Wide-T-Ring can be directly attached to an M68 male thread to securely fasten your camera to the widest possible aperture.

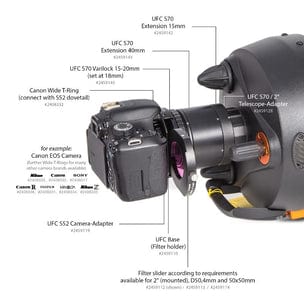

All Baader Wide T-rings can be directly adapted to an UFC (Universal Filter Changer) with the optional Baader UFC S52 dovetail camera-adapter (#2459119), in order to change different filter sizes directly in front of the camera sensor.
With the ultra-short Backfocus of only 26 mm (17.7 mm camera, 8.3 mm T-2 bayonet ring) many adaptations in combination with reducers / filter wheels are now possible for the first time. Furthermore, the illumination of the camera chips improved significantly, mainly because of the larger clear aperture.
Specifications
Manufacturer | Baader Planetarium |
---|---|
SKU (#) | 2408331 |
EAN Code | 4047825012470 |
Net weight (kg) | 0.03 |
Optical length (mm) | 8,3 |
Usage | to connect (D)SLR cameras to the Astro T-2 thread system |
Camera Adaptable | Fujifilm X |
Inner Diameter / Clear Aperture (mm) | 41mm (T-2) / 38mm |
Outer Diameter | 59,5 |
Inner Connection (lens sided) | M42 x 0.75 (T-2), S52 |
Compatible Brands | Astro T-2, Baader Planetarium, Other |
Type of Adapter | Camera Adapter |
