Description
Highlights

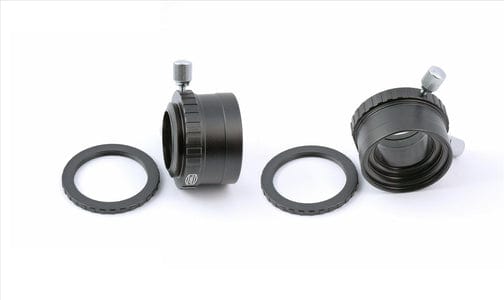

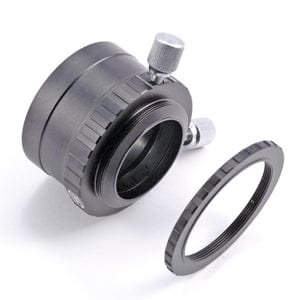

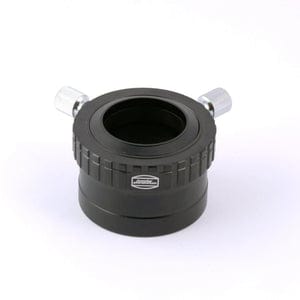

2" external thread to 1 ¼" internal thread reducter / eyepiece adaptor
Strong grip with 2 screws and bronze clamp ideal for the heaviest eyepieces or cameras
Additional T-2 thread on the 1 ¼" side allows connection of camera T-rings or T-2 adapter rings for the eyepiece. A separate T-2 ring protects this thread when not needed
The telescope side front end includes a 48mm filter thread for 2" filters, and a T-2 thread.
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2408190 |
| EAN Code | 4047825012647 |
| Weight (kg) | 0.154 |
| Optical length (mm) | 9 |
| Clamping System | Screw clamps |
| T-2 Part # | 15 |
| Screw Type | 2x M4 clamping screws |
| Inner Diameter / Clear Aperture (mm) | 31,75 (1¼") |
| Outer Diameter | 55 |
| Inner Connection (lens sided) | Thread, T-2 (M42 x 0,75), M43, M48 |
| Outer Connection (lens sided) | Barrel, 2" (50,8mm) |
| Inner Connection (eyepiece/-camera-sided) | Clamp, 1¼" |
| Outer Connection (eyepiece/-camera-sided) | Thread, T-2 (M42 x 0,75) |
| Compatible Brands | Astro T-2, UNC, Baader Planetarium, Celestron |
| Type of Adapter | Eyepiece Clamp, Filter holder, Reducing piece |
