Description
Highlights

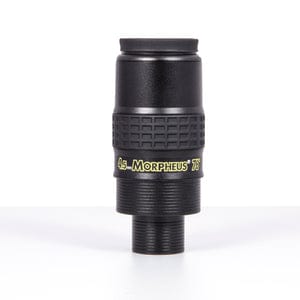

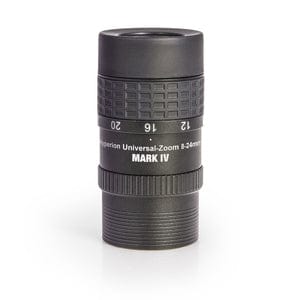

- Ultra hard 2"nose piece, with Baader proprietary Safety Kerfs (introduced with our Morpheus and Hyperion Zoom Mark IV eyepieces: the numerous shallow kerfs give additional grip and security from inadvertent slipping, without the annoying problems sometimes caused by traditional deep undercuts)
- 32 mm total length, 27 mm usable length (after threading)

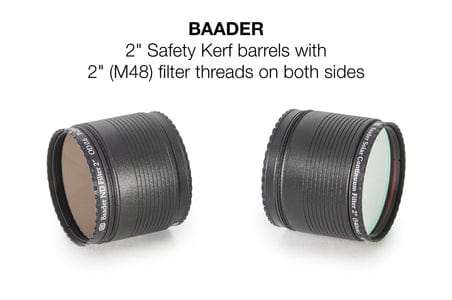

- Focus side 2" (50.8mm) male thread (SCT thread) – incl. female M48 filter thread for cell mounted 2" filters
- Telescope side 2" outer diameter – also including 48mm filter thread for cell mounted 2" filters
- 47 mm inner diameter with flat black anti-reflex coating

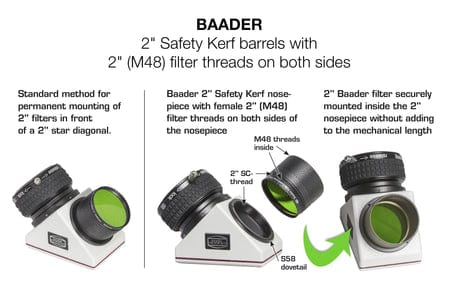

- For numerous applications, such as mounting the Baader 6x6 T-adapter (T-2 component #17) onto 2" focusers. For improving the 2" nose piece of all Baader 2" star diagonals a.s.f.
Specifications
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2408156 |
| EAN Code | 4047825012708 |
| Weight (kg) | 0.049 |
| T-2 Part # | 19A |
| Inner Diameter / Clear Aperture (mm) | 47 |
| Outer Diameter | 50,8 (2") |
| Inner Connection (lens sided) | Thread, M48 |
| Outer Connection (lens sided) | Barrel, 2" (50,8mm) |
| Inner Connection (eyepiece/-camera-sided) | Thread, M48 |
| Outer Connection (eyepiece/-camera-sided) | Thread, 2" (50,8mm) |
| Adaptable to | every female 2" SC-thread;6x6 T-Adapter |
| Compatible Brands | UNC, Baader Planetarium, Celestron |
| Type of Adapter | Barrel, Filter holder |
