Highlights
- SCT visual back with 2" SC internal female thread but without 2" Filter holder
- Precise 2" clamp with two large knurled locking screws and built-in spring bronze clamping ring holds the heaviest of accessories and is easy to operate even in the cold wearing gloves
- Large field of view cane be used alongside all 2" accessories such as 2" star diagonals and eye pieces
- For all Schmidt Cassegrain telescopes, telescope side with 2 " internal female thread and retaining for 3.3" C14 connector nut
Description

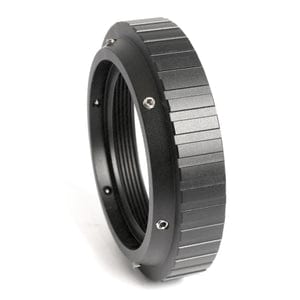

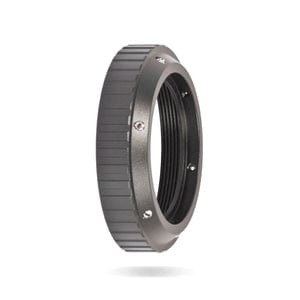

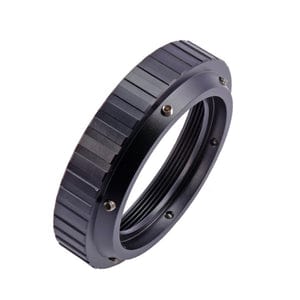

2" Deluxe eyepiece clamp for SC-telescope
Recommended in the version with filterholder or 60mm extension incl. 2x filter holder
Right below you see a short animation to our accessory, the Baader 2" DeLuxe eyepiece clamp in the version with 2" filter holder (#2958144) – to use on the 2" tube thread on most SC-telescopes. With the 3,3" Adapter (#2408145) you can also use it on C11 / C14 telescopes.
The 2" Deluxe eyepiece clamp consists in the base version of two parts. The eyepiece clamp and a factory-mounted inner thread ring, that reduces the native telescope sided M58 inner thread to a 2" inner thread. In theVersion SC-Deluxe eyepiececlamp with 2" filter holder(#2958144) the third part is a M48 filter holder. This filterholder must be threaded onto the 2" telescope-thread to hold any of our 2" filters.
When both parts are threaded onto any SC-telescope, the combo looks like our normal 2" Deluxe-clamp, but the performance is much better than any 2" SC-clamp on the market, since the customer may seal the optical tube from dust and moisture and may cut off the unwanted parts of the light for their application, like using a UV/IR-Filter to cut the infrared - or use a nebula filter UHC-S or O III - or any other filter.
The important difference is that our 2" filters are optically polished to not destroy or impair the wavefront of light and to retain perfect sharpness even under high magnification.
Specifications
Additional Information
| Manufacturer | Baader Planetarium |
|---|---|
| SKU (#) | 2408140 |
| EAN Code | 4047825012746 |
| Net weight (kg) | 0.16 |
| Optical length (mm) | 53 |
| Clamping System | Screw clamps |
| T-2 Part # | 17 |
| Screw Type | 2x M4 clamping screws |
| Inner Diameter / Clear Aperture (mm) | 50,8 (2") |
| Outer Diameter | 65 |
| Inner Connection (eyepiece/-camera-sided) | ø 2" (50.8mm) |
| Outer Connection (eyepiece/-camera-sided) | S65 |
| Inner Connection (lens sided) | 2"/SCT Thread (50.8mm), M58 |
| Outer Connection (lens sided) | S65 |
| Compatible Brands | UNC, Baader Planetarium, Celestron |
| Type of Adapter | Eyepiece Clamp |
