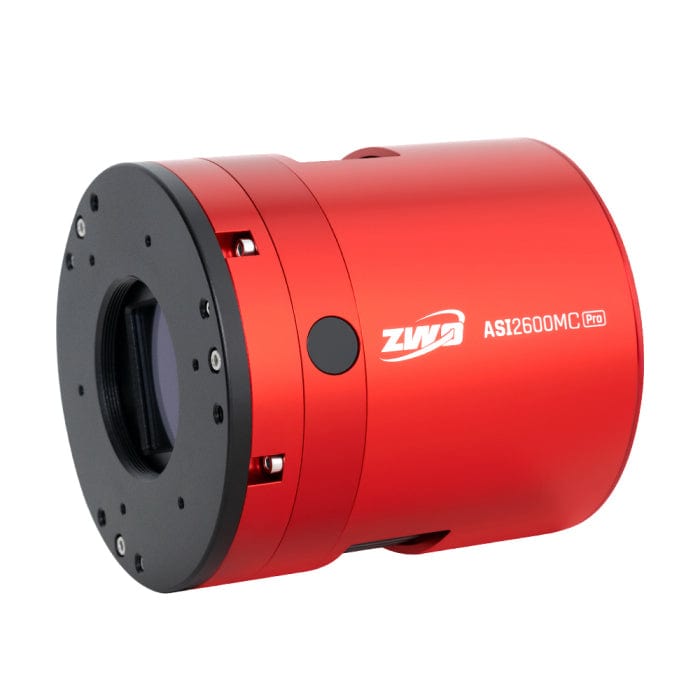

One of the most sought after one-shot color cameras gets a refresh with the ZWO ASI2600MC P25 Cooled Color Camera! If creating astrophotography brimming with detail, contrast, and clarity is your goal, then ZWO's 2600 series continues to deliver. Read on to discover how this distinguished model solidly still sets itself in contention as standout option for your modern imaging build!
ZWO's ASI2600 line is a stellar standout of the dedicated astrophotography space, owing to their ability to create finely detailed and fantastically dynamic astrophotos! The ASI2600MC P25 is ZWO's dedicated imaging entry in this remarkable series, bringing you an enhanced take on the model that started it all; with more frames per second potential and a refreshed look. This take on an APS-C imaging powerhouse sports the renowned Sony IMX571 sensor that brings you high resolution, large dynamic range, and low-noise in this crop-sensor size class. With advances in electronics design, this color sensor takes the incredible performance of the previous generation ASI2600 even further to create clearer images than ever before! Capture ethereal nebulae in enthralling detail, render the swirling splendor of galaxies in fabulous full color, and more all with this stunning camera. Supporting the incredibly capable core of this camera are ZWO's Zero Amp Glow technology, TEC cooling system, anti-dew heater, and incredible electronics experience. This incredible technology is housed in a stylish sandblasted red aluminum housing that is quickly becoming the hallmark of ZWO's cutting-edge entries in the astronomy space!

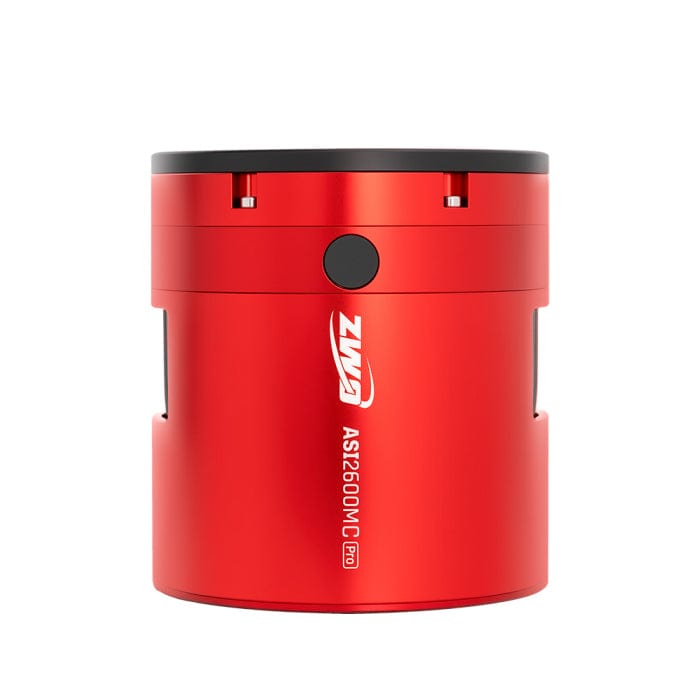

Refined Design
The body weighs just 0.7 kg（1.54 lbs）, yet delivers outstanding image performance.

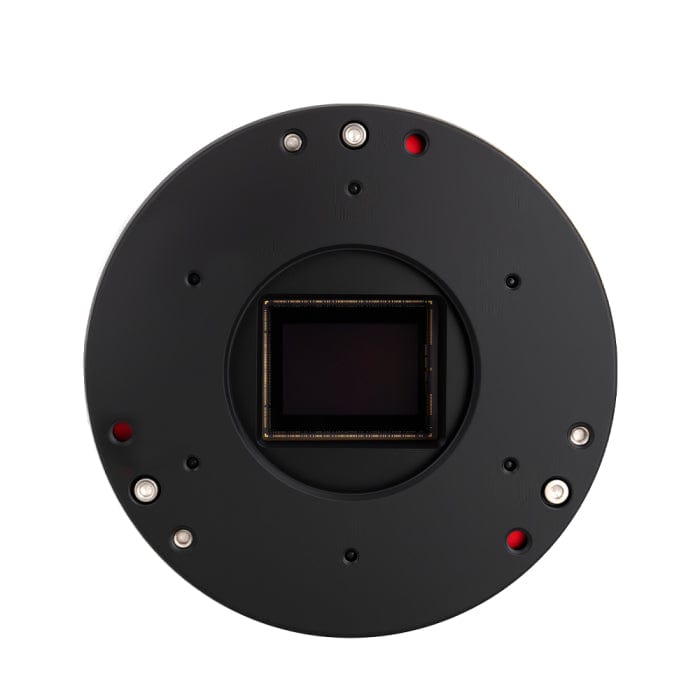

APS-C Sony IMX571 Sensor
The ASI2600MC Pro is equipped with the APS-C format Sony IMX571 sensor, measuring 23.5mm × 15.7mm with a 28.3mm diagonal. It delivers an outstanding resolution of 6248 × 4176 pixels, making it a true 26-megapixel powerhouse. Each 3.76 μm pixel offers an impressive full-well capacity of 73ke⁻, ensuring exceptional dynamic range and image quality.
Native 16bit ADC
The advanced CMOS architecture of the ASI2600 enables a true 14-stop dynamic range. This ensures exceptionally smooth tonal transitions, richer color gradients, and the ability to capture both the faintest details and the brightest highlights within a single frame.
Zero Amp Glow
As the ASI2600MC Pro uses zero amp glow circuitry, you won’t have to worry about amp glow even when using high gain, long exposure imaging.
Anti-dew
The ASI2600MC uses a built-in polyimide heater bonded to the protective window, preventing dew and frost for clear, reliable imaging all night long.

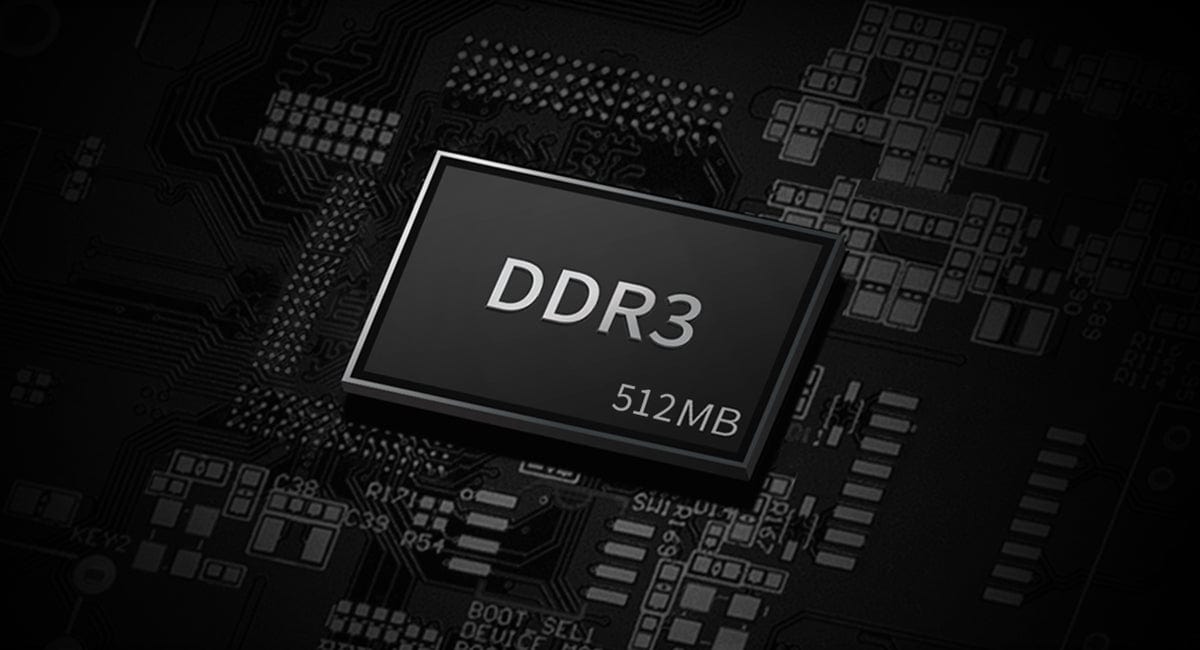

USB 3.0 & 512MB DDR3 Memory
The ASI2600MC Pro incorporates a high-speed USB 3.0 interface paired with a dedicated 512MB DDR3 memory buffer. This architecture minimizes data loss and latency, delivering fast, stable, and secure transmission even during long exposures and continuous high-resolution capture.

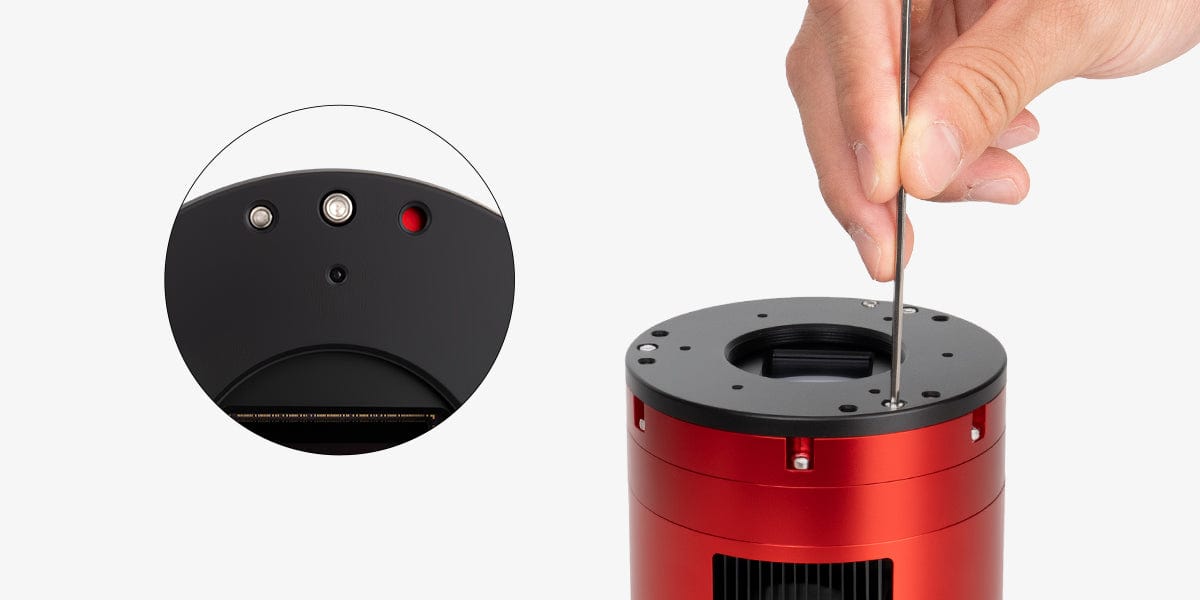

Sensor Tilt Adjustment
The camera incorporates a tilt plate with three sets of adjustment screws. In combination with the three mounting screws, they enable precise fine-tuning of the sensor plane for accurate alignment with the telescope’s optical axis, ensuring a flat imaging field and consistent star shapes across the entire frame.
Two-stage TEC cooling
Thanks to its two-stage TEC cooling system, the ASI2600MC Pro can reduce the CMOS sensor temperature by 30°C–35°C below ambient, significantly lowering dark current and sensor noise even during long exposures.
The ΔT of 35°C is measured at 30℃ ambient temperature.
Camera Performance
The ASI2600MC Pro achieves a dynamic range of up to 14 stops. When the gain setting reaches 100, the HCG (High Conversion Gain) mode is automatically enabled, which substantially reduces readout noise while preserving dynamic range. For optimal deep-sky imaging performance, a gain setting of 0 or 100 is recommended.
QE value
The QE peak value of the ASI2600MC Pro camera is 80%.
Ultra-low dark current
The ASI2600MC Pro adopts advanced dark current suppression technology. At a cooling temperature of 0 °C, the dark current is only 0.0022e⁻/s/pix, which means that even with a 5-minute (300s) exposure, the total dark current noise is just 0.7e⁻—lower than the readout noise. At –20 °C, the dark current drops further to 0.00012e⁻/s/pix, making it virtually negligible.
Appreciation Work

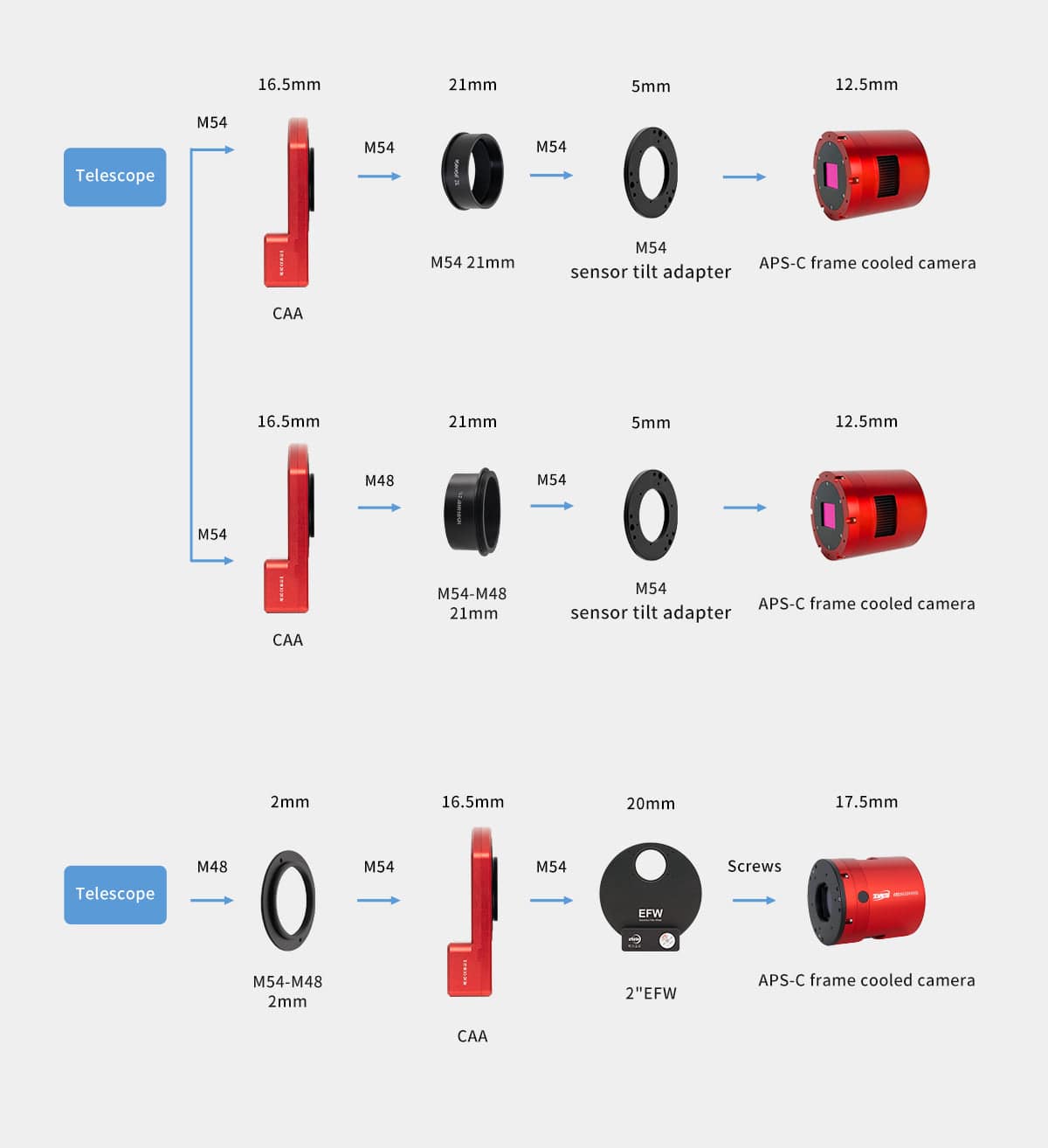

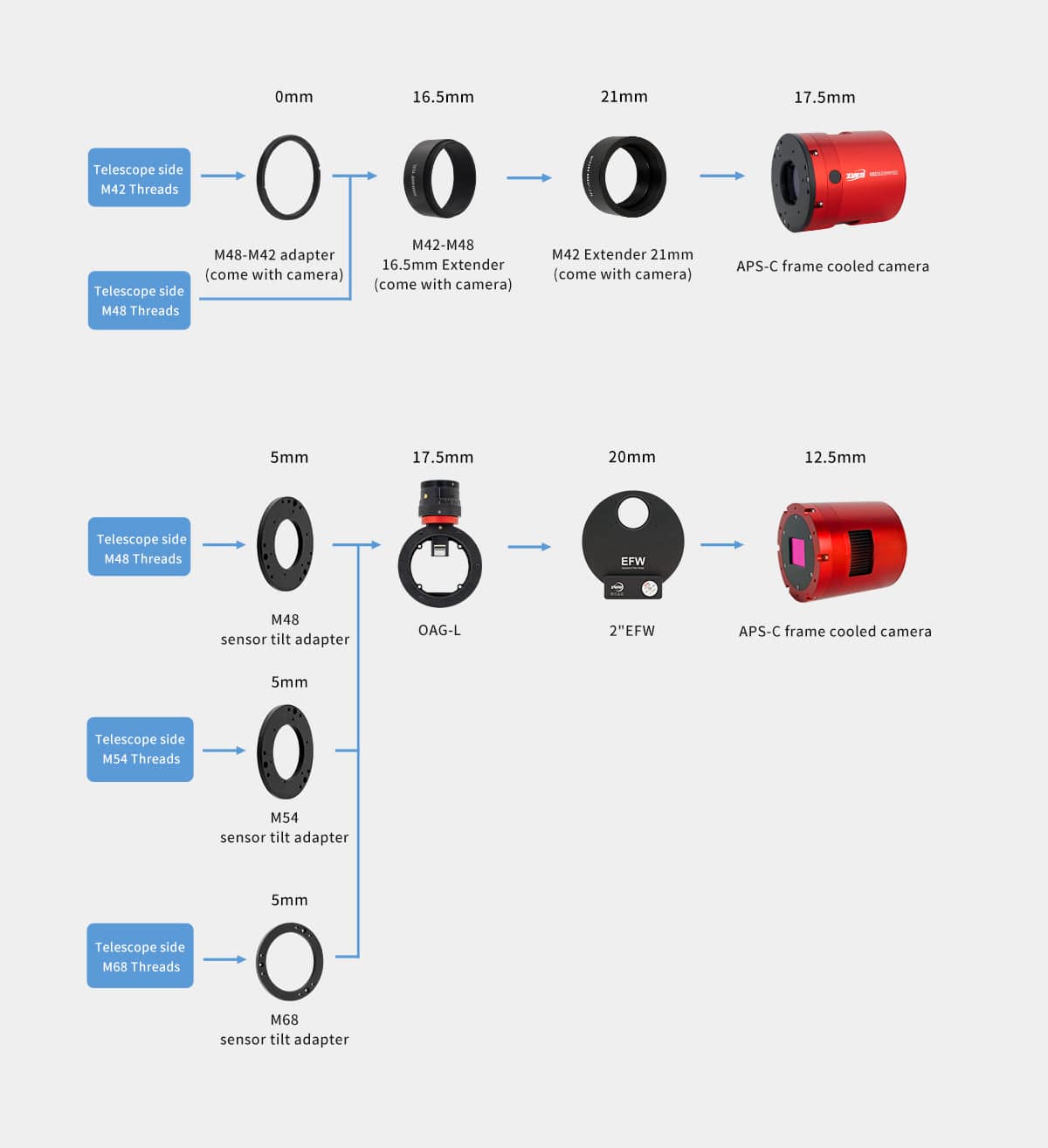

Solution of 55mm back focus distance

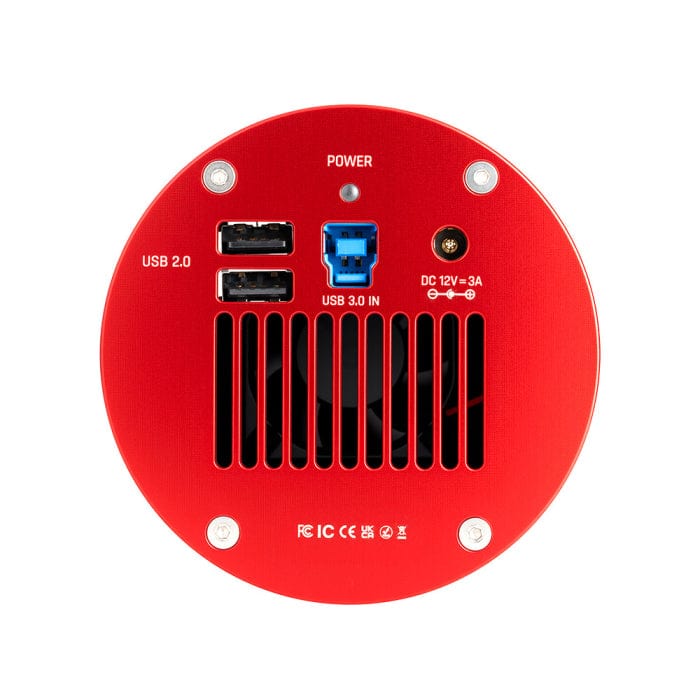

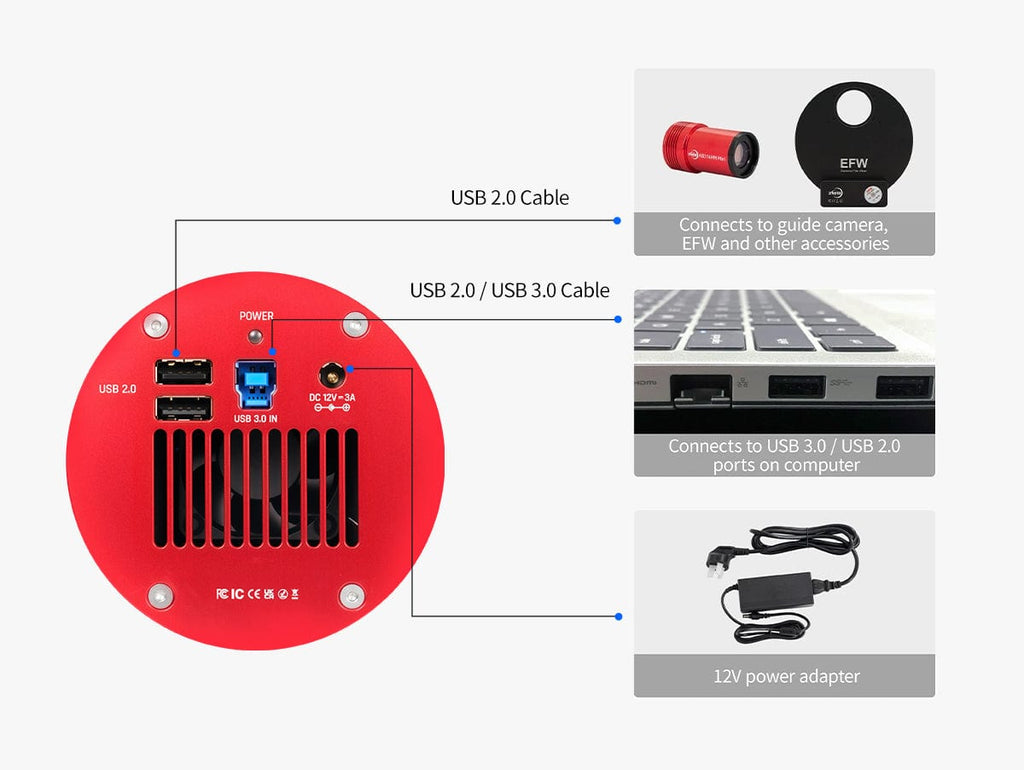

Interface for External Devices

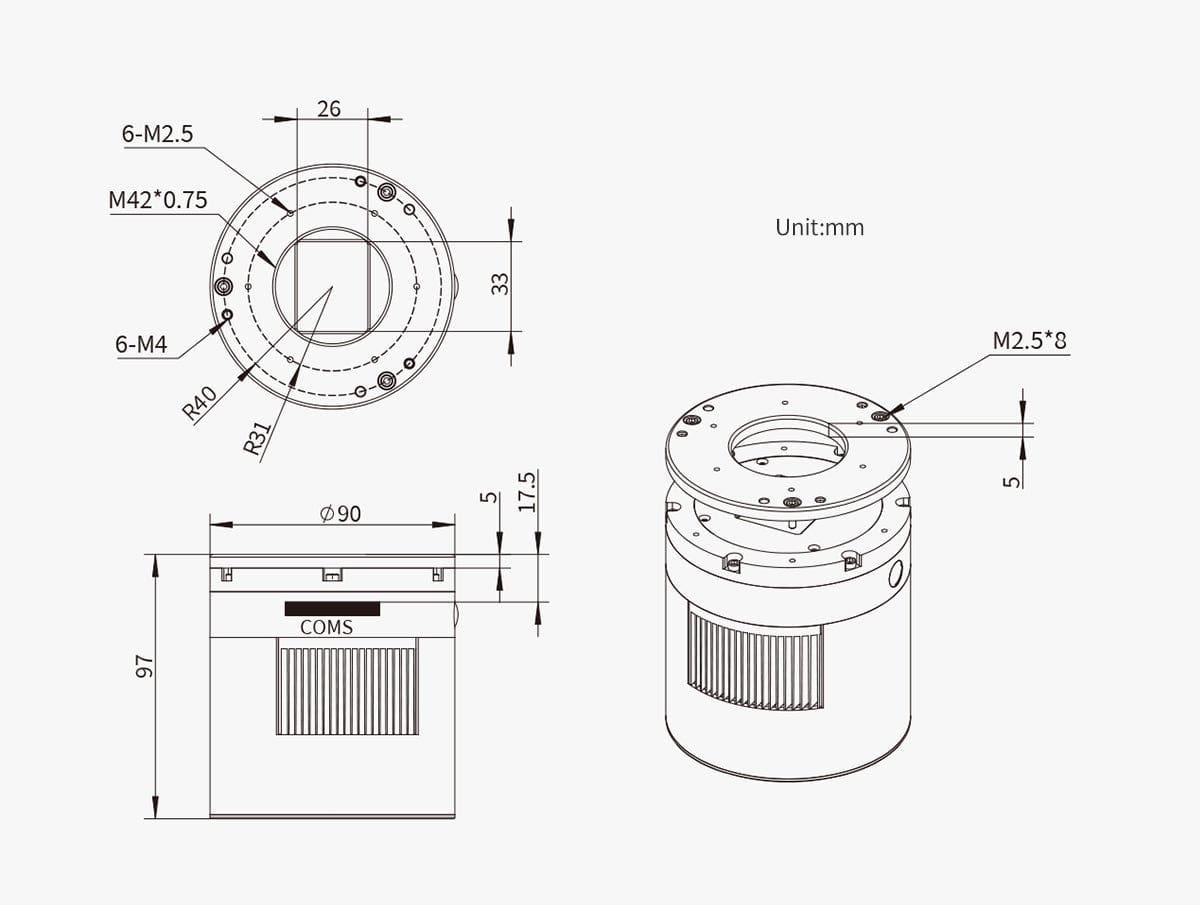

Mechanical Diagram

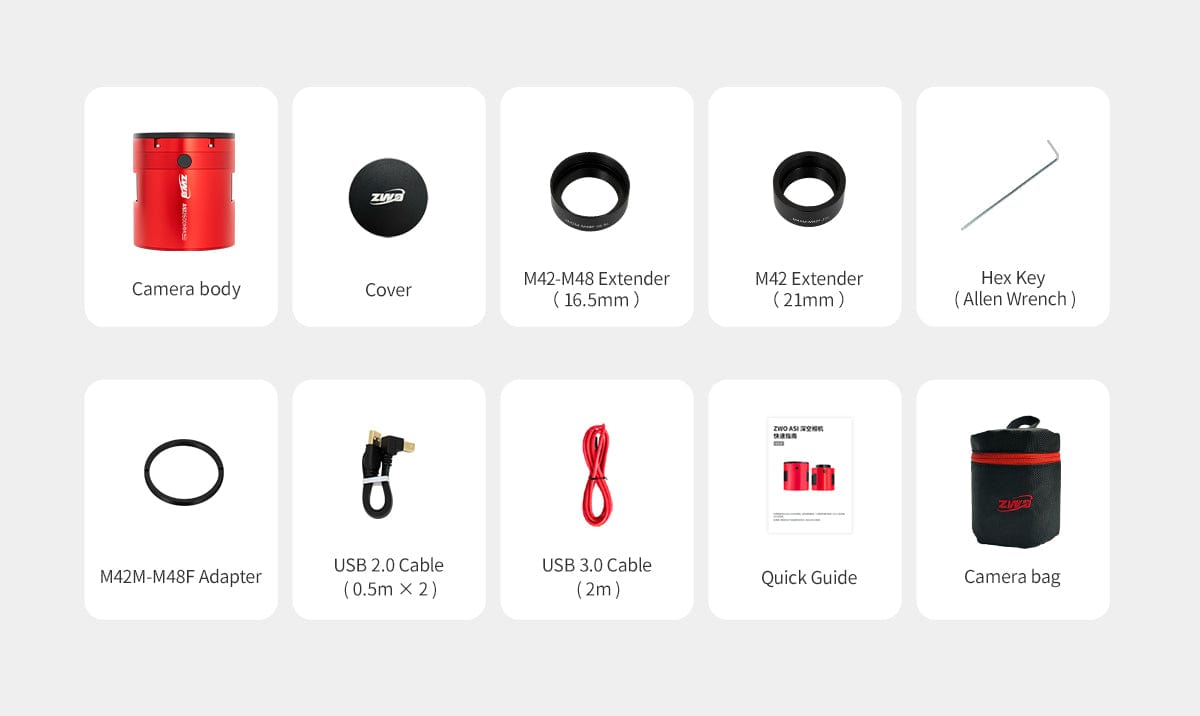

What is in the box?
