Description
- Positive image optical view: finder provides stargazers with a bright, clear image through the viewfinder for easy aiming anywhere in the sky.
- 6x30 metal star finder: SV182 star finder with 6x magnification and 30mm diameter lens collects enough light to make telescope aiming easy and fun.
- An achromatic 2-element lens design: The finder scope has fully multi-coated achromatic viewfinder optics to effectively eliminate aberrations and chromatic aberrations.

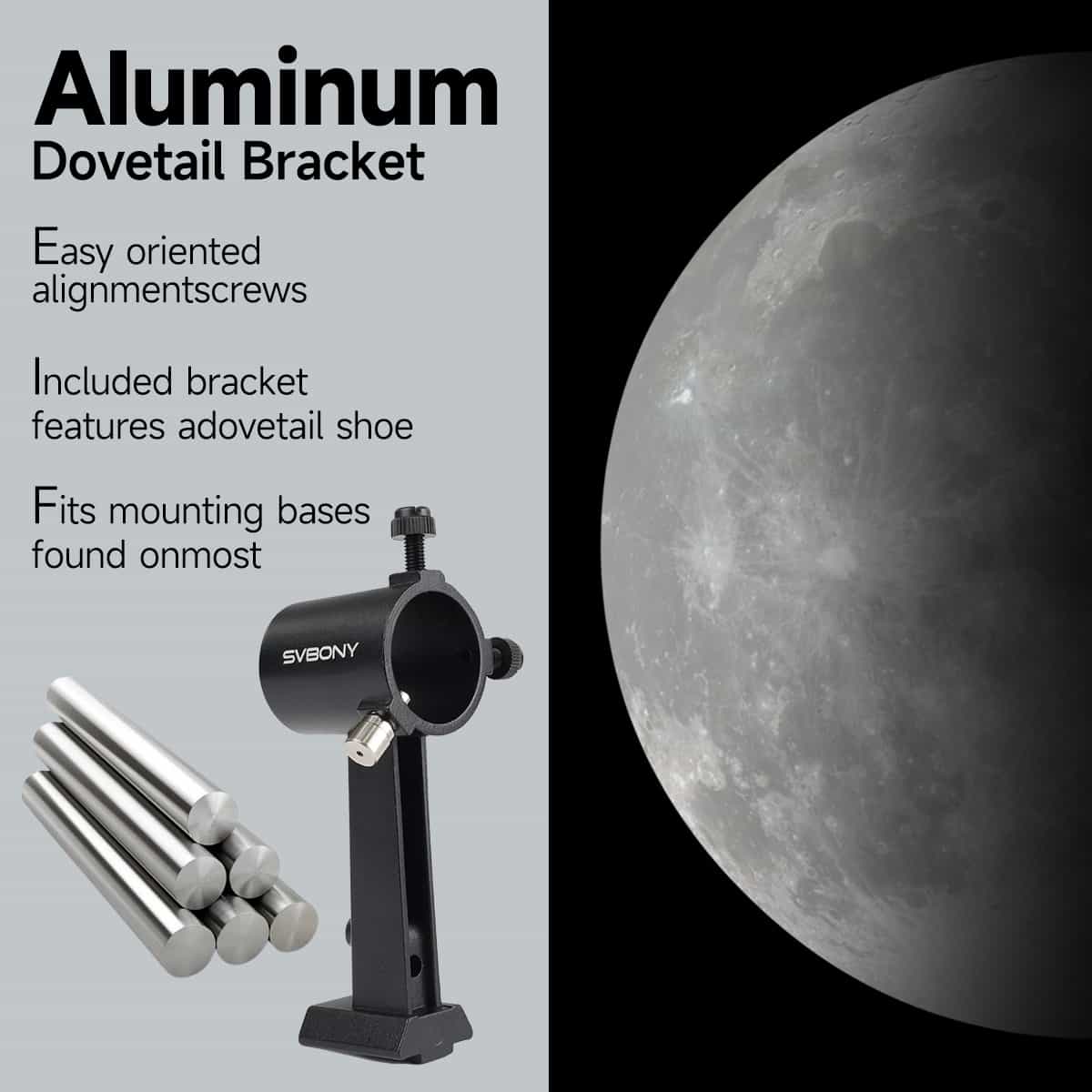

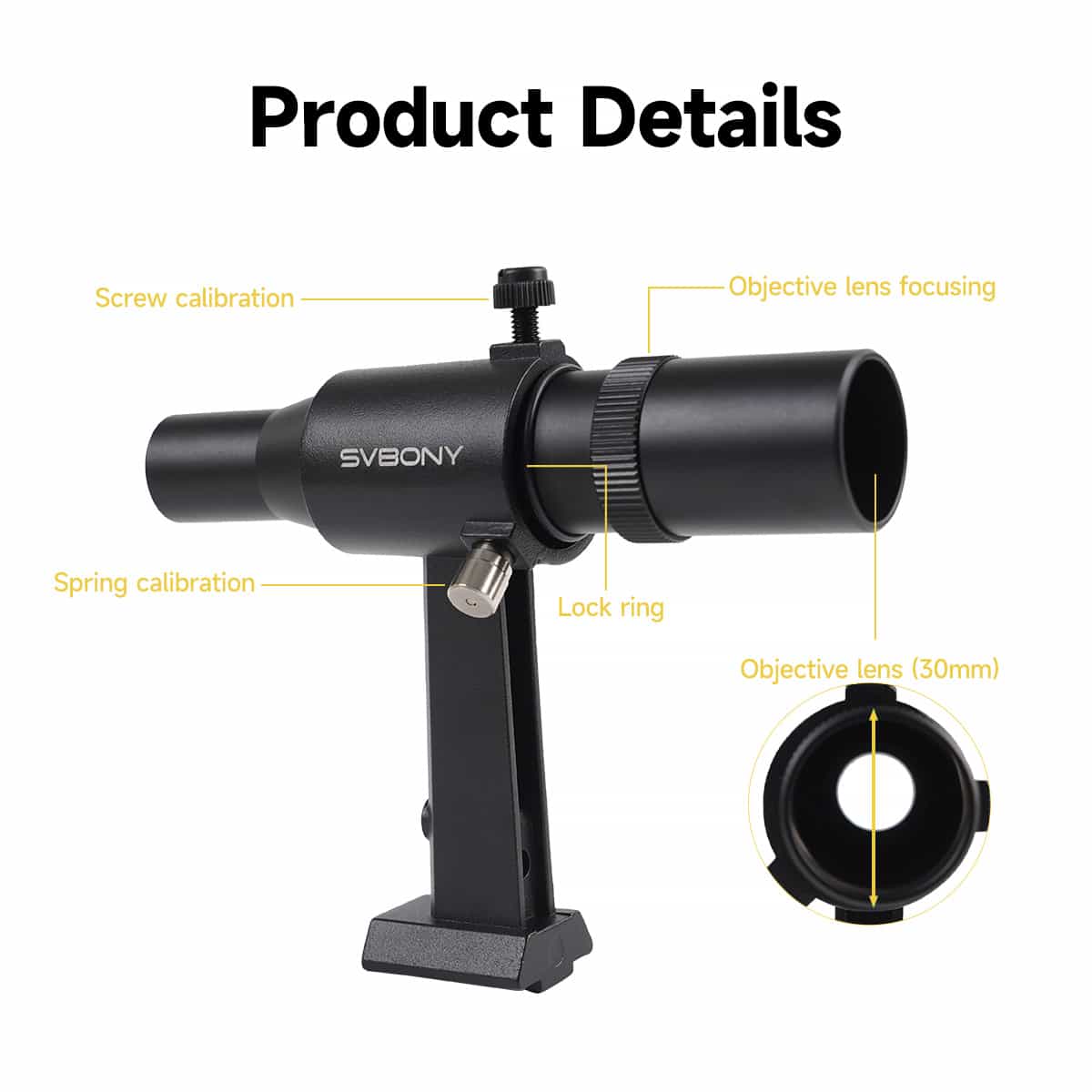

- Easy to use: with metal viewfinder bracket; 2 plastic 90 degree angle adjustment screws and a fixed spring loaded push-pull screw; only 2 screws need to be adjusted to find the target quickly.
- Internal mattebox design: the straight metal finder is fully threaded internally to minimise reflections.
- All black mount: All-in-one visual style for comfortable viewing.
| Brand | SVBONY |
| Model | SV182 |
| Type | Straight Orthophoto Stargazer |
| Lens Diameter | 30mm |
| Focal Length | 120mm |
| Magnification | 6x |
| Eye Relief | 15mm |
| Exit Pupil | 5mm |

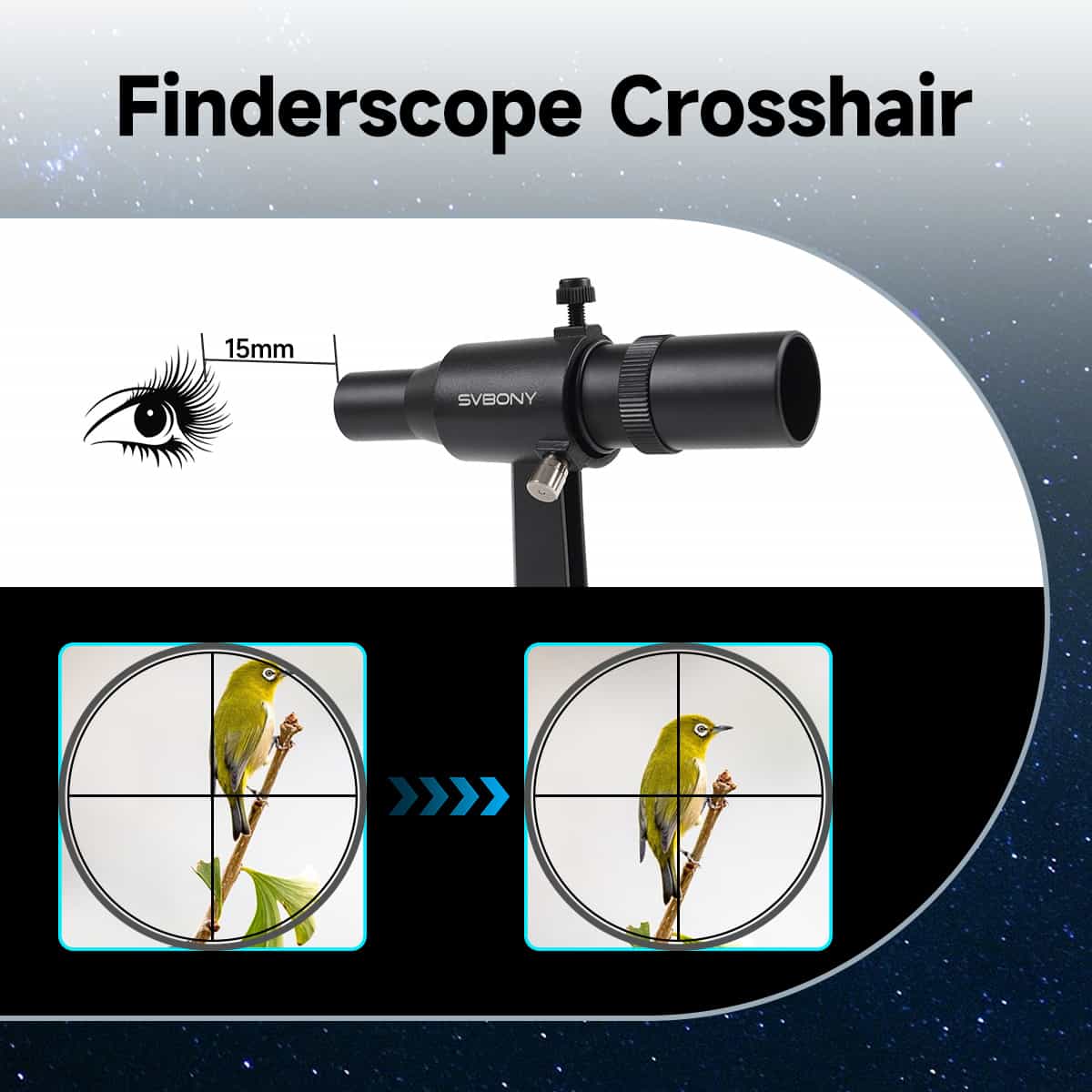

| Scribing Plate Type | Brass crosshair |
| Mounting Bracket Type | X-Y spring type |
| True field of view | 7.5° |
| Lens coating | FMC |
| Objective structure | 2-Elements/1 Groups |
| Matting Process | Blackened edges |
| Image Orientation | Correct-image |
| Reticle type | Brass crosshairs |
| Mounting bracket type | X-Y spring type |
| Focusing method | Objective thread focusing |
| Observation angle | Straight-through view |
| Imaging Type | Up and down, left and right orthophoto |
| Blackened lens edges | Yes |
| IIIuminated | No |
| Adjustable focus | Yes |
| Net Weight | 295g / 0.651b / 10.41oz |
