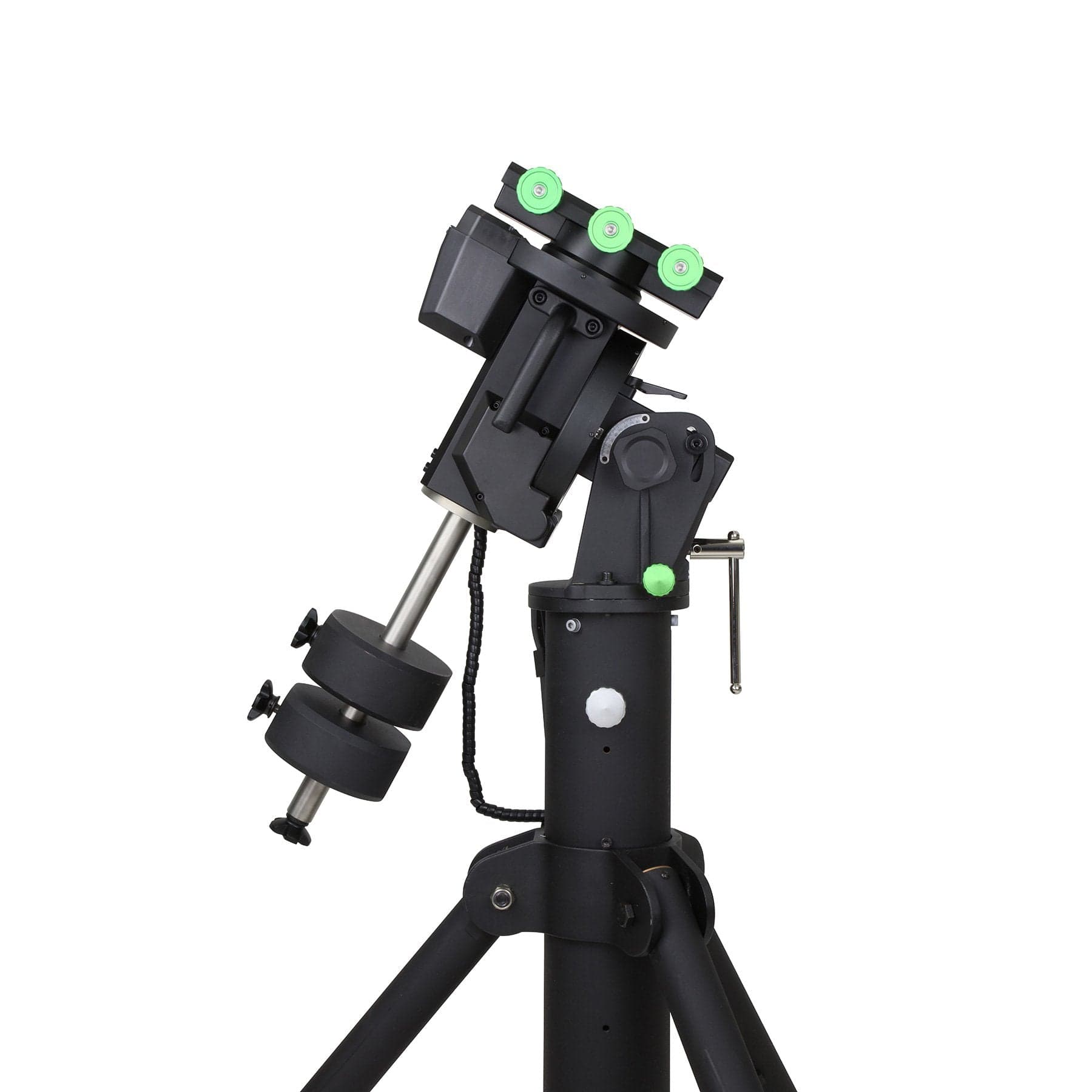

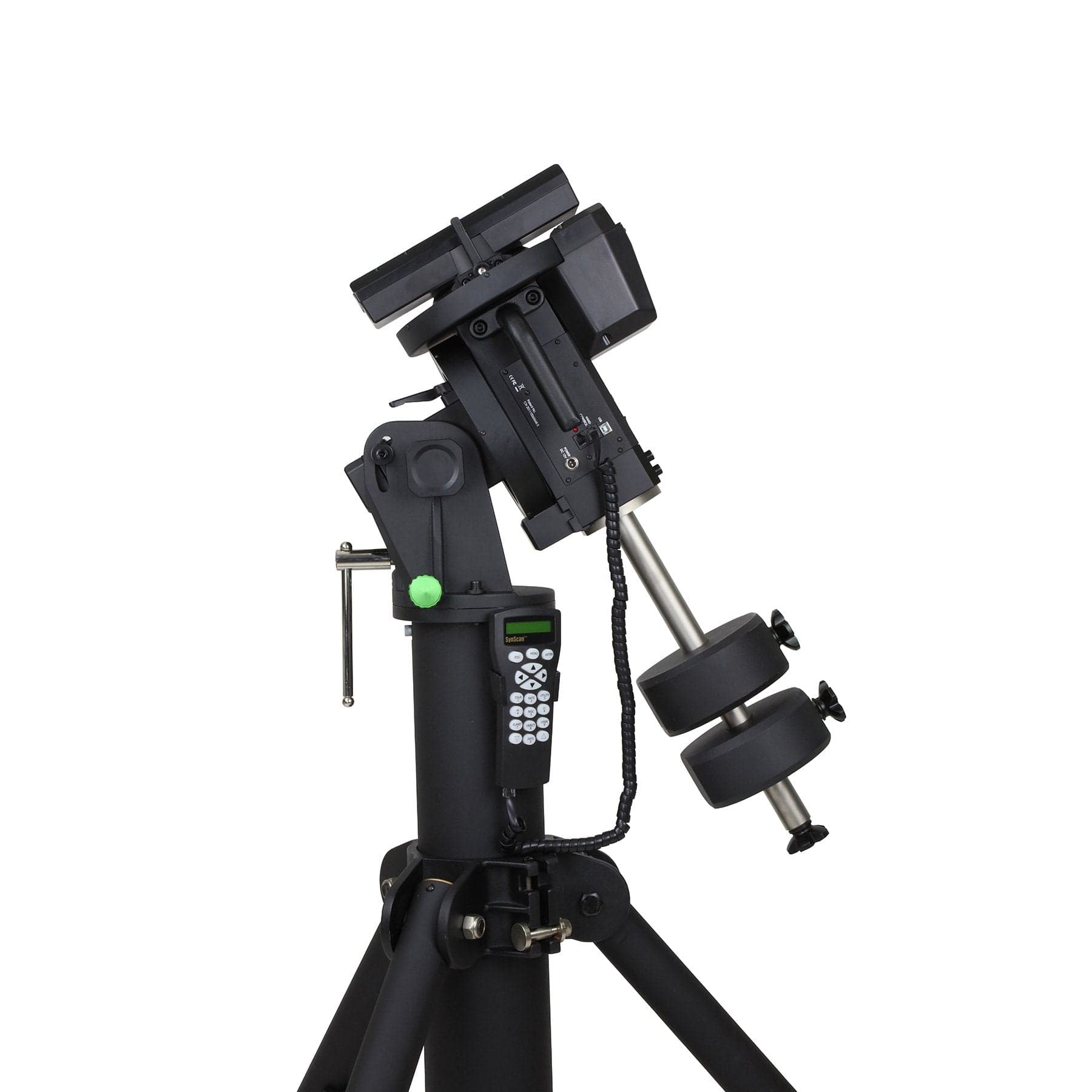

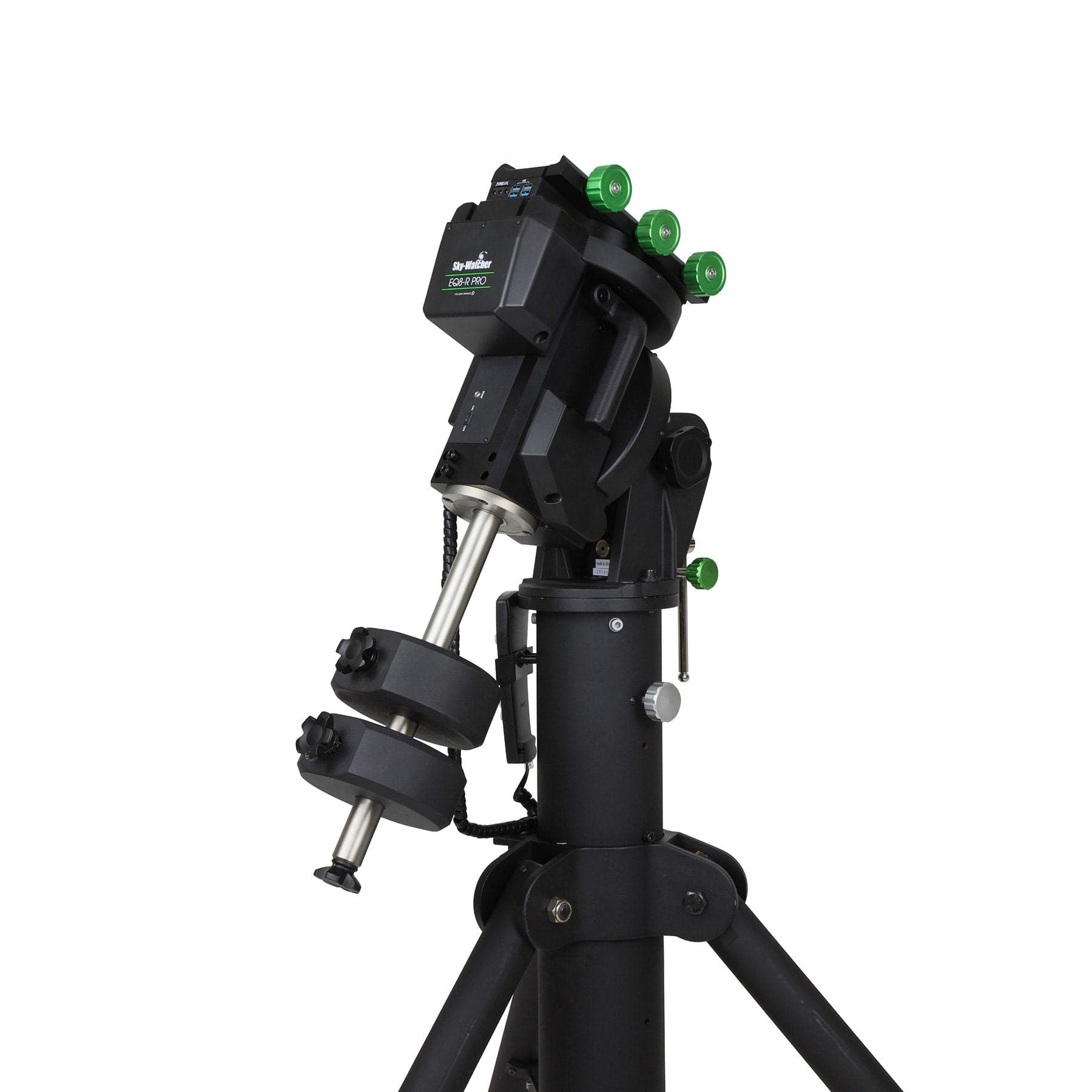

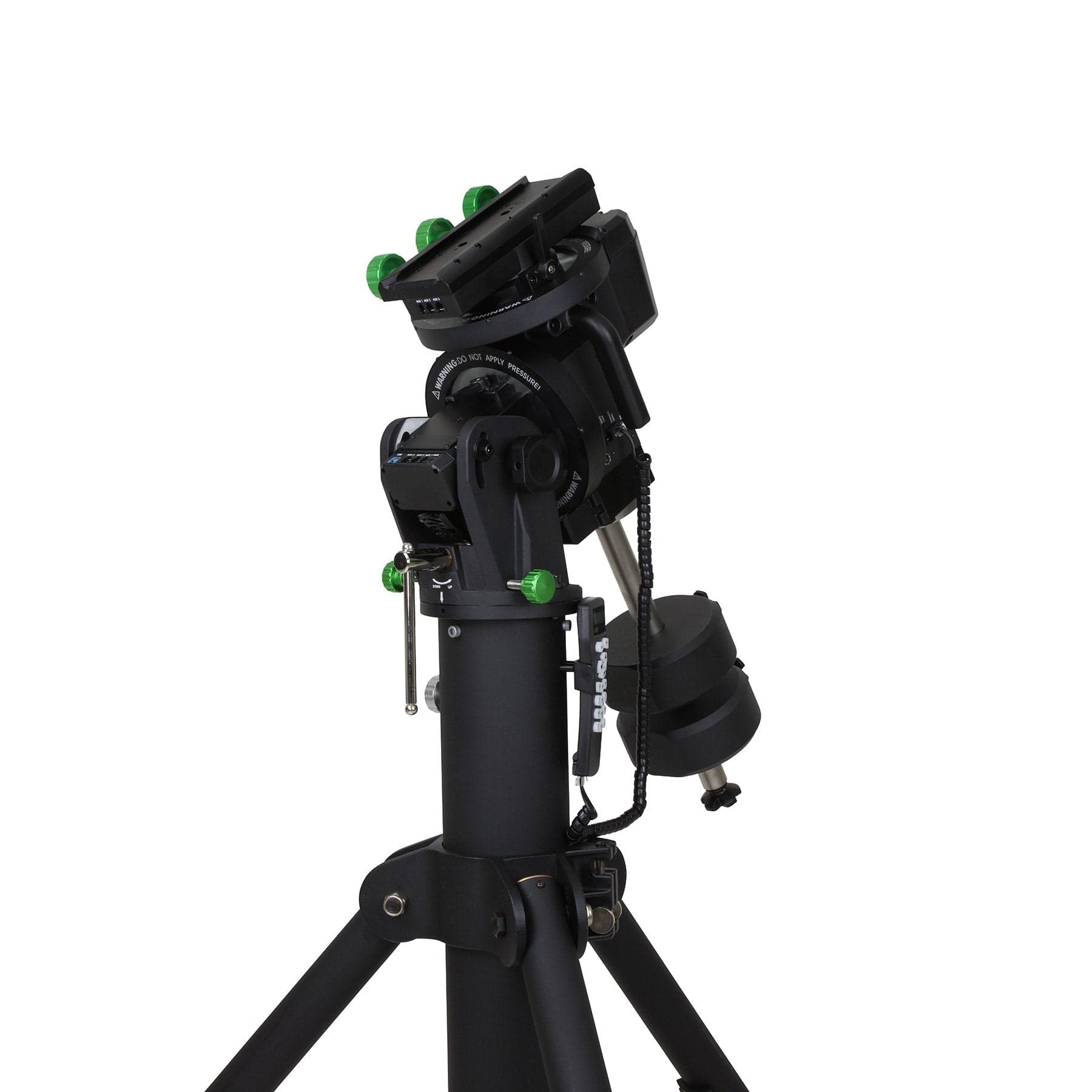

Sky-Watcher EQ8-R Mount Head Only (S30600) with Counterweights (S30610x2)

Save $950
Sky-WatcherSKU: S30612
Price:
$6,210 CAD $7,160 CAD
Stock:
In stock: 3 units - Most orders placed by 2PM EST will be shipped out the same day (weekdays)
Description
110-pound (50 kg) Payload

All-metal precision internal construction makes this mount strong and stable. The EQ8-R is a perfect fit for even the largest OTAs Sky-Watcher has to offer.

Belt-drive On Both Axes

Belt drives provide minimal backlash and significantly reduced periodic error, which mean smoother, more accurate tracking.

Integrated Cable Management System

Built-in USB 3.0, power, and serial ports eliminate cable drag and reduces the worry of cable snags

Pier Tripod NOT included



Building on the legacy of Sky-Watcher's popular EQ8 mount, the EQ8-R introduces a variety of upgrades and enhancements that make observatory-class astrophotography easier than ever.

Whisper-quiet dual belt drives greatly reduce Periodic Error while providing enhanced tracking and guiding. The fully realized cable management system eliminates cable drag and makes remote set-ups ridiculously convenient.

EQ8-R and EQ8-RH optional polar scope

The EQ8-R has an available optional polar scope available, making polar alignment quick and easy

Includes four USB 3.0 ports, three 2.1mm power ports, and three serial ports

Cable management features four USB 3.0 ports, three 2.1mm power ports and three serial ports

Rock-solid, all-metal construction

Rock-solid, all-metal construction delivers a staggering 110 pounds of payload capacity







Specifications
SKU S30612
UPC 050234306126
General Mount Info
Mount Type High-capacity motorized equatorial (EQ)
GoTo Yes
Payload Capacity (lbs) 110
Mount Head Height (head by itself) 19.5"
Mount Head Weight (lbs) 56.8"
Mounting Saddle Type D-style
Power Type DC11~16V, 3 amp
Cable management Four USB 3.0 ports, Three 2.1mm power ports, Three serial connections
Polar Scope Sold seperately
Latitude Range (degrees) 10° to 65°
Computer/Drive System Info
Object Database Complete Messier, NGC, IC and SAO catalogs, 25 user defined objects, total 42,900 objects
Controller SynScan hand controller, flash upgradeable, or PC direct
Alignment Procedures One-, two- and three-star alignment
Slew Speeds 1000x, 800x, 600x, 400x, 200x, 32x, 16x, 8x, 2x, 1x
WiFi Optional WiFi dongle
GPS Optional SynScan GPS sold seperately
PC Direct Connect Port Yes
Included Weights 22lbs (two)
Motor Type 0.9° hybrid stepper motor
Drive System Belt
Shipping Weights & Dimensions
