Pegasus Astro 12V 10A Heavy Duty Power Supply

5 In Stock - Ships Today if Ordered by 2pm EDT! (Mon - Fri)
Accessory
Pegasus Astro
PEG-PSU-21
$85 CAD

We will price-match in-stock Canadian astronomy dealer pricing


Ask a Question About This Product

Pegasus Astro's sealed and certified switching power supply unit is the perfect match for our Pegasus Astro Products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a power cord (1.8m) for your country type.

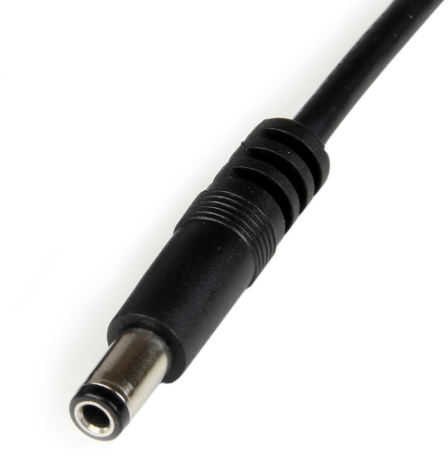

Please note: There are three (3) types of DC Cords (Choose wisely!):

  • 2.5mm is for the Ultimate Powerbox / DewMaster
  • XT60 is for the Ultimate Powerbox v2
  • 2.1mm is for Pocket Powerbox/Pocket Powerbox Advance, and any other Pegasus Products.  2.1mm is a common size for many astronomy-related products.

  • XT60


    2.1mm



    2.5mm




    Protection

    • Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
    • Over Voltage: The power supply will be auto-recovered when faults remove
    • Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
    • No Load protection: The power supply is provided with no load operation to prevent the power supply and system from damage.
    • Protection class I, (ITU-T K.21 Surge 6KV on request)

    Certifications

    Note: Power Cords shipped will be assumed to be USA/Canadian format unless specially requested



  • Output Voltage: 12V
  • Loading: 0-10 Amps
  • Max. Power : 120 Watt
  • Input Voltage Range: 90-264V, Connector Size: 5.5 * 2.1mm or 5.5 * 2.5mm
  • Frequency: (47-63)Hz
  • Cord Length: 150cm / 5 feet
  • Regulated Output With Low Ripple Noise
  • Sealed / Protected Enclosure (humidity / dust cannot enter)
  • Safety Agency Requirements and EMI/EMS Certified
  • Efficiency level (ErP) : VI
  • CE and FCC certificate acquired
  • Dimensions: 169 x 61 x 39 [mm]
  • Questions & Answers

    • Which size connector for the HEQ5?

      The HEQ5 requires a 2.1mm power connector, 5.5mm long and positive tip.  This is the most common power connector for astronomy equipment.
