Description
Introducing the AZ Mount Pro featuring "level and go" intuitive GOTO setup
We call it "level and go", the term used to describe iOptron new AZ Mount Pro's simple set up routing. Using its built-in precision level indicator, the operator simply levels the mount and turns on the power; this capable computerized alt-azimuth telescope mount takes it from there. Utilizing the on board 32 channel GPS receiver and built-in position and angular detection sensors; the AZ mount Pro calculates its global position as well as the telescope orientation. Automatically the mount slews the instrument to an easily identifiable bright object in the night sky. The user need only confirm a bright object is in the center of the view, to activate tracking and GOTO functionality.
AZMP and Tri-pier package comes with:
- AZ Mount Head (#8920)

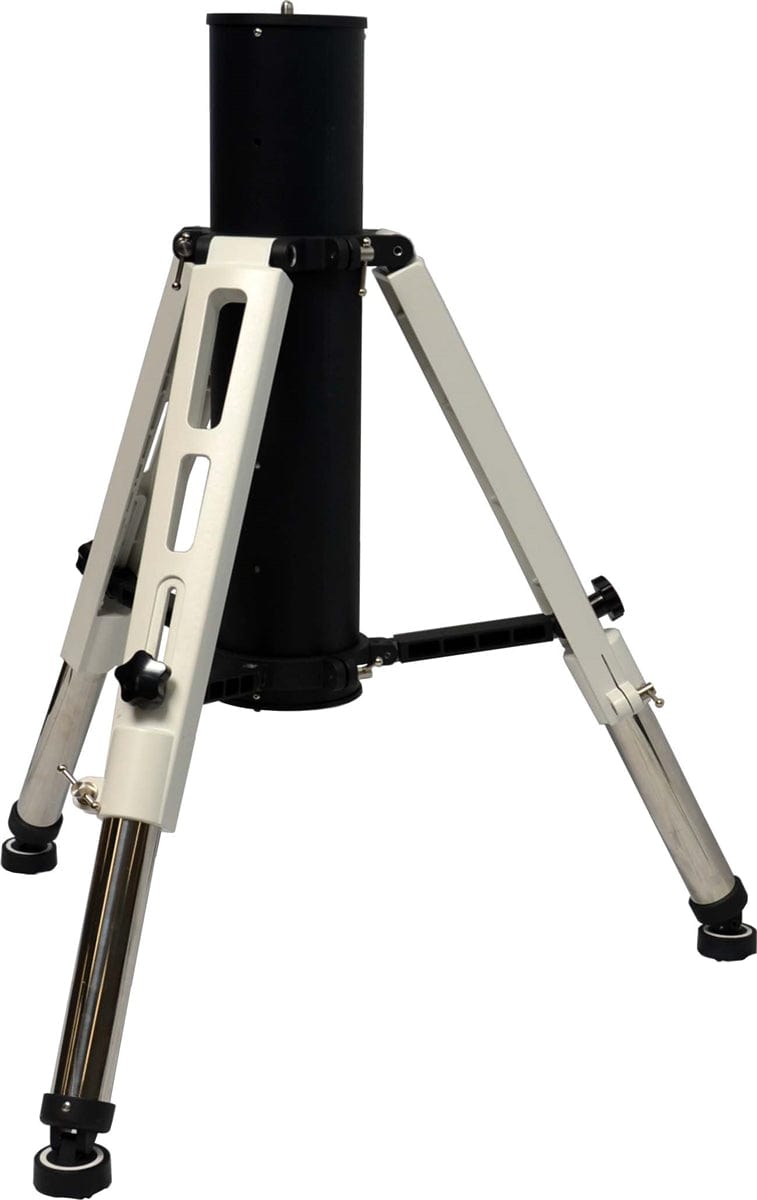

- Tri-pier (#8034)
- 10 lbs counterweight (#3006-10)
- Star knobs with center post (#8340-PIER)
AZ Mount Pro Manual:
Quick Start Guide (updated June 2016)
Instruction Manual (updated June 2016)
Firmware:
Download Latest Firmware (12/17/2021 Satellite Tracking ready NOW )
iOptron Telescope ASCOM Driver:
Install ASCOM Driver and Commander
Quick Start Guide (updated June 2016)
Instruction Manual (updated June 2016)
Firmware:
Download Latest Firmware (12/17/2021 Satellite Tracking ready NOW )
iOptron Telescope ASCOM Driver:
Install ASCOM Driver and Commander
Specifications
| Mount | AltAzimuth Mount |
| Body Materials | Die-cast Aluminum |
| System | GoToNova® |
| Primary Payload | 33 lb |
| Secondary Payload | 10 lb |
| Mount Weight | 13 lb (including CW shaft and battery) |
| Gear | Aluminum worm wheel/Brass worm gear |
| Motor | 128X microstep stepper motor |
| Transmission | Sychronous belt |
| Resolution | 0.1 arc second |
| Tracking | Automatic |
| Tracking Rate | celestial, solar, lunar and user defined |
| Hand controller | Go2Nova® 8407 with over 212,000 object database |
| Slew Speed | 1x, 2×,8×,16x, 64×,128x, 256×,512x and MAX(~10º/sec, 2400X) |
| GPS | 32-channel GPS |
| Sensors | Position and angular detection |
| Level indicator | Yes |
| Dovetail Saddle | 6" Losmandy/Vixen dual saddle Optional secondary Vixen saddle |
| Counterweight | 10 lb |
| Battery | Built-in rechargeable Li-ion battery (11.1V, 4.4AH) |
| Battery Running Time | 10 hour at 20ºC |
| Battery Charger | 100-240V AC input /12.6V DC 2000mA output (Included) |
| Wireless Control | Yes, full control via built-in WIFI adapter |
| Firmware Upgrade | Yes, via serial port |
| Computer Control | Yes. PC via ASCOM and Mac/Tablet/SmartPhone via WIFI |
| Tripod/Pier | iOptron Tri-pier |
| Warranty | Two year limited warranty for mount 90 day limited for battery |
