Baader Pan 3 "/ EQ Dual clamp 230mm (for Losmandy and Vixen-standard) - 2451566

Baader PlanetariumSKU: 2451566
Price:
$426 CAD
Stock:
Only 1 unit left
Description

Highlights

  • Clamps all 3" (Losmandy) and EQ- (Vixen/Celestron/Sky-Watcher) dovetails - minimum dovetail length 190mm
  • It is equipped with all the known fastening holes to be screwed on all mounts and all clamps of the known brand manufacturers.
  • Length: 230mm, Max. Width: 153mm Weight: 1150g
  • Optimized shape for as many contact points of the dovetail rail - thus a perfect grip

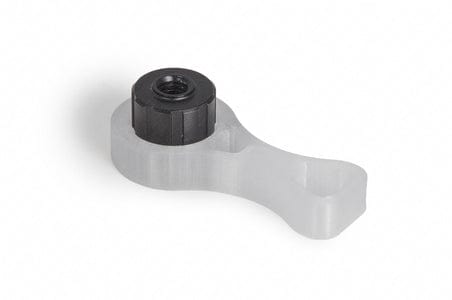

  • 3D-printed ring wrench for Baader clamping knobs #2450071 is recommended
 Pan 3" / EQ Clamp 230mm - Dual mounting

Specifications

Manufacturer Baader Planetarium
EAN Code 4.04783E+12
SKU (#) 2451566
Weight (kg) 0.807
Bar length 230 mm
Clamping System Dovetail clamp
Dual mounting Yes
Bar or Clamp? Clamp
Design 3" (76mm) Losmandy, V (44mm) Celestron/Vixen
Thread Drillings for 10Micron, Astro Physics, Baader GuideScope Rings, Baader Stronghold, Celestron C8, Celestron C9¼, Takahashi, Vixen
